Automatic loader KHG-230

Purpose :
The automatic loader KHG-230 is used for automatic loading of workpieces on drilling machines of the through-type type. At the beginning, the blank package is automatically placed in the loader. Further, the system with vacuum suction cups alternately removes one package of blanks and moves it to the second module with roller and belt conveyors. Simultaneously with the movement of the workpieces with vacuum suction cups, the first module raises the stack of workpieces to the required height, preparing the next package for unloading. The rollers perform the function of aligning the workpieces along the stop ruler. After alignment, belt conveyors lift the workpieces over the rollers and transport them to the machine. Scheme of drilling line Design advantages Independent control cabinet with touch screen, independent PLC controller and frequency controller. The double vacuum gripper allows you to grip multiple workpieces at once. Roller table with metal rollers and chain lifting/lowering system. High-quality transport rollers provide stable operation, have a rubberized surface.

• Description
• Specifications

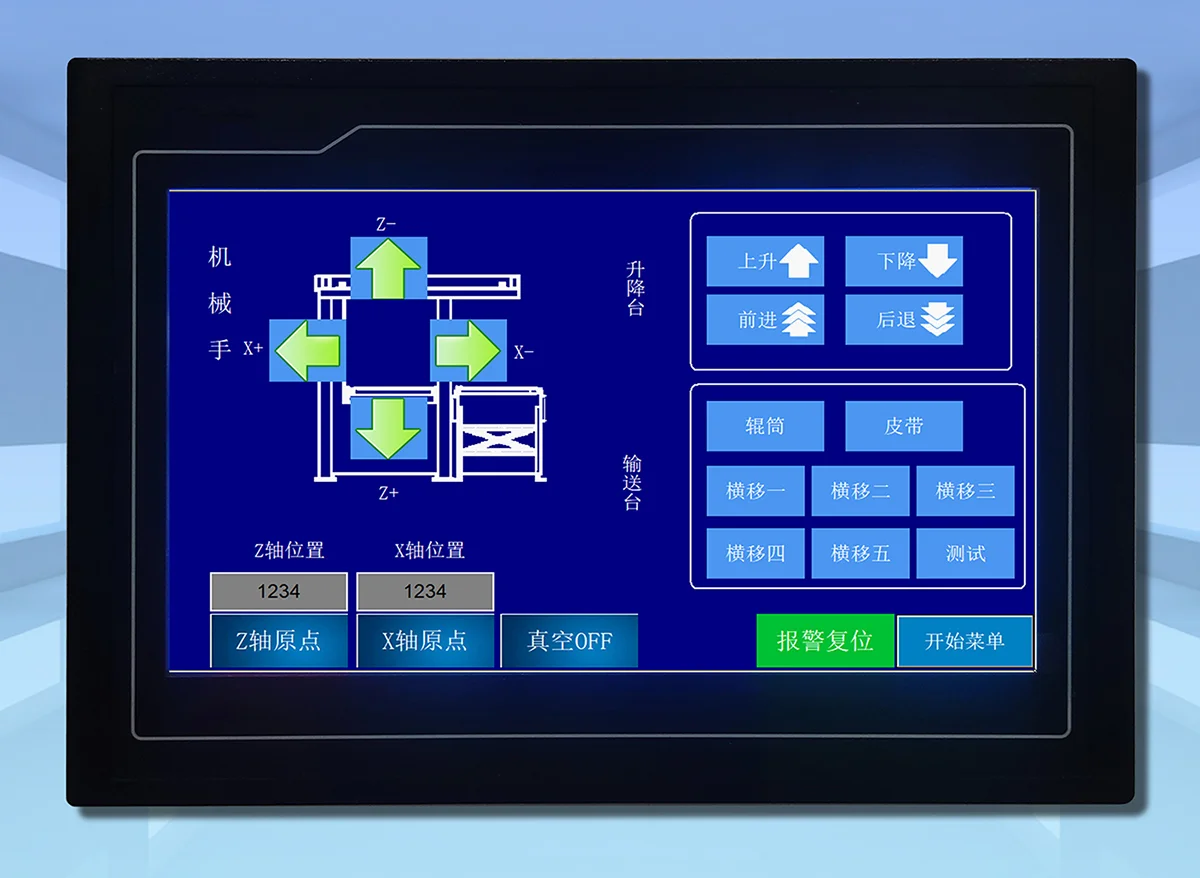

Remote Control - Independent control cabinet with touch screen, independent PLC controller and frequency controller .

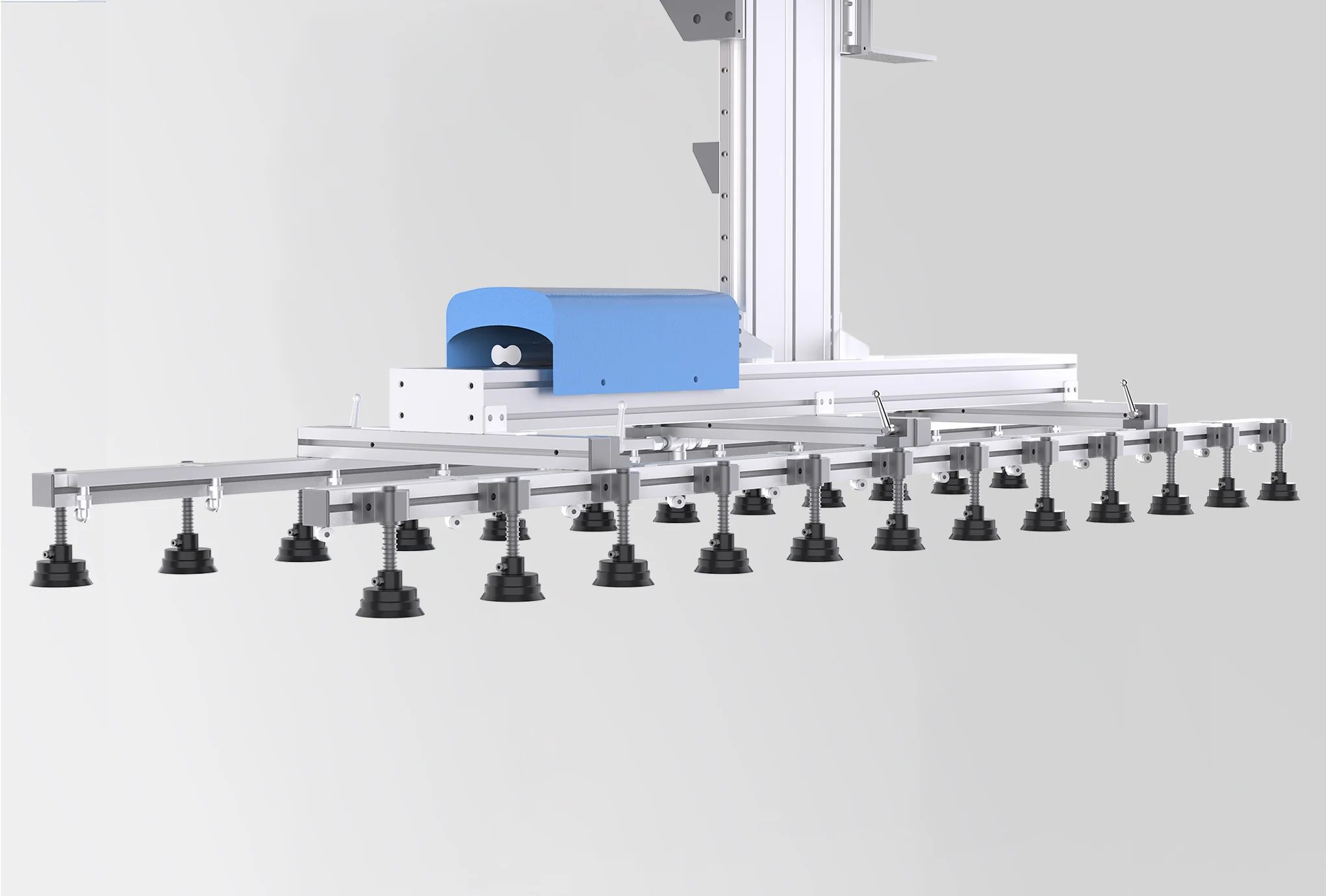

vacuum workpiece grabber - The double vacuum gripper allows you to grip multiple workpieces at once .

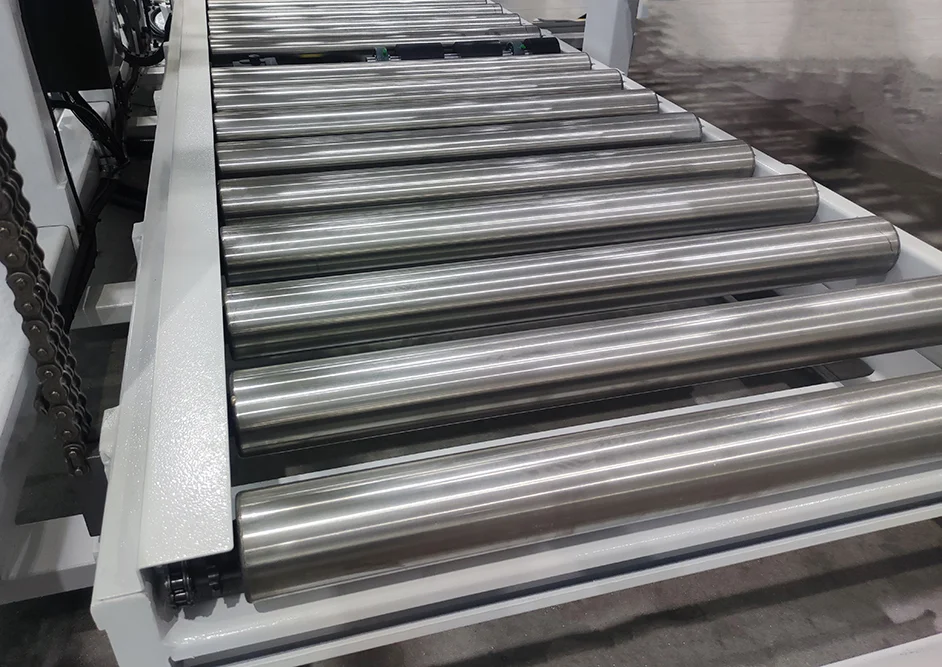

roller table - Roller table with metal rollers and chain lifting/lowering system .

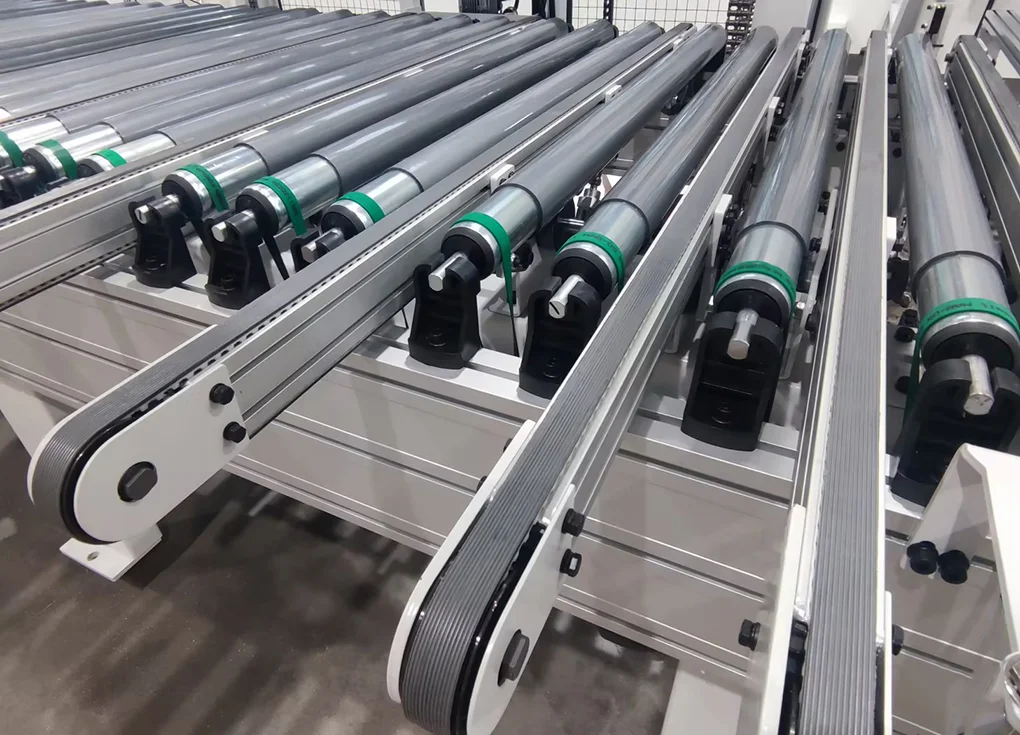

rollers - High-quality transport rollers provide stable operation, have a rubberized surface .

Technical Specifications

Feed speed, m/min	12
Frequency of loading and unloading, times / min	12
Minimum panel size, mm	300x300
Maximum panel size, mm	2400x800
Panel thickness, mm	10-60
Panel length, mm	300-2400
Panel width, mm	300-800
Desktop size, mm	2400x800
Desktop height, mm	950
Power, kWt	8.1
Maximum load, kg	1500
