Technical Specifications
| Feed speed, m/min | 12 |
| Frequency of loading and unloading, times / min | 12 |
| Minimum panel size, mm | 300x300 |
| Maximum panel size, mm | 2400x800 |
| Panel thickness, mm | 10-60 |
| Panel length, mm | 300-2400 |
| Panel width, mm | 300-800 |
| Desktop size, mm | 2400x800 |
| Desktop height, mm | 950 |
| Power, kWt | 8.1 |
| Maximum load, kg | 1500 |

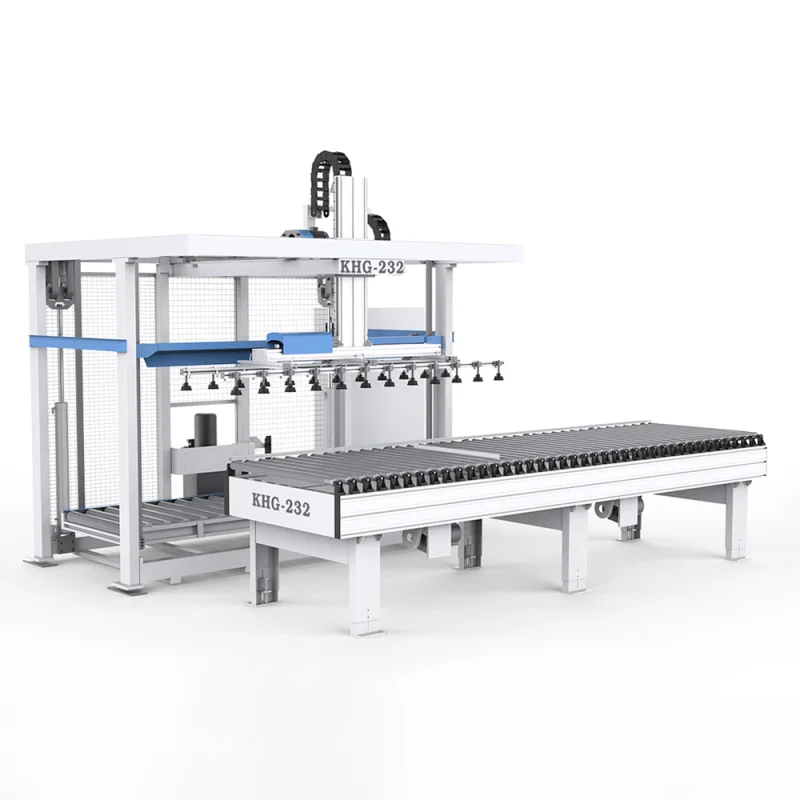

Automatic loader KHG-232
Purpose :
The KHG-232 automatic loader is used for automatic loading of workpieces on feed-through edge banding machines and NC drilling centers. At the beginning, the blank package is automatically placed in the loader. Next, the system with vacuum suction cups alternately removes one package of blanks and moves it to the second module with roller conveyors. Simultaneously with the movement of the workpieces with vacuum suction cups, the first module raises the stack of workpieces to the required height, preparing the next package for loading. The rollers perform the function of aligning the workpieces along the stop ruler. Production line examples Design advantages Independent control cabinet with touch screen, independent PLC controller and frequency controller. The double vacuum gripper allows you to grip multiple workpieces at once. Roller table with metal rollers and chain lifting/lowering system. High-quality transport rollers provide stable operation, have a rubberized surface.
Additional Images

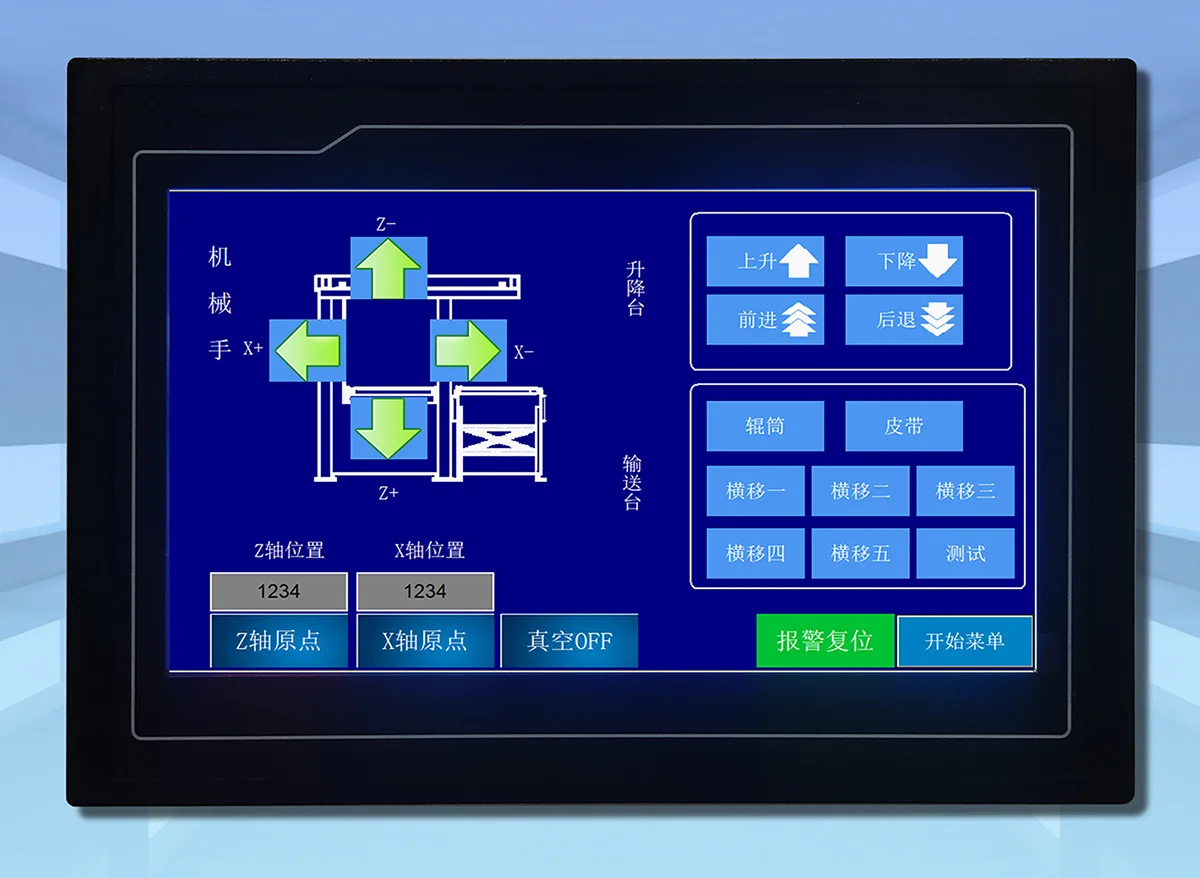

Remote Control - Independent control cabinet with touch screen, independent PLC controller and frequency controller.
vacuum workpiece grabber - The double vacuum gripper allows you to grip multiple workpieces at once.
roller table - Roller table with metal rollers and chain lifting/lowering system.

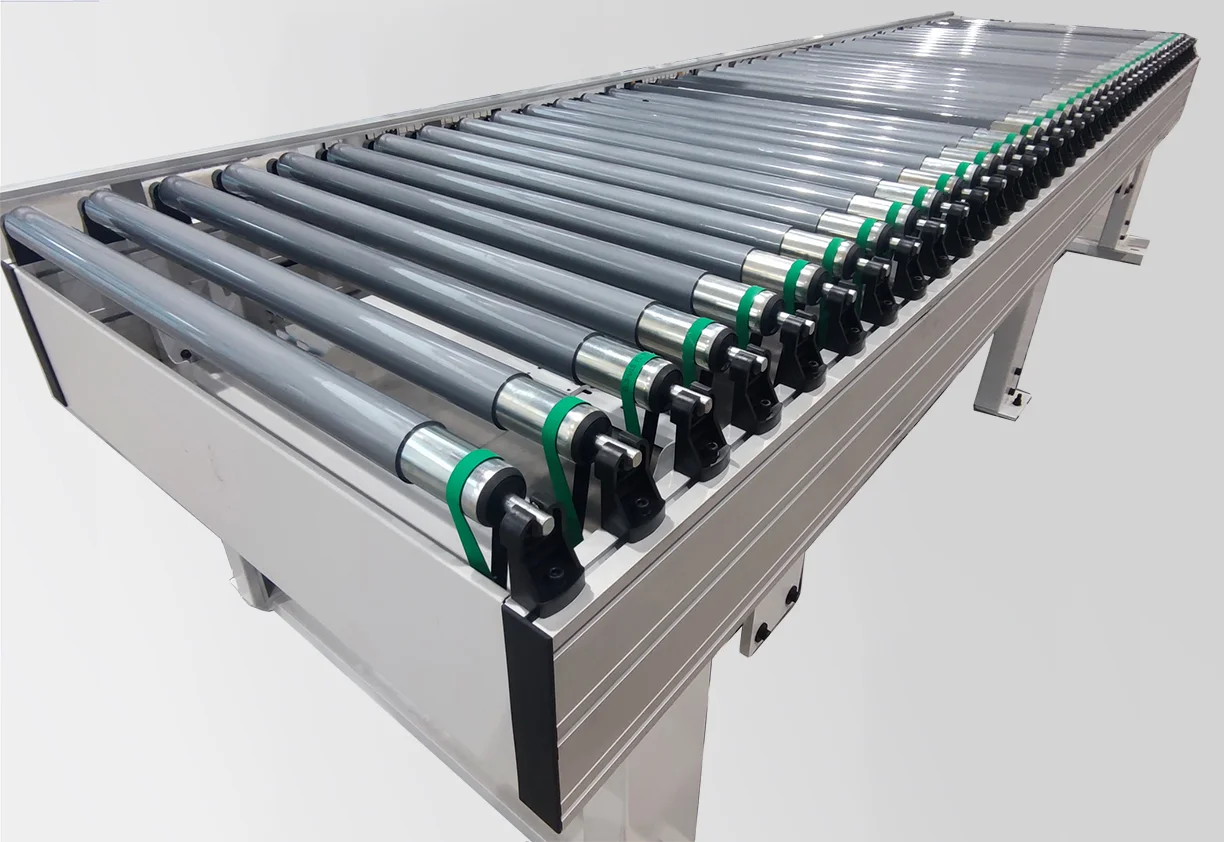

rollers - High-quality transport rollers provide stable operation, have a rubberized surface.
