Technical Specifications
| Feed speed, m/min | 15-23 |
| Minimum panel size, mm | 200x200 |
| Maximum panel size, mm | 1200x1200 |
| Panel thickness, mm | 10-60 |
| Size, mm | 5080x1550x1380 |
| Power, kWt | 2.05 |
Roller Conveyor KHC-605
Purpose :
The KHC-605 automatic roller conveyor moves the workpiece in a straight horizontal or inclined position and is designed to be built in line between edgebanders and performs the function of transporting workpieces. Made from steel. Edge banding line diagram Design advantages The system of pressure rollers at the exit from the conveyor, for high-quality processing of the part on the machine. Portable electronic control box. High quality motor for feed rollers. Transport rollers ensure stable operation and have a rubberized surface. Aluminum alloy frame. Electrical cabinet is equipped with frequency converters for stable operation of the production line. Siemens brand components.
automatic feeder with clamp - The system of pressure rollers at the exit from the conveyor, for high-quality processing of the part on the machine .
control panel - Portable electronic control box .

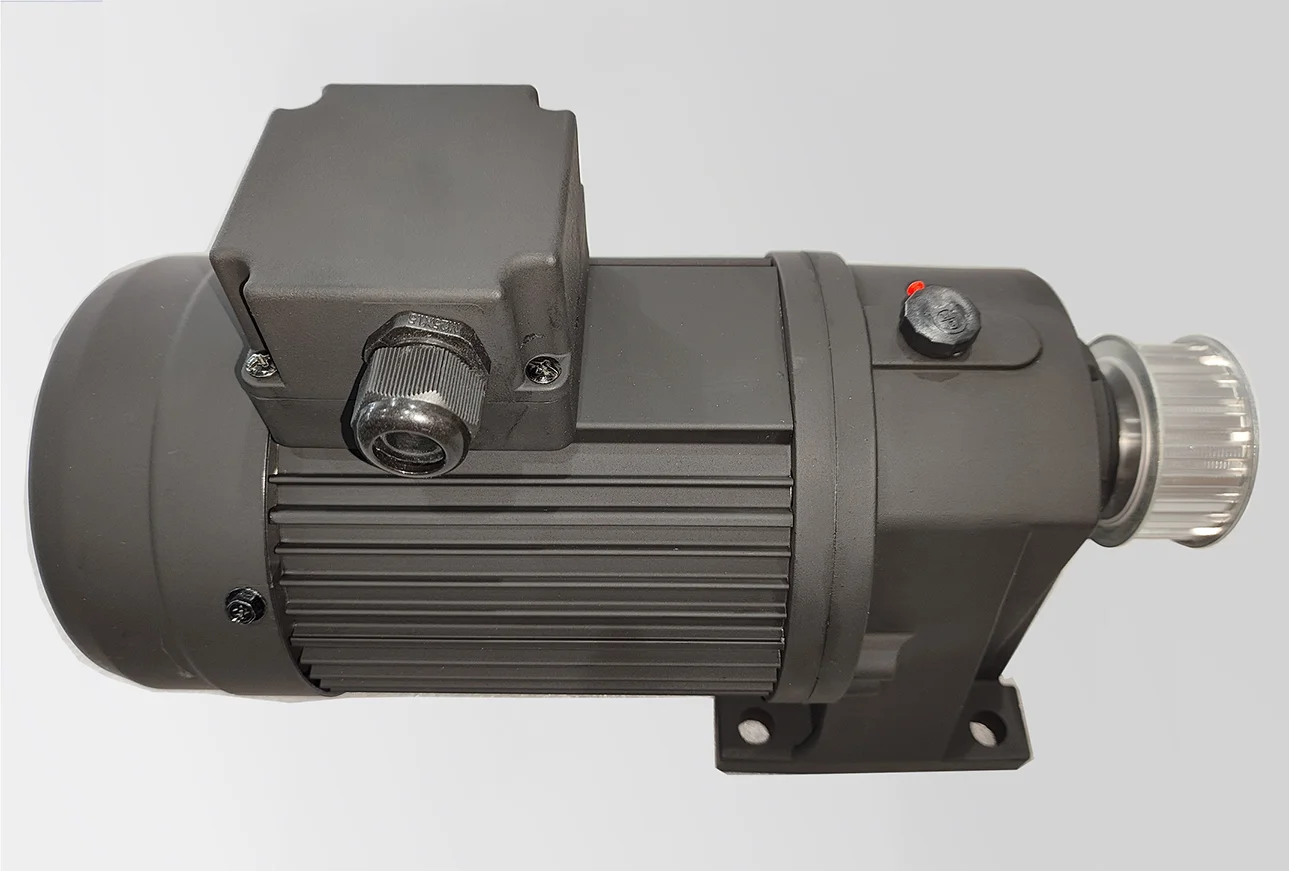

engine - High quality motor for feed rollers .

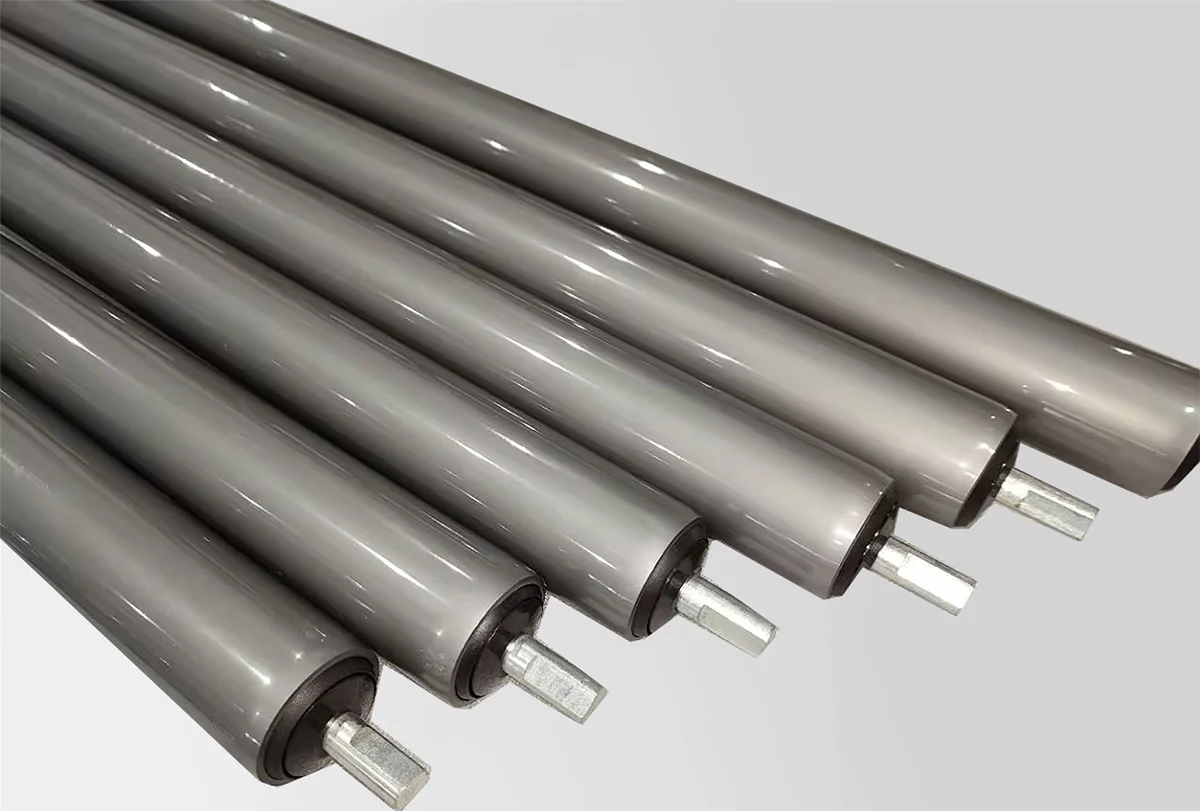

Feed rollers - Transport rollers ensure stable operation and have a rubberized surface .

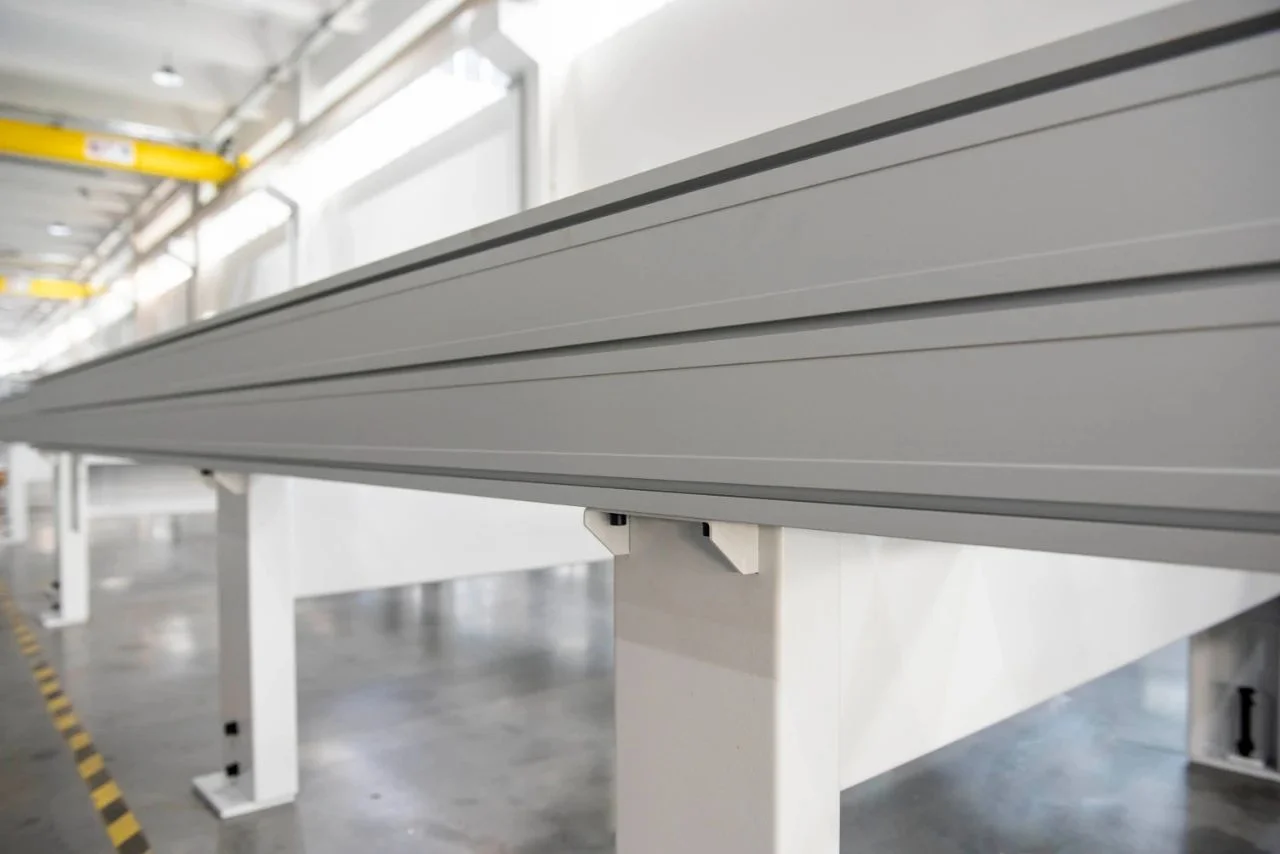

frame - Aluminum alloy frame .

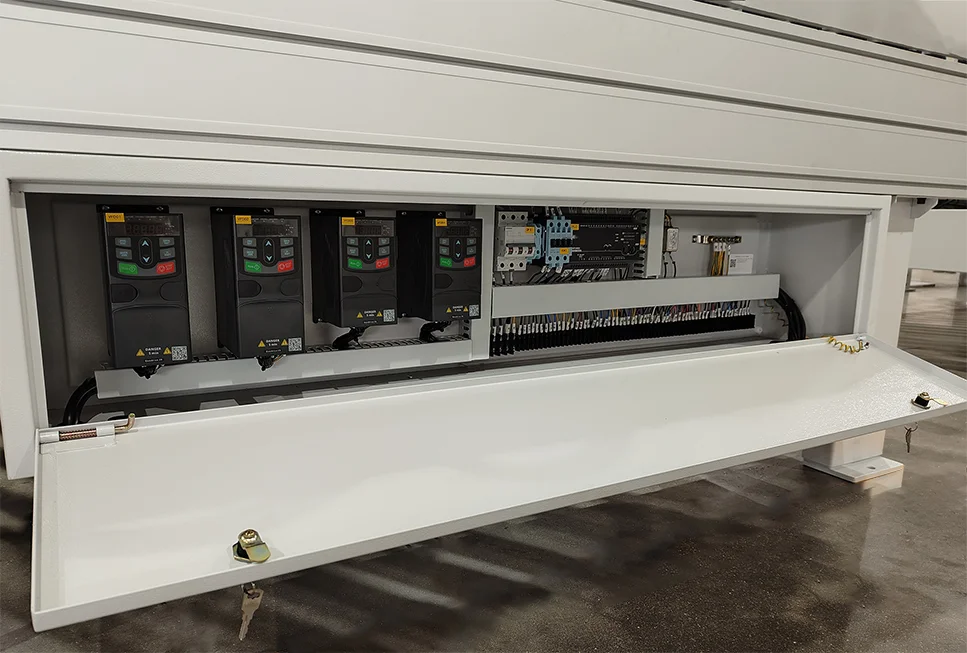

videos - Electrical cabinet is equipped with frequency converters for stable operation of the production line .

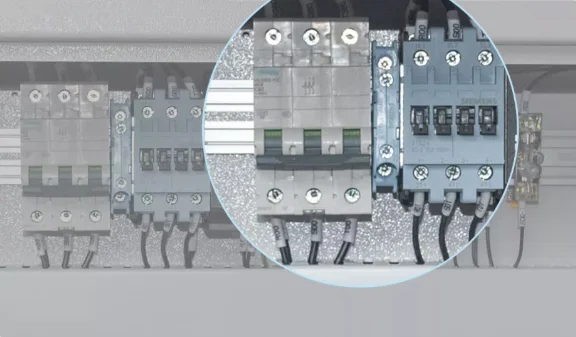

Siemens components - Siemens brand components .
Technical Specifications
| Feed speed, m/min | 15-23 |
| Minimum panel size, mm | 200x200 |
| Maximum panel size, mm | 1200x1200 |
| Panel thickness, mm | 10-60 |
| Size, mm | 5080x1550x1380 |
| Power, kWt | 2.05 |
