Technical Specifications

Feed speed, m/min 20-26
Minimum panel size, mm 200x200
Maximum panel size, mm 2400x2400
Panel thickness, mm 10-60
Desktop size, mm 4000x3070x1380
Power, kWt 1,3

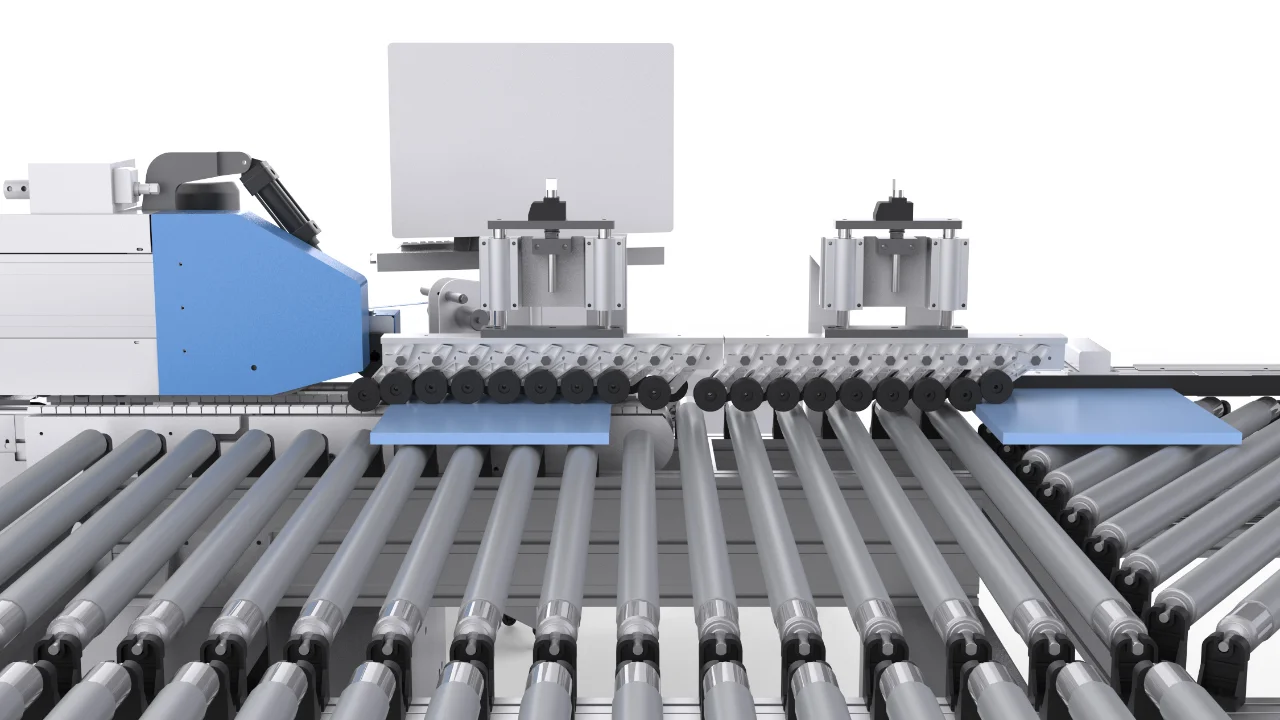

Roller Conveyor KHC-304DH

Purpose :
The KHC-304DH Automatic Roller Conveyor moves the workpiece in a straight horizontal or inclined position and is designed to be built in line between edgebanders and performs the function of transporting workpieces. Made from steel. Design advantages The system of pressure rollers at the exit from the conveyor, for high-quality processing of the part on the machine. Portable electronic control box. High quality motor for feed rollers. Transport rollers ensure stable operation and have a rubberized surface. Aluminum alloy frame. Electrical cabinet is equipped with frequency converters for stable operation of the production line. Siemens brand components.

Technical Specifications

Feed speed, m/min 20-26
Minimum panel size, mm 200x200
Maximum panel size, mm 2400x2400
Panel thickness, mm 10-60
Desktop size, mm 4000x3070x1380
Power, kWt 1,3
