Technical Specifications
| Units | Sanding, Universal sanding |
| Part width, mm | 100-2400 |
| Min. length of part, mm | 200 |
| Part thickness, mm | 5-80 |
| Conveyor feed speed, m/min | 8-25 |
| Adjustable sanding angle, ° | -45° - +45° |
| Suction hose diameter, mm | 4x100 |
| Power, kW | 10,4 |
| Required aspiration capacity, m³/h | 2500 |
| Dimensions LxWxH, mm | 4410x1206x1456 |
| Weight, kg | 1850 |
Edge sanding machine S-S2W2
Purpose :
Edge sanding machine S-S2W2 is designed for sanding in automatic mode edges of facade profiles, furniture parts, door frame elements and others. It is used for sanding blanks from solid wood, MDF, veneered parts, primed surfaces. The machine is equipped with the following types of working units: "S" – sanding unit with pneumatic pressure bar – 2 pcs. "W" – universal sanding unit – 2 pcs.
Distinctive features :
4 independent working units.
Machine control panel - The control panel with intuitive interface and the electric cabinet are locatedon a separate stand.The software allows you to control all operating parameters of the machine.Features:The machine is controlled by PLC .

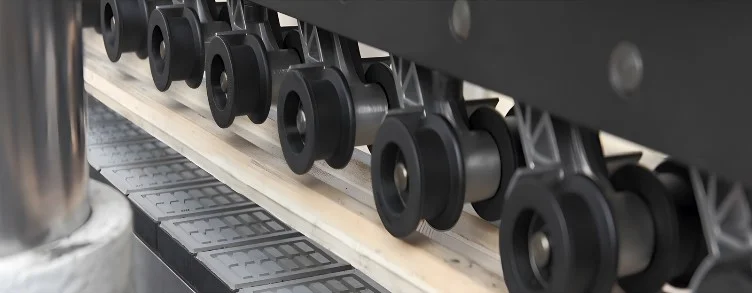

Transport system - The parts are fed by a chain conveyor with rubberized pads fixed to it. The parts are fixed on the conveyor along its entire length by an upper pressure beam with two rows of rubberized rollers and a belt .

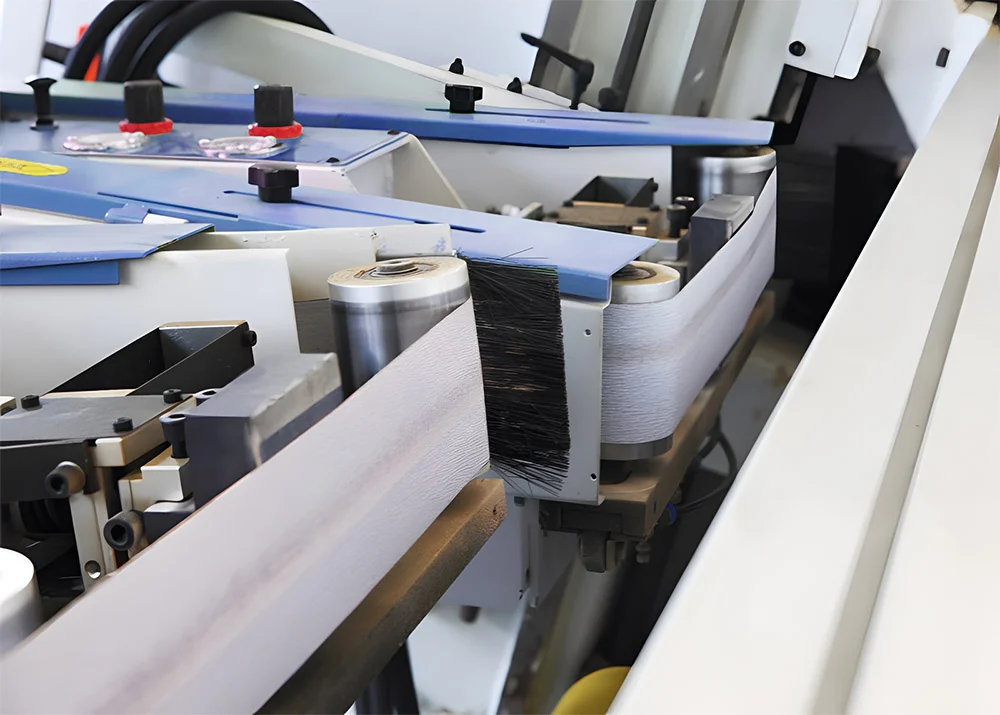

Sanding unit "S" - Sanding is performed by an endless sanding belt with a pneumatic pressure bar. For leveling the edge surface and eliminating mechanical processing defects (wave, step, saw marks) .

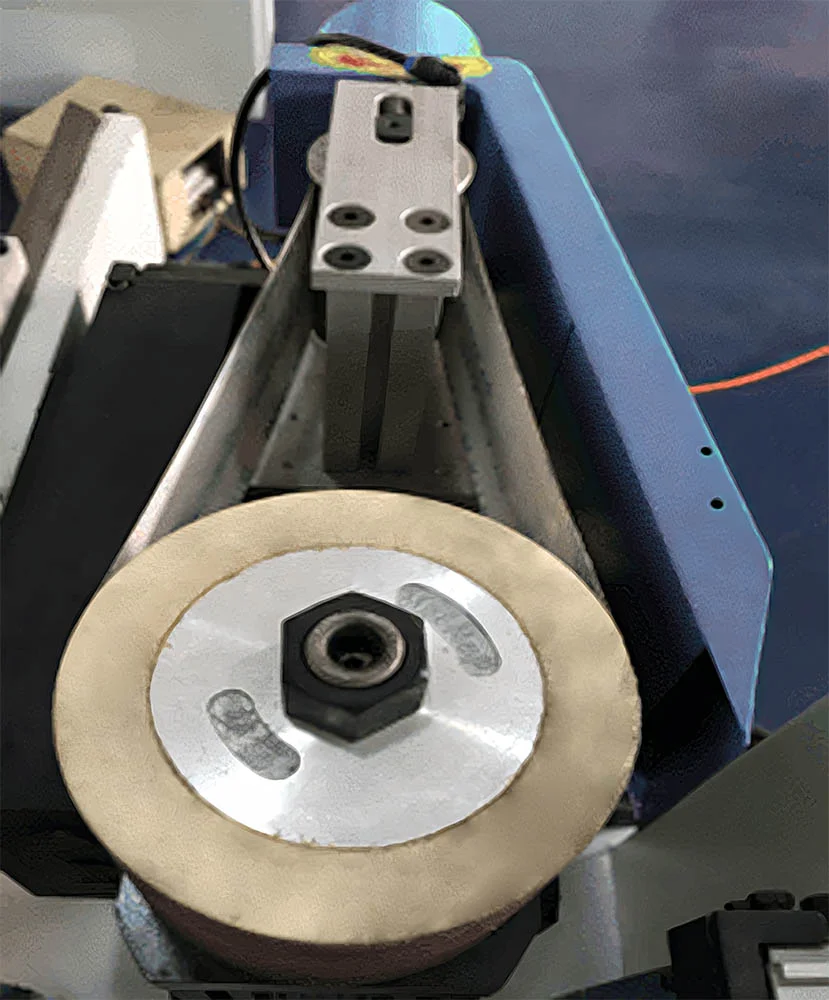

Universal sanding unit "W" - The contact cylinder of the universal sanding unit "W"can be equipped with different types of sanding material depending on the needs.Features of the universal sanding unit:2 electric motors of 1 .

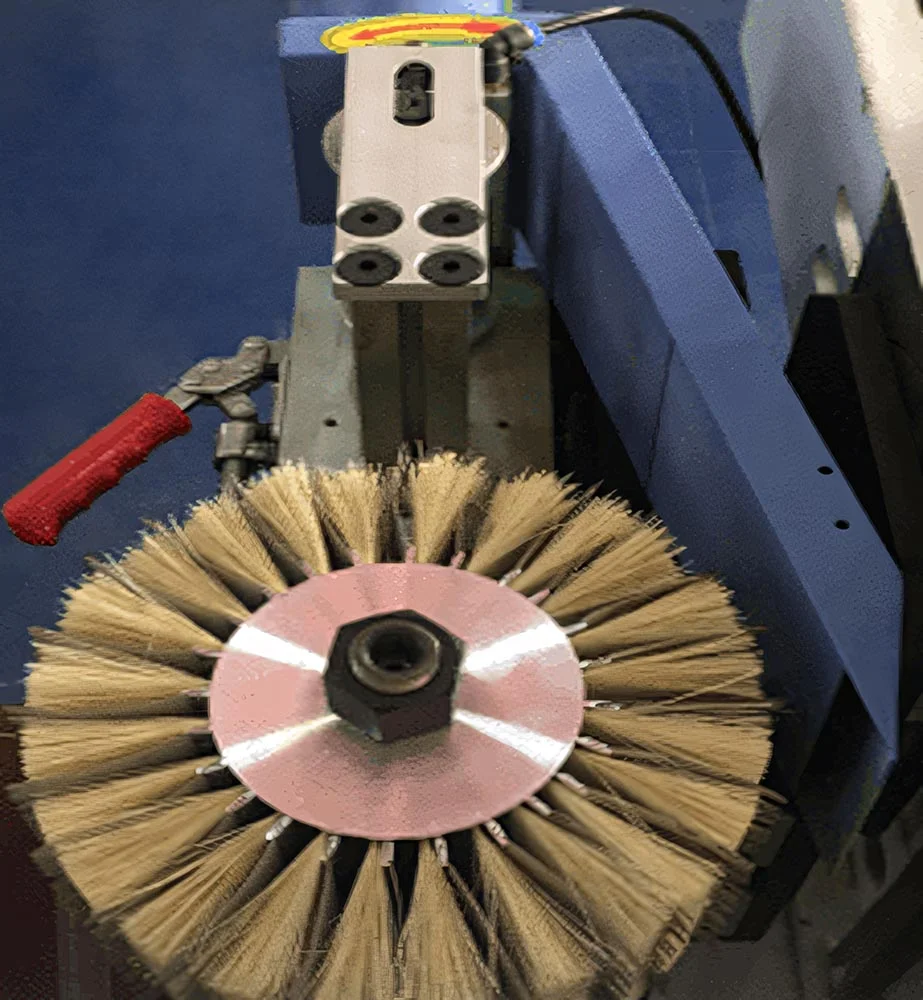

Brush drums - Brush drums are used for sanding profile edges of workpieces .

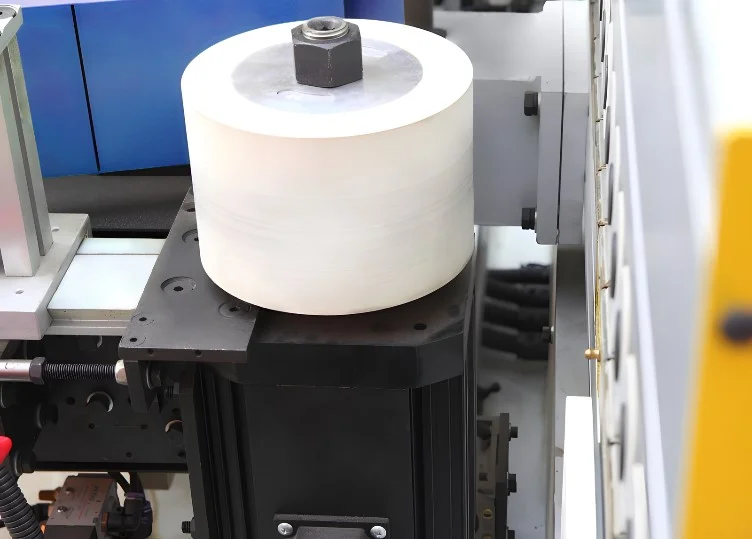

Sponge roller - For sanding flat edges of workpieces, sanding belts are used together with a sponge roller .

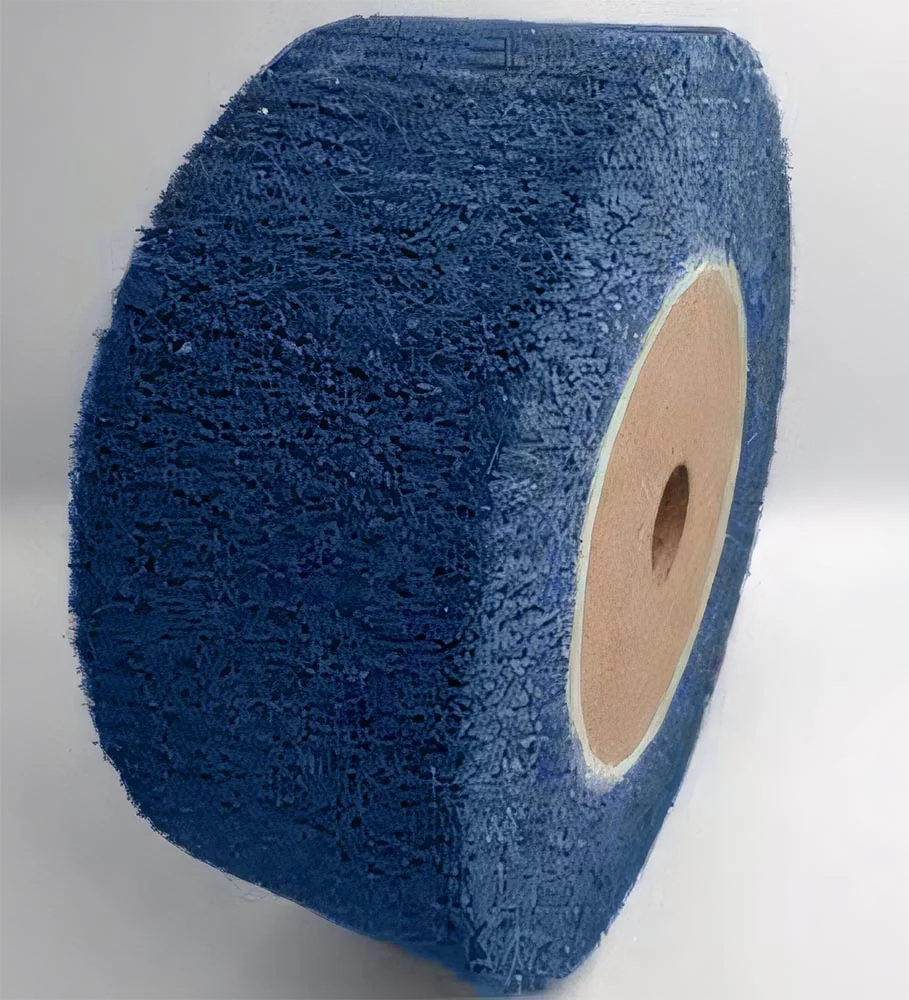

Scotch - Brite - To achieve results on complex profiles, Scotch-Brite is used with counter-profile milling .
Octagonal sanding paper - Octagonal sanding paper is mounted on a universal spindle for sanding recesses and grooves on a profile .
Technical Specifications
| Units | Sanding, Universal sanding |
| Part width, mm | 100-2400 |
| Min. length of part, mm | 200 |
| Part thickness, mm | 5-80 |
| Conveyor feed speed, m/min | 8-25 |
| Adjustable sanding angle, ° | -45° - +45° |
| Suction hose diameter, mm | 4x100 |
| Power, kW | 10,4 |
| Required aspiration capacity, m³/h | 2500 |
| Dimensions LxWxH, mm | 4410x1206x1456 |
| Weight, kg | 1850 |
