Edge sanding machine with milling unit S-K2S2J2G1W2

Transport system - The parts are fed by a chain conveyor with rubberized pads fixed to it. The parts are fixed on the conveyor along its entire length by an upper pressure beam with two rows of rubberized rollers and a belt .

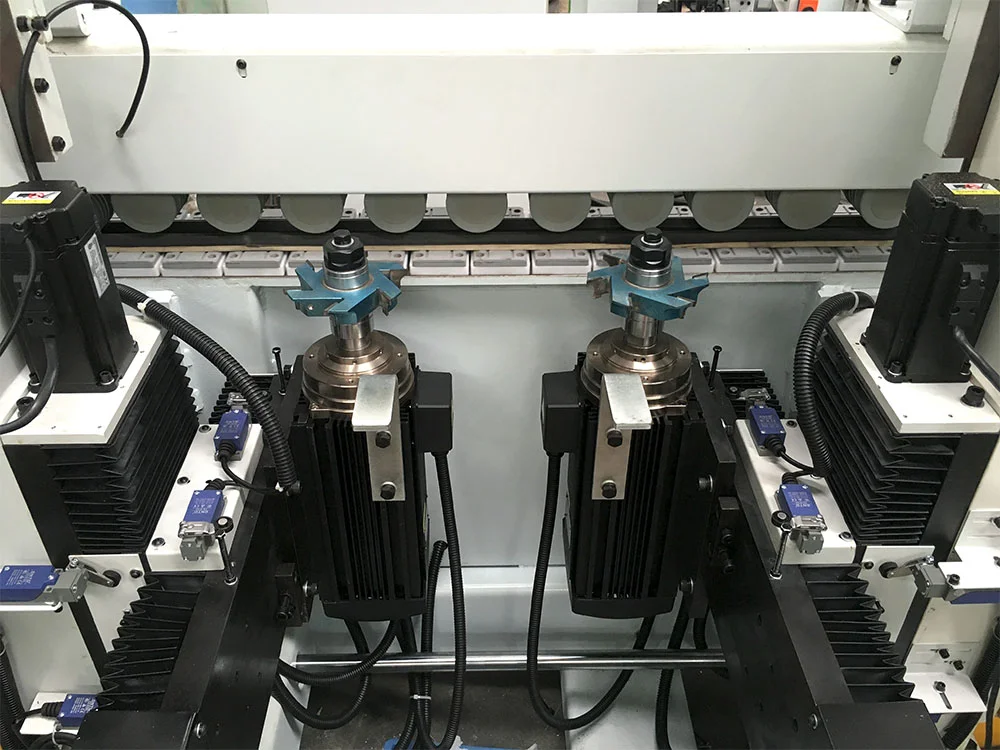

Milling unit "K" - High-speed motor with speed adjustmentworks only on one plane and is designed for profile forming, chamfering, groove milling, end cutting, high precision and stability .

Sanding unit "S" - Sanding is performed by an endless sanding belt with a pneumatic pressure bar. For leveling the edge surface and eliminating mechanical processing defects (wave, step, saw marks) .

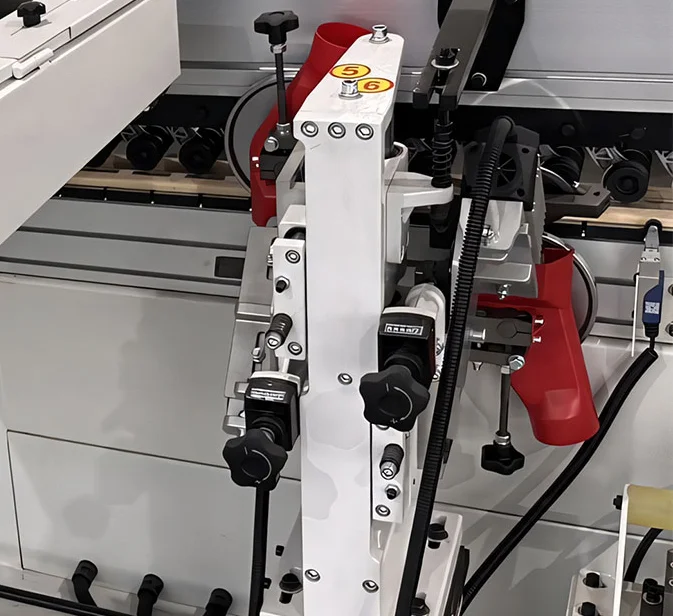

Milling unit with radius cutters "J" - The milling unit"J"is equipped with two high-speed milling spindles (2 electric motors of 0.75 kW, 12000 rpm) with radius cutters and is designed for rounding the upper and lower edges of the part .

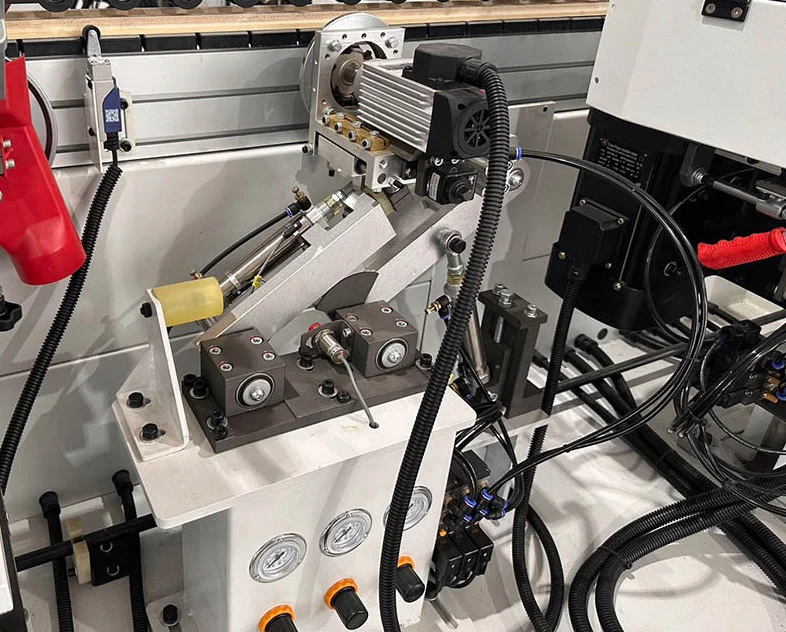

Milling unit with radius cutter for processing corners "G" - The milling unit "G" is equipped with a high-speed milling spindle (electric motor 0.75 kW, 12000 rpm) with a radius cutter. It is designed for processing all four corners of the part .

Universal sanding unit "W" - The contact cylinder of the universal sanding unit "W"can be equipped with different types of sanding material depending on the needs.Features of the universal sanding unit:2 electric motors of 1 .

Brush drums - Brush drums are used for sanding profile edges of workpieces .

Sponge roller - For sanding flat edges of workpieces, sanding belts are used together with a sponge roller .

Scotch - Brite - To achieve results on complex profiles, Scotch-Brite is used with counter-profile milling .

Octagonal sanding paper - Octagonal sanding paper is mounted on a universal spindle for sanding recesses and grooves on a profile .
