Technical Specifications
| Number of working groups, pcs. | 8 |
| Max. width of part, mm | 1300 |
| Min. length of part, mm | 320 |
| Max. thickness of the part, mm | 120 |
| Feeding conveyor speed, m/min | 0-10 |
| Number of orbital groups, pcs. | 2 |
| Number of transverse groups, pcs. | 2 |
| Number of longitudinal groups, pcs | 4 |
| Required aspiration capacity, m³/h | 16000 |
| Diameter of suction hose, mm | 8x150 |
| Total power, kW | 19 |
| Dimensions (LxWxH), mm | 5100x2300x2200 |
| Weight, kg | 5100 |
Brush sanding machine X9-1300
Purpose :
Brush sanding machine X9-1300 with 8 independent working units is used for sanding various relief surfaces, such as doors, furniture fronts, children's furniture, milled 2D and 3D panels, carved and decorative sanding elements after priming. The sanding process is carried out by an elastic abrasive brush element, consisting of an abrasive petal belt and a support brush. It is possible to manufacture a machine with a modified order of the sanding groups. Working groups The machine has 8 working groups + a cleaning shaft : V2 – orbital (disc) sanding unit with a block of disc sanding tools. H2 – transverse (drum) sanding unit. R2 – longitudinal “spiral” (2-shaft) sanding unit. Q2 – longitudinal “straight” (2-shaft) sanding unit. Workpiece dust cleaning system (brush roller with blower).
Distinctive features :
8 independent units + cleaning shaft with blowing.

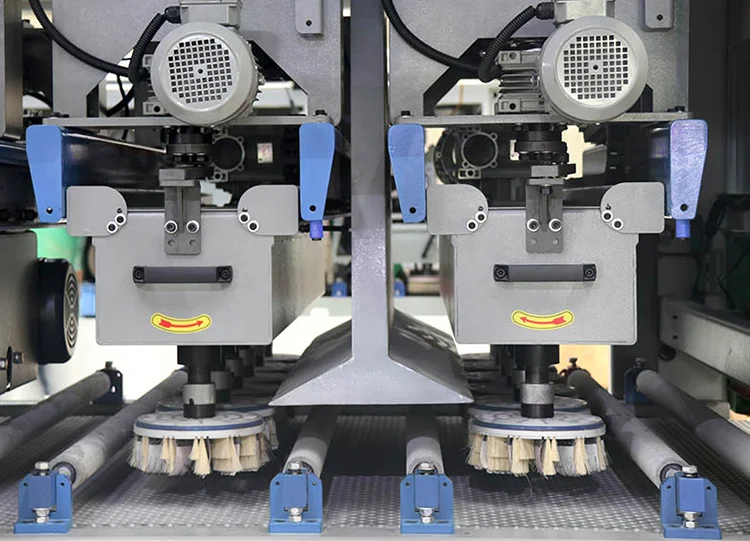

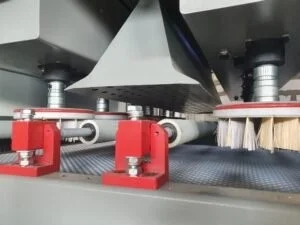

V2 – orbital (disc) sanding group - The orbital sanding unitat the machine input consists of two groups of brush disks (5+5). The disks have left and right rotation, and the unit itself performs a reciprocating motion across the feed motion (oscillation) .

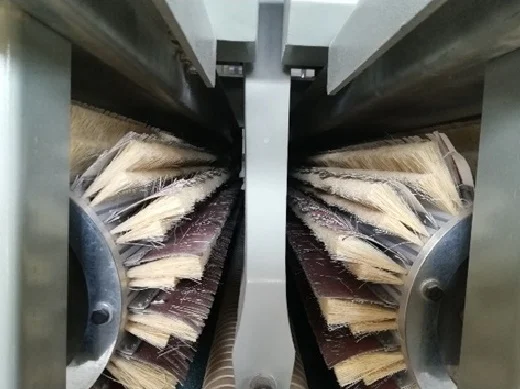

H2 – transverse (drum) sanding group - The cross-sanding unithas two groups of brush drums (4+4). The drums have multidirectional rotation relative to the direction of the workpiece feed and an oscillation mechanism .

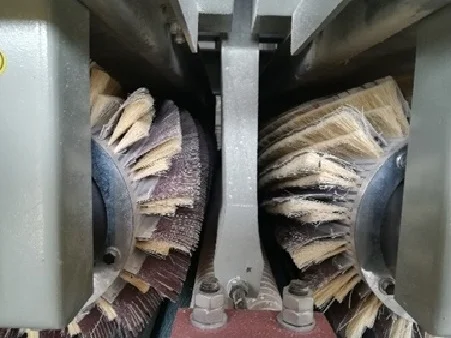

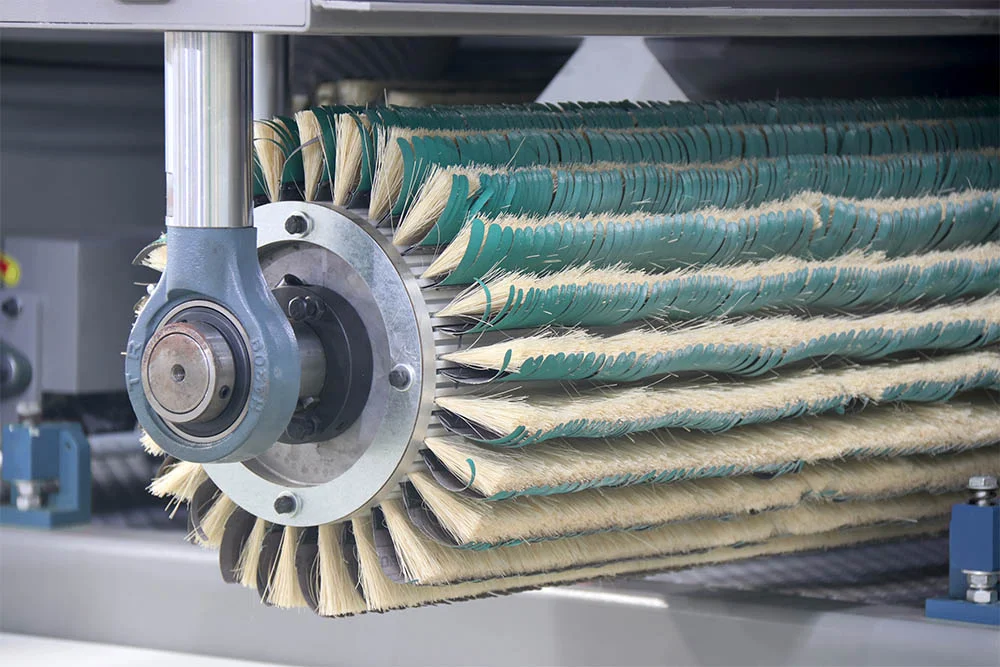

R2 - longitudinal "spiral" sanding group - The longitudinal sanding unithas 2 brush shafts (1+1).The abrasive tool is installed in a spiral.The shafts have multi-directional rotation (coincident and counter) .
Q2 - longitudinal "straight" sanding group - The longitudinal sanding unithas 2 brush shafts (1+1).The abrasive tool is installed on a straight line.The shafts have multidirectional rotation (coincident and counter) .

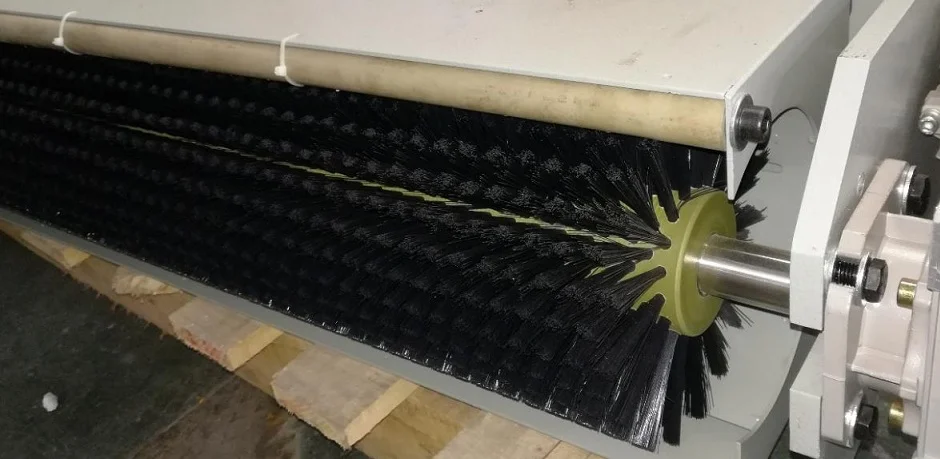

Dust cleaning system for parts - Cleaning parts from dust at the machine outlet with a brush roller + blowing with compressed air .
Aspiration system - An exhaust ventilation system with aspiration casings located close to each working unit ensures reliable dust removal, which has a positive effect on the quality of processing .

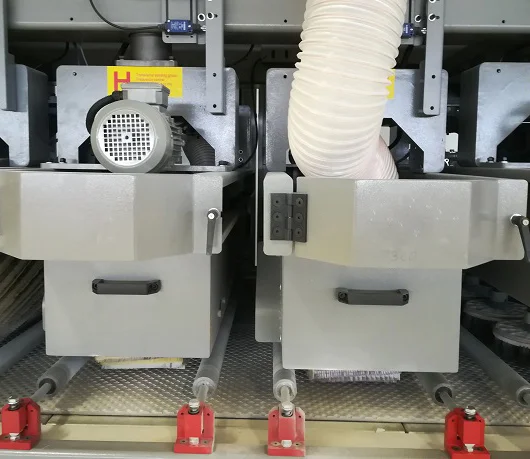

Convenient tool replacement system - The easy system of sliding out the working blocks for replacing the sanding tool significantly speeds up the maintenance process .

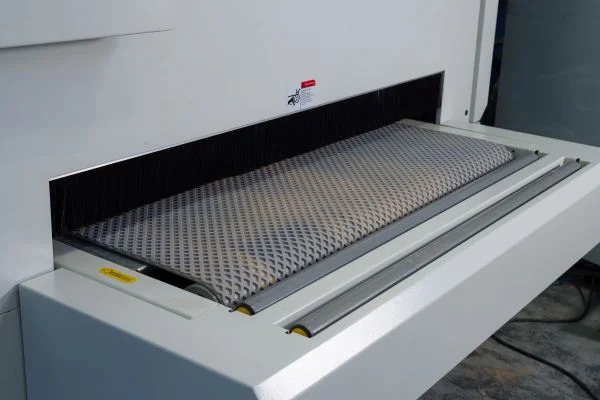

Conveyor belt - Profiled rubber conveyor belt with mechanical pressure rollers across the entire width of the conveyor. The conveyor table has an extension at the input and output of the machine .

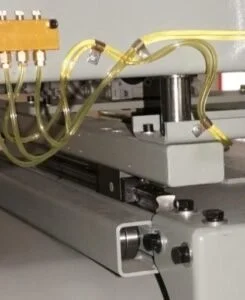

Oscillation system - The oscillation system on linear guides with manual lubrication system on all sanding units allows to achieve uniform wear of brushes, excellent quality of processing on workpieces of different complexity .

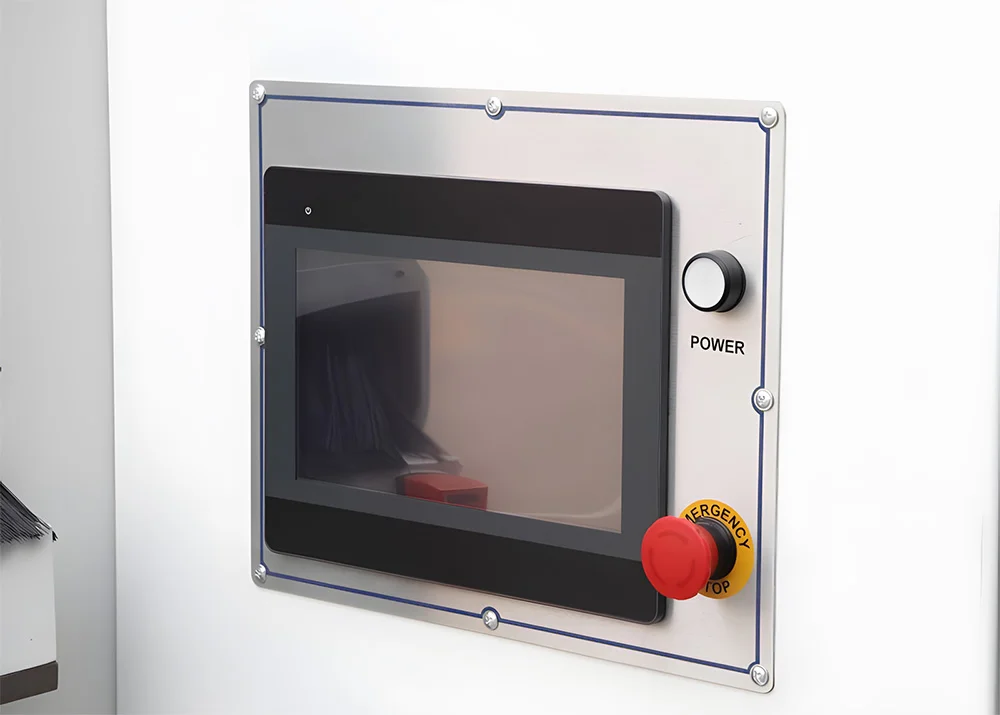

Control Panel - The control panel is built into the machine body. The control panel has buttons for general start and emergency stop. PLC with touch-screen control panel .
Electrical cabinet - The electrical cabinet is integrated into the frame, dust-proof design. High-quality assembly and components .

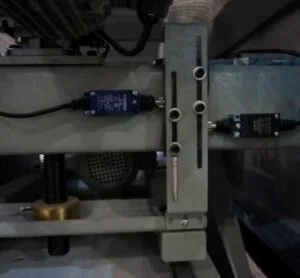

Mechanism for adjusting the height of units - The height adjustment of the sanding units is provided by an electric drive on command from the control panel. The last positions are limited by limit switches .

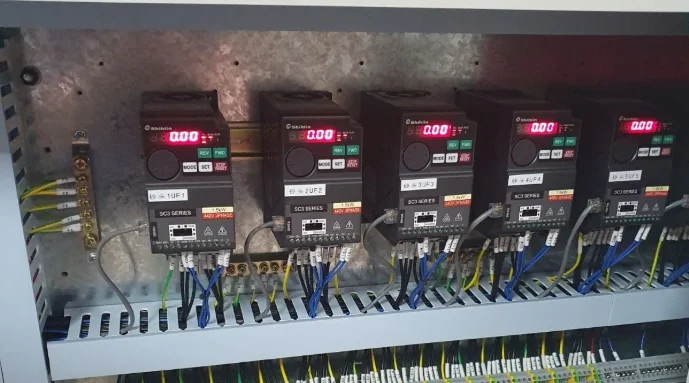

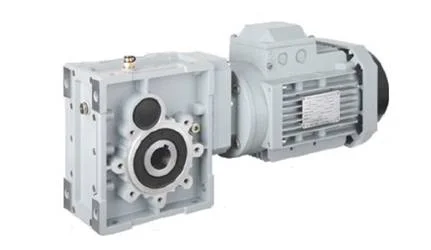

Conveyor drive - The conveyor is driven by a gear motor with stepless feed speed adjustment, which allows you to select the optimal sanding modes for different types of workpieces .
Technical Specifications
| Number of working groups, pcs. | 8 |
| Max. width of part, mm | 1300 |
| Min. length of part, mm | 320 |
| Max. thickness of the part, mm | 120 |
| Feeding conveyor speed, m/min | 0-10 |
| Number of orbital groups, pcs. | 2 |
| Number of transverse groups, pcs. | 2 |
| Number of longitudinal groups, pcs | 4 |
| Required aspiration capacity, m³/h | 16000 |
| Diameter of suction hose, mm | 8x150 |
| Total power, kW | 19 |
| Dimensions (LxWxH), mm | 5100x2300x2200 |
| Weight, kg | 5100 |
