Packaging line for packing cabinet furniture parts
Purpose :
KDT packaging line is designed for automatic packaging of finished products in cardboard boxes in serial and individual production. By automating 80% of packaging operations, this line allows using a minimum number of workers and improves the quality of product packaging.
Distinctive features :
Technological process of operation of a section of the packaging line: Section for assembling parts for packaging.

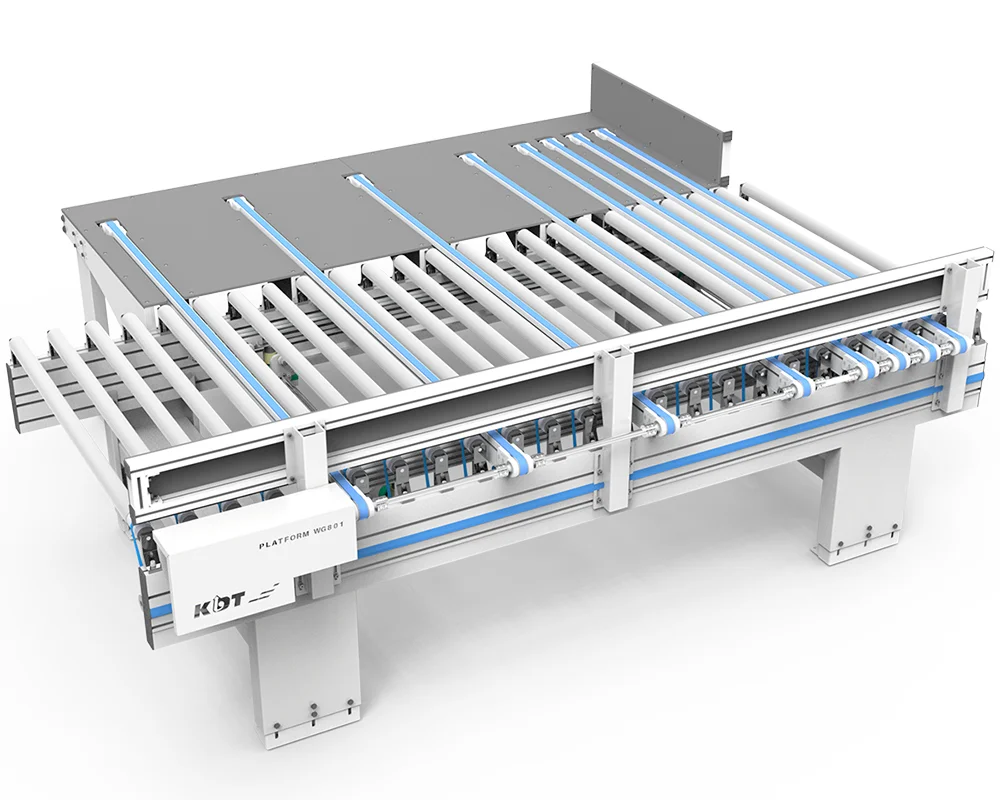

Table for assembling parts WG801 - Table for assembling parts .
Measuring station WG8M2 - Used to measure the size of parts during packaging. The first mechanism measures the length, the second – the width and height .

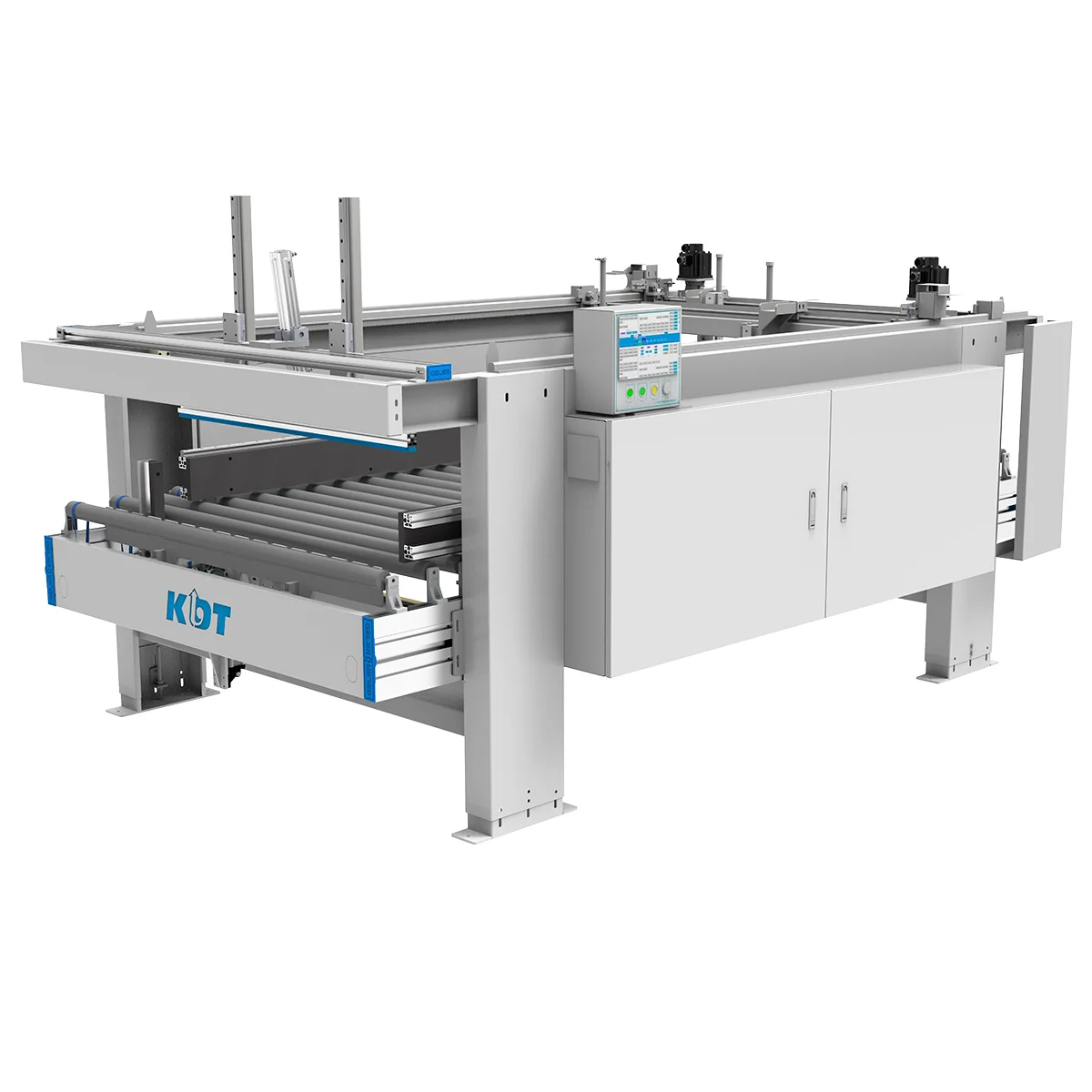

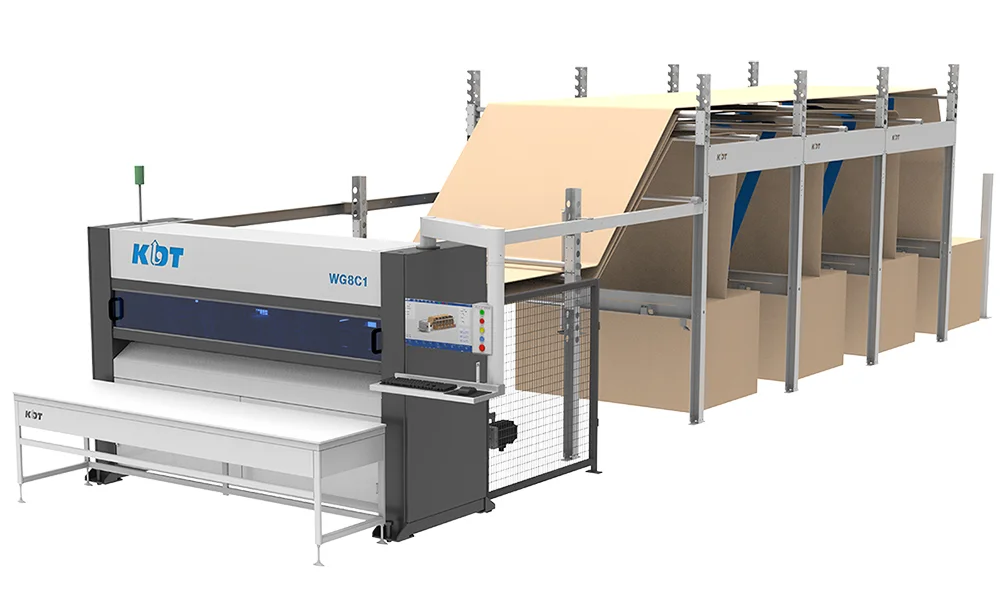

Machine for making boxes WG8C1 - The machine produces a cardboard box in accordance with a given program. The machine is equipped with an automatic cardboard loading system and an industrial computer .
Driven roller conveyer WG802 - Driven roller conveyer is used for subsequent transfer of the product to the next section .

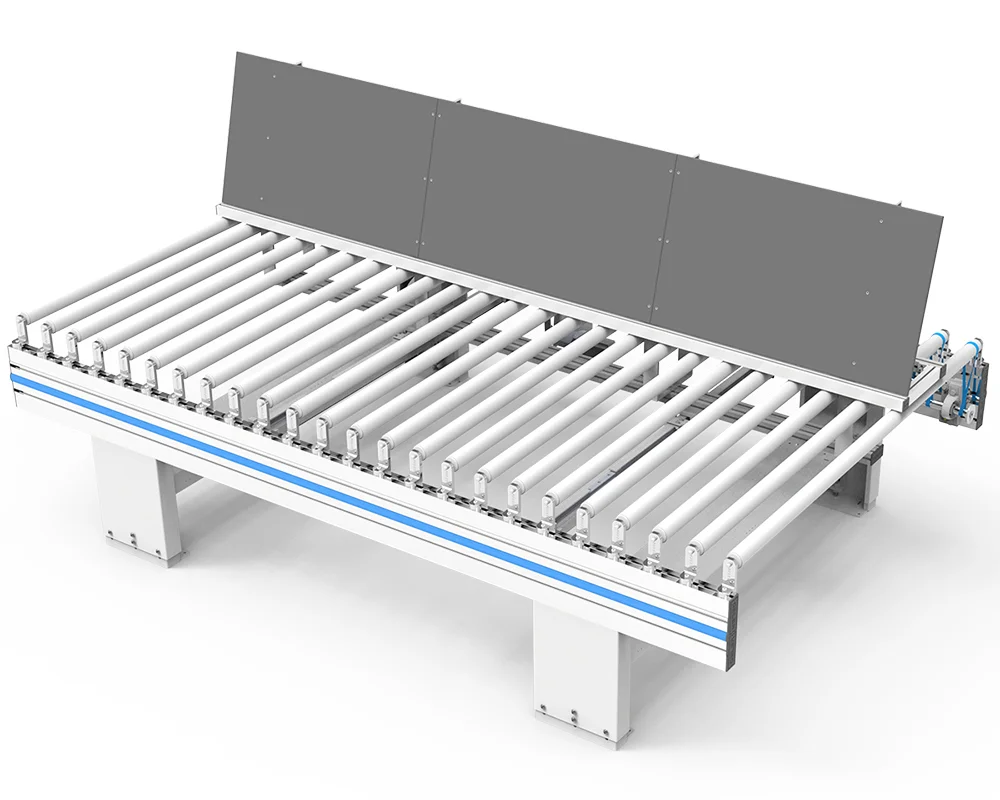

Conveyor for placing cardboard under parts WG803 - The conveyor is designed to lay parts on cardboard. The package, moving along the conveyor, stops, and the operator puts the cardboard unfolding of the box under it and presses the start button .

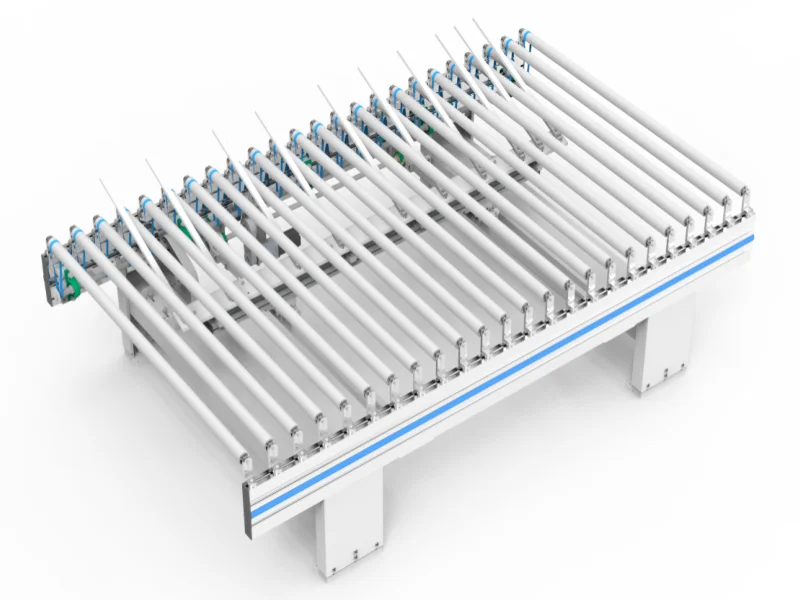

Packaging conveyor WG805 - The conveyor serves to lift the upper part of the box and assemble the lower part of the box with a staple or glue .

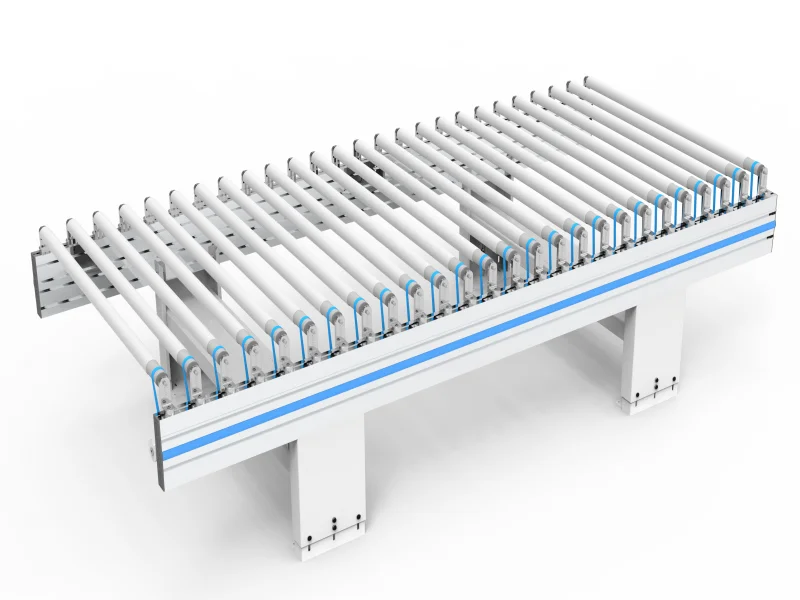

Packaging conveyor WG806 - It performs the function of supporting the upper part of the box during the assembly of the end parts of the box and the placement of products and fittings in the box .

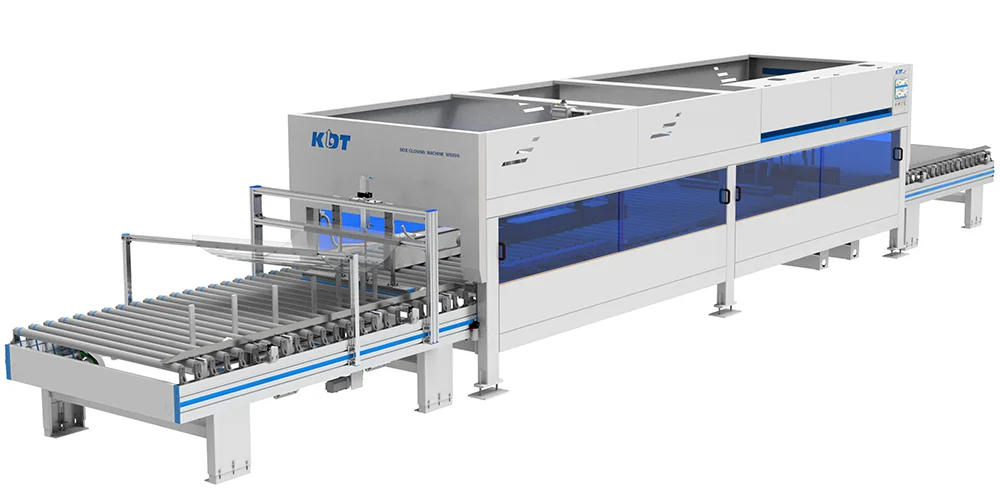

Box closing machine WG8V6 - The three-side box closing machine seals the box automatically. As the box moves inside the machine, the nozzles spray glue onto the long end of the box along the movement and rollers press and seal it .

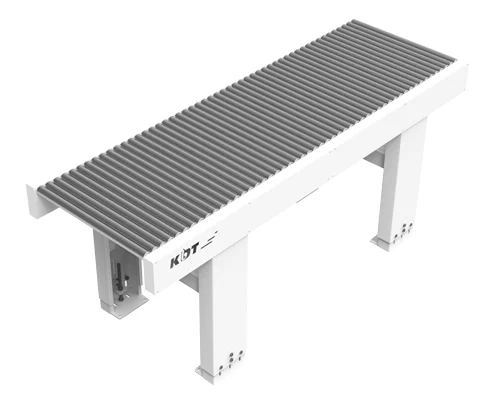

Non - driven roller conveyor WG808 - Used for manual handling of finished boxes with packed parts. This line includes 2 non-driven roller conveyors .
