Technical Specifications
| Cardboard width, mm | 200-2400 |
| Cardboard thickness, mm | 2-11 |
| Min. reaming length, mm | 350 |
| Productivity, boxes/min | 3-6 |
| Number of preset templates, pcs | 40 |
| Number of longitudinal units, pcs | 6 |
| Number of transverse units, pcs | 1 |
| Min. distance between longitudinal knives, mm | 22 |
| Min. box height, mm | 18 |
| Types of cardboard | sheet cardboard |
| Speed of movement of a cross knife, m/min | 60 |
| Speed of movement of longitudinal knives, m/min | 40 |
| Power, kW | 5 |
| Pressure in the pneumatic system, Bar | 6-7 |
| Dimensions (LxWxH), mm | 2500х1300х2500 |
| Weight, kg | 3200 |
Cardboard box making machine WG8C1
Purpose :
Automatic cardboard box making machine for corrugated cardboard sheets WG8C1 is used in manufacturing enterprises of any level, enterprises providing special packaging services, using packaging of various sizes and designs. The equipment is designed to automate the packaging manufacturing process at your enterprise, to make it as simple and convenient as possible. With box making machine, you can manufacture any boxes for your products according to your requirements and the requirements of your customers.
Distinctive features :
Work with corrugated cardboard sheets up to 2400 mm wide.

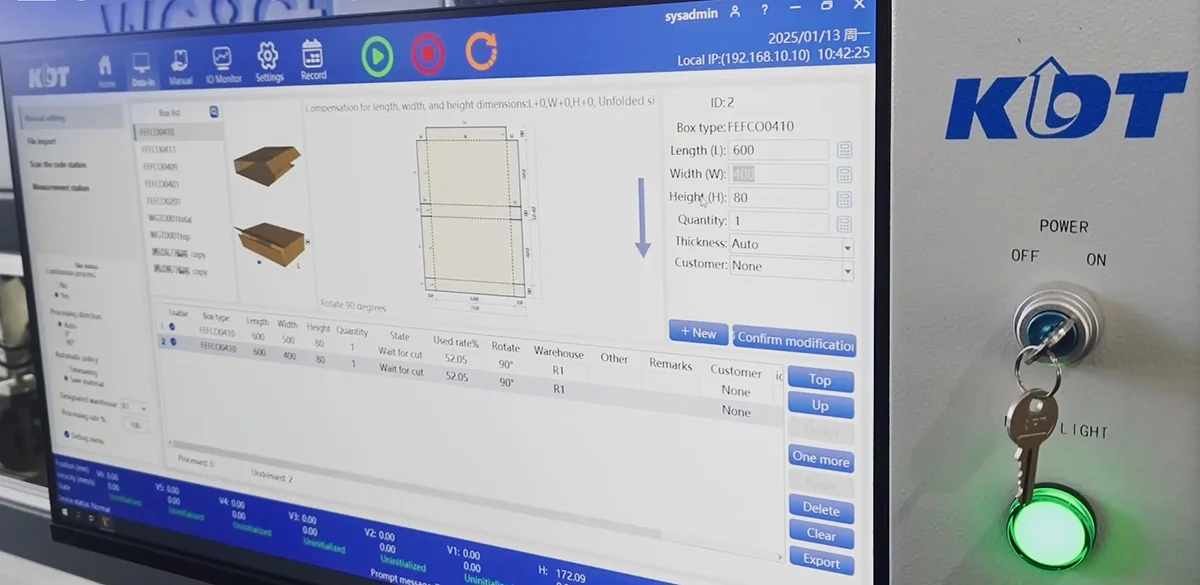

Control system - Intuitive control system based on industrial PC with touchscreen display and Windows OS. Complete production statistics and diagnostic system .

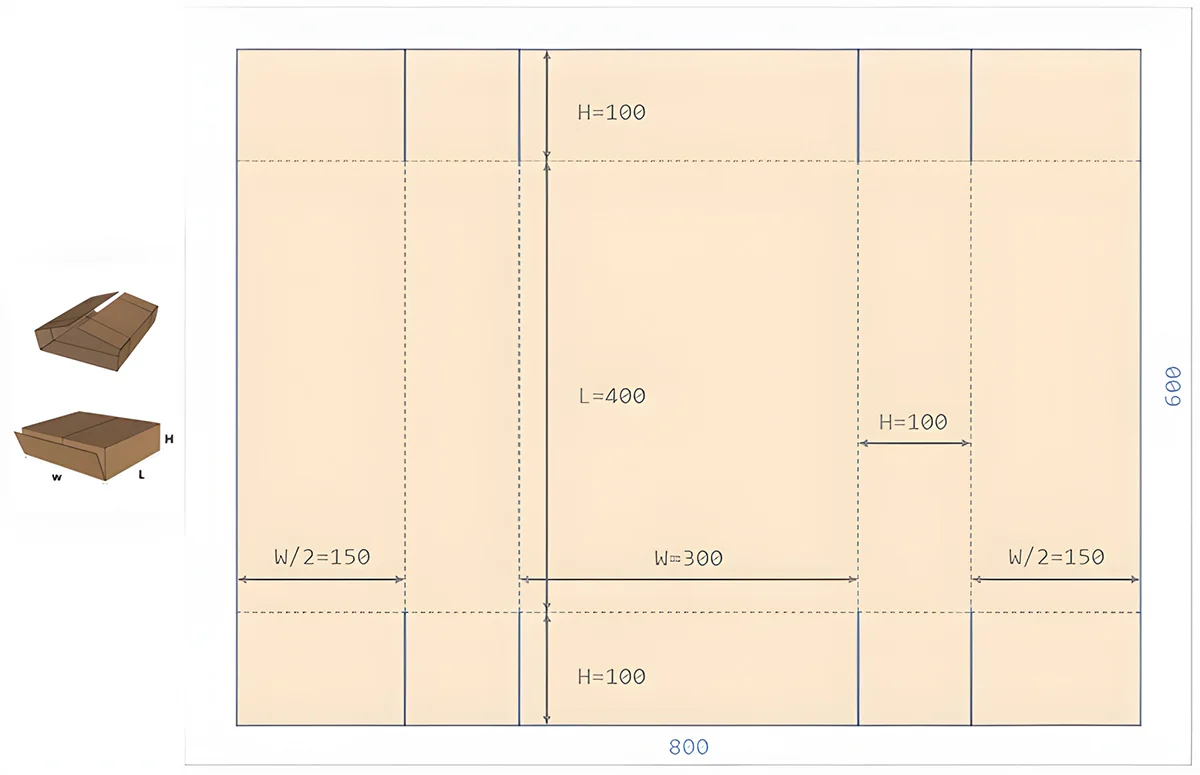

Box designer - Built-in editor and box designer. 40 templates in the program for creating standard boxes, as well as their import .

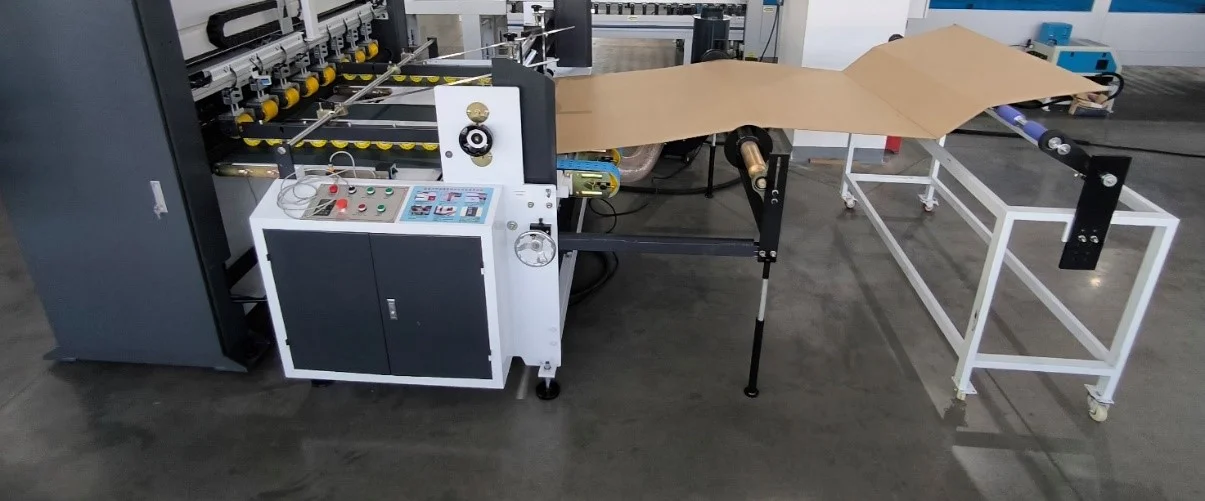

Cardboard feeding system - Automatic corrugated cardboard sheet feeding system with vacuum fixation. Maximum sheet width 2400 mm. Maximum cardboard pack thickness - 250 mm .

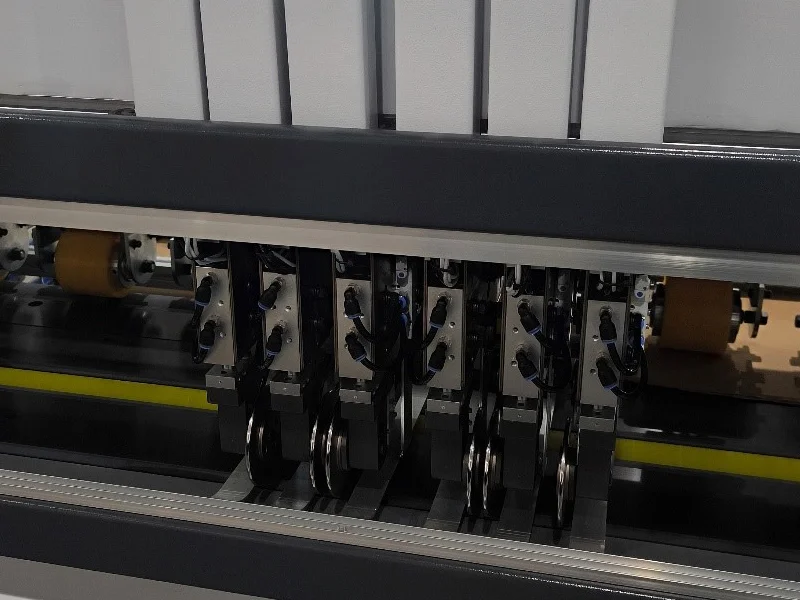

Longitudinal cutting and scoring groups - The machine has 6 longitudinal cutting and scoring units. Each pair of disk knives simultaneously cuts and scorers the future box in the longitudinal direction .

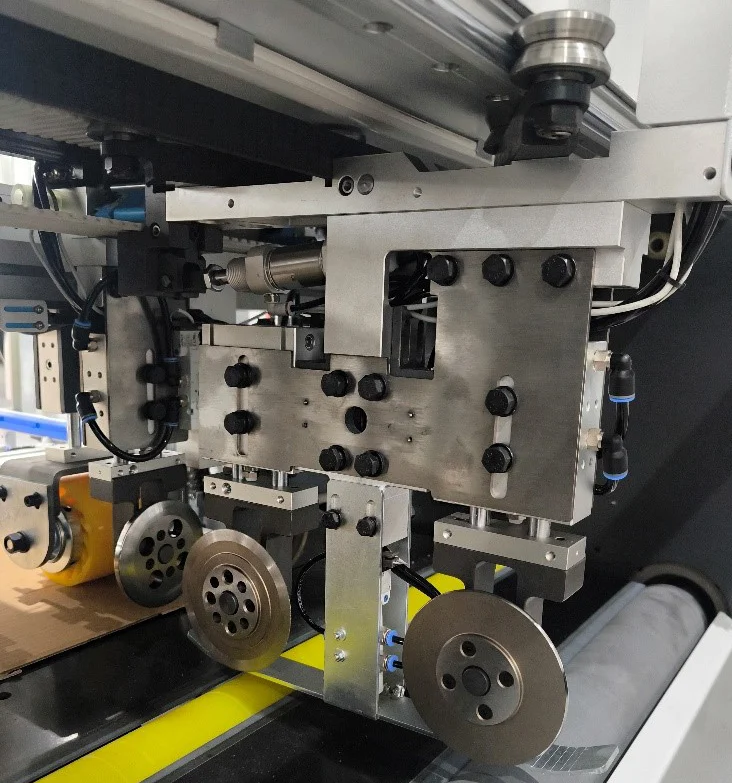

Transverse cutting and scoring unit - The transverse cutting and scoring unit consists of a pair of disk knives. It performs cutting and scoring of the future box in the transverse direction .

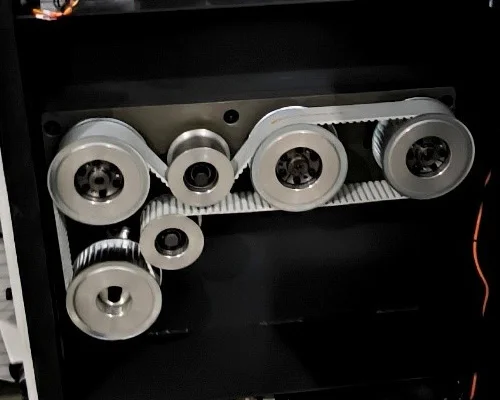

Belt drive - Belt drive of the knife and shaft system .

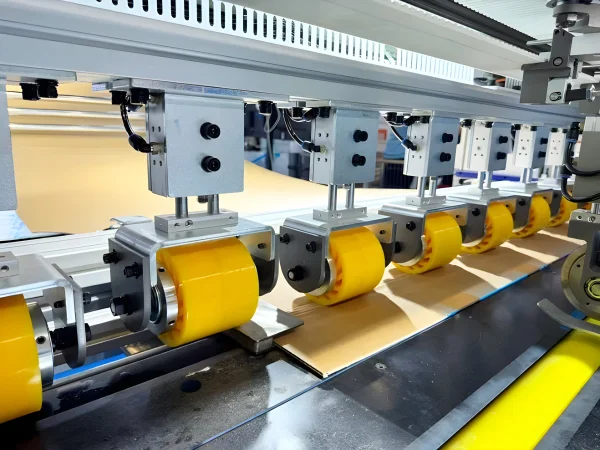

Pressure rollers - The pressure rollers securely fix the corrugated cardboard in the cutting area .

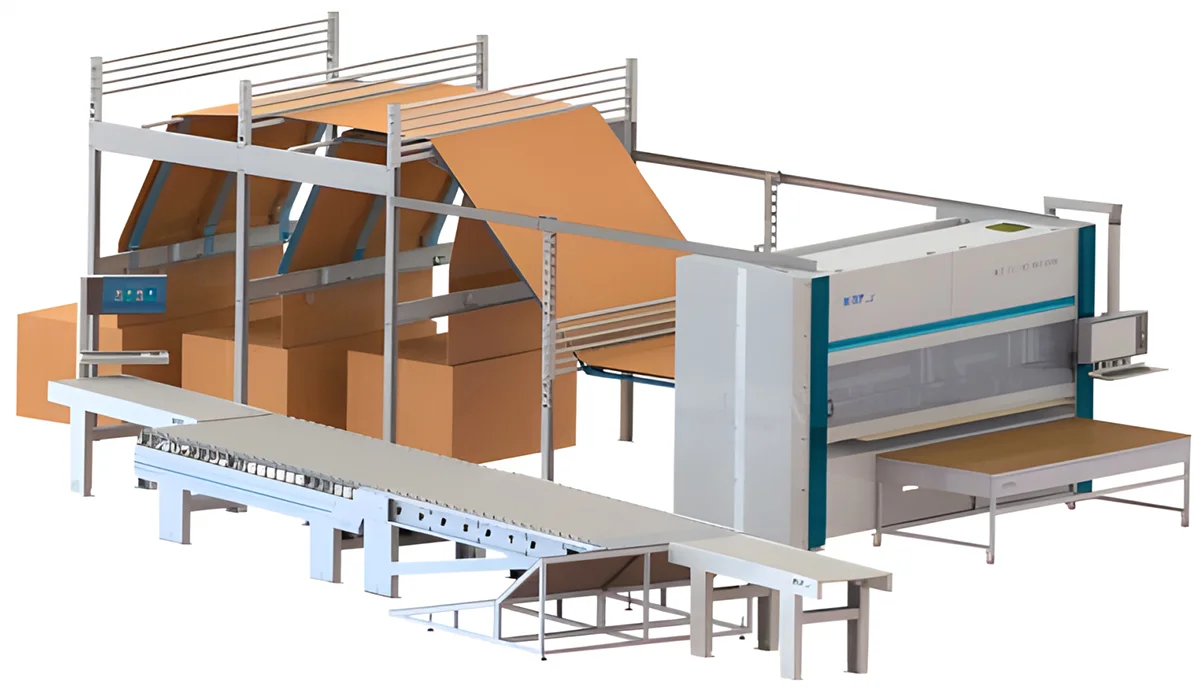

Working as part of a line - The machine can operate both separately and as part of a production line .
