CNC Machining Center KN-3713D

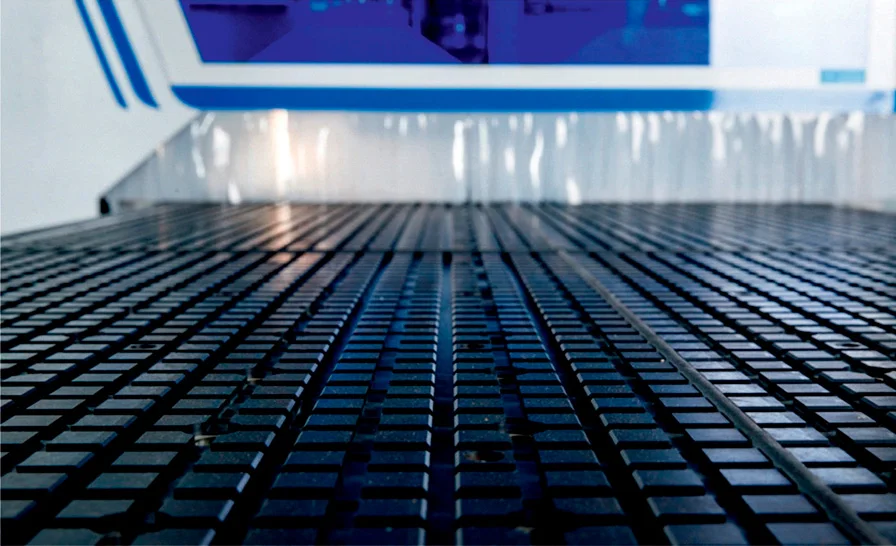

vacuum table - Vacuum table with working area 4260*2150*100 mm for 6 vacuum zones. It is possible to work in pendulum mode and with small parts .

machine bed - The bed has the form of a frame structure with stiffening ribs and ceilings made of all-metal sheet, this provides a reliable base for further fastening of all units and assemblies to it .

hsd electrospindle - The machine is equipped with a modern powerful electrospindle 13.2 kW from the Italian manufacturer HSD, "ES951 e-core" .

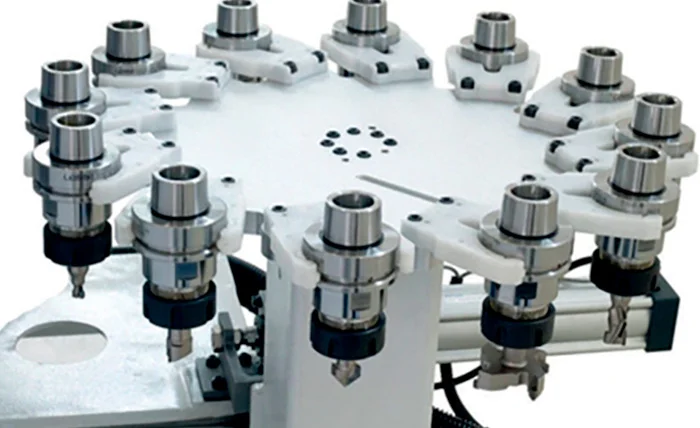

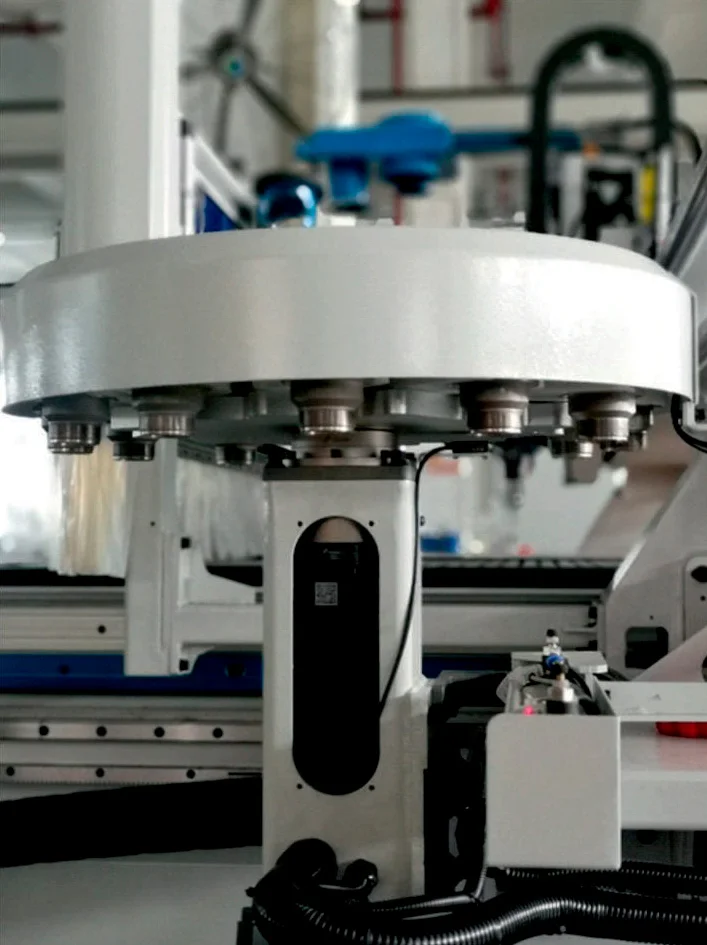

magazine for 12 tools - The 12-station automatic tool changer will provide the machine with the necessary stock of used milling cutters and will allow you to perform complex operations using more tools .

precision cartridge hsk - 63f - Tool and spindle taper HSK 63 F The HSK tooling system was developed by German specialists specifically for high-speed and high-precision machining. The use of an HSK taper ensures radial and axial accuracy .

drilling group - Drilling group for 10 vertical spindles with a power of 1.7 kW, 6000 rpm and a bore diameter of 10 mm .

instrument airflow - An effective chip removal system into 2 separate aspiration outlets - for the milling unit and the drilling group, improves the quality of processing and prevents damage to parts .

automatic tool measurement and calibration - The sensor of automatic measurement and calibration of the tool makes an accurate measurement of the length of the tool, reduces the setup time of the machine, which greatly facilitates the work of the operator .

hinged screw pair - Ball screws along the Z axis - movement is carried out using aPMI ball screw (Taiwan), which guarantees the complete absence of backlash, and subsequently high movement accuracy .

gear rack and pinion - Gear rack and pinionKAI HE (Taiwan)with teeth ground from hardened steel provide high accuracy and smooth running due to minimal friction and no backlash. The pinion is integrated into a high precision planetary gearbox .

roller guides and carriages - HIWIN (Taiwan) rolling guides and bottom bracketsprovide smooth running due to minimal friction, while maintaining a tight grip and precision accuracy .

INVT servomotors and sesam gearboxes - High power INVT servomotors of 1.5 kW and precision planetary gearboxes SESAME Motor (Taiwan) provide synchronous movement, high accuracy and dynamics .

double - circuit lubrication system - A dual-circuit lubrication system lubricates all necessary components and assemblies - automatic lubrication system along the X / Y axis, manual lubrication system along the Z axis .

pneumatic stops - Pneumatic lifting jacks provide precise positioning and ease the operator's work .

workpiece pusher with table cleaning - The workpiece pusher / workbench cleaning reduces maintenance time and prevents chips from getting under the workpiece, which significantly affects the quality of processing, facilitating the work of the operator .

electric cabinet - All equipment of the KDT plant uses electrical components from trusted manufacturers. They are interchangeable, thereby increasing the efficiency of service maintenance and quality control .

vacuum pumps - 2 Becker vacuum pumps of 5.5 kW each with a capacity of 250 m3/h ensure reliable fixation of the workpiece. .

workpiece gripping mechanism - OPTIONAL MECHANISM OF CAPTURE OF WORKPIECES!Allows you to increase productivity by 20-30% due to the simultaneous loading and unloading of parts, Used with additional loading and unloading tables .
