Technical Specifications
| Control system | DELTA (Taiwan) |
| Table size, mm | 3100x2150 |
| Distance from spindle nose to table surface, mm | 72-252 |
| Spindle | KDT, 12 kW, 24000 rpm, ISO-30 clamp |
| drilling head | 10 vertical spindles, 1.7 kW, 6000 rpm |
| Tool change | revolving for 12 places |
| Maximum tool diameter, mm | 140 |
| Maximum tool length (excluding workpiece height), mm | 100 |
| Travel speed in X/Y/Z, m/min | 80/80/30 |
| Servo power in X/Y/Z, kW | 2*1.5/1.5/1.5 |
| Number of vacuum zones, pcs | 6 |
| Total power consumption, kW | 31,1 |
| Productivity of vacuum pumps, m3/hour | 2x250 |
| Overall dimensions LxWxH, mm | 4500x3350x2415 |
| Weight, kg | 5000 |
CNC Machining Center KN-3710DE
Purpose :
The KDT KN-3710DE CNC machining center with one KDT milling spindle and a 12-station turret tool change on a servo drive and a drilling head for 10 vertical spindles with a manual tool change is designed for precise, high-speed milling and hole filling in various sheet and composite materials, as well as solid wood of soft and hard species. It will be useful both in the entry-level enterprise and in large-scale production. The machine is equipped with a modern CNC system DELTA (Taiwan) . The CNC system has a wide range of application functions. The intuitive interface allows you to quickly prepare the staff of the enterprise for programming and work on the machine.
Distinctive features :
Processing area 3100*2150 mm; Spindle: KDT - 12 kW with ISO-30 cartridge; Drilling group for 10 vertical spindles with a power of 1.
Delta cnc system - The machine is controlled by a reliable andaccurate DELTA CNC system (Taiwan)- a full-fledged "command center" that allows you to control all the functions of the machine without the need to connect to a personal computer and has a wide .
KDT WoodSystem interface - The CNC system is equipped with an updatedWoodSystemshell with a simple, well-designed and user-friendly interface .
vacuum table - Vacuum table with working area 3100*2150*100 mm for 6 vacuum zones. It is possible to work in pendulum mode and with small parts .
machine bed - The bed has the form of a frame structure with stiffening ribs and ceilings made of all-metal sheet, this provides a reliable base for further fastening of all units and assemblies to it .
electrospindle kdt - The machine is equipped with an air-cooled KDT electrospindle with a power of 12 kW, a rotation speed of 24,000 rpm, an ISO-30 chuck type, has a high level of reliability and low noise level .

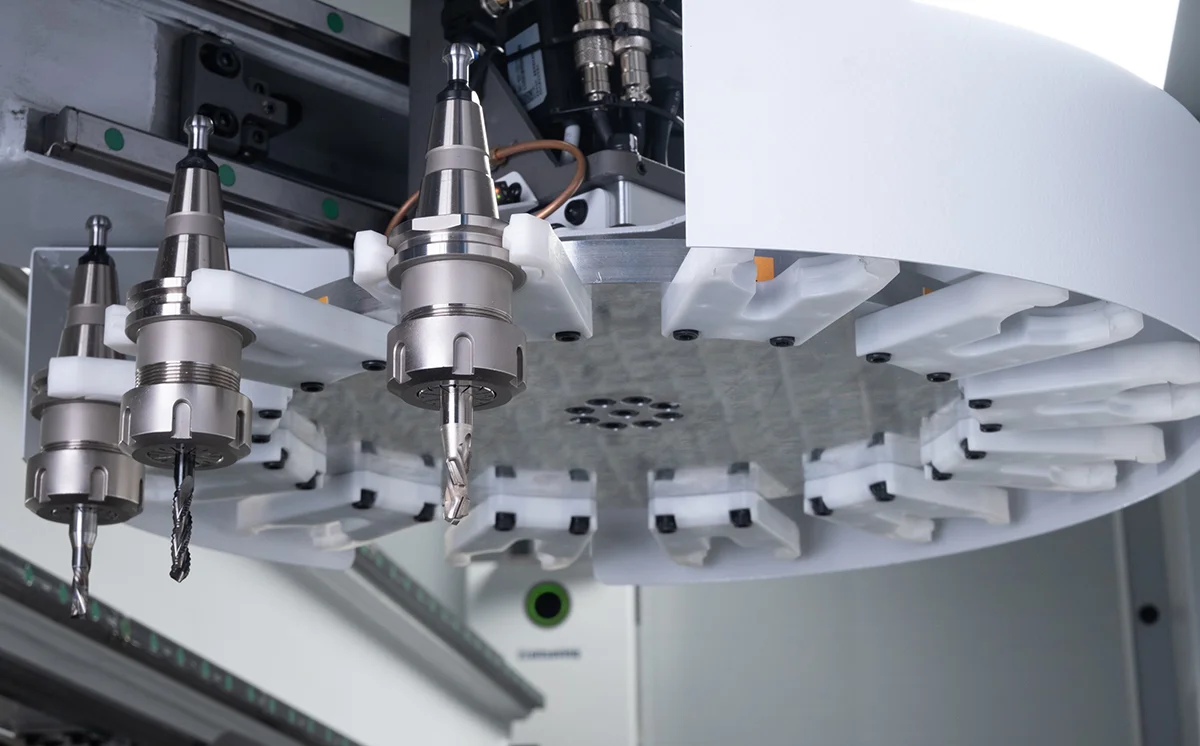

carousel tool change - 12 position carousel tool changer for ISO-30 servo clamp .
drilling group - Drilling group for 10 vertical spindles with a power of 1.7 kW, 6000 rpm and a bore diameter of 10 mm .
instrument airflow - An effective chip removal system into 2 separate aspiration outlets - for the milling unit and the drilling group, improves the quality of processing and prevents damage to parts .
automatic tool measurement and calibration - The sensor of automatic measurement and calibration of the tool makes an accurate measurement of the length of the tool, reduces the setup time of the machine, which greatly facilitates the work of the operator .
hinged screw pair - Ball screws along the Z axis - movement is carried out using aPMI ball screw (Taiwan), which guarantees the complete absence of backlash, and subsequently high movement accuracy .
gear rack and pinion - Gear rack and pinionKAI HE (Taiwan)with teeth ground from hardened steel provide high accuracy and smooth running due to minimal friction and no backlash. The pinion is integrated into a high precision planetary gearbox .
roller guides and carriages - HIWIN (Taiwan) rolling guides and bottom bracketsprovide smooth running due to minimal friction, while maintaining a tight grip and precision accuracy .
delta servomotors and sesam gearboxes - High power INVT 1.5KW servo motors and SESAME Motor Taiwan precision planetary gearboxes ensure synchronous movement, high precision and dynamics .
double - circuit lubrication system - A dual-circuit lubrication system lubricates all necessary components and assemblies - automatic lubrication system along the X / Y axis, manual lubrication system along the Z axis .
pneumatic stops - Pneumatic lifting jacks provide precise positioning and ease the operator's work .
workpiece pusher with table cleaning - The workpiece pusher / workbench cleaning reduces maintenance time and prevents chips from getting under the workpiece, which significantly affects the quality of processing, facilitating the work of the operator .
electric cabinet - All equipment of the KDT plant uses electrical components from trusted manufacturers. They are interchangeable, thereby increasing the efficiency of service maintenance and quality control .
vacuum pumps - 2 Becker vacuum pumps of 5.5 kW each with a capacity of 250 m3/h each ensure a secure fixation of the workpiece .
workpiece gripping mechanism - OPTIONAL MECHANISM OF CAPTURE OF WORKPIECES!Allows you to increase productivity by 20-30% due to the simultaneous loading and unloading of parts, Used with additional loading and unloading tables .
Technical Specifications
| Control system | DELTA (Taiwan) |
| Table size, mm | 3100x2150 |
| Distance from spindle nose to table surface, mm | 72-252 |
| Spindle | KDT, 12 kW, 24000 rpm, ISO-30 clamp |
| drilling head | 10 vertical spindles, 1.7 kW, 6000 rpm |
| Tool change | revolving for 12 places |
| Maximum tool diameter, mm | 140 |
| Maximum tool length (excluding workpiece height), mm | 100 |
| Travel speed in X/Y/Z, m/min | 80/80/30 |
| Servo power in X/Y/Z, kW | 2*1.5/1.5/1.5 |
| Number of vacuum zones, pcs | 6 |
| Total power consumption, kW | 31,1 |
| Productivity of vacuum pumps, m3/hour | 2x250 |
| Overall dimensions LxWxH, mm | 4500x3350x2415 |
| Weight, kg | 5000 |
