CNC machining center KN-5516 for 5 axes

osai control tower - Rack withOSAIcontrol system (Italy)- simple and easy to use interface .

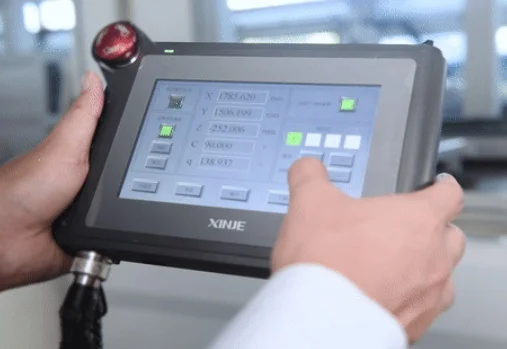

additional control panel - Additional touch-sensitive portable control panel for convenient control of the machine .

hsd electrospindle - The machine is equipped with a modern powerful electrospindle 12 kW from the Italian manufacturer HSD, "ES779" .

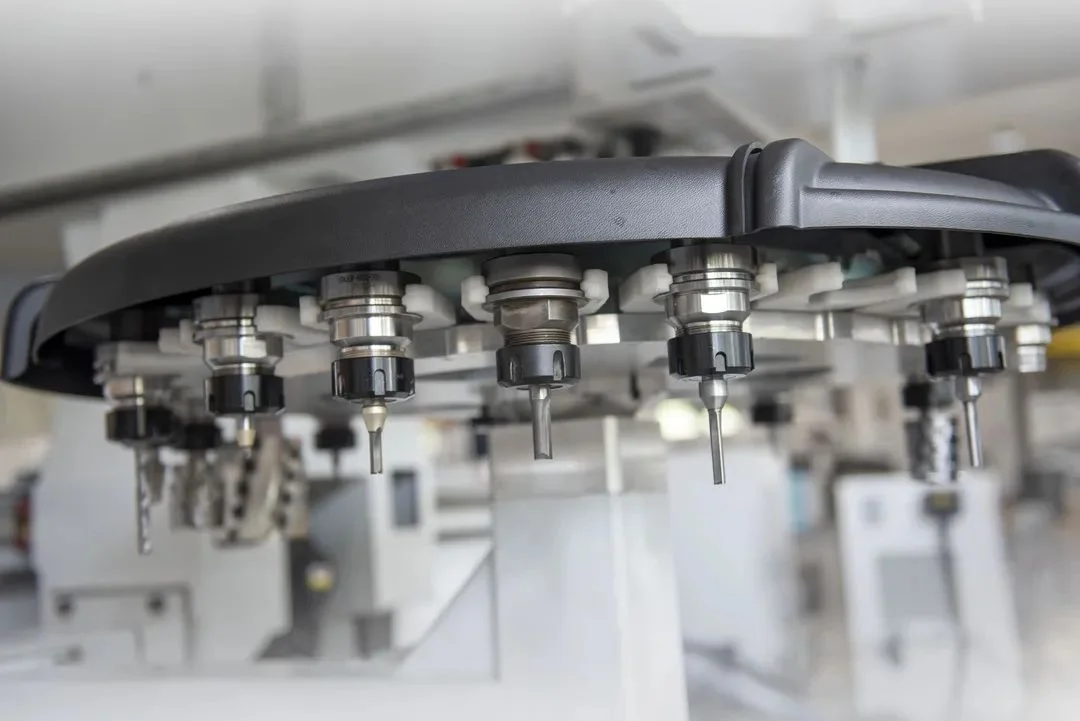

magazine for 22 tools - The 22-station automatic tool changer for the HSK-F63 chuck will provide the machine with the necessary stock of used milling cutters and allow you to perform complex operations using more tools .

linear tool change with 5 positions - Optional 5-station linear magazine for HSK-F63 chuck for quick access to specialty tools .

drilling and filler group - The drilling and filler group has (12 vertical + 8 horizontal spindles + 1 grooving saw).Technical characteristics of the drilling and filler group:Center-to-center distance between spindles 32 mm.Motor power 2.2 kW .

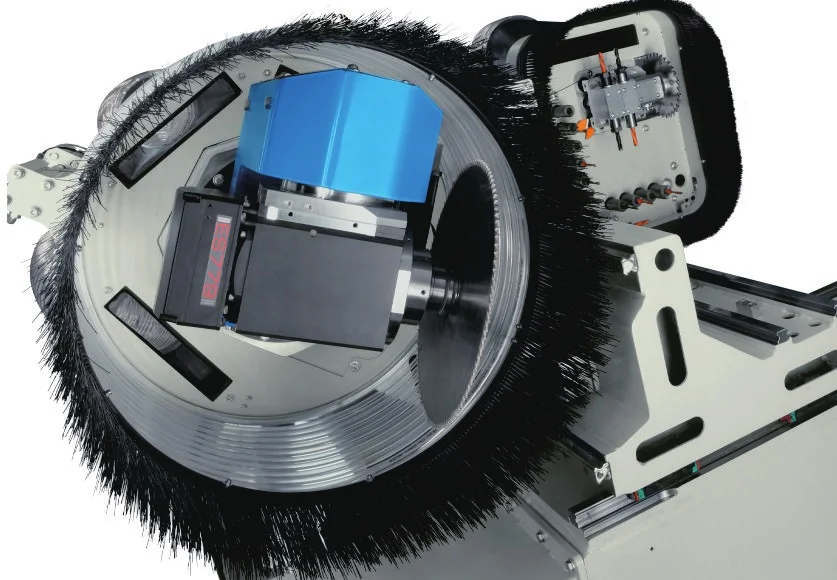

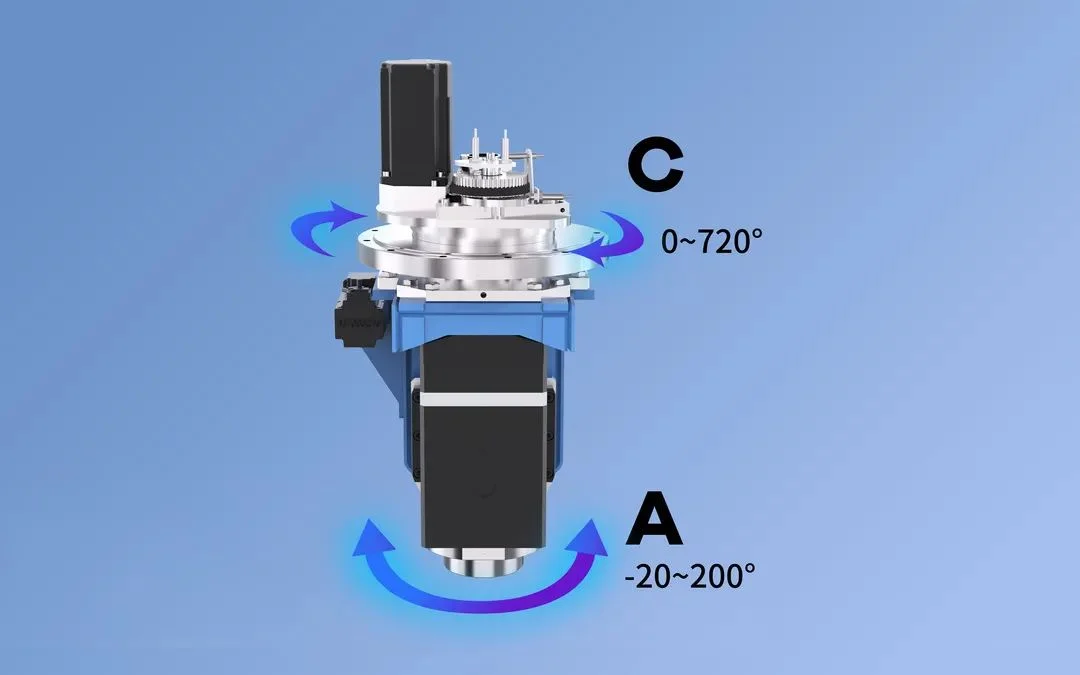

two separate screw pairs in the Z axis - The five-axis operating unit and drilling head work independently, thanks to two separate Z-axis screws, for quick tool change for different applications .

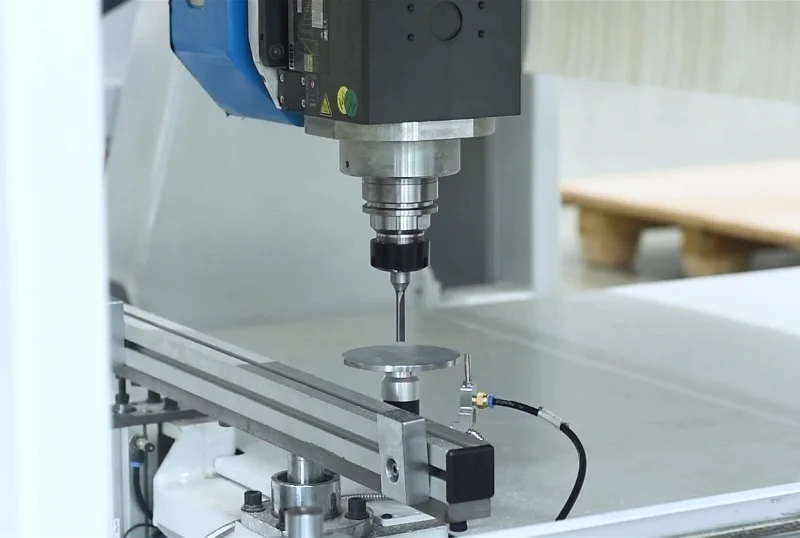

automatic tool measurement and calibration - The sensor for automatic tool measurement and calibration accurately measures the length of the tool, reduces machine setup time, which greatly facilitates the work of the operator .

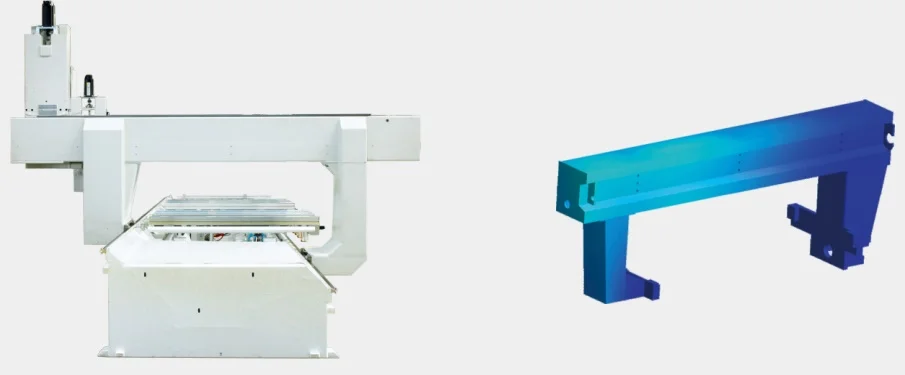

machine bed - The bed has the form of a frame structure with stiffening ribs and ceilings made of all-metal sheet, this provides a reliable base for further fastening of all units and assemblies to it .

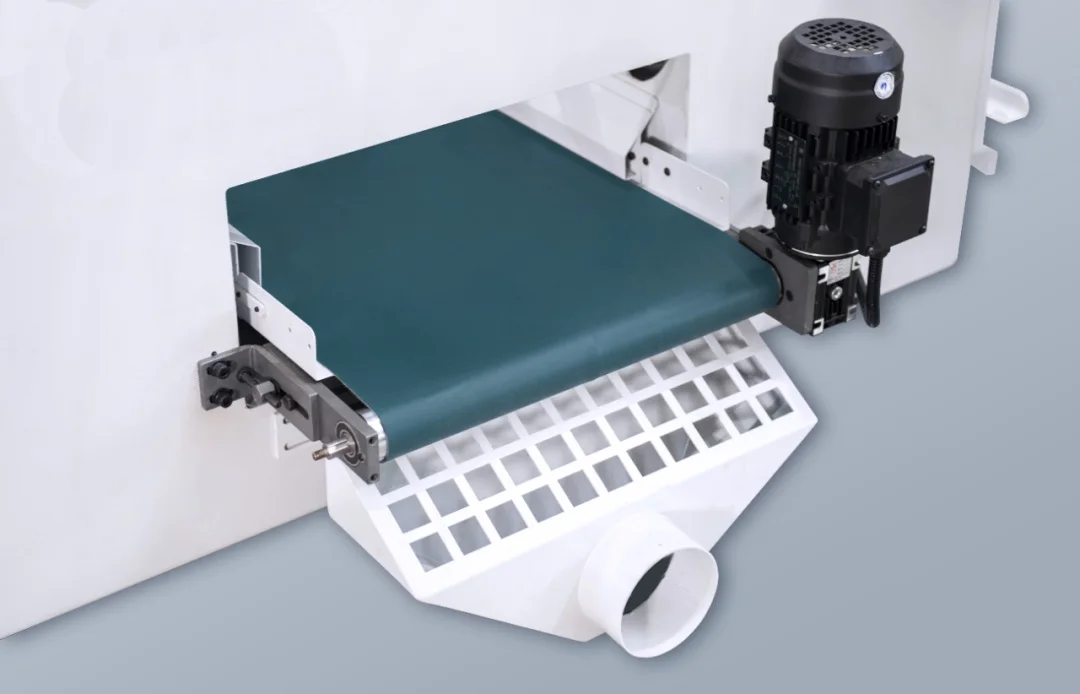

chip and piece removal conveyor - The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces .

additional airflow - Additional blowing of the processing zone ensures effective removal of chips from the cutting zone, which significantly affects the quality of processing and tool life .

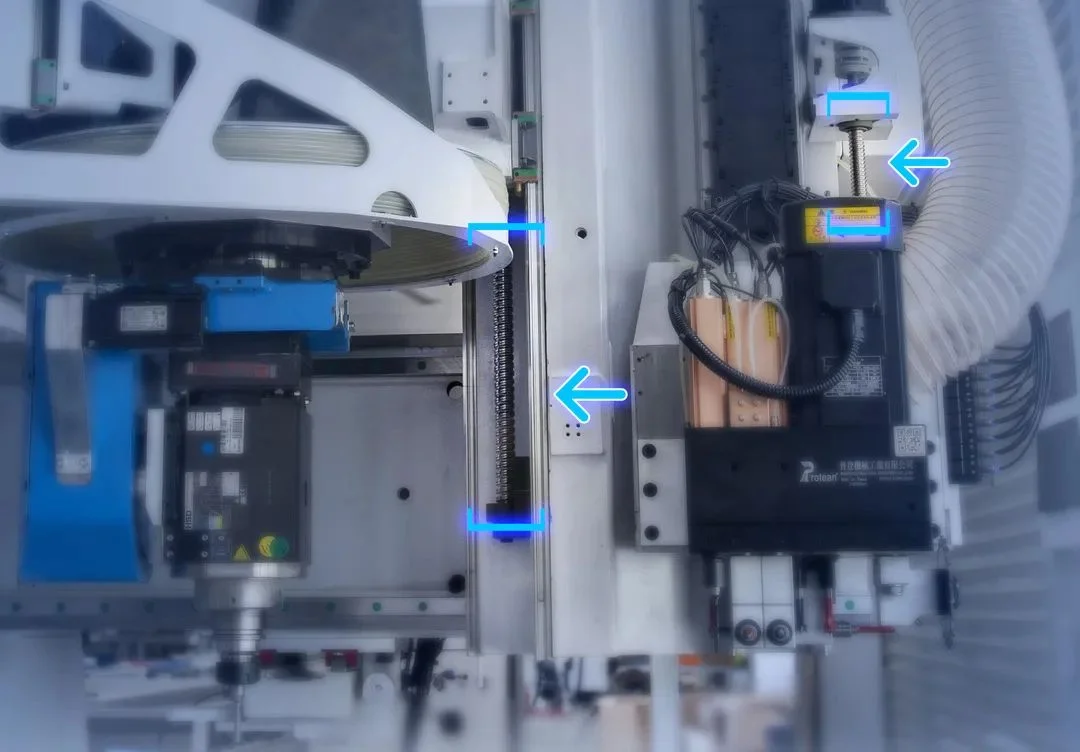

hinged screw pair - Z-axis ball screws - movement is carried out using aTBI ball screw (Taiwan), which guarantees the complete absence of backlash, and subsequently high accuracy of movement .

gear rack and pinion - The toothed rack and pinion with teeth ground from hardened steel provide high precision and smooth running due to minimal friction and no backlash. The pinion is integrated into a high precision planetary gearbox .

roller guides and carriages - HIWIN (Taiwan) rolling guides and bottom bracketsprovide smooth running due to minimal friction, while maintaining a tight grip and precision accuracy .

delta servomotors and sesam gearboxes - Delta Electronics high power X/Y/Z 1/0.5/1kW servo motors and SESAME Motor Taiwan precision planetary gearboxes provide synchronous movement, high precision and dynamics .

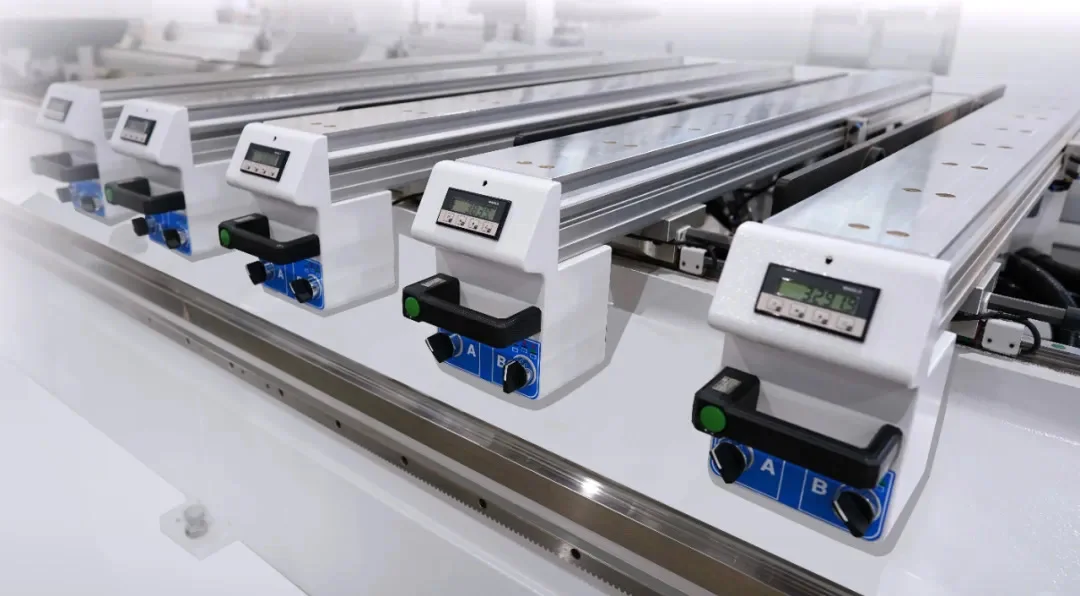

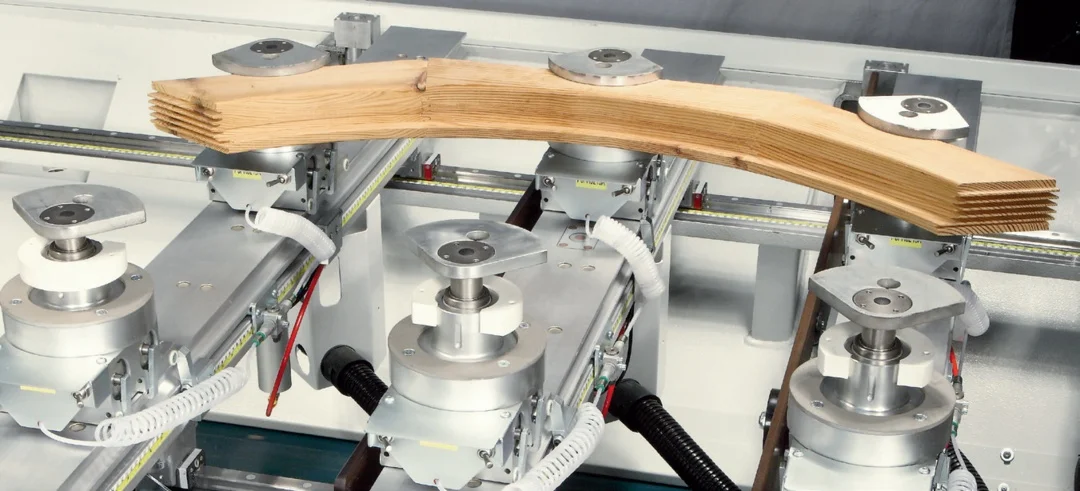

Desktop - Working table for 8 traverses with digital display and SCHMALZ vacuum blocks allows you to quickly position the part .

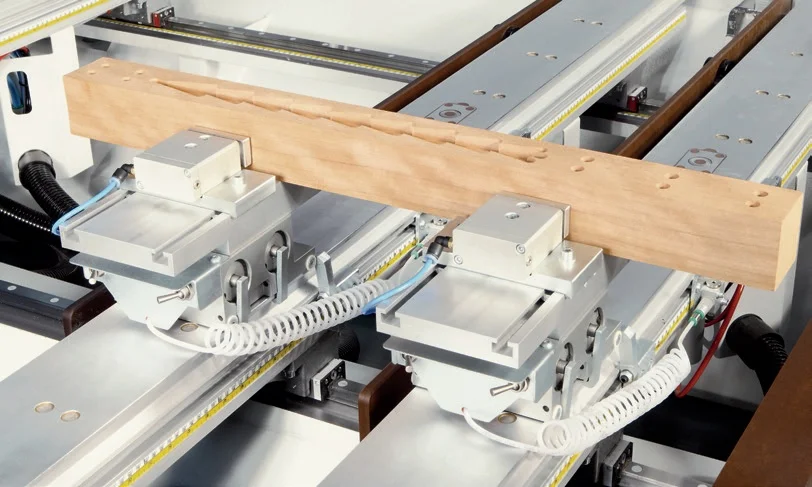

clamping device - Quick change clamping device .

fixture selection - Choose accessories according to technological requirements .

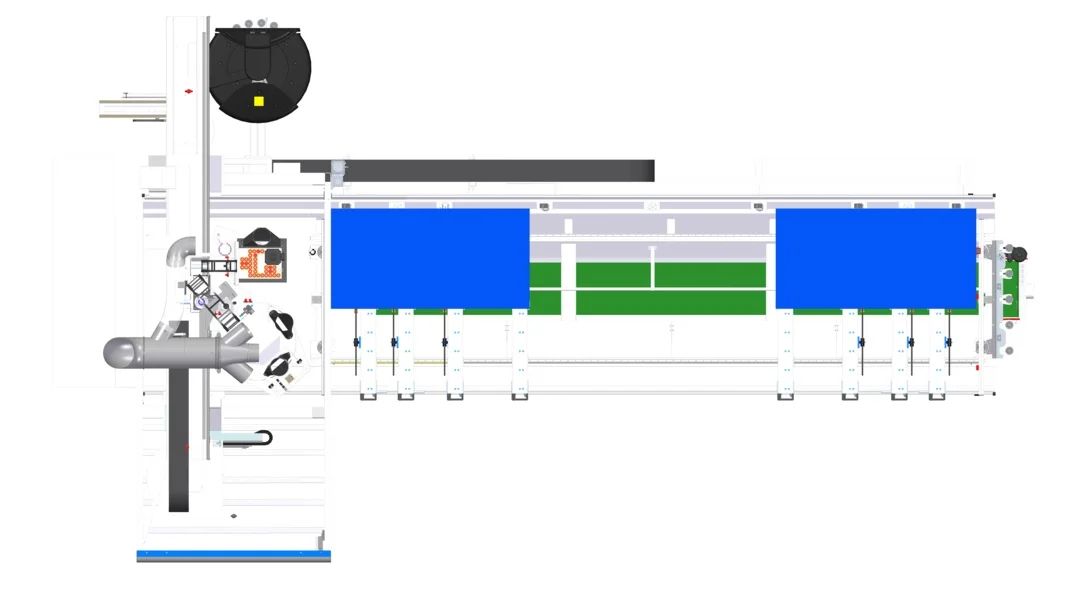

pendulum operation - The pendulum mode of operation divides the desktop into two zones - this allows you to set various processing programs in these zones and can significantly reduce the operating time (cycle) of the machine, the time when processing tak .

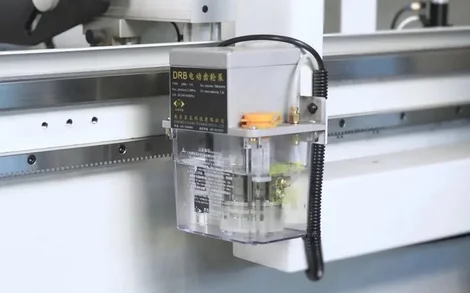

central lubrication - The automatic lubrication system lubricates all necessary components and assemblies .

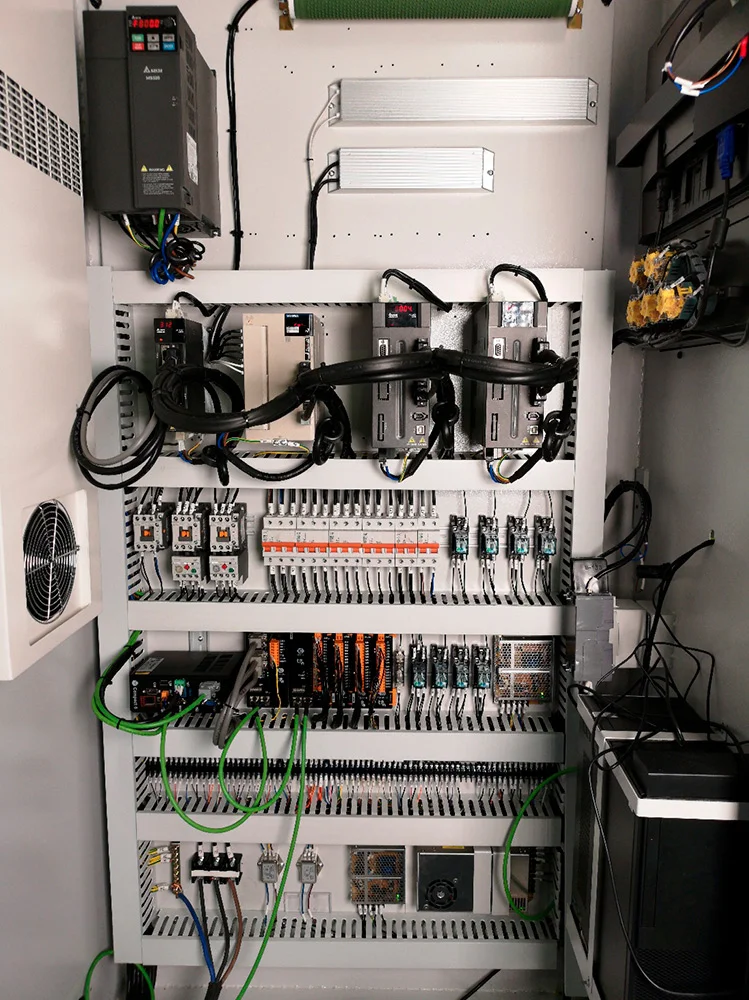

electric cabinet - All equipment of the KDT plant uses electrical components from trusted manufacturers. They are interchangeable, thereby increasing the efficiency of service maintenance and quality control .

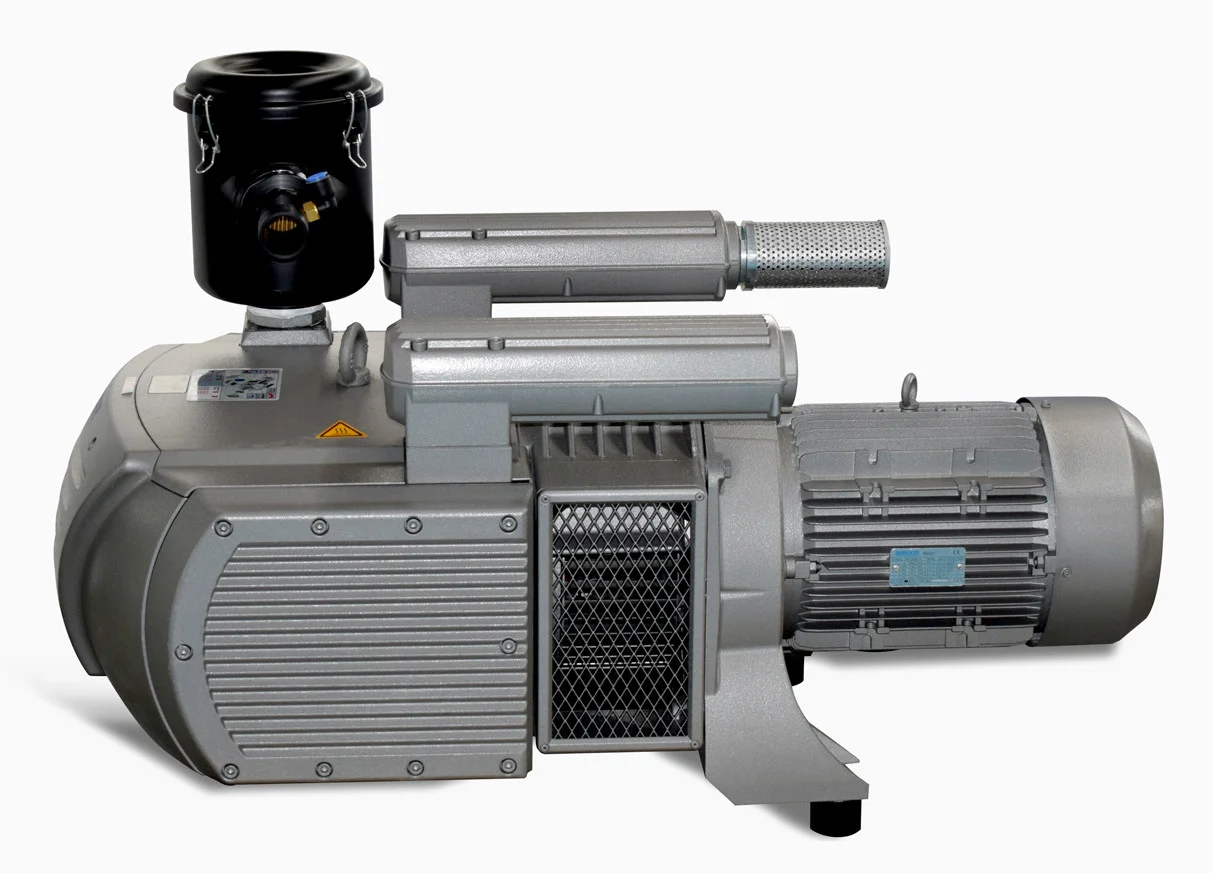

vacuum system - Vacuum system with a capacity of 244 m3/h securely fixes the workpiece .
