Technical Specifications
| Control system | TPA (Italy) |
| Table size, mm | 5150x1500 |
| Spindle | HSD, 13.2 kW, 24000 rpm, clamp HSK-63 F |
| 4th axis C | HSD |
| drilling head | 12 vertical + 8 horizontal spindles at 6000 rpm + 120 mm grooving saw |
| Tool change | revolving for 16 places + linear type for 5 places |
| Maximum tool length (excluding workpiece height), mm | 200 |
| Travel speed in X/Y/Z, m/min | 80/80/30 |
| Servo power in X/Y/Z, kW | 2*1.3/1.3/1.3 |
| Table configuration | 8 vacuum traverses, 24 SCHMALZ suction cups, 20 pneumatic stops |
| Total power consumption, kW | 26,3 |
| Productivity of vacuum pumps, m3/hour | 1x244 |
| Overall dimensions LxWxH, mm | 7830x3350x2500 |
| Weight, kg | 5500 |
CNC Machining Center KN-6516C 4 Axis
Purpose :
CNC machining center KDT KN-6516C with 4-axis machining with one milling spindle and drilling and filler group (12 vertical spindles + 8 horizontal + grooving saw) is designed for precise, high-speed milling and hole filling in furniture and carpentry parts products (plywood, furniture board, chipboard, MDF, solid wood of soft and hard breeds). The machine is optimally suited for woodworking and furniture industries that require increased equipment flexibility (Adding holes and milling). It will be useful both in the entry-level enterprise and in large-scale production.
Distinctive features :
Processing area 5150*1500 mm; Table type: Movable traverses "SCHMALZ"; Spindle: HSD (Italy) - 13.
Additional Images

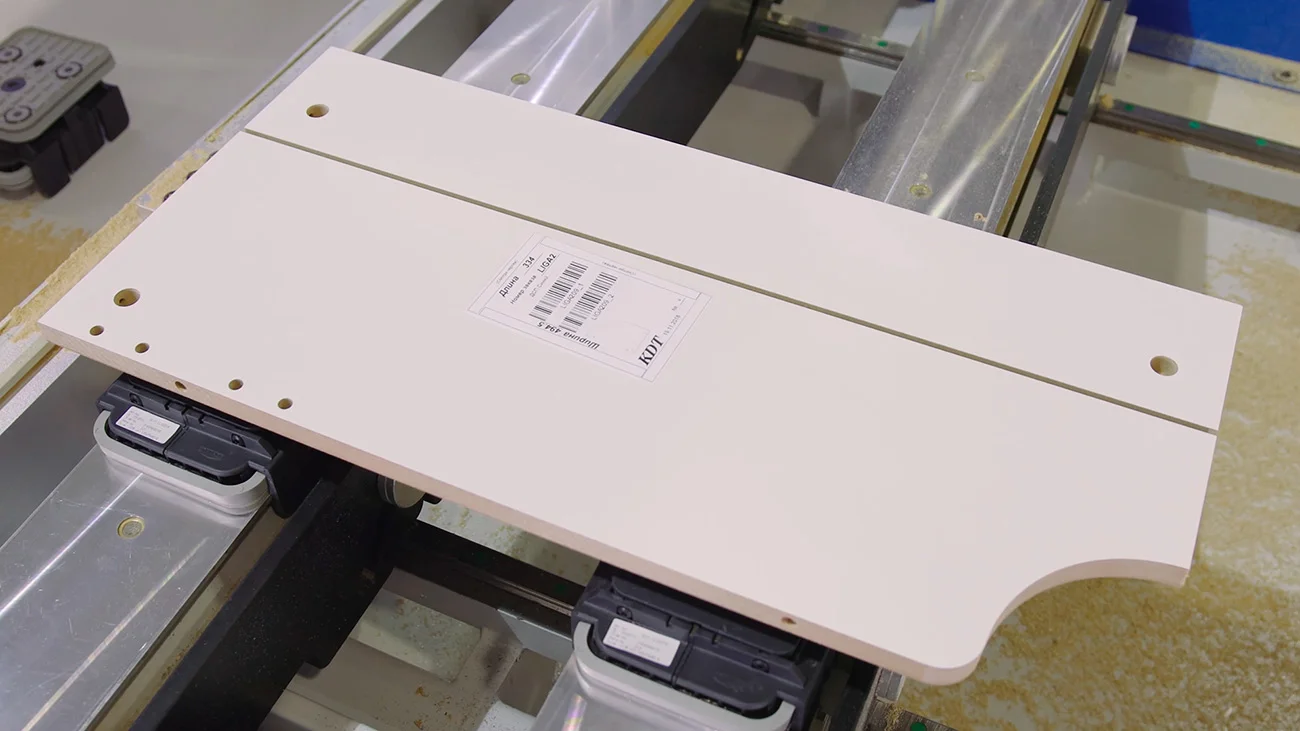

machine functionality - The machine performs the following operations: three-axis milling (facades, doors, cabinet furniture parts, etc.), inserting holes on five sides and grooving along the X axis with a saw. These operations allow the processing of sim
machine bed - The bed has the form of a frame structure with stiffening ribs and ceilings made of all-metal sheet, this provides a reliable base for further fastening of all units and assemblies to it. High precision of execution guarantees precise moveme

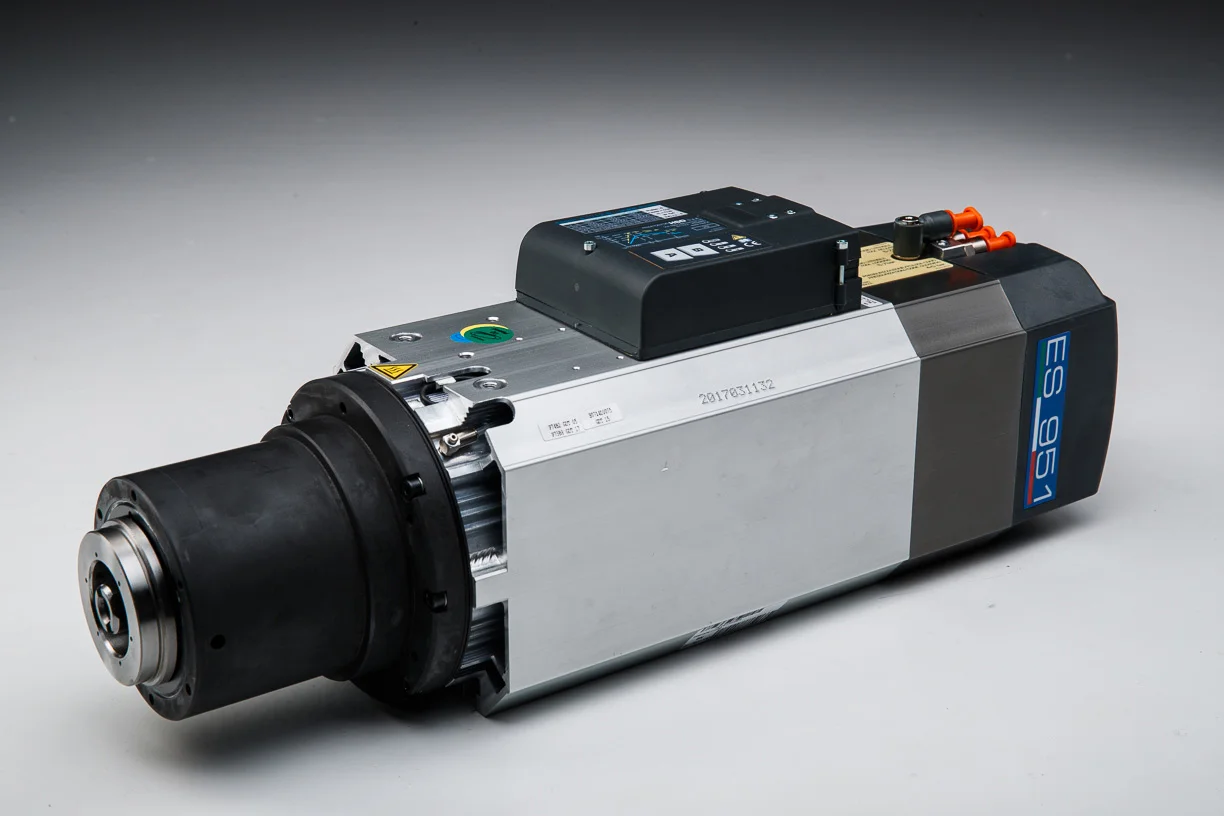

hsd electrospindle - The machine is equipped with a modern powerful electrospindle 13.2 kW from the Italian manufacturer HSD, "ES951 e-core". This is the first spindle with its own intelligence, which independently diagnoses its work and sends information

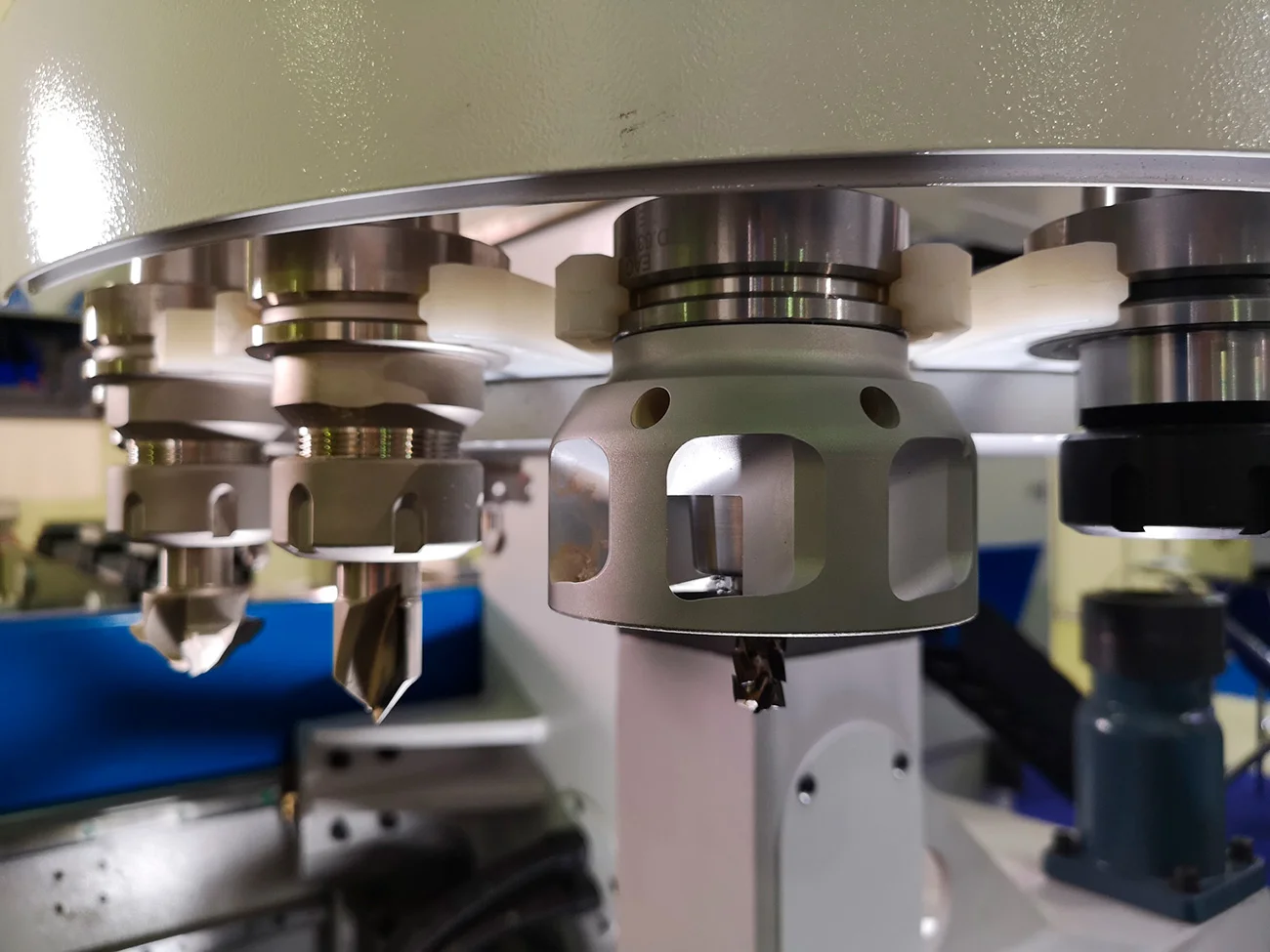

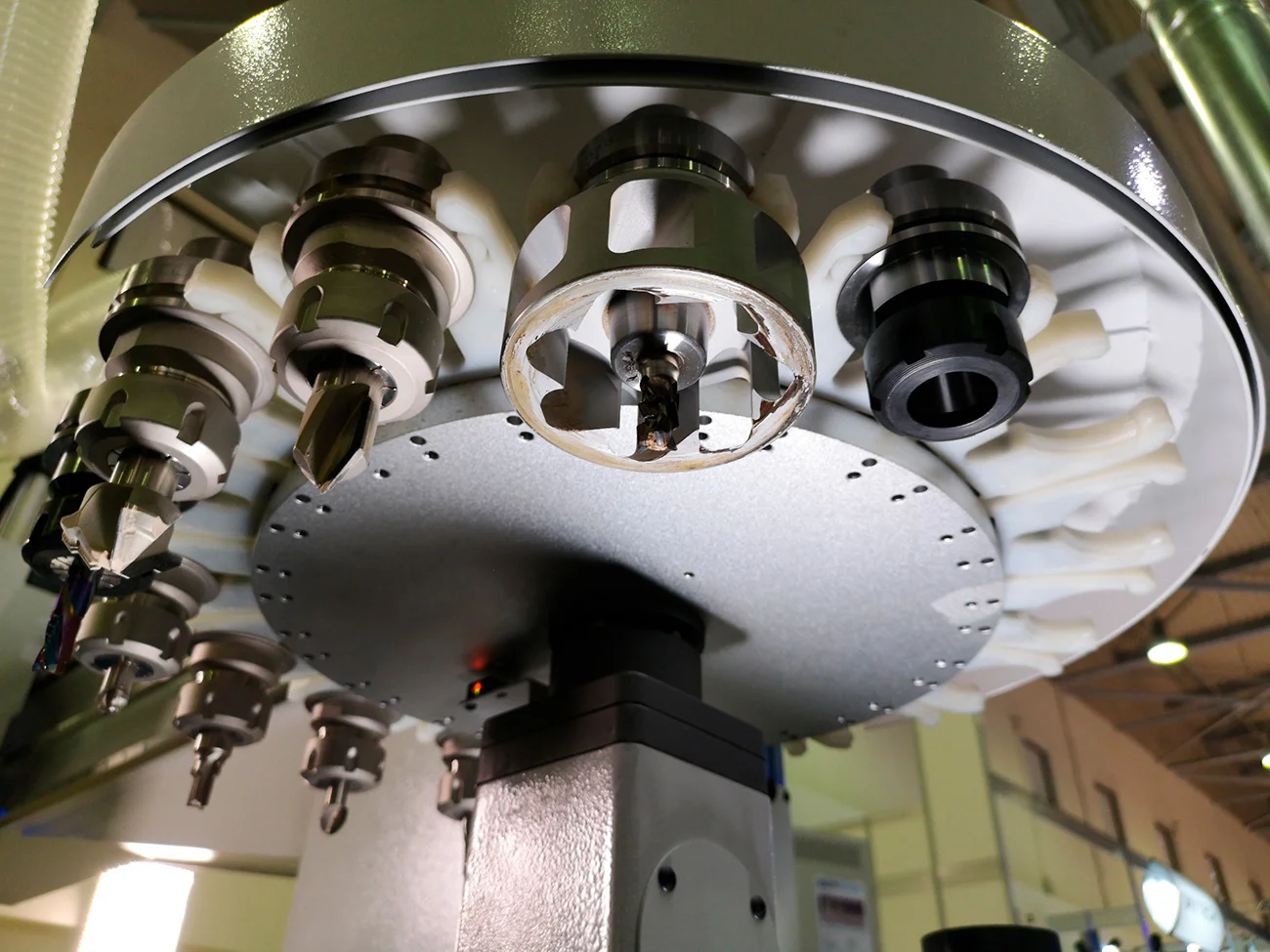

magazine for 16 tools - The 16-station automatic tool changer will provide the machine with the necessary stock of used milling cutters and will allow you to perform complex operations using more tools. The magazine is equipped with a servo drive, which a

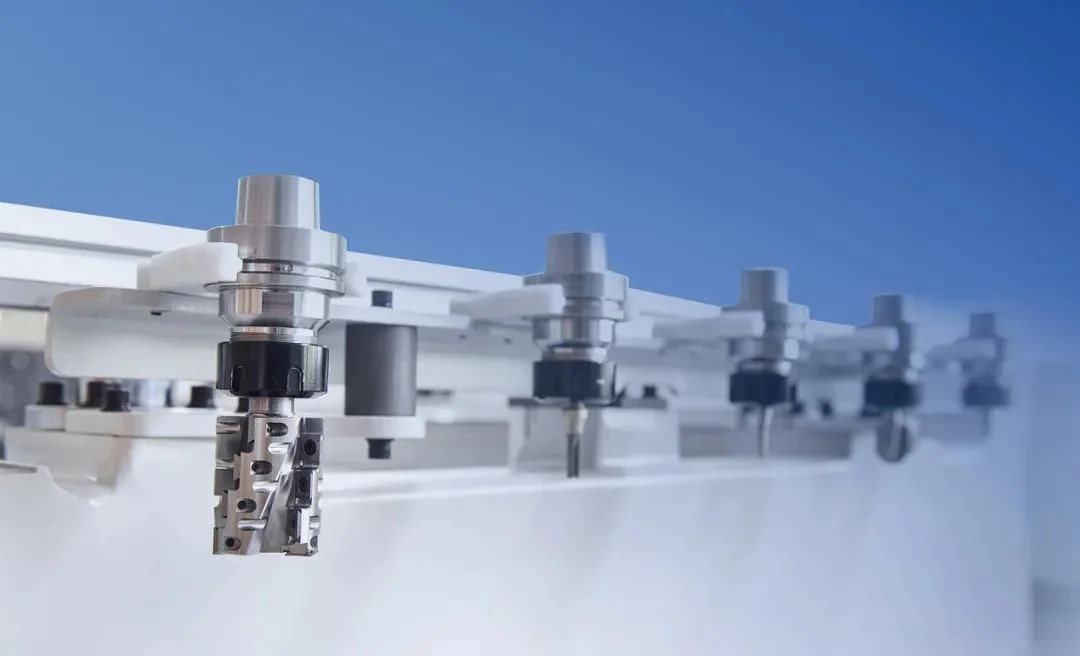

linear tool change with 5 positions - Optional 5-station linear magazine for HSK-F63 chuck for quick access to specialty tools.
precision cartridge hsk-63f - Tool and spindle taper HSK 63 F The HSK tooling system was developed by German specialists specifically for high-speed and high-precision machining. The use of an HSK taper ensures radial and axial accuracy. HSK 63 F is desig

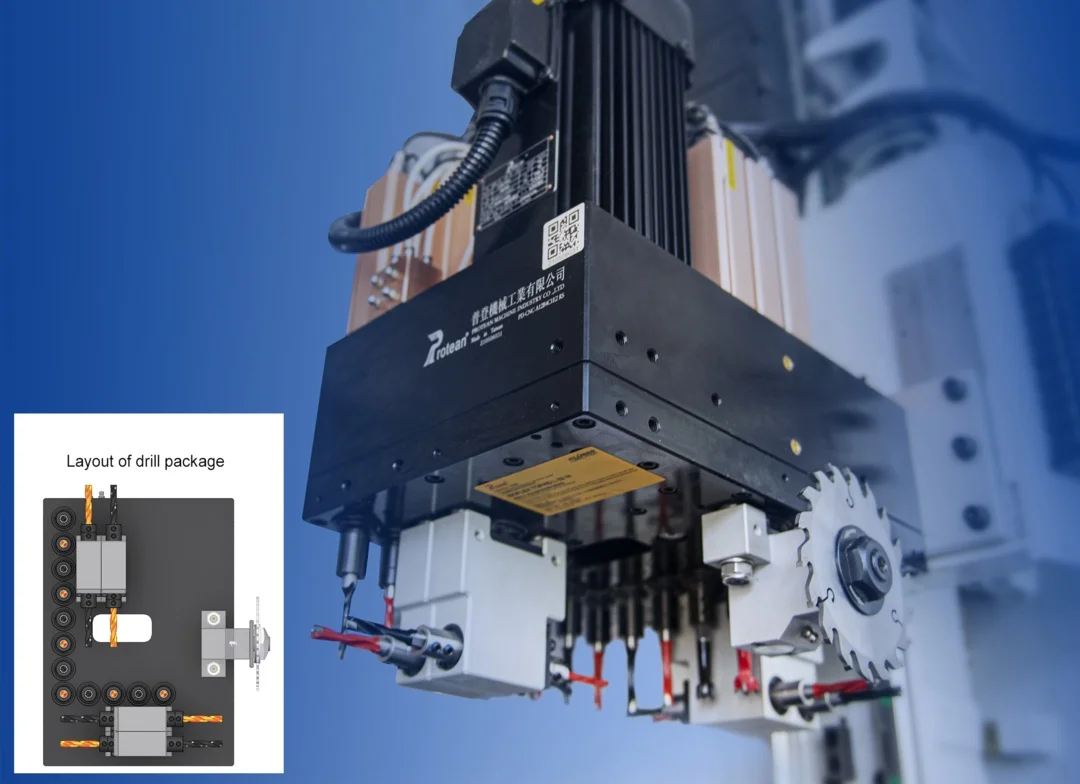

drilling and filler group - Drilling and filler group (12 vertical + 8 horizontal spindles + 1 grooving saw).

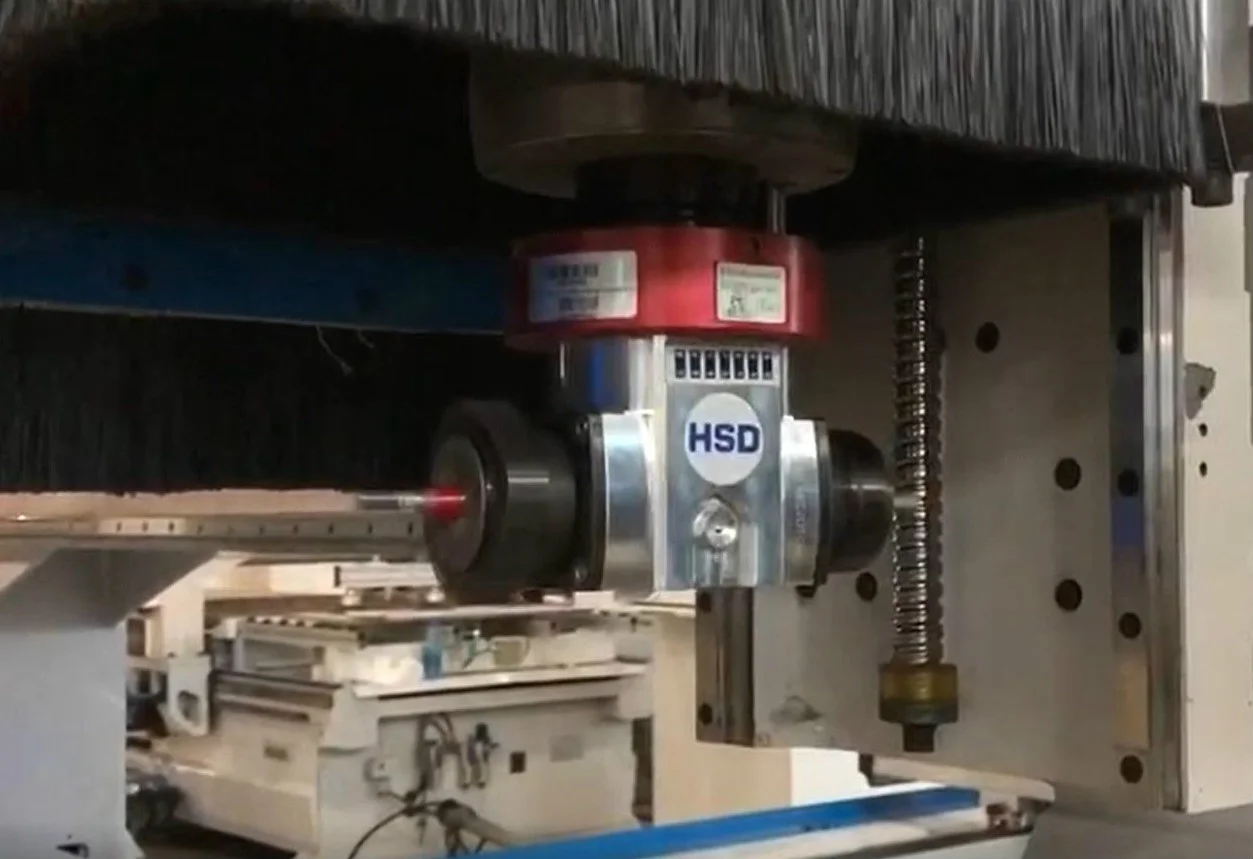

4th axis C - Unlike conventional 3-axis milling of a part, 4-axis machining allows you to machine a product from five sides, without additional operations for rearranging the part on the desktop.

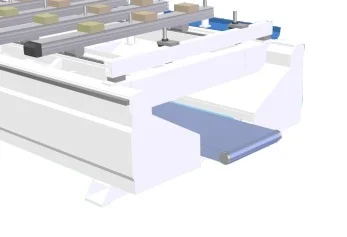

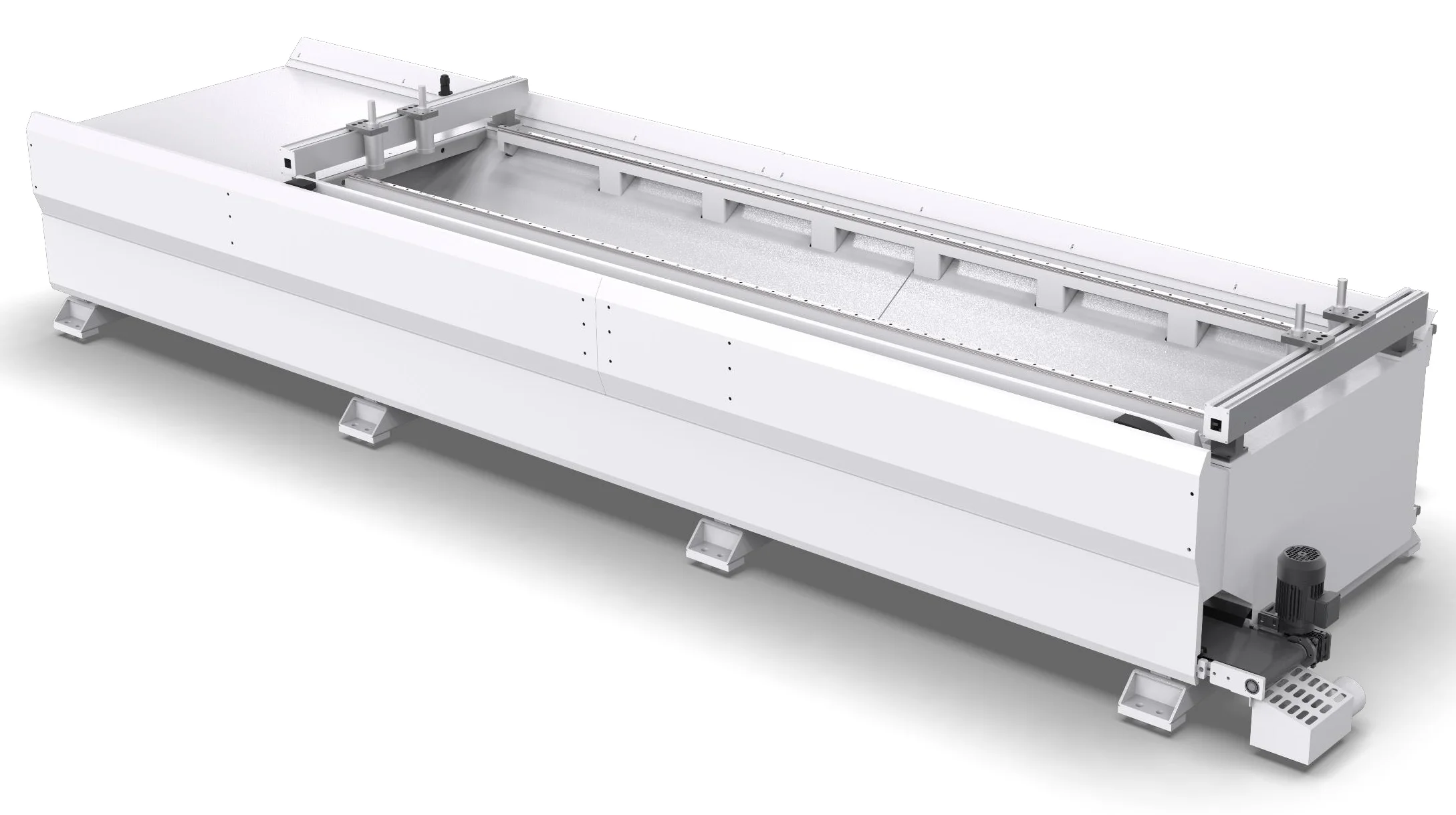

chip and piece removal conveyor - The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces.

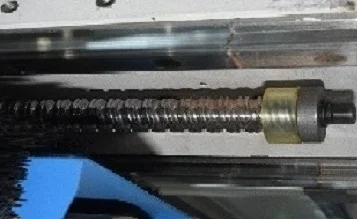

hinged screw pair - Z-axis ball screws - movement is carried out using aTBI ball screw (Taiwan), which guarantees the complete absence of backlash, and subsequently high movement accuracy.

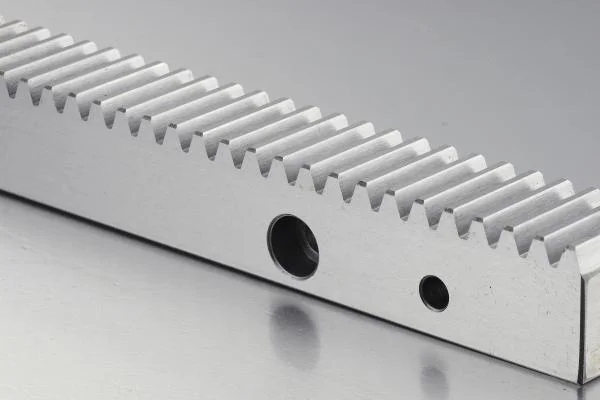

gear rack and pinion - Gear rack and pinionKAI HE (Taiwan)with teeth ground from hardened steel provide high accuracy and smooth running due to minimal friction and no backlash. The pinion is integrated into a high precision planetary gearbox.

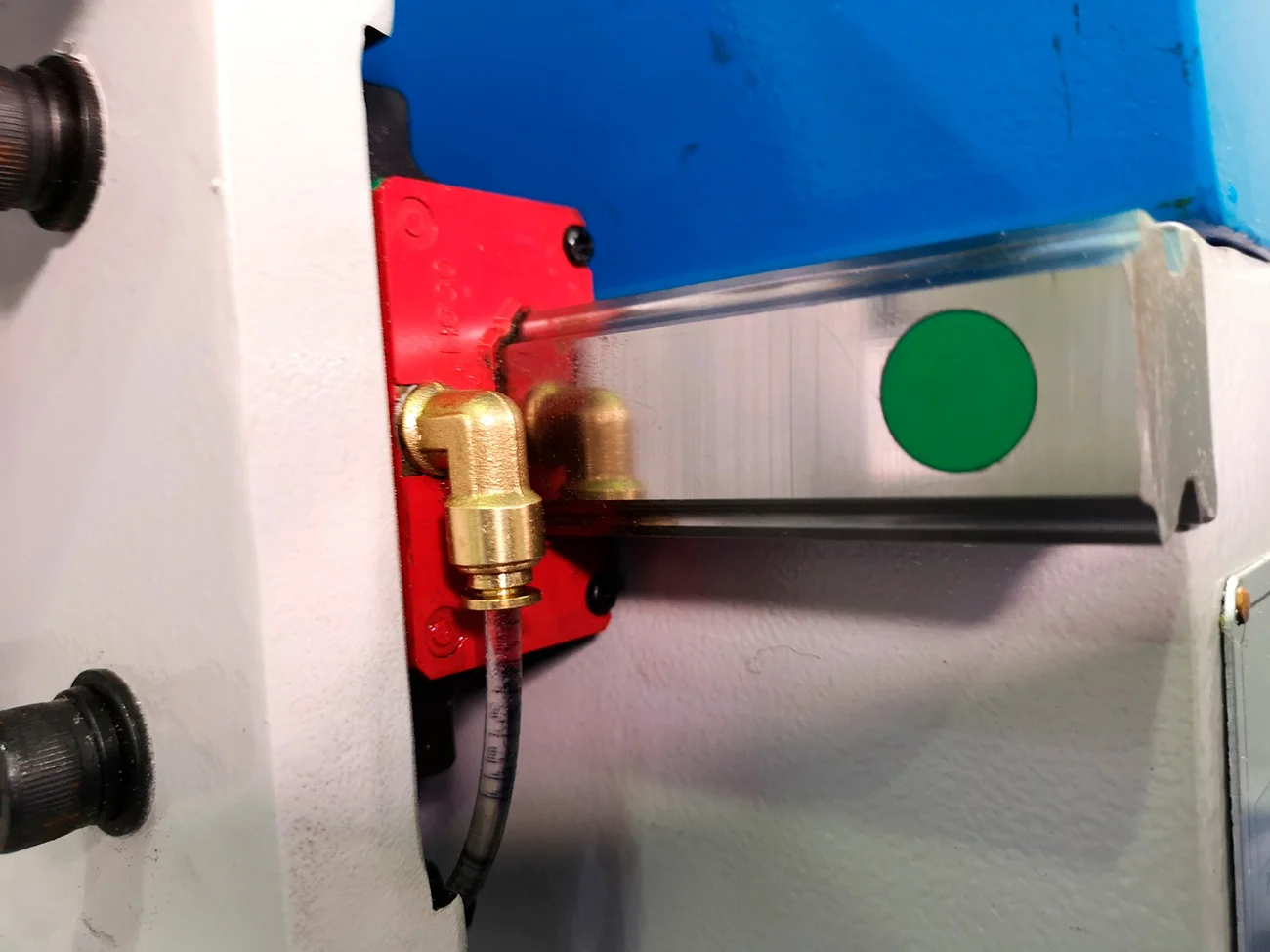

roller guides and carriages - HIWIN (Taiwan) rolling guides and bottom bracketsprovide smooth running due to minimal friction, while maintaining a tight grip and precision accuracy.

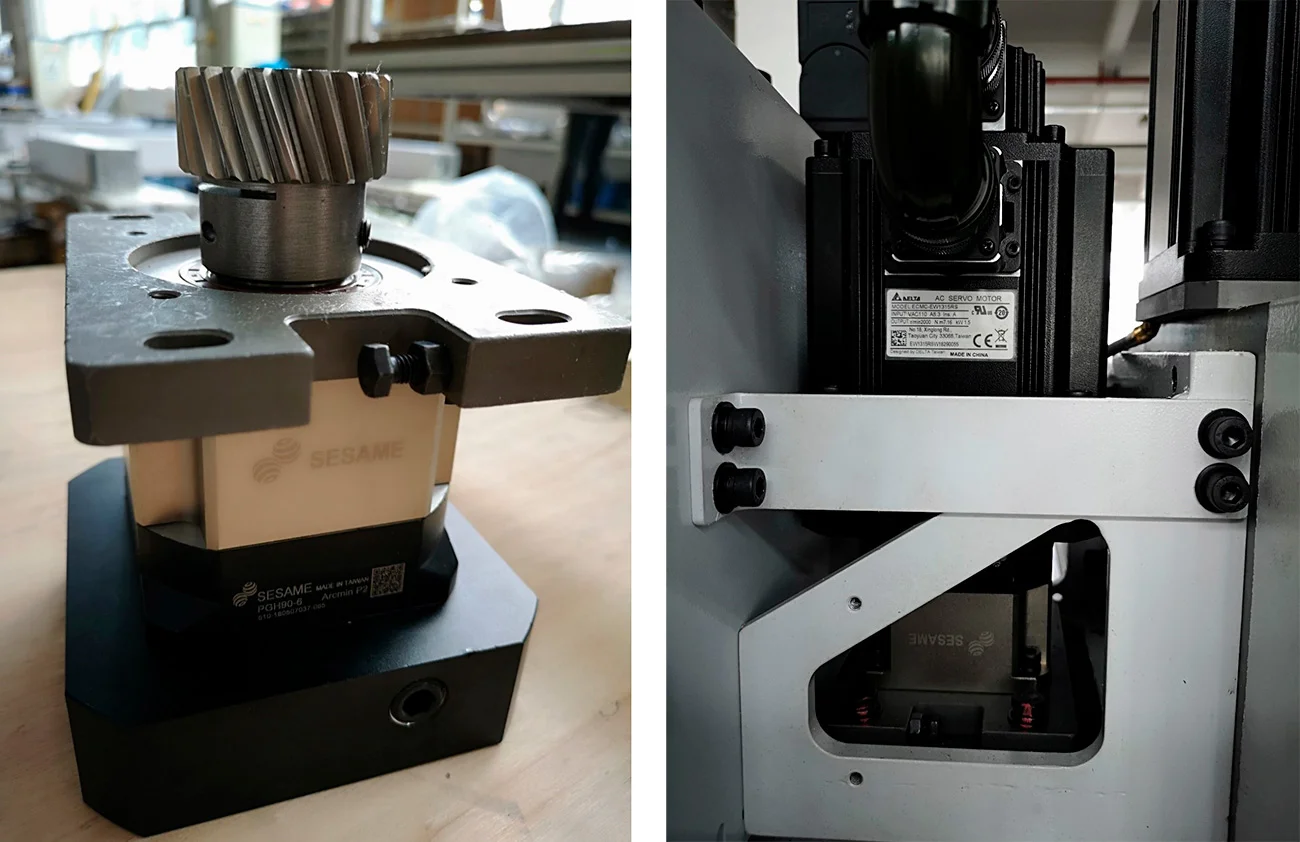

delta servomotors and sesam gearboxes - Delta Electronics high power 1.3KW servo motors and SESAME Motor Taiwan precision planetary gearboxes provide synchronous movement, high precision and dynamics.

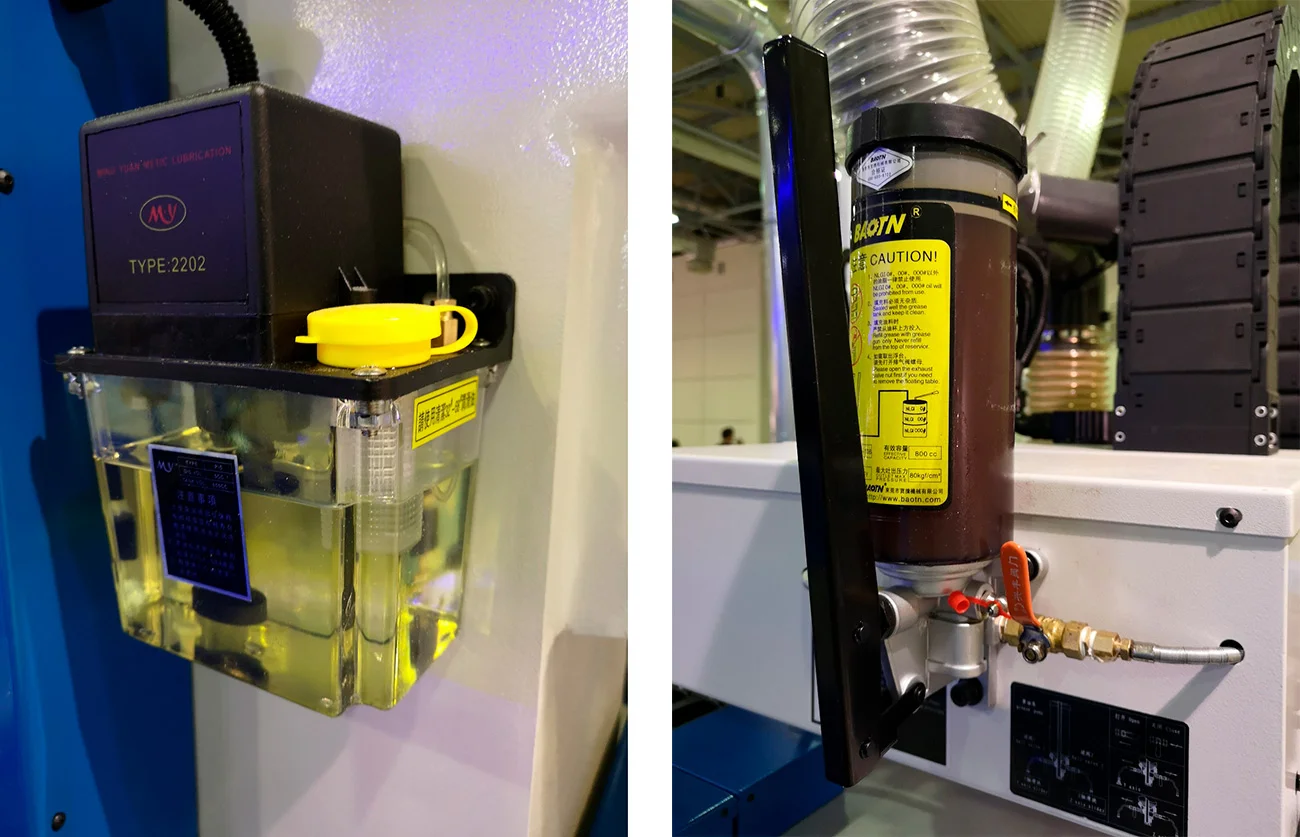

double-circuit lubrication system - A dual-circuit lubrication system lubricates all necessary components and assemblies - automatic lubrication system along the X / Y axis, manual lubrication system along the Z axis.

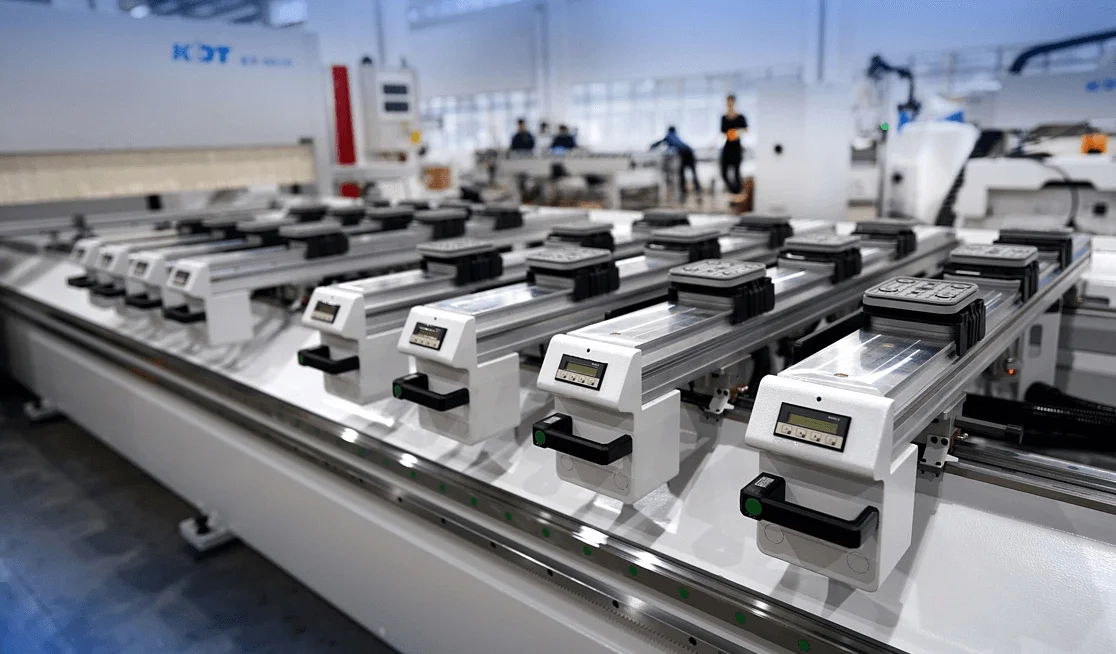

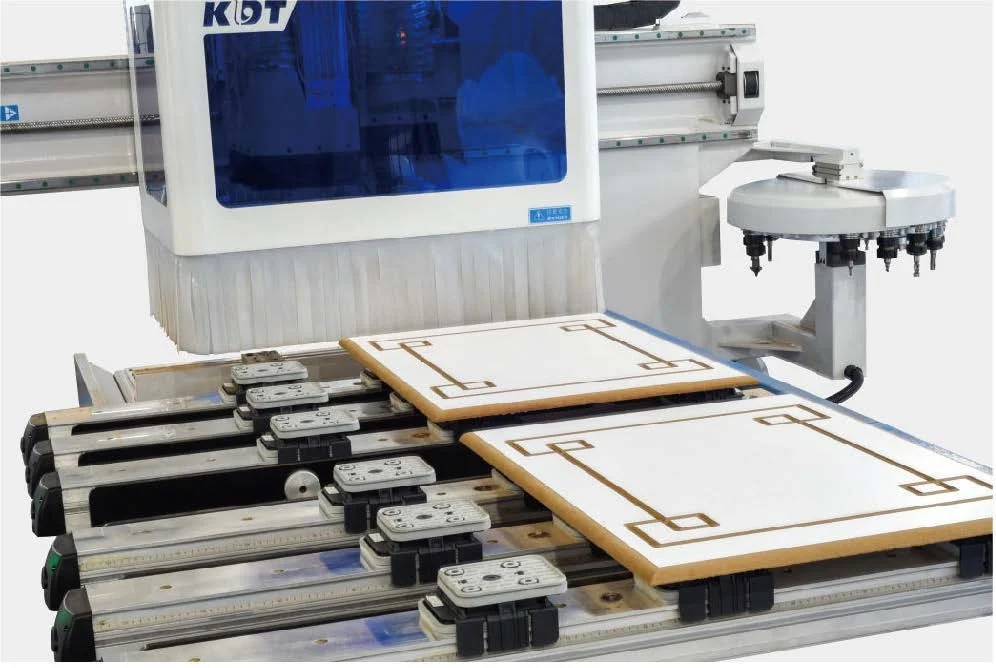

Desktop - Working table for 8 traverses with digital display and SCHMALZ vacuum blocks allows you to quickly position the part.

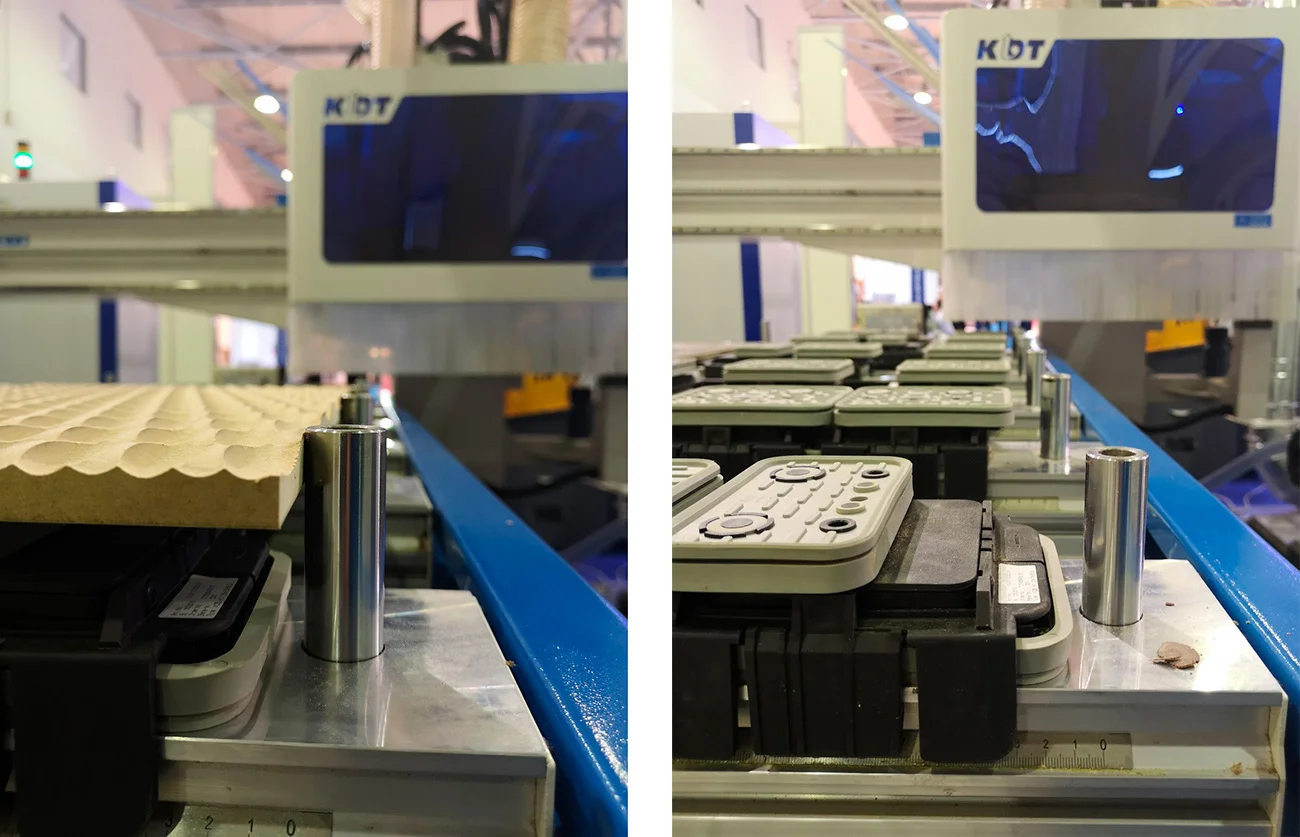

stops and clamping system - The set includes 24 SCHMALZ suction cups and 20 pneumatic stops to ensure accurate and reliable clamping of the workpiece.
pendulum operation - The pendulum mode of operation divides the desktop into two zones - this allows you to set various processing programs in these zones and can significantly reduce the operating time (cycle) of the machine, the time when processing tak

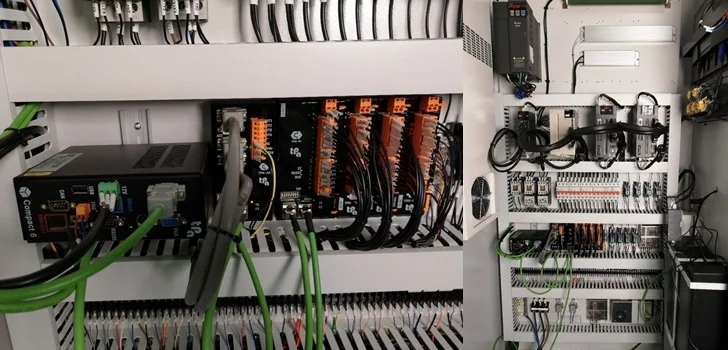

electrical cabinet and electrical components - All equipment of the KDT plant uses electrical components from trusted manufacturers. They are interchangeable, thereby increasing the efficiency of service maintenance and quality control. These are mainly D

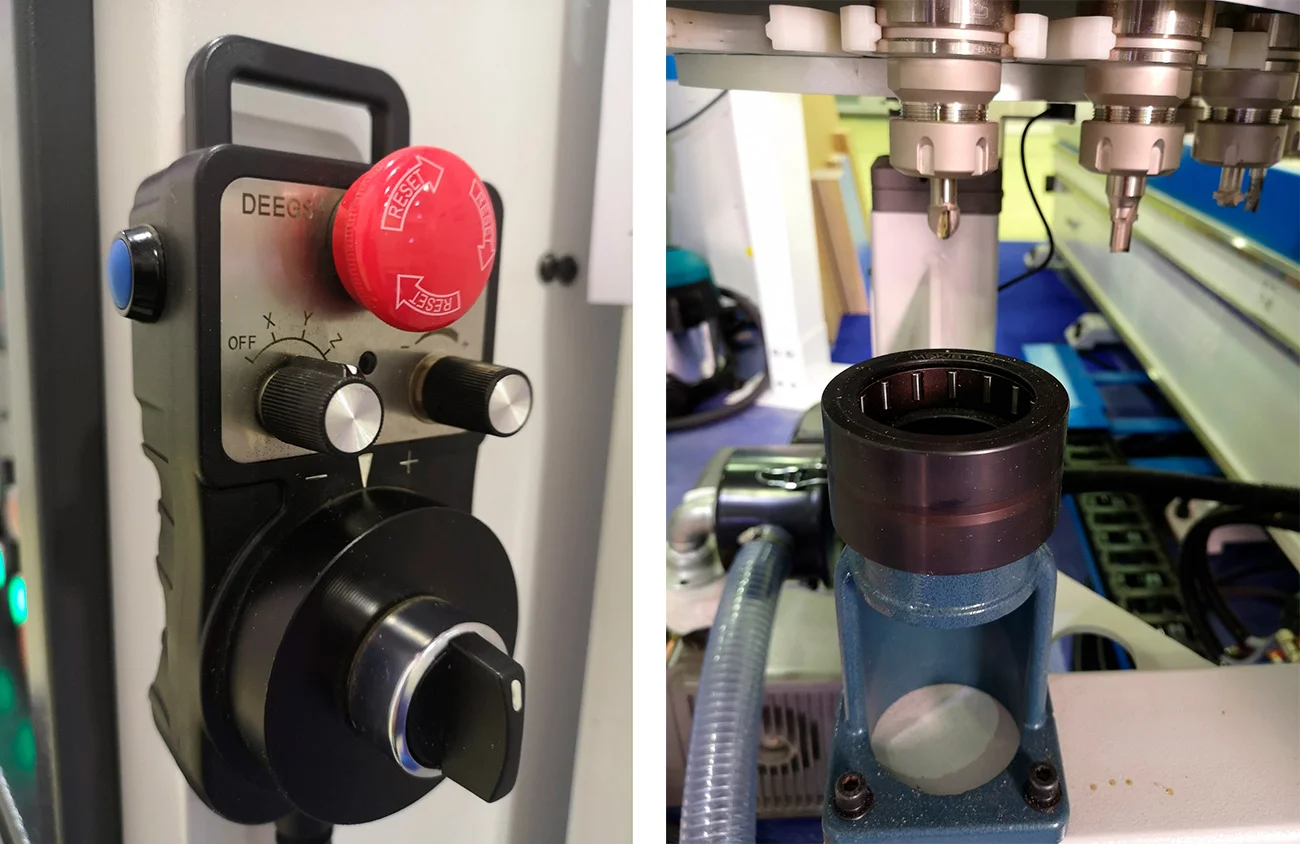

hand control and teski - The hand control panel and tool holders facilitate the operator's work.

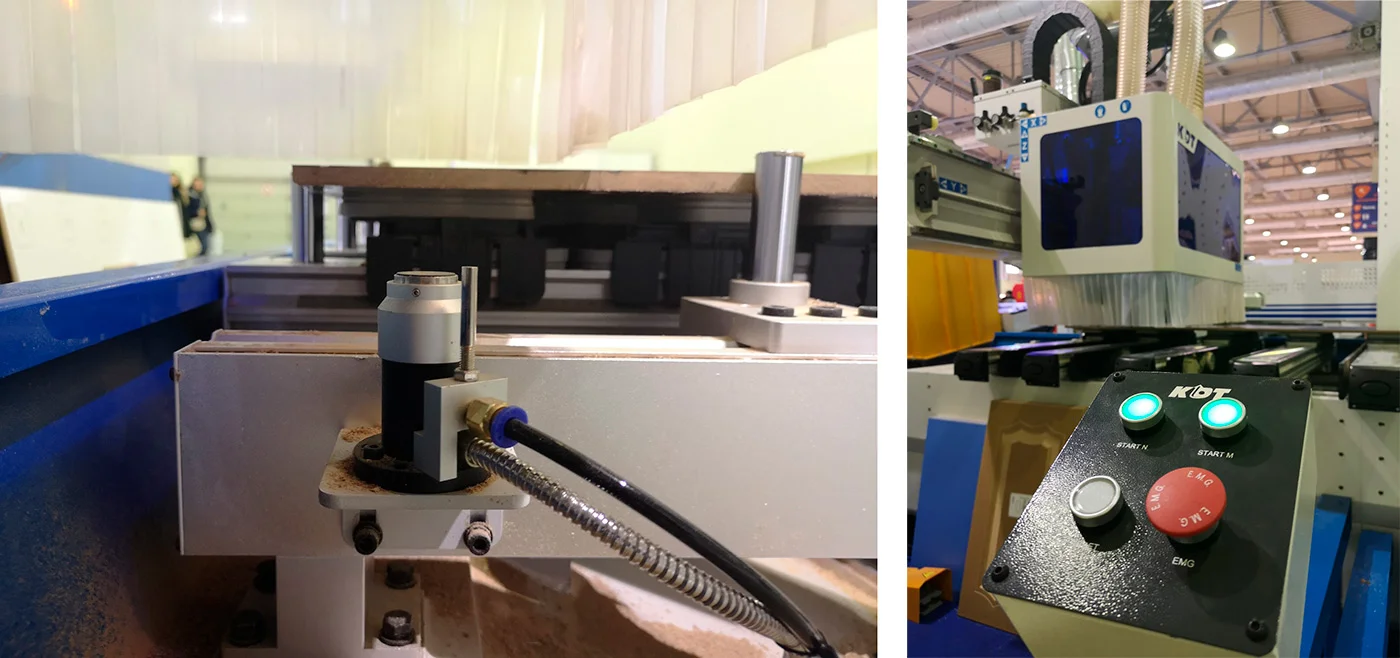

calibration sensor and zone control panel - Tool calibration sensor and remote control for pendulum operation.

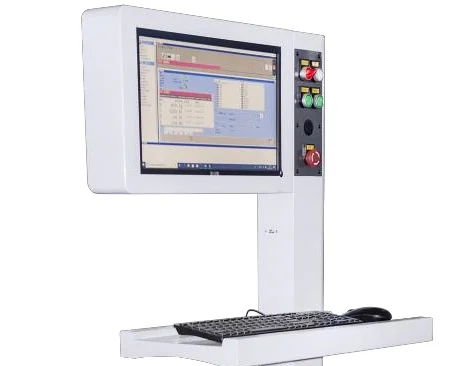

tpa control tower - TPA control desk (Italy)- includes 2 modules: Tra WSCM - machine control and Tpa Cad - modeling, editing, creating control programs.

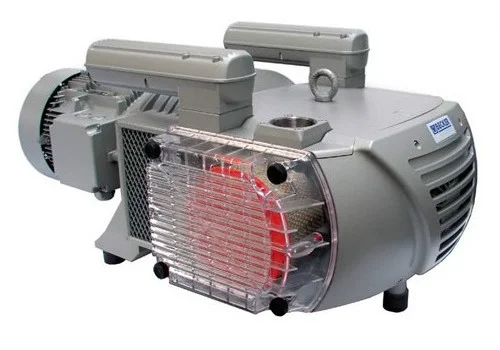

vacuum system - The Becker vacuum system with a power of 5.5 kW and a capacity of 250 m3/h securely fixes the workpiece.
