Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | Main desktop (50-1220), additional desktop (50-800) |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 6 (3 on each table) |
| Number of vertical spindles (upper group), pcs | 64 |
| Number of vertical spindles (lower group), pcs | 18 |
| Number of horizontal spindles, pcs | 24 |
| Milling unit, kW | 2x5.5 + 2x3.5 |
| Suction pipe diameter, mm | 4x200 + 2x100 |
| Full power, kW | 59.5 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x4920x2190 |
| Weight, kg | 7200 |
CNC Drilling Center KD-812A
Purpose :

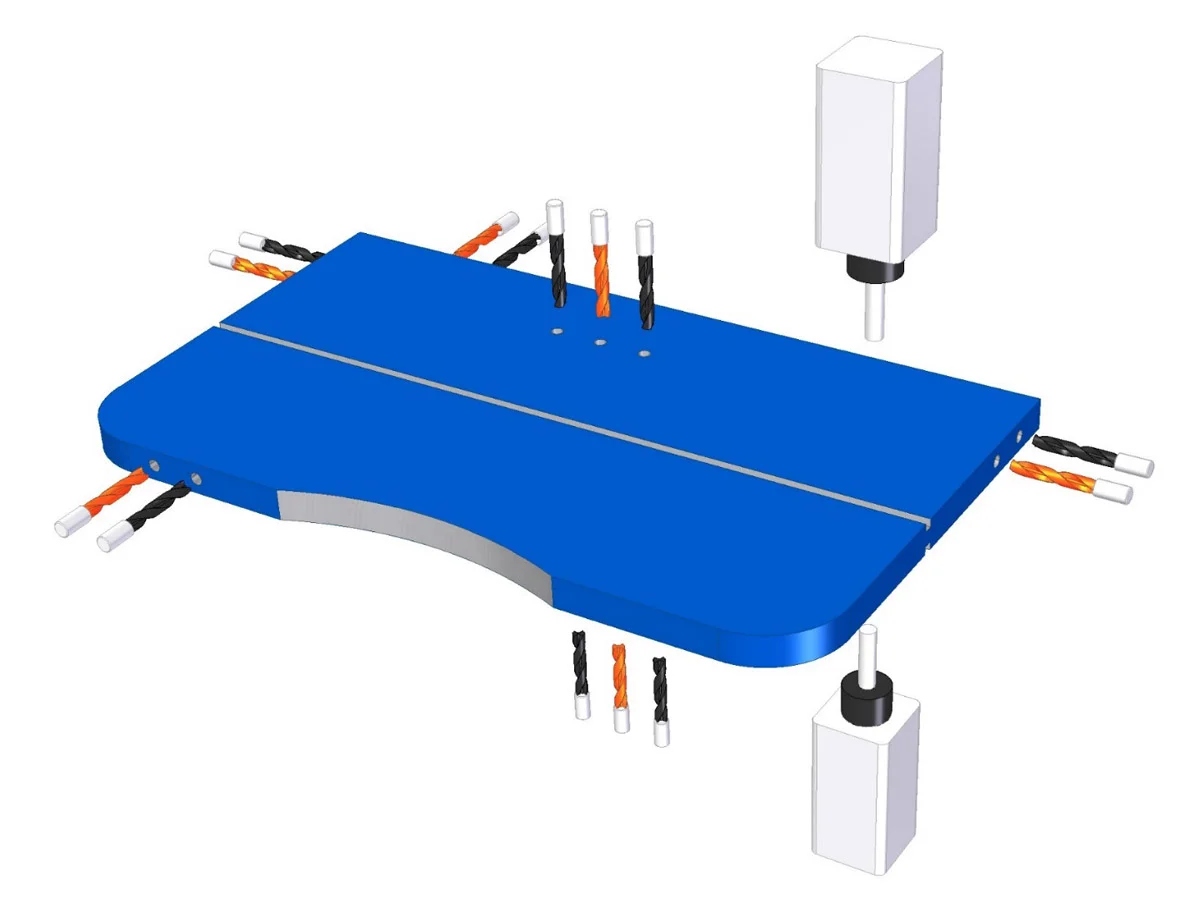

The KDT KD-812A CNC through drilling center with six drilling and four milling groups on two independent tables is designed for high-speed processing of workpieces from six sides in the through mode, which allows increasing the processing efficiency. The machine is used for serial production. Two work tables Scheme of drilling groups Work as part of a drilling line
Distinctive features :
Productivity 6 blanks / minute; High processing speed: 140/90/50 m/min; 2 independent desktops; Drilling from 6 sides; 3 drilling groups (2 top + 1 bottom) on each table; Two milling units (1 top + 1 bottom) on each worktable; Minimum working distance between two drilling groups 80 mm; Additive of small parts from 250x50 mm; Work of the machine in the through mode; Automatic detection of part width by sensor; Automatic positioning of the workpiece by aligners; Visualization of the processing of a double-sided additive map; Scanner for reading the additive card by barcode on each table.

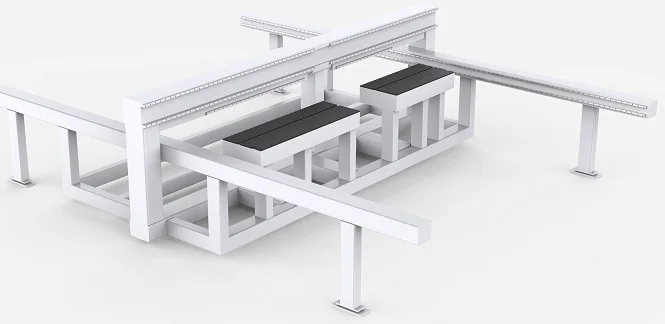

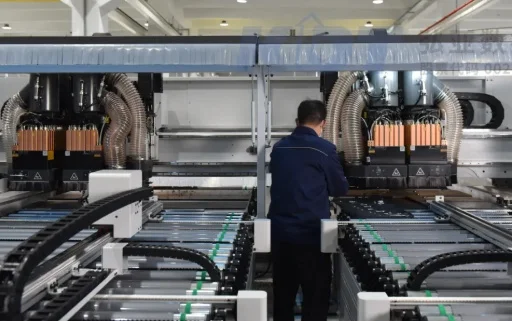

Two independent desktops - Thanks totwo independent working tables, it is possible to process two panels at the same time .

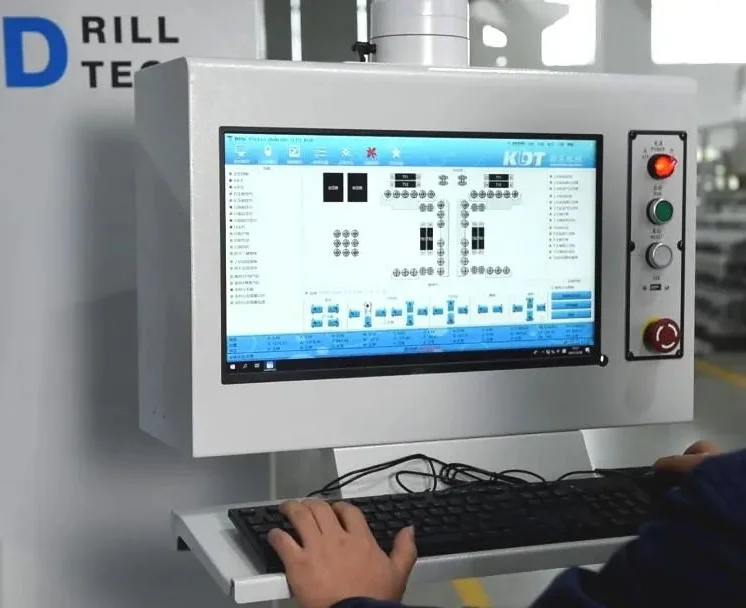

Machine control panel - CAD/CAM control panel, with the ability to read bar codes, which allows you to increase the productivity of the machine .
barcode reader - Barcode scanneron every desktop .

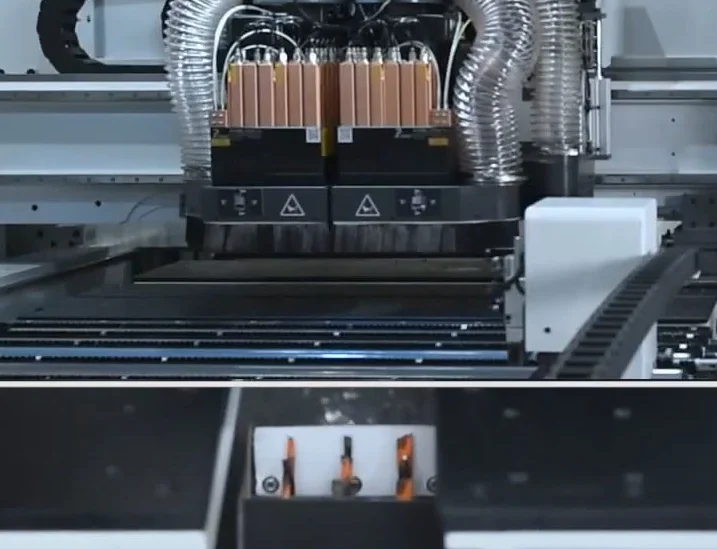

drilling group - Each working table has3 drilling groups: 12 - horizontal spindles, 41 - vertical spindle (32 - top, 9 - bottom) and 2 milling units -1 top (5.5 kW) + 1 bottom (3.5 kW) .

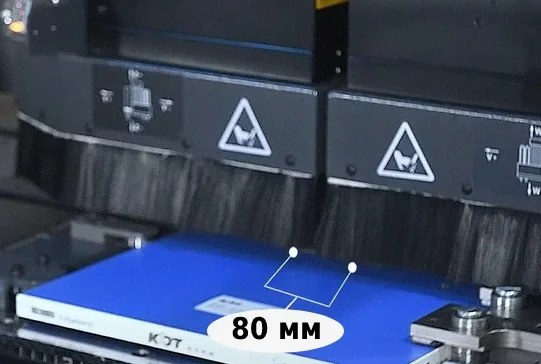

distance between drilling groups - The minimum working distance between two drilling groups is 80 mm .
drilling from 6 sides - The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides .

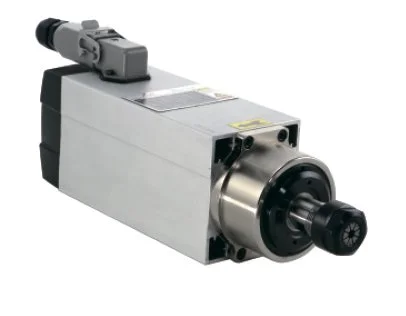

milling unit - 4 milling spindles - 2x5.5 kW + 2x3.5 kW (top and bottom)for sawing straight and curved grooves .
powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .

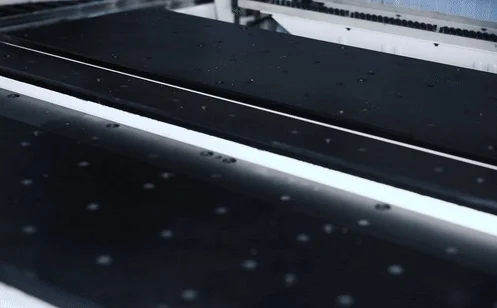

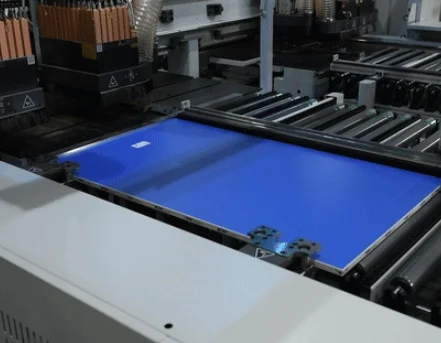

mobile stoves - Mobile plates in the drilling area allow for through milling .

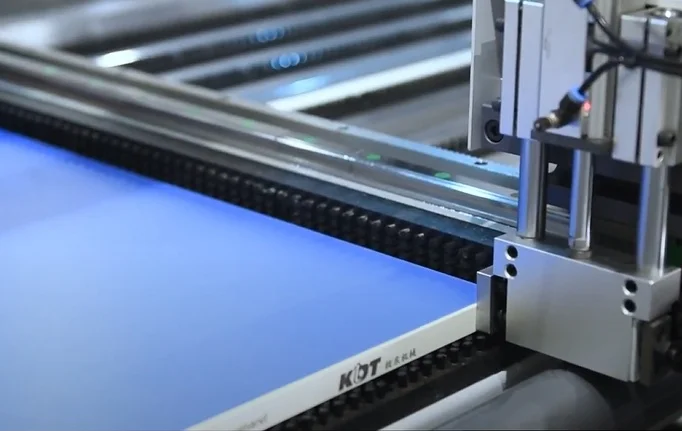

automatic clamps - Two automatic clamps allow you to securely hold workpiecesfrom 250 mm to 2800 mm longand perform fewer interceptions during drilling, which significantly increases the speed of the work cycle compared to machines with a single grip .
side equalizer - The machine carries out automatic alignment and positioning of the workpiece .

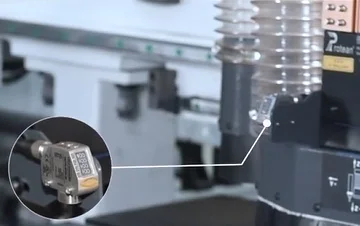

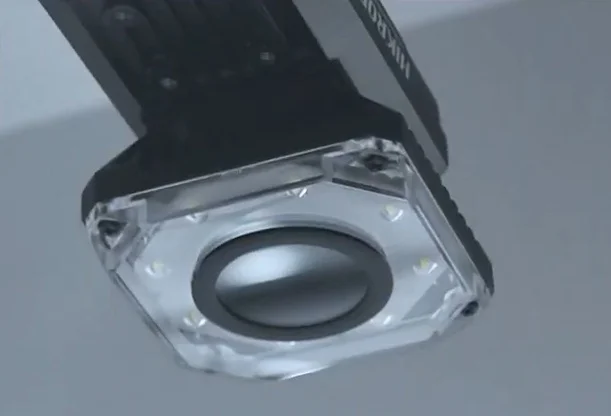

width measurement sensor - Automatic part width detection using a sensor .

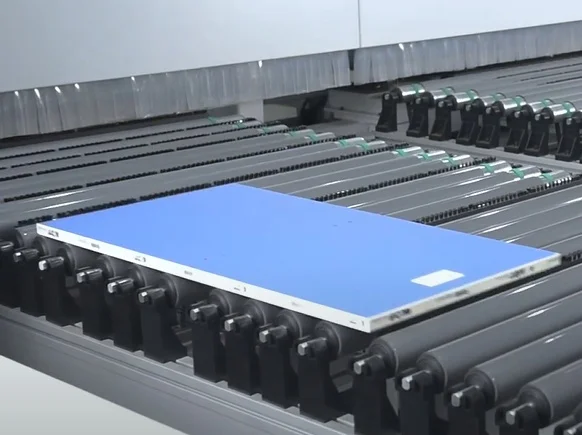

unloading table - The machine has rear unloading of parts .

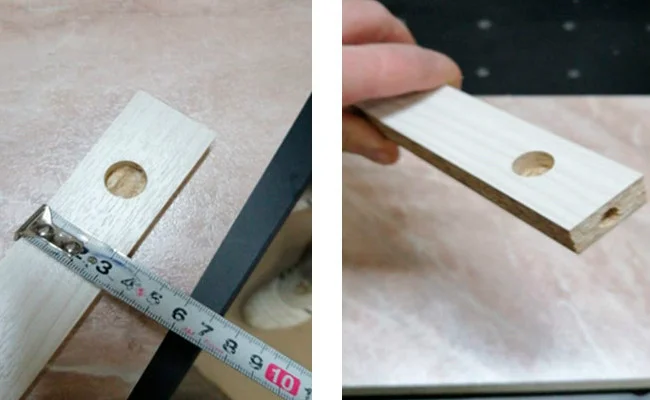

minimum workpiece size - The minimum workpiece size is250x50 mm, which allows for the addition of small-sized parts .
electric cabinet - Sealed dust and moisture resistant cabinetwith electronic components fromthe world's leading manufacturers isremoved from the processing area, which prolongs the service life of electrical components and provides ease of maintenance .
Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | Main desktop (50-1220), additional desktop (50-800) |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 6 (3 on each table) |
| Number of vertical spindles (upper group), pcs | 64 |
| Number of vertical spindles (lower group), pcs | 18 |
| Number of horizontal spindles, pcs | 24 |
| Milling unit, kW | 2x5.5 + 2x3.5 |
| Suction pipe diameter, mm | 4x200 + 2x100 |
| Full power, kW | 59.5 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x4920x2190 |
| Weight, kg | 7200 |
