Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | 50-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 3 |
| Number of vertical spindles (upper group), pcs | 26 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 12 |
| Milling unit, kW | 1x5,5 + 1x3,5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 2x200 |
| Full power, kW | 30,1 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x2855x2190 |
| Weight, kg | 4000 |
CNC Drilling Center KD-612KHSA
Purpose :
CNC drilling center KD-612KHSA with three drilling groups (2 from above and 1 from below) for drilling from 6 sides and a grooving saw is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling. Use in automatic lines The machine is designed for use in automatic mode with the possibility of embedding up to 3 machines in a line Scheme of drilling groups
Distinctive features :
Vision system for barcode scanning in Roller conveyor with workpiece positioning system ; High processing speed: 140/90/50 m/min; Grooving unit - saw 120 mm; Milling unit as standard; Drilling from 6 sides; Automatic lubrication of X and Y travel guides; Automatic unloading table; Visualization of the processing of a double-sided additive map; Scanner for reading the additive card by barcode.
Machine control panel with barcode reader - A control panel with a vision system - an autonomous smart camera manufactured by DATALOGIC, mounted on a bracket, automatically scans all passing barcodes .
drilling group - There are 3 drilling groups installed on the machine: 12 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). 2 milling units (5.5 kW + 3.5 kW) are installed as standard .
drilling from 6 sides - The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides .
milling unit - 2 milling spindles 5.5 kW + 3.5 kW, 18000 rpm (top and bottom) for sawing straight and curved grooves .

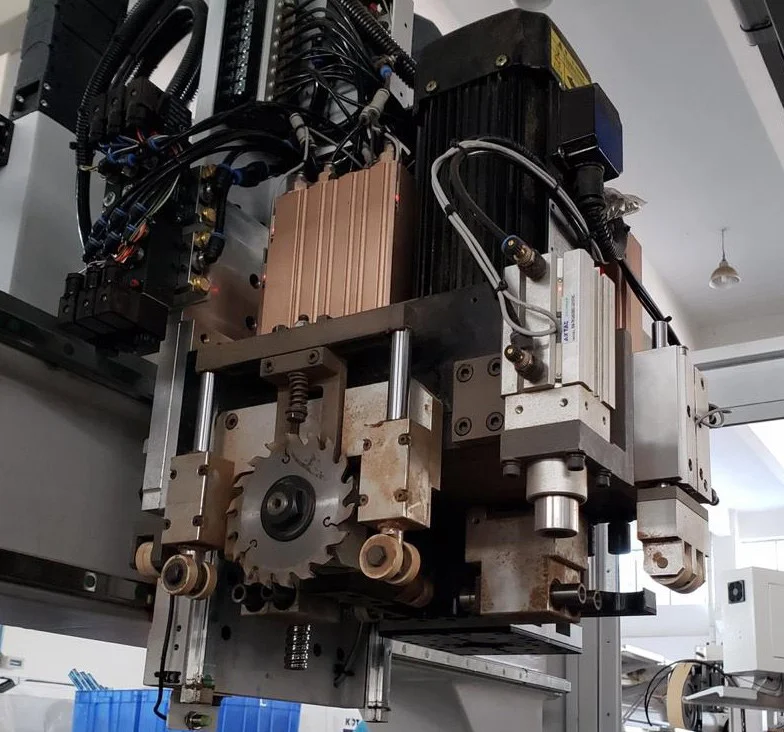

grooving knot - Grooving unit with a saw (disk diameter 120 mm) .
powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .
roller conveyor - The drilling center is equipped with an automatic roller conveyor with a workpiece positioning system instead of a loading table .
workpiece positioning - The positioning of the workpiece on the machine is carried out thanks to the automatic lateral alignment. After reading the barcode, the side aligner moves as close as possible to the dimensions of the part .
strong vertical clamp - The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit .

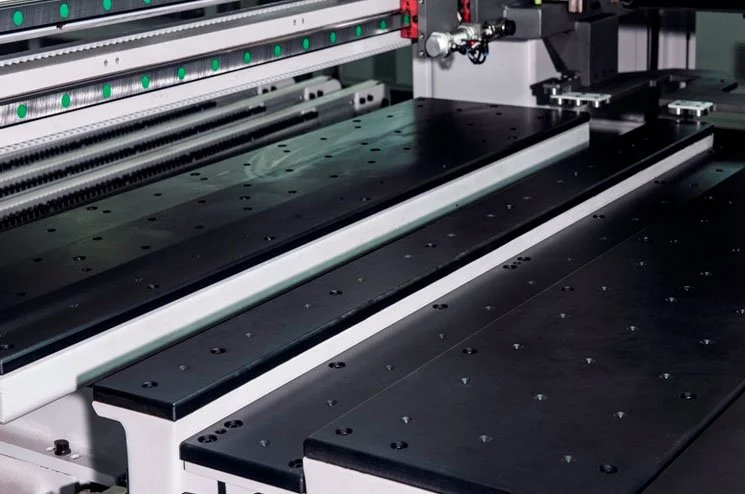

mobile stoves - Mobile plates in the drilling area allow for through milling .
Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | 50-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 3 |
| Number of vertical spindles (upper group), pcs | 26 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 12 |
| Milling unit, kW | 1x5,5 + 1x3,5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 2x200 |
| Full power, kW | 30,1 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x2855x2190 |
| Weight, kg | 4000 |
