Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 2 |
| Number of vertical spindles (upper group), pcs | 13 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 8 |
| Milling unit, kW | 1*9 + 1*5.5 (top) and 1*3.5 (bottom) |
| Tool change | linear 5 positions |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 1x200 |
| Full power, kW | 32 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 6040x3134x2190 |
| Weight, kg | 3200 |
CNC Drilling Center KD-612KHC
Purpose :
CNC drilling center KD-612KHC with two drilling groups at the top and bottom for drilling from 6 sides and a grooving saw (workpiece size 1200 * 2800 mm), three milling spindles and a linear tool change of 5 positions is designed for high-precision drilling through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with three milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling. Scheme of drilling groups
Distinctive features :
Ability to work with optimizer programs with drilling maps, as well as print labels; Three milling units as standard.

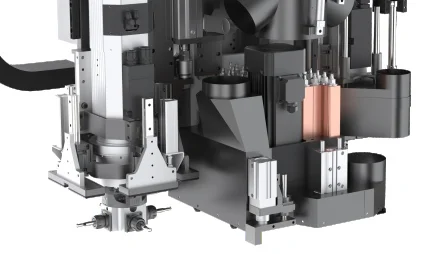

drilling group - Drilling from 6 parties. There are 2 drilling groups on the machine: 8 - horizontal spindles, 22 - vertical spindles (13 - from above, 9 - from below). As standard,2 milling units for 5.5 kW and 3.5 kWare installed .

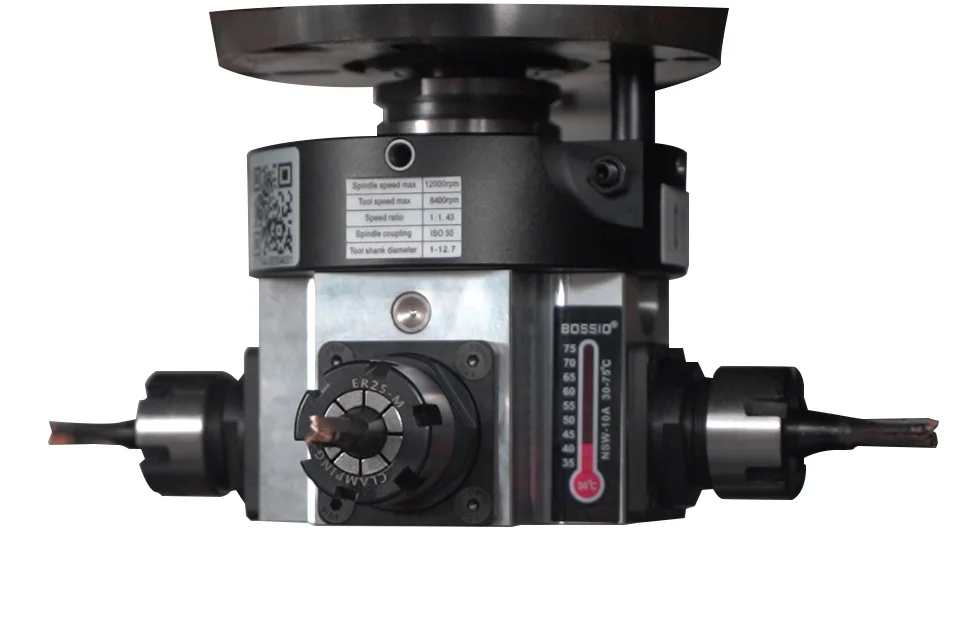

milling unit - 3 milling spindles for 9 kW and 5.5 kW (top) and 3.5 kW (bottom) .
special unit - A special four-sidedmilling unit has the ability to carry out drilling and milling operations (for invisible fittings, handles, hinges, etc.) .
linear tool change - The top milling spindle is equipped witha 5-station linear tool change, which saves time when switching from one type of processing to another .
grooving knot - Grooving unit with a saw (disk diameter 120 mm) .
automatic workpiece holding clamps - Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm .
strong vertical clamp - The top milling spindle is equipped with a powerfulvertical clamp with two pressure plates. Improves milling accuracy and prevents damage to the workpiece .
Batch drilling mode - Batch drilling mode - processing of two parts at the same time with a mirror map .
Machine control panel - CAD/CAM control panel with barcode reading capability to increase machine productivity .
barcode reader - A barcode scanner is included in the basic equipment of the machine .
Drilling Map Optimizer - Ability to work with all popular programs for optimizing drilling maps and printing labels .

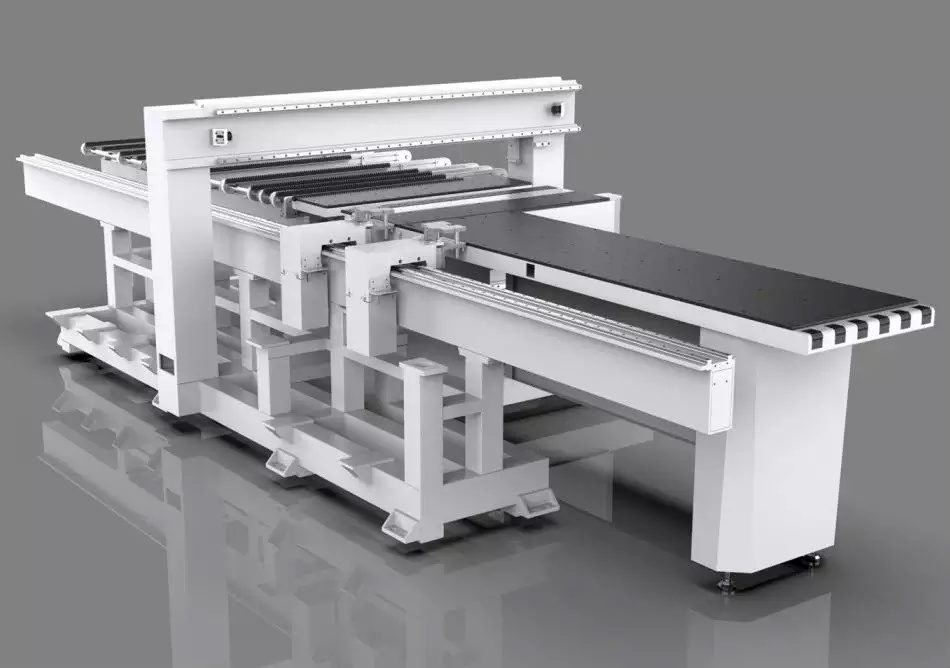

powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .

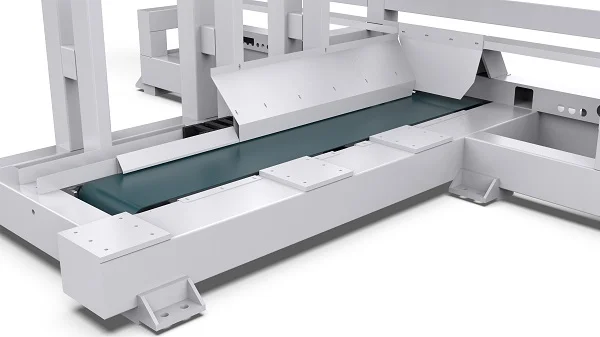

chip conveyor - The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces .

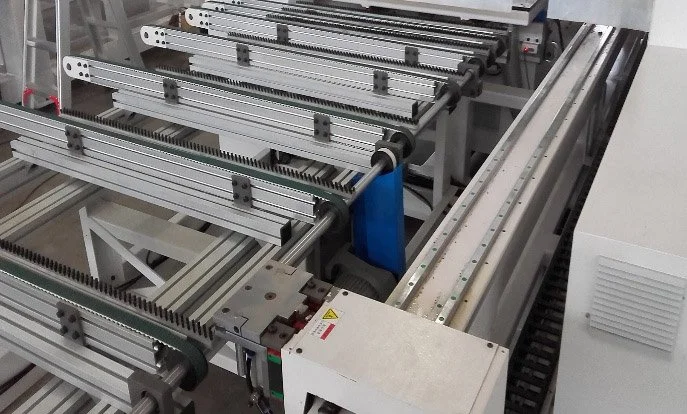

air cushion work tables - Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of .
mobile stoves - Mobile plates in the drilling area allow for through milling .
operator protection - Protecting the operator from injury .
unloading table - Finished parts exit area with cross conveyor, equipped with workpiece detection sensor .
minimum workpiece size - The minimum workpiece size is70x35 mm, which allows for the addition of small-sized parts .
servo - The machine uses high-precisionINVT servo drivesfor superior precision and high productivity .
electric cabinet - Sealed dust and moisture resistant cabinetwith electronic components fromthe world's leading manufacturers isremoved from the processing area, which prolongs the service life of electrical components and provides ease of maintenance .
