Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | 50-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 3 |
| Number of vertical spindles (upper group), pcs | 26 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 12 |
| Milling unit, kW | 1x5,5 + 1x3,5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 2x200 |
| Full power, kW | 30,1 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x2855x2190 |
| Weight, kg | 4000 |

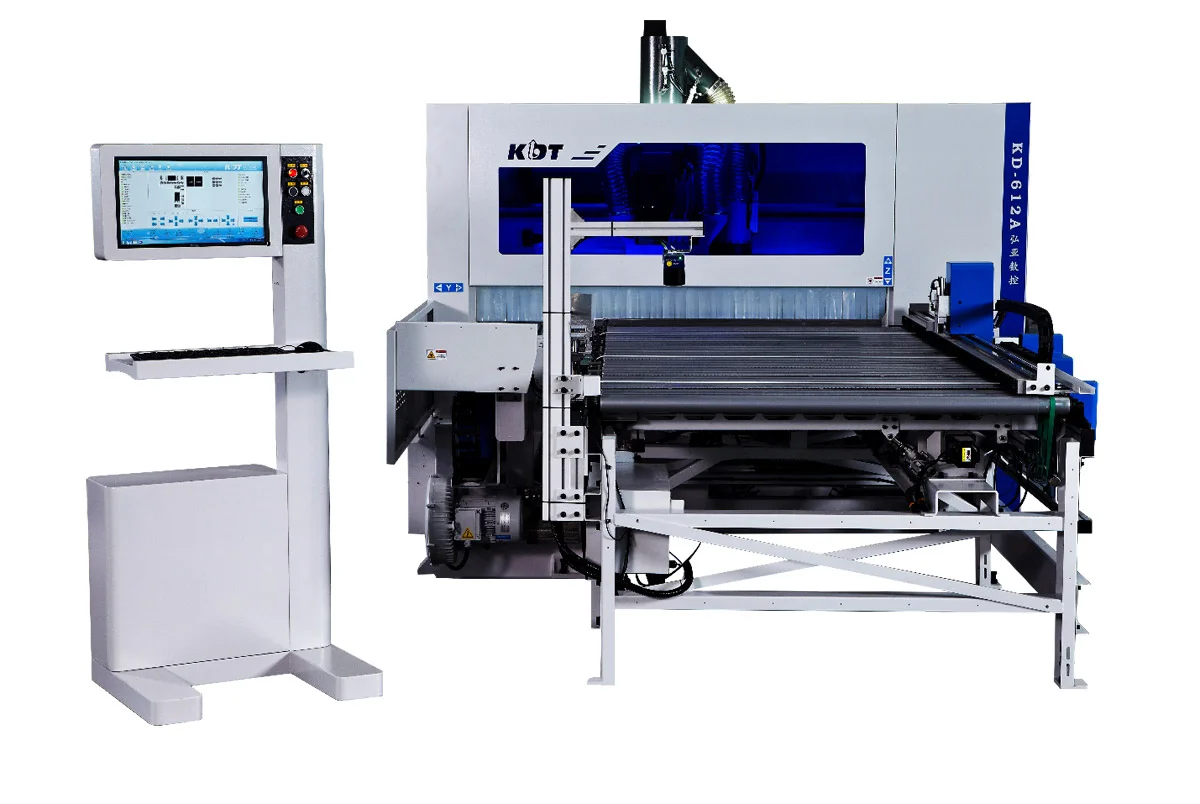

CNC Drilling Center KD-612KHSZA
Purpose :
CNC drilling center KD-612KHSZA with three drilling groups (2 from above and 1 from below) for drilling from 6 sides, grooving saw, two milling spindles and a linear tool change of 5 positions is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling. Use in automatic lines The machine is designed for use in automatic mode with the possibility of embedding up to 3 machines in a line Scheme of drilling groups
Distinctive features :
Vision system for barcode scanning ; Roller conveyor with workpiece positioning system ; Ability to work with optimizer programs with drilling maps, as well as print labels; Two milling units as standard; Linear tool change with 5 positions for the upper milling unit; Grooving unit - saw 120 mm; High processing speed: 140/90/50 m/min; Drilling from 6 sides; Additive of small parts from 200x50 mm; Automatic lubrication of X and Y travel guides; Visualization of the processing of a double-sided additive map; Automatic unloading table.

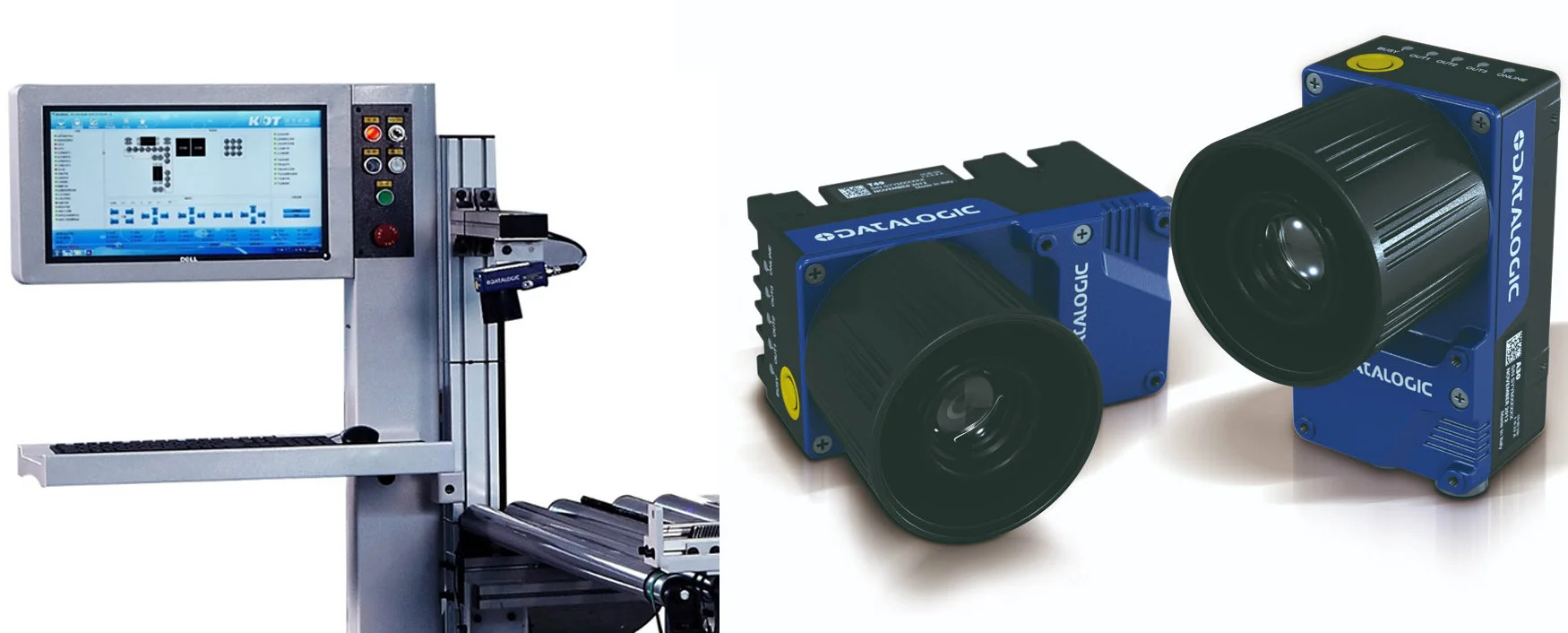

Machine control panel with barcode reader - A control panel with a vision system - an autonomous smart camera manufactured by DATALOGIC, mounted on a bracket, automatically scans all passing barcodes .
drilling from 6 sides - The machine can process the top and bottom of the panel at the same time, within one working cycle, thanks to the possibility of drilling from 6 sides .
drilling group - Drilling from 6 parties. There are 3 drilling groups installed on the machine: 12 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). As standard,2 milling units for 5.5 kW and 3.5 Ware installed .
milling unit - 2 milling spindles5.5 kW and 3.5 kW, 18000 rpm (top and bottom) .
special unit - A special CNC unithas the ability to carry out sawing, drilling and milling operations (for invisible fittings, handles, hinges, etc.) .
linear tool change - The top milling spindle is equipped witha 5-station linear tool change, which saves time when switching from one type of processing to another .
grooving knot - Grooving unit with a saw (disk diameter 120 mm) .
automatic workpiece holding clamps - Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm .
strong vertical clamp - The top milling spindle is equipped with a powerfulvertical clamp with two pressure plates. Improves milling accuracy and prevents damage to the workpiece .
Drilling Map Optimizer - Ability to work with all popular programs for optimizing drilling maps and printing labels .
powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .
roller conveyor - The drilling center is equipped with an automatic roller conveyor with a workpiece positioning system instead of a loading table .

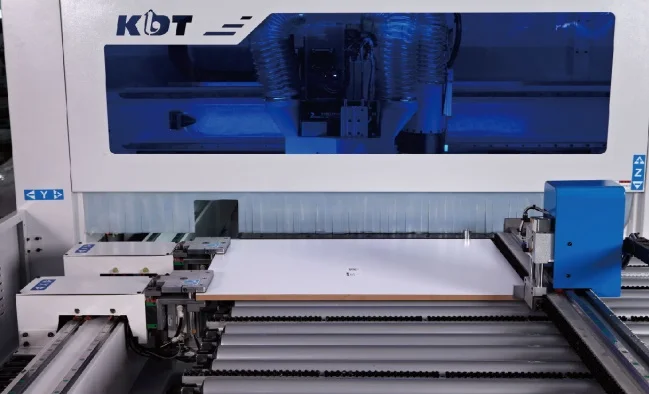

workpiece positioning - The positioning of the workpiece on the machine is carried out thanks to the automatic lateral alignment. After reading the barcode, the side aligner moves as close as possible to the dimensions of the part .
strong vertical clamp - The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit .
mobile stoves - Mobile plates in the drilling area allow for through milling .
Technical Specifications
| Workpiece length, mm | 250-2800 |
| Workpiece width, mm | 50-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 3 |
| Number of vertical spindles (upper group), pcs | 26 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 12 |
| Milling unit, kW | 1x5,5 + 1x3,5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 2x200 |
| Full power, kW | 30,1 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 7100x2855x2190 |
| Weight, kg | 4000 |
