Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 2 |
| Number of vertical spindles (upper group), pcs | 14 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 10 |
| Milling unit, kW | 5.5 + 3.5 (top) and 2 * 3.5 (bottom) |
| Tool change | two-level linear for 10 positions for tools + 2 positions for aggregates |
| Suction pipe diameter, mm | 1x100 + 1x150 + 1x200 |
| Full power, kW | 36,27 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 6040x3300x2190 |
| Weight, kg | 3300 |
CNC Drilling Center KD-612G with C-axis
Purpose :

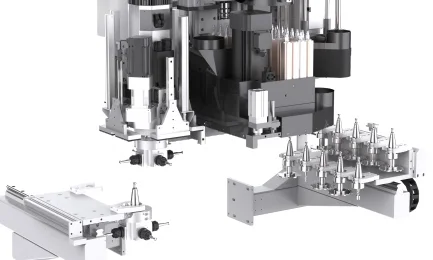

CNC drilling center KD-612G with two drilling groups at the top and bottom for drilling from 6 sides (workpiece size 1200 * 2800 mm), two upper milling spindles with C axis and two lower ones, linear tool change for 10 positions for of the right upper milling spindle + linear tool change for 2 units for the left upper milling spindle with C axis is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. This is a modern machine with advanced technology. Scheme of drilling groups
Distinctive features :
Two drilling and milling groups at the top and bottom; 2 upper milling units for 9 kW and 5.
drilling group - Drilling from 6 parties. There are 2 drilling groups installed on the machine: 10 - horizontal spindles, 23 - vertical spindles (14 - from above, 9 - from below). As standard, there are2 upper milling units for 9 kW and 5 .

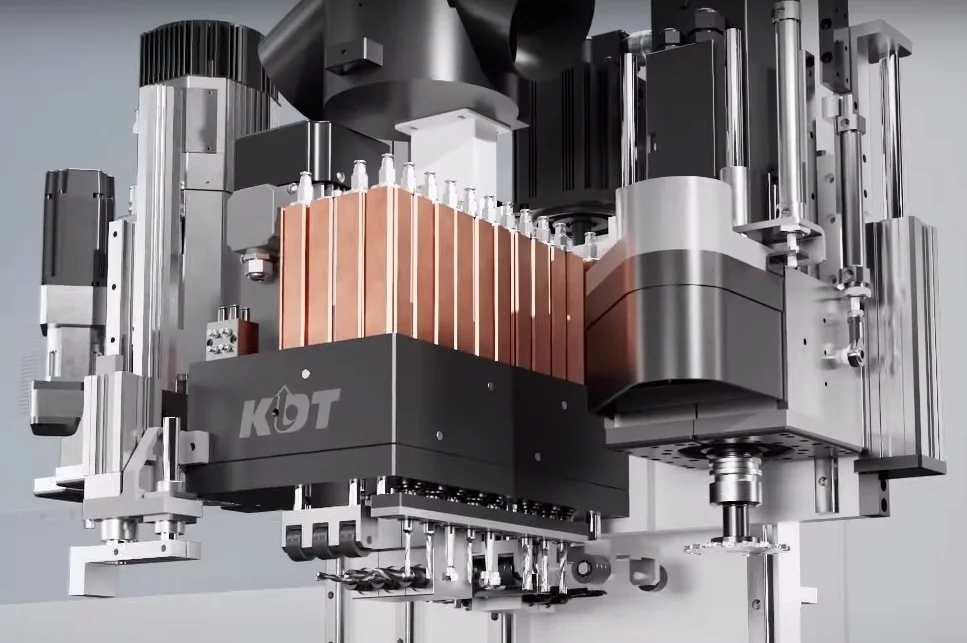

milling unit - The upper drilling and milling group consists of 10 horizontal spindles and 14 vertical spindles and2 milling spindles for9 kW (possibility of milling in the C axis) and 5.5 kW .

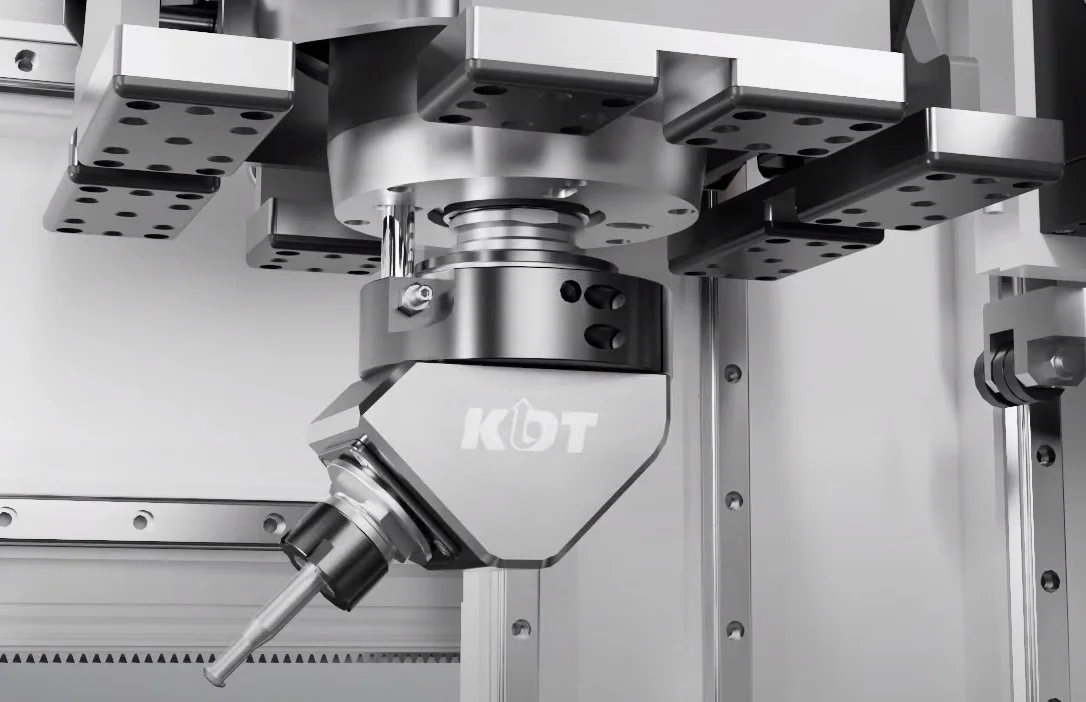

special unit - The support of the multi-functional rotary axis C by the upper left milling spindlemakes it possible to work with many types of machines.The 360° C-axiseliminates repositioning by the machine, so the part can be machined in one cycle .

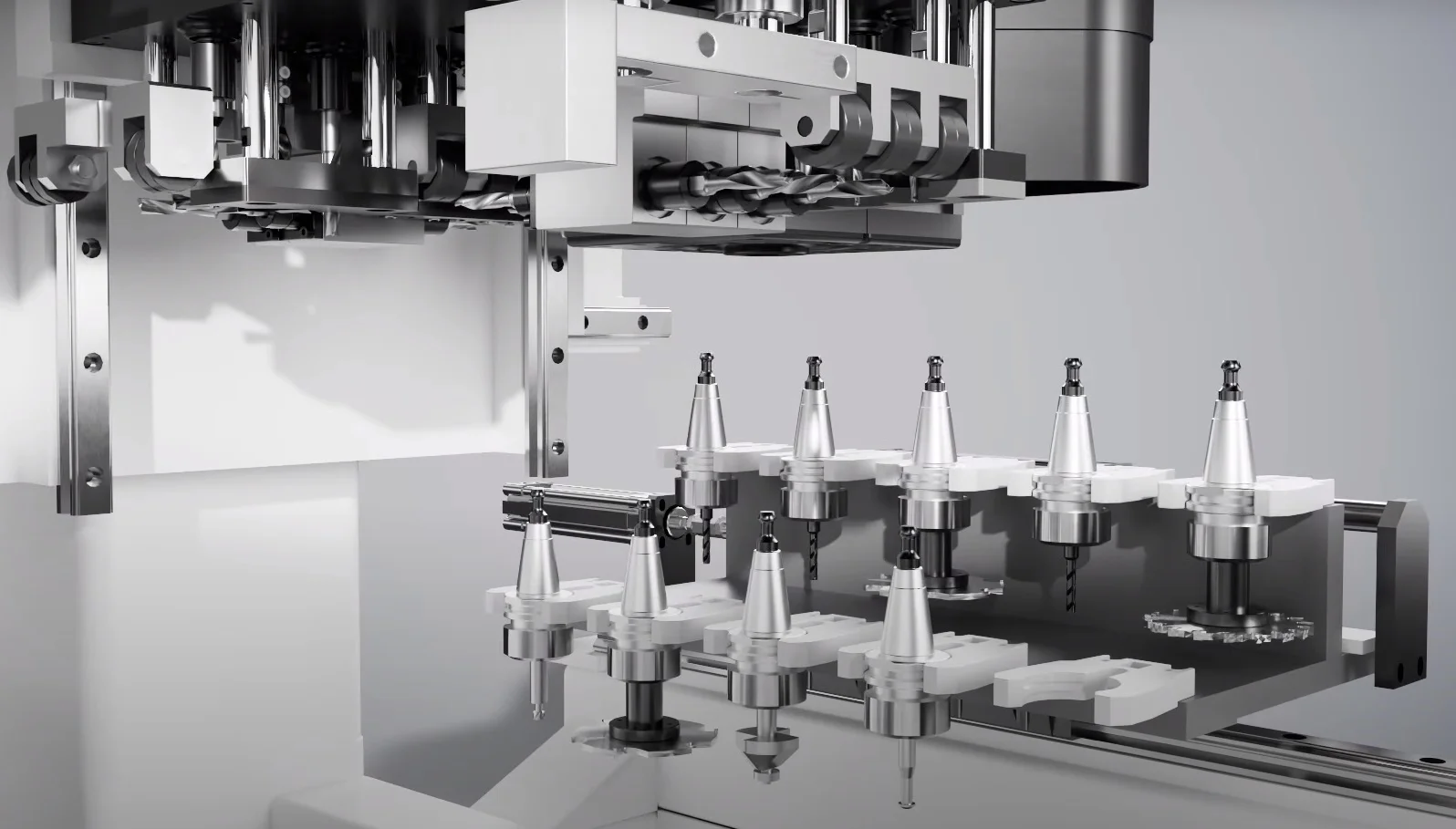

linear change of aggregates of the left upper spindle - The upper right milling spindle is equipped witha 10-position linear tool change, which saves time when switching from one type of processing to another and makes it possible to work in automatic mod .

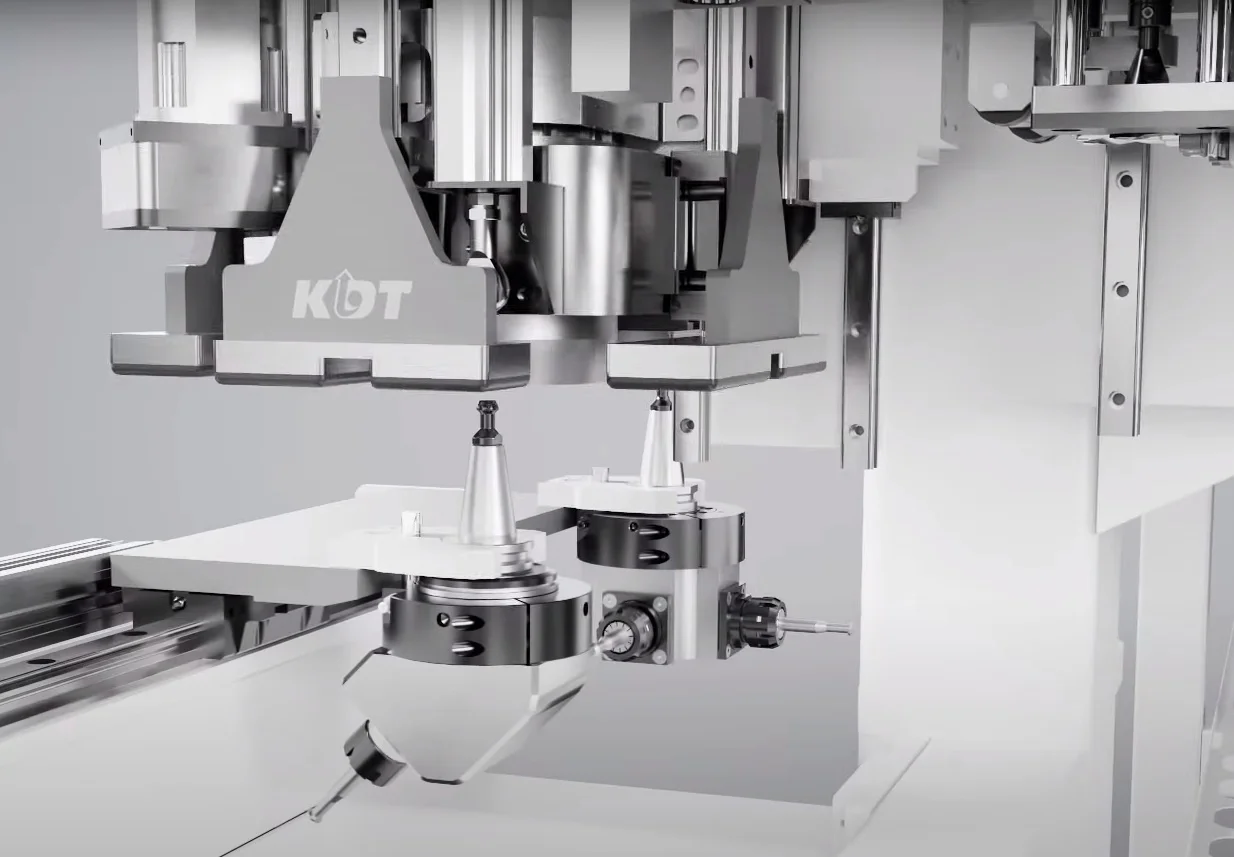

linear tool change of the right upper spindle - The left milling spindle is equipped witha 2-unit tool change, which saves time and makes it possible to use a wide range of aggregates .

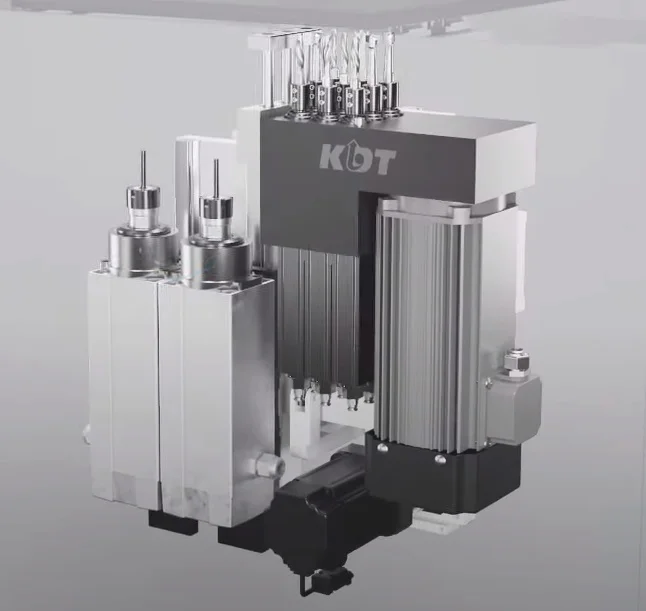

grooving knot - The lower drilling and milling group consists of9 vertical spindlesand2 milling spindles of 3.5 kW each .
automatic workpiece holding clamps - Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm .
strong vertical clamp - The top milling spindle is equipped with a powerfulvertical clamp with two pressure plates. Improves milling accuracy and prevents damage to the workpiece .
Batch drilling mode - Batch drilling mode - processing of two parts at the same time with a drilling map .

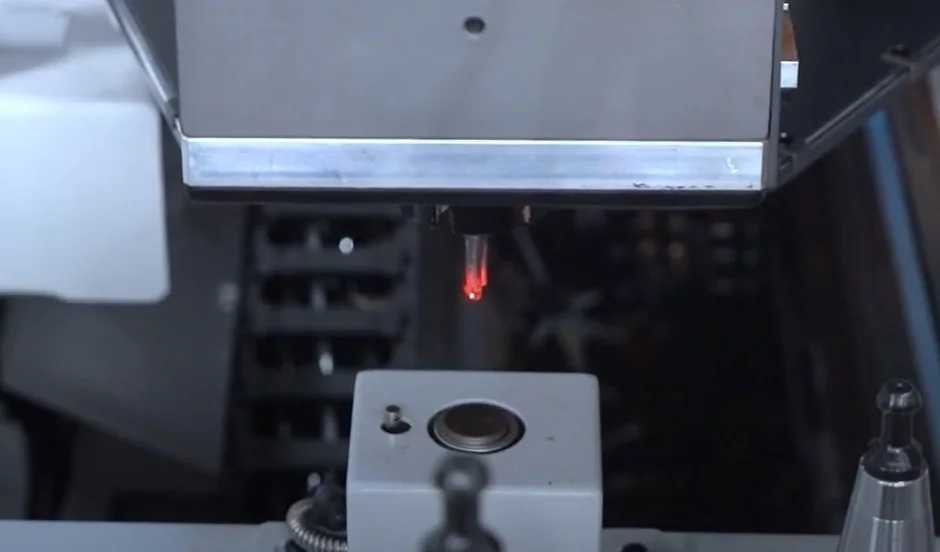

tool calibration sensor - Tool length sensorminimizes time for calibration and tool change .
Machine control panel - CAD/CAM control panel with barcode reading capability to increase machine productivity .
barcode reader - A barcode scanner is included in the basic equipment of the machine .
Optimizer programs - Ability to work with all popular programs for optimizing additive maps and label printing .
powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .

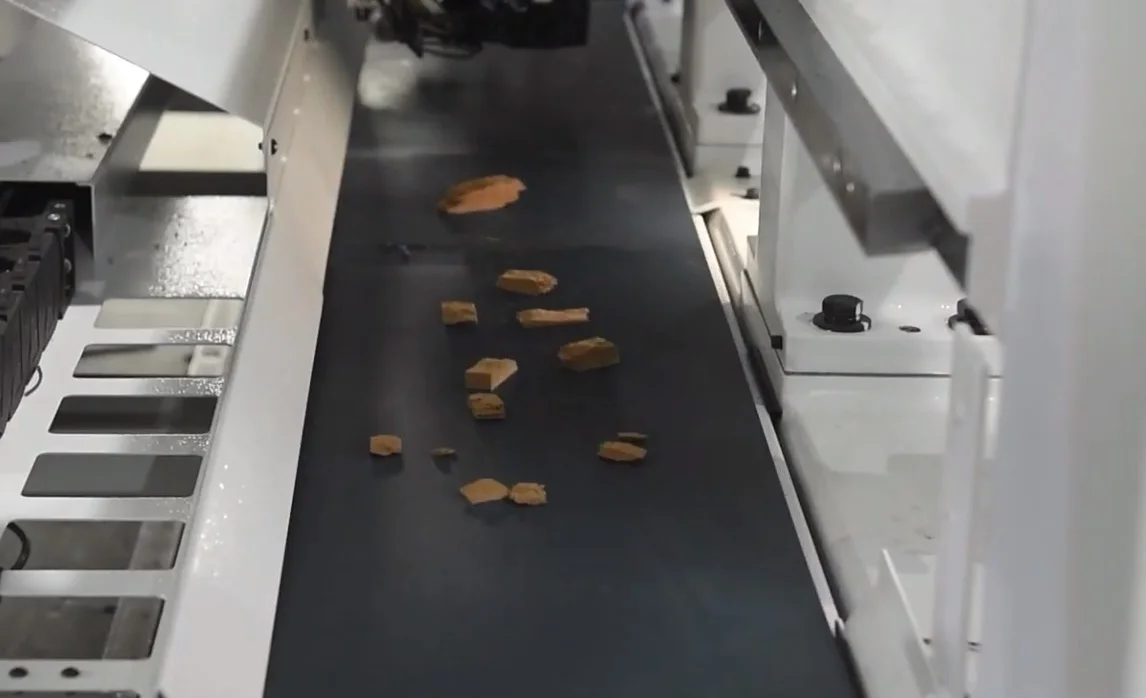

chip conveyor - The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces .
air cushion work tables - Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of .
mobile stoves - Mobile plates in the drilling area allow for through milling .
operator protection - Protecting the operator from injury .
unloading table - Finished parts exit area with cross conveyor, equipped with workpiece detection sensor .
minimum workpiece size - The minimum workpiece sizeis 70x35 mm, which allows for the addition of small-sized parts .
servo - The machine uses high-precisionINVT servo drivesfor superior precision and high productivity .
electric cabinet - Sealed dust and moisture resistant cabinetwith electronic components fromthe world's leading manufacturersis removed from the processing area, which prolongs the service life of electrical components and provides ease of maintenance .
Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 2 |
| Number of vertical spindles (upper group), pcs | 14 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 10 |
| Milling unit, kW | 5.5 + 3.5 (top) and 2 * 3.5 (bottom) |
| Tool change | two-level linear for 10 positions for tools + 2 positions for aggregates |
| Suction pipe diameter, mm | 1x100 + 1x150 + 1x200 |
| Full power, kW | 36,27 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 6040x3300x2190 |
| Weight, kg | 3300 |
