Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1000 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 2 |
| Number of vertical spindles (upper group), pcs | 12 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 8 |
| Milling unit, kW | 1*5.5 and 1*3.5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 1x100 + 1x200 |
| Full power, kW | 21.9 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 5270x2280x2190 |
| Weight, kg | 3200 |
CNC Drilling Center KD-610H
Purpose :

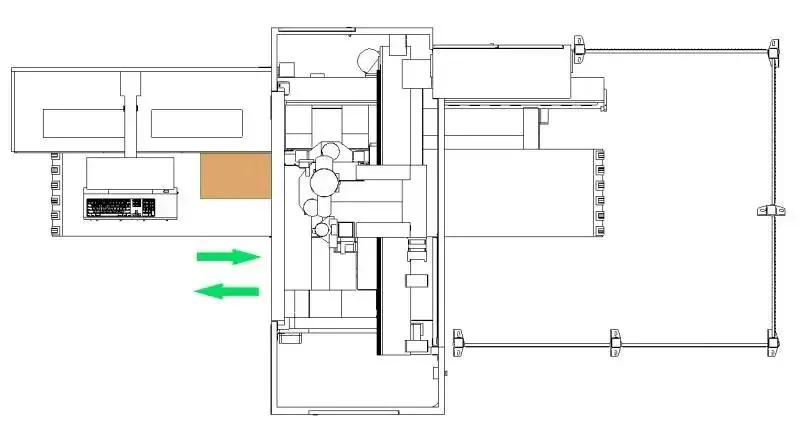

CNC drilling center KD-610H with two drilling groups at the top and bottom for drilling from 6 sides and a grooving saw (workpiece size 1000 * 2800 mm), two milling spindles is designed for high-precision drilling of through and blind holes in the ends and planes furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling. Scheme of drilling groups
Distinctive features :
Ability to work with optimizer programs with drilling maps, as well as print labels; Two milling units as standard; High processing speed: 140/90/50 m/min; Grooving unit - saw 120 mm; Drilling from 6 sides; Additive of small parts from 70x35 mm; Automatic lubrication of X and Y travel guides; Compact dimensions and saving up to 22% of production space; Visualization of the processing of a double-sided additive map; Batch drilling mode is enabled; Scanner for reading the additive card by barcode.

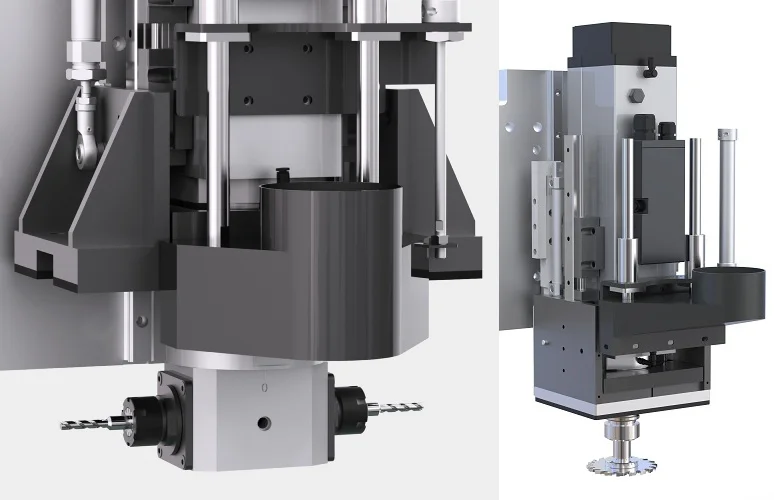

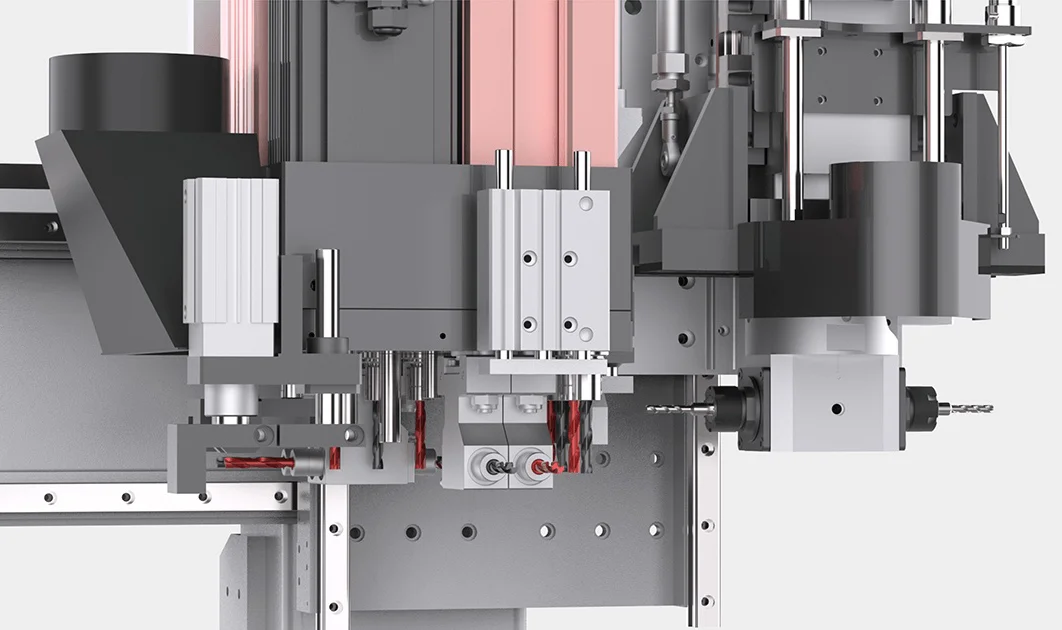

drilling group - Drilling from 6 parties. There are 2 drilling groups installed on the machine: 8 - horizontal spindles, 21 - vertical spindles (12 - from above, 9 - from below). As standard,2 milling units for 5.5 kW and 3.5 Ware installed .
milling unit - 2 milling spindles5.5 kW and 3.5 kW, 18000 rpm (top and bottom) .

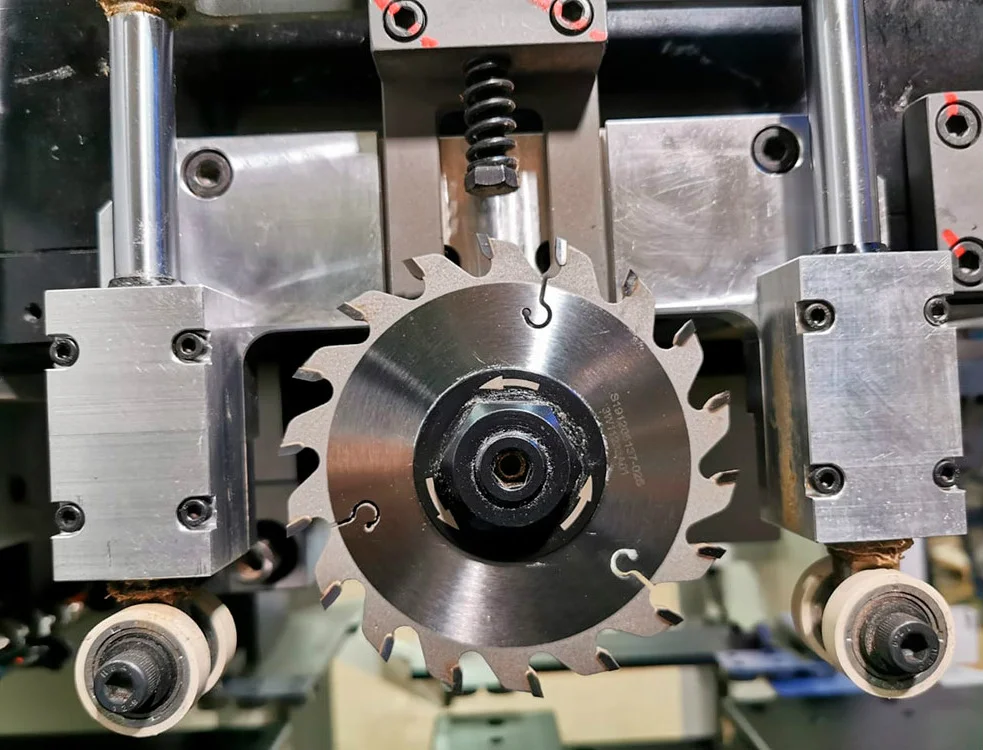

grooving knot - Grooving unit with a saw (disk diameter 120 mm) .

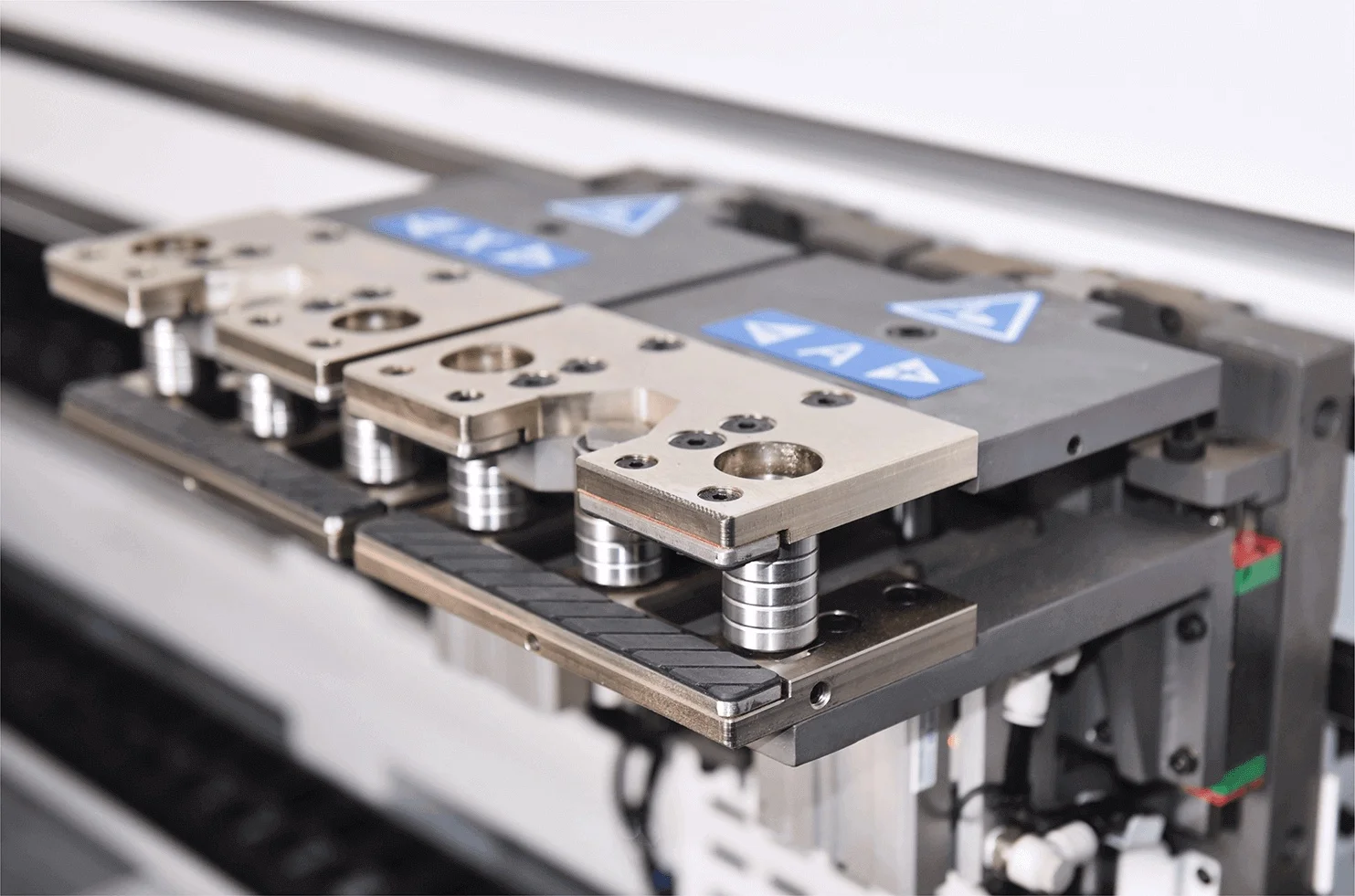

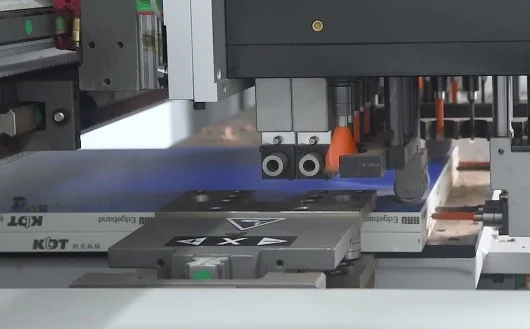

automatic workpiece holding clamps - Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm .

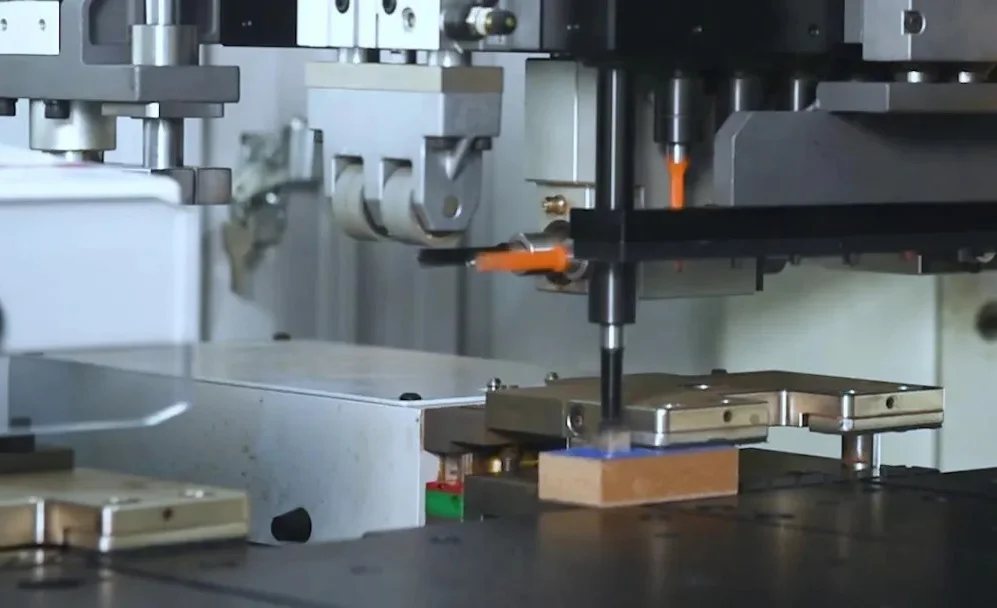

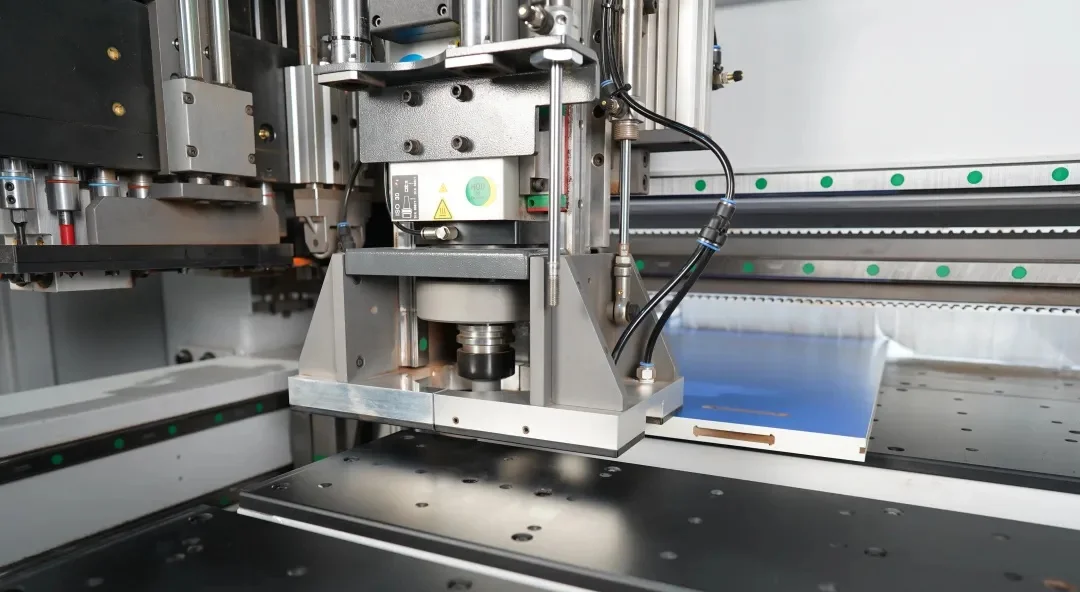

strong vertical clamp - The top milling spindle is equipped with a powerfulvertical clamp with two pressure plates. Improves milling accuracy and prevents damage to the workpiece .
Batch drilling mode - Batch drilling mode - processing of two parts at the same time with a mirror map .

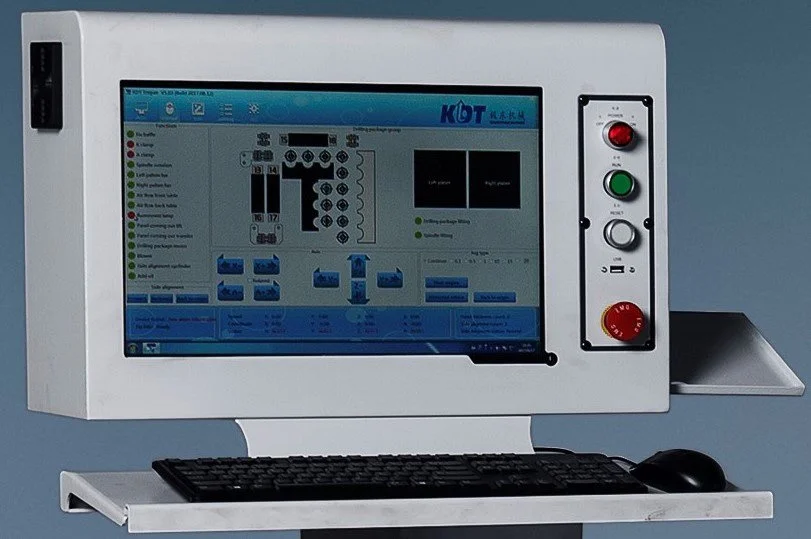

Machine control panel - CAD/CAM control panel, with the ability to read bar codes, which allows you to increase the productivity of the machine .

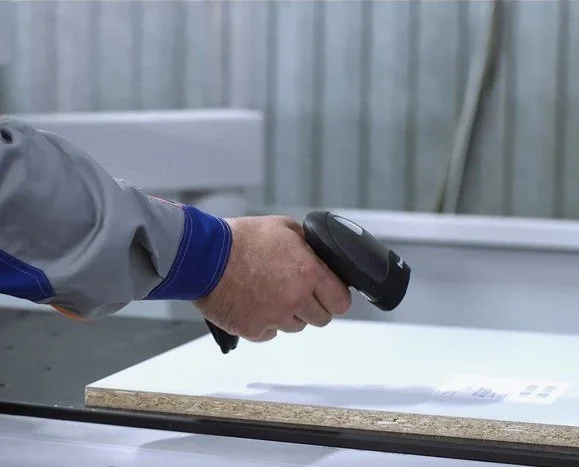

barcode reader - A barcode scanner is included in the basic equipment of the machine .
Drilling Map Optimizer - Ability to work with all popular programs for optimizing drilling maps and printing labels .

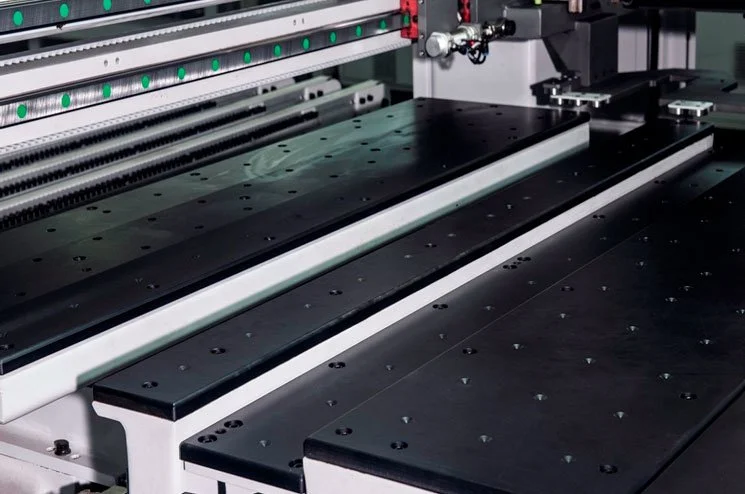

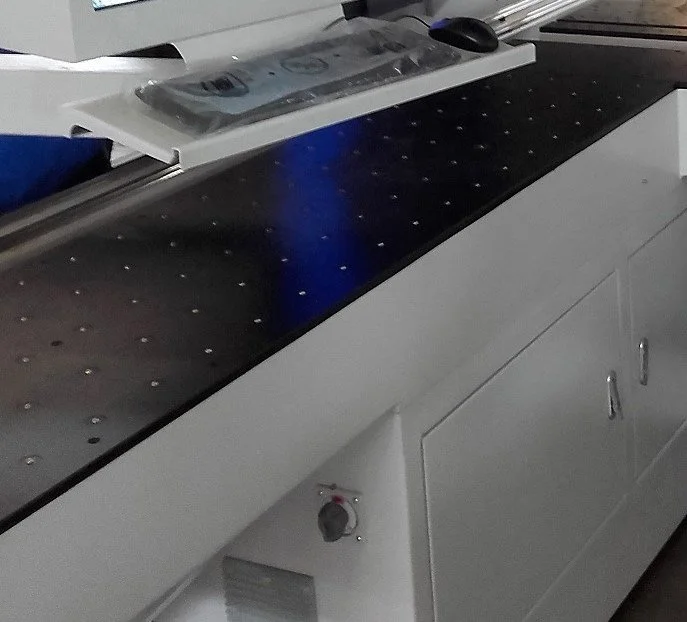

air cushion work tables - Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of .

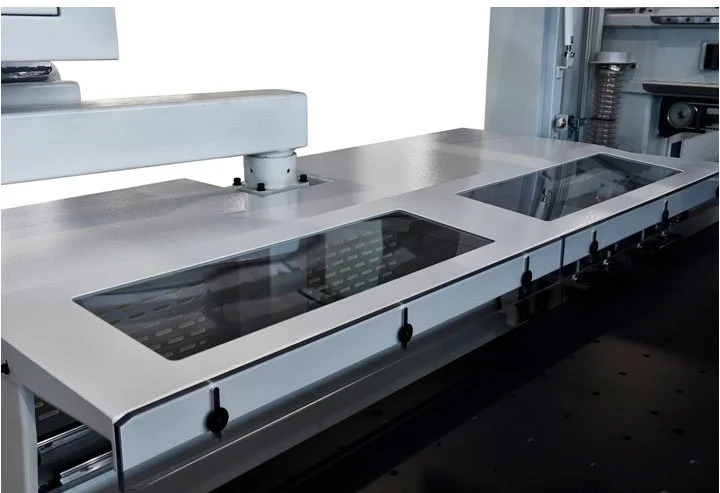

mobile stoves - Mobile plates in the drilling area allow for through milling .
operator protection - Protecting the operator from injury .
minimum workpiece size - The minimum workpiece size is70x35 mm, which allows for the addition of small-sized parts .
compact dimensions - Thanks to the compact dimensions of the machine,up to 22% of production space issaved .

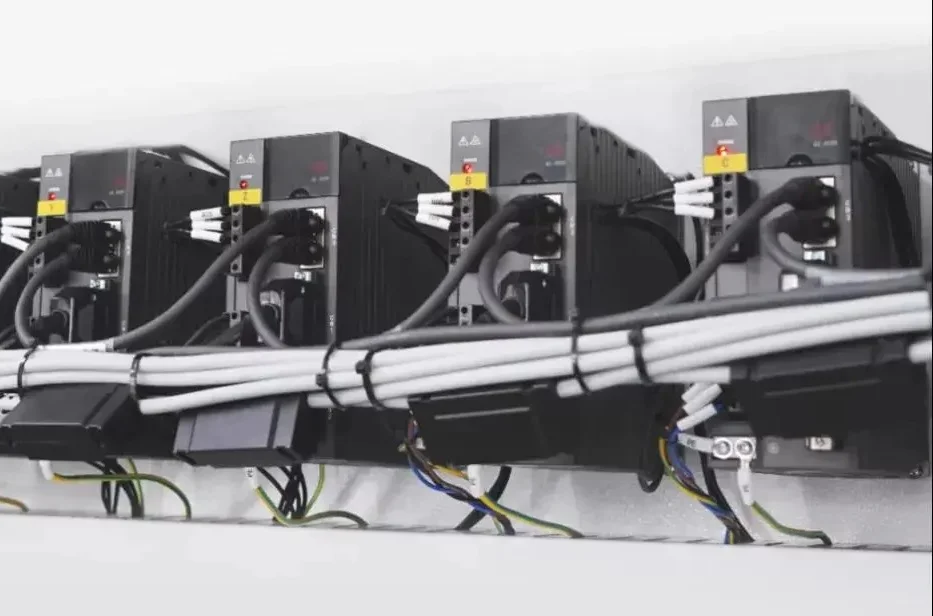

servo - The machine uses high-precisionINVT servo drivesfor superior precision and high productivity .

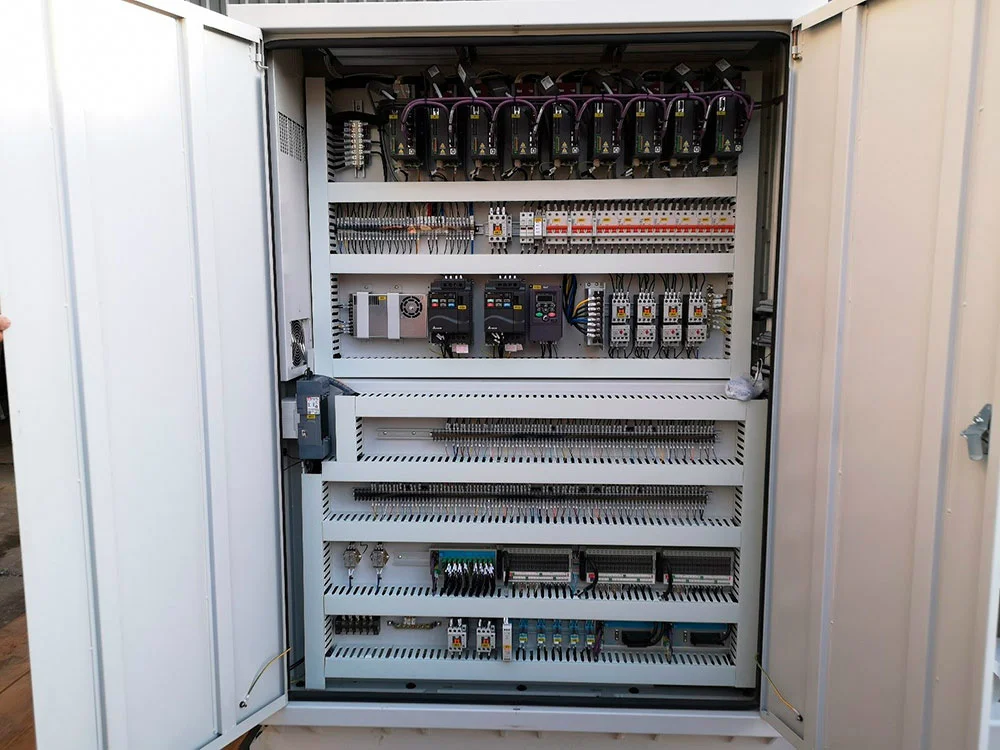

electric cabinet - Sealed dust and moisture resistant cabinetwith electronic components fromthe world's leading manufacturers isremoved from the processing area, which prolongs the service life of electrical components and provides ease of maintenance .
Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1000 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 2 |
| Number of vertical spindles (upper group), pcs | 12 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 8 |
| Milling unit, kW | 1*5.5 and 1*3.5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 1x100 + 1x200 |
| Full power, kW | 21.9 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 5270x2280x2190 |
| Weight, kg | 3200 |
