Technical Specifications
| Workpiece length, mm | 70-2800 |
| Workpiece width, mm | 35-1200 |
| Workpiece thickness, mm | 9-60 |
| Workpiece gripper travel speed (X), m/min | 140 |
| Maximum speed along the axis (Y), m/min | 90 |
| Maximum speed along the axis (Z), m/min | 50 |
| Number of drilling groups, pcs | 3 |
| Number of vertical spindles (upper group), pcs | 26 |
| Number of vertical spindles (lower group), pcs | 9 |
| Number of horizontal spindles, pcs | 12 |
| Milling unit, kW | 1x5,5 + 1x3,5 |
| Grooving unit (saw blade size), mm | 120x20x4 |
| Suction pipe diameter, mm | 2x100 + 2x200 |
| Full power, kW | 28,2 |
| Working pressure, MPa | 0.6 |
| Machine dimensions (LxWxH), mm | 6040x3140x2190 |
| Weight, kg | 4000 |
CNC Drilling Center KD-612KHS
Purpose :
CNC drilling center KD-612KHS with three drilling groups (2 from above and 1 from below) for drilling from 6 sides and a grooving saw is designed for high-precision drilling of through and blind holes in the ends and planes of furniture panels, which allows processing any additive maps in one pass of the part. The machine is equipped with two milling units for milling both simple straight grooves, such as a groove for the back wall or the bottom of a box, and profiling. Scheme of drilling groups
Distinctive features :
Ability to work with optimizer programs with drilling maps, as well as print labels; High processing speed: 140/90/50 m/min; Grooving unit - saw 120 mm; Milling unit as standard; Drilling from 6 sides; Additive of small-sized details from 70*35 mm; Automatic lubrication of X and Y travel guides; Two options for unloading parts from the machine "back / forward"; Automatic unloading table; Visualization of the processing of a double-sided additive map; Batch drilling mode is enabled; Scanner for reading the additive card by barcode.
Machine control panel - CAD/CAM control panel with barcode reading capability to increase machine productivity .
barcode reader - A barcode scanner is included in the basic equipment of the machine .

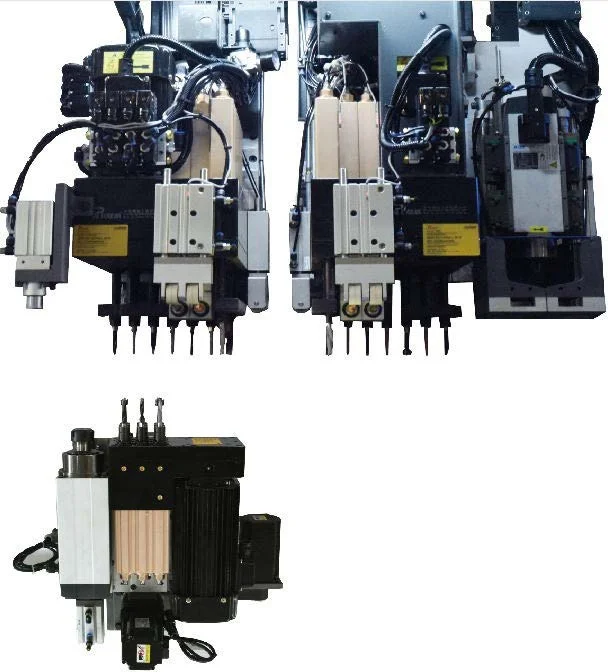

drilling group - There are 3 drilling groups installed on the machine: 12 - horizontal spindles, 35 - vertical spindles (26 - from above, 9 - from below). 2 milling units (5.5 kW +3.5 kW) are installed as standard .
drilling from 6 sides - The machine can process two panels at the same time, both top and bottom, within one working cycle, thanks to the possibility of drilling from 6 sides .
milling unit - 2 milling spindles5.5 kW +3.5 kW, 18000 rpm (top and bottom) for sawing straight and curved grooves .
grooving knot - Grooving unit with a saw (disk diameter 120 mm) .
Batch drilling mode - Batch drilling mode - processing of two parts at the same time with a mirror map .
Drilling Map Optimizer - Ability to work with all popular programs for optimizing drilling maps and printing labels .
powerful welded frame - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .
chip conveyor - The machine in the basic configuration has a conveyor for removing chips and small residues of workpieces .
air cushion work tables - Easy movement of parts on the table occurs due to the air flow supplied by a special electric fan through the holes in the upper part of the table, thereby eliminating the possible appearance of scratches on the lower surface of .

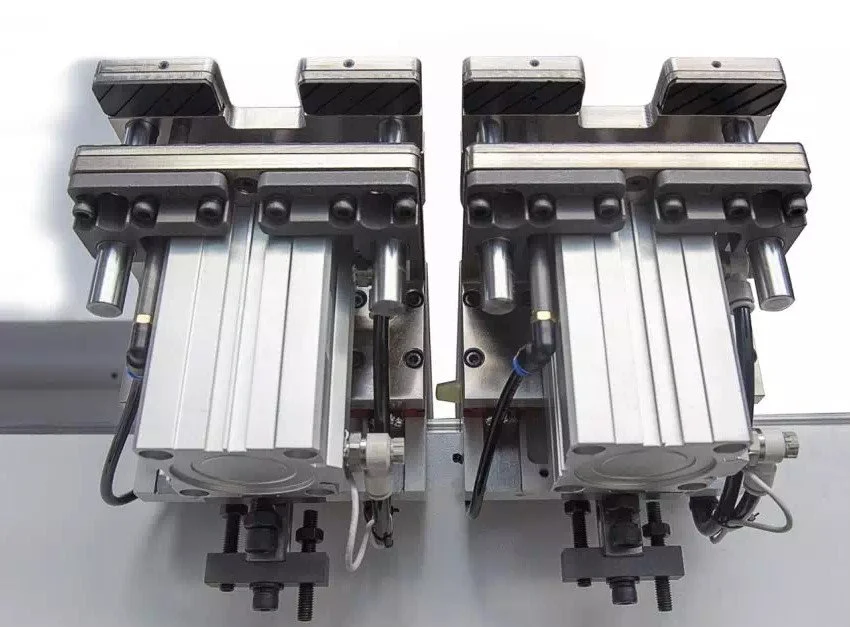

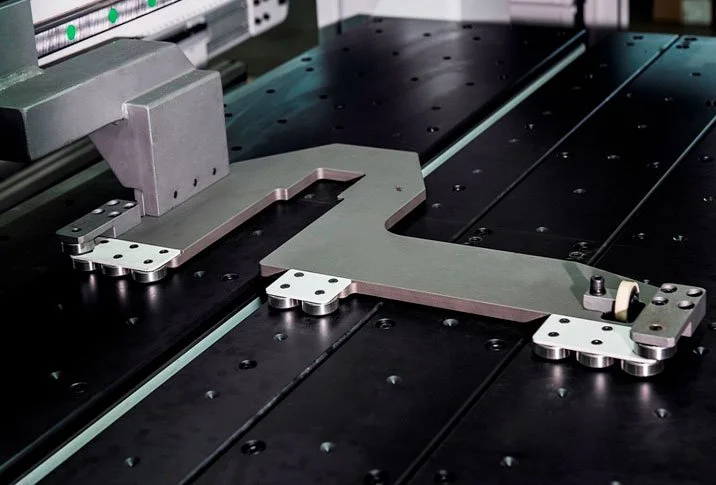

automatic workpiece holding clamps - Two automatic clamps will allow you to securely fix the workpiece with a length of 70 mm .

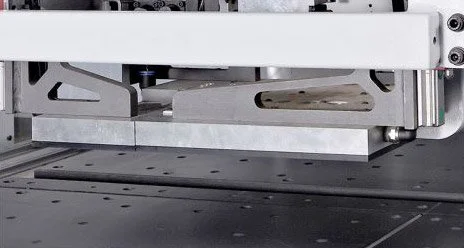

strong vertical clamp - The powerful vertical clamp securely positions the workpiece. Works synchronously with the drilling unit .
mobile stoves - Mobile plates in the drilling area allow for through milling .
side equalizer - Lateral workpiece leveler .
operator protection - Protecting the operator from injury .
unloading table - Finished parts exit area with cross conveyor, equipped with workpiece detection sensor .
minimum workpiece size - The minimum workpiece size is70x35 mm, which allows for the addition of small-sized parts .
electric cabinet - Sealed dust and moisture resistant cabinetwith electronic components fromthe world's leading manufacturers isremoved from the processing area, which prolongs the service life of electrical components and provides ease of maintenance .
