Automatic drilling machine KDT-6462K

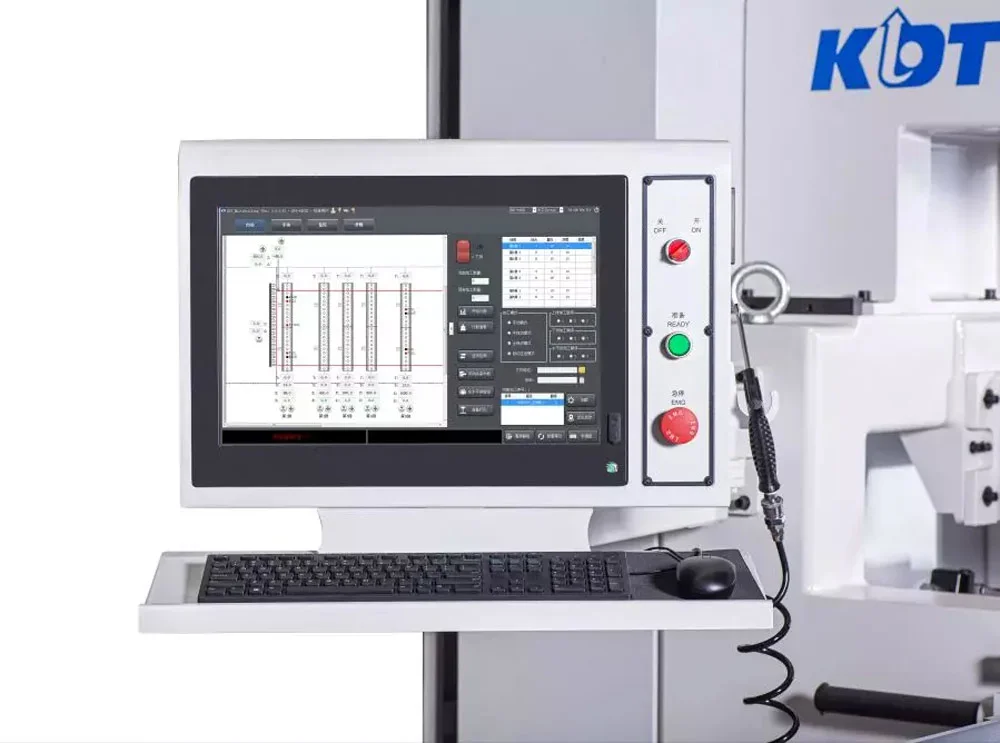

computer with optimization program - Industrial PC based on WINDOWS7 with the Drilling Master program, which has a system for optimizing maps .

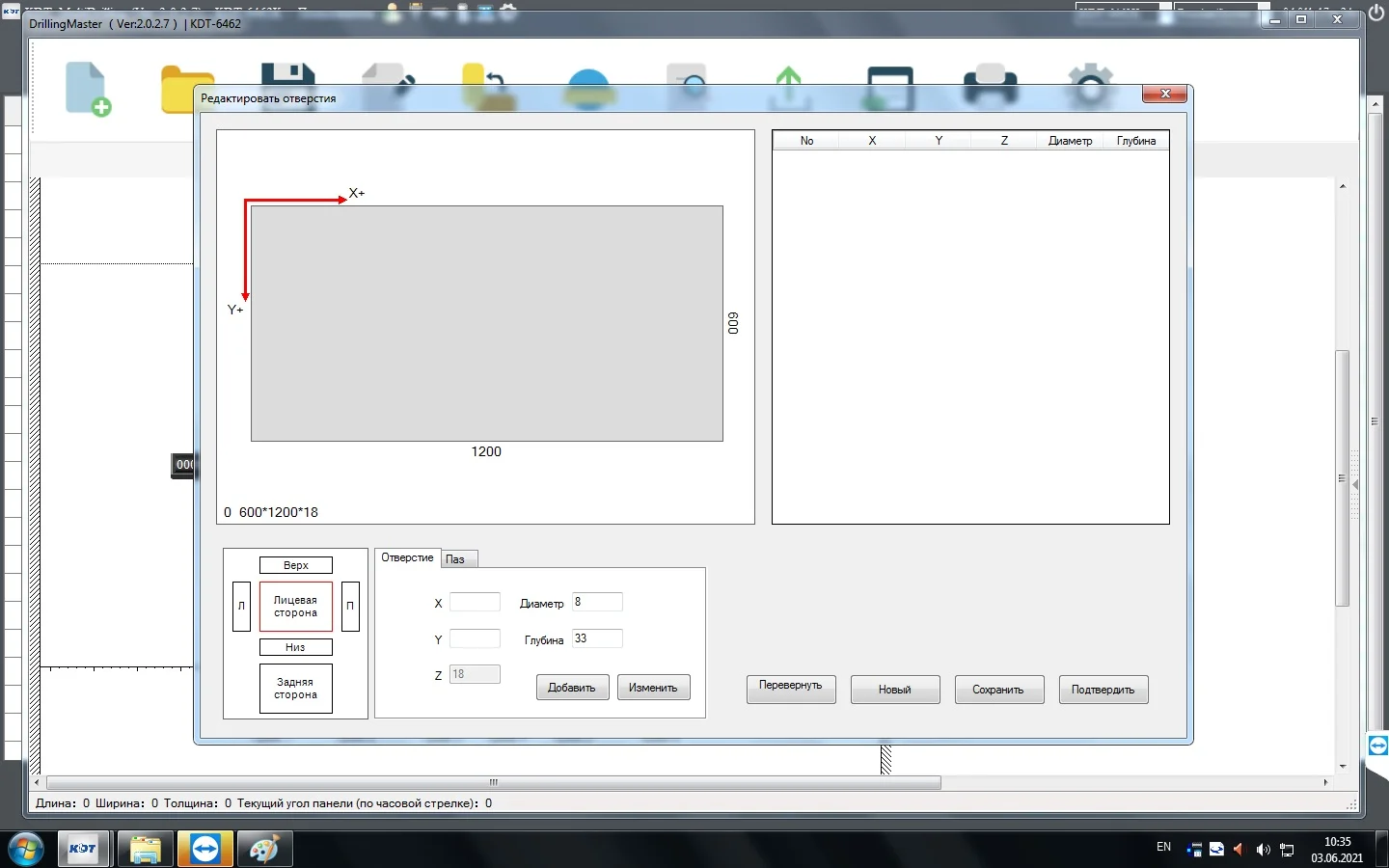

drilling master - The Drilling Master has a built-in editor for creating machining maps directly in the machine's control program .

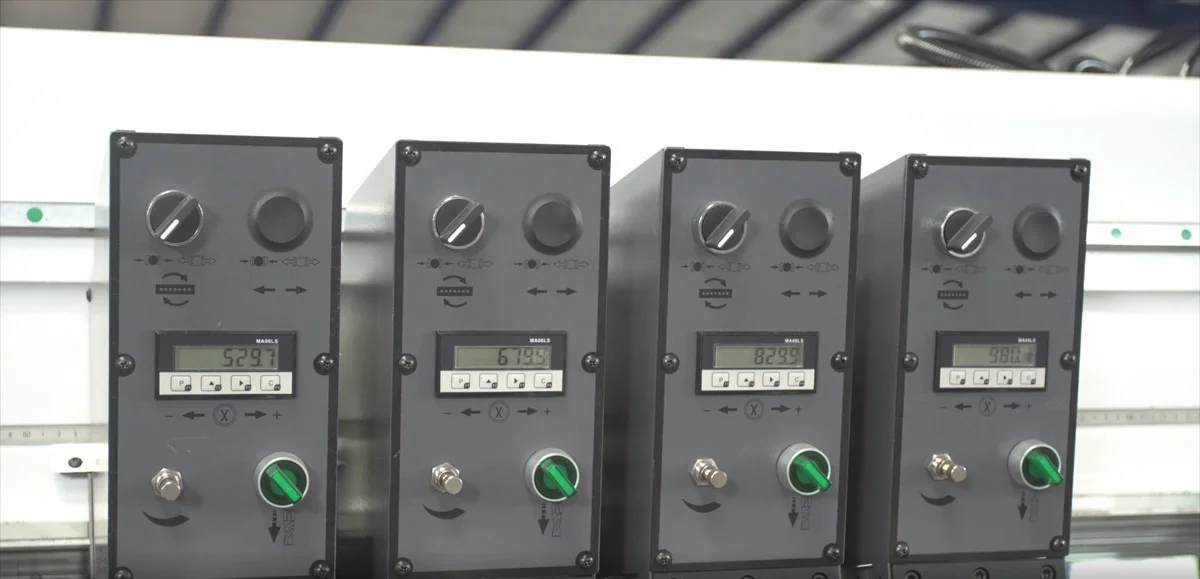

digital counters - The machine is equipped with digital counters, which allows you to quickly change from one size to another. Pneumatic brakes securely fix the drilling traverses and guarantee stability and accuracy according to the additive chart .

swivel drilling head - The KDT-6462K machine has the following equipment:2 horizontal end traverses with 21 spindles.6 lower vertical traverses, double design with independent motors (11+11)x6. They have the ability to rotate 90 degrees .

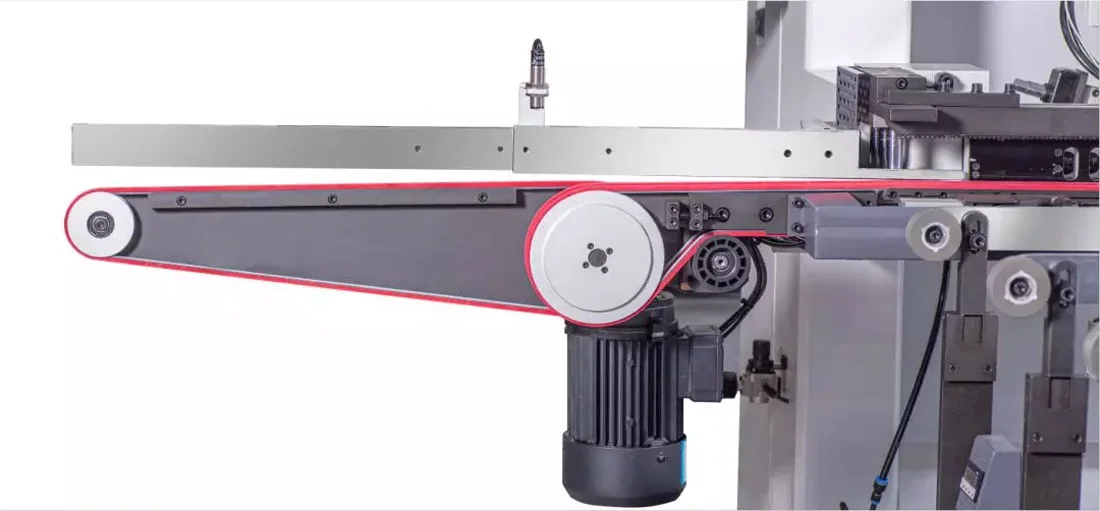

automatic feed of workpieces - Automatic feeding of parts into the working area, ensures maximum productivity of the machine in mass production .

through and return modes of operation - The machine can work in two modes:walk-through mode, two operators work.return mode, one operator works .

drilling traverse drive - Powerful drilling traverse drives guarantee fast and precise insertion of required mounting holes in workpieces .

automatic positioning of upper and lower traverses - Precise automatic positioning of the upper and lower traverses in accordance with the additive map .

positioning stops - The positioning of the stops along the width of the part according to the technical specifications occurs automatically. This ensures high accuracy and minimum time for reconfiguring the machine from one additive map to another .

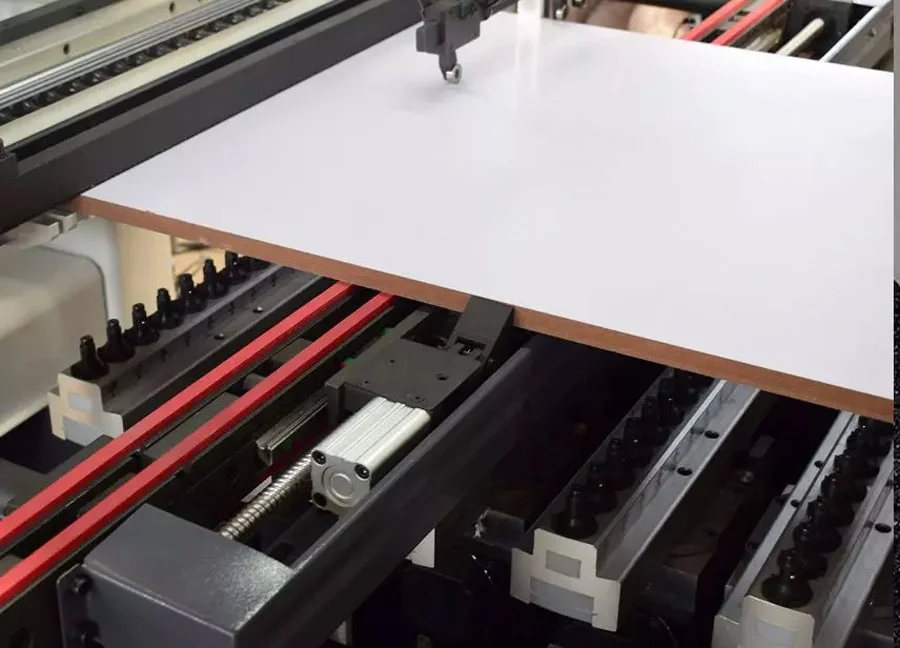

upper pneumatic cylinders - Pneumatic cylinders have the ability to move to adjust to the size of the workpiece, thereby reliably and accurately fix the workpiece in the working area .
