Technical Specifications
| Workpiece length, mm | 220-1265 |
| Maximum width (when drilling one workpiece), mm | 50-630 |
| Maximum width (when drilling three workpieces), mm | 50-150 |
| Maximum width (when drilling two workpieces), mm | 50-240 |
| Maximum workpiece thickness, mm | 12-45 |
| Min. distance between vertical drilling groups, mm | 150 |
| Maximum drilling depth of horizontal spindles, mm | 40 |
| Maximum drilling depth of vertical spindles, mm | 45 |
| Number of vertical spindles, pcs | 66 (11x2+11x2+11x2) |
| Number of horizontal spindles, pcs. | 44 (22x2) |
| Drilling spindle speed, rpm | 2800 |
| Pneumatic system pressure, MPa | 0.6-0.8 |
| Dimensions LxWxH, mm | 2640x3140x1690 |
| Total power, kW | 12,55 |
| Weight, kg | 2600 |
Automatic drilling machine KDT-6032NJ
Purpose :
Automatic drilling machine KDT-6032NJ with a cassette feed of workpieces, a device for unloading workpieces and the ability to drill three parts at the same time (50-150 mm) is used to drill the necessary mounting holes in the details of cabinet furniture in enterprises and workshops for the production of furniture with serial and mass product release. Processing scheme
Distinctive features :
It is completed with the device of unloading and stacking of preparations.

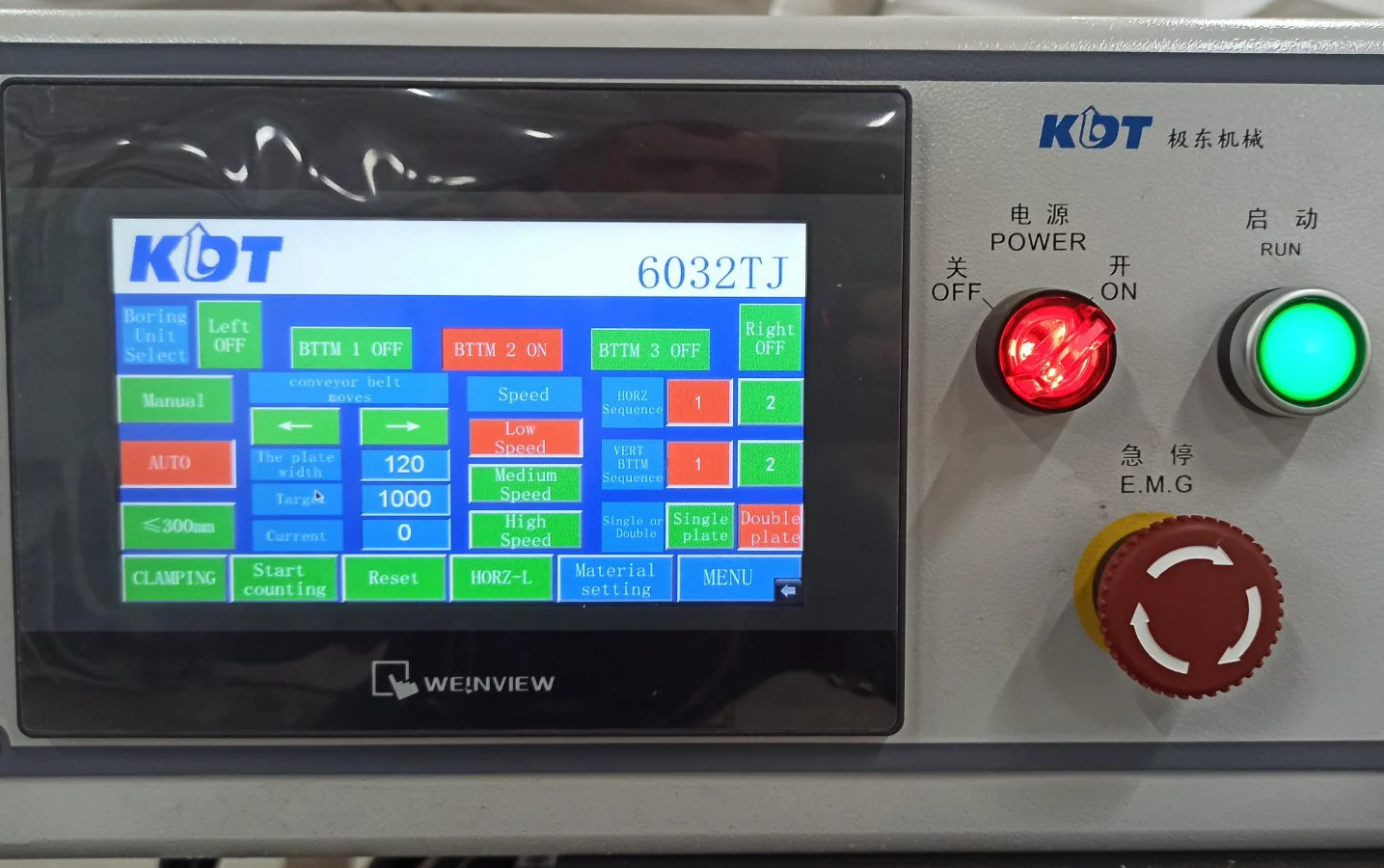

Machine control panel - The machine is controlled by an industrial remote control with an LCD display .

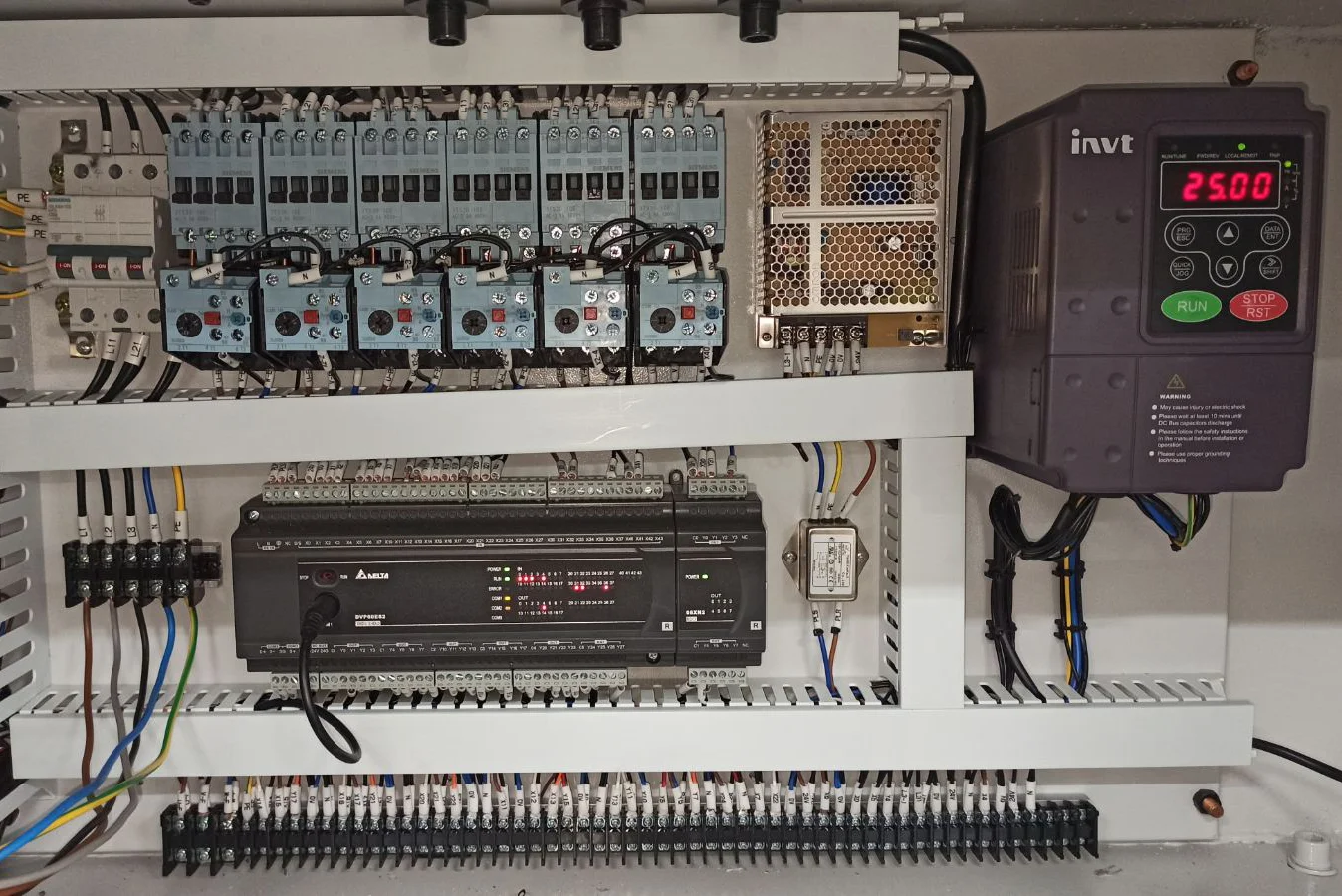

electrical components - The machine uses the electrical part and electronics from the world's leading brands: DELTA control system (Taiwan), INVT frequency converter, automatic switches and contactors SIEMENS (Germany) .

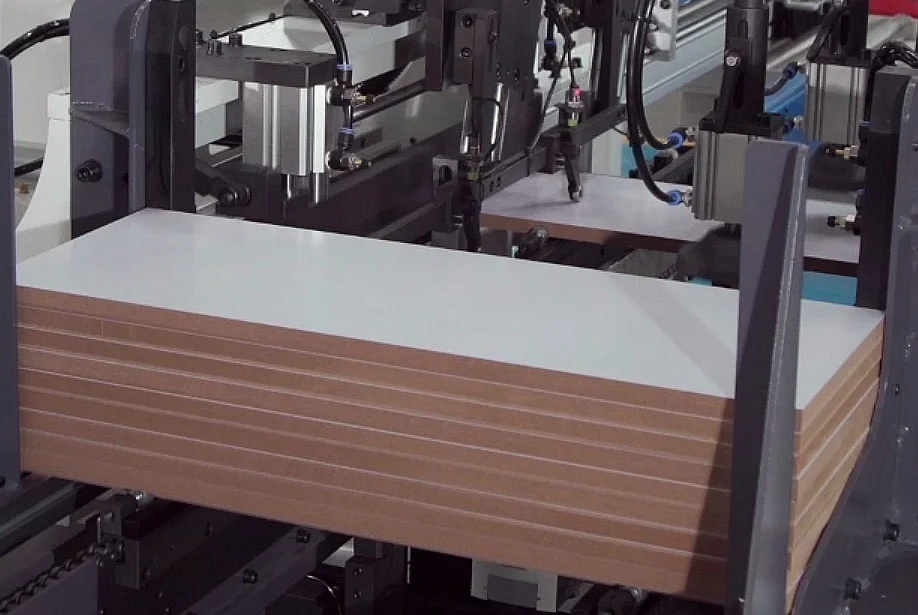

blank supply store - The workpiece supply magazine ensures uninterrupted supply of workpieces to the additive and drilling zone .

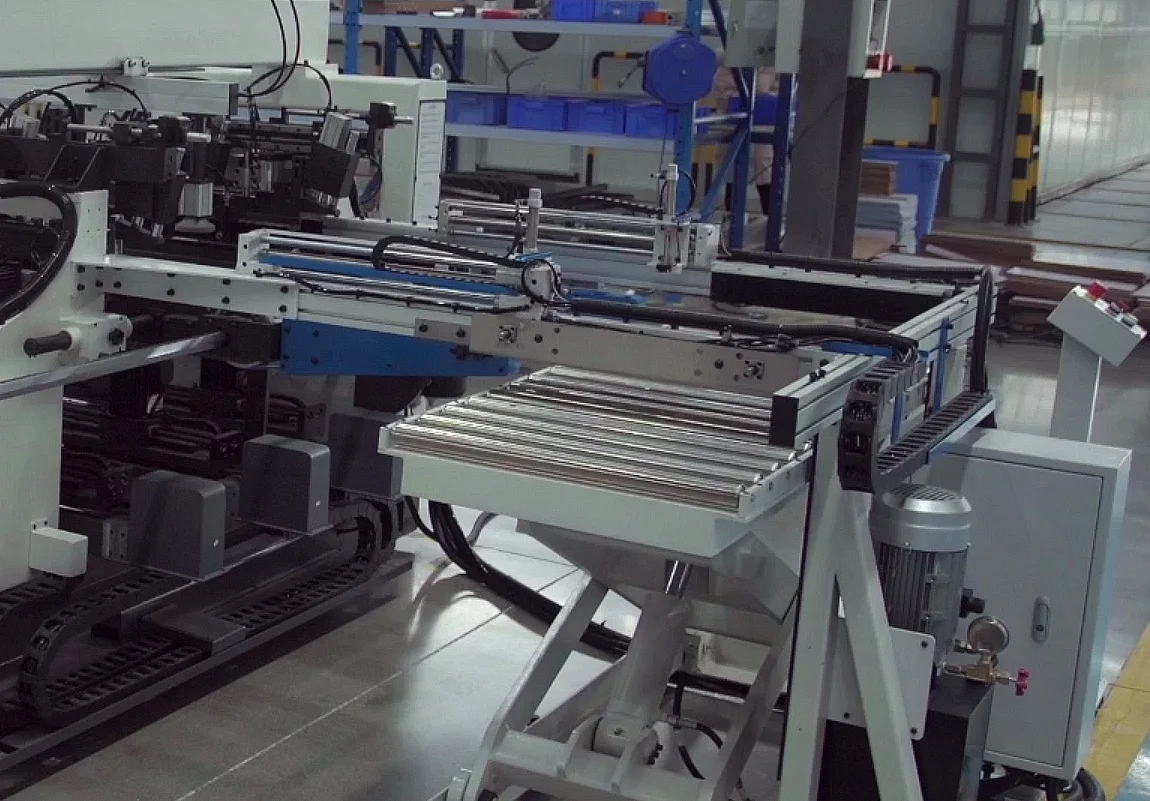

automatic unloading of workpieces - The machine is equipped with a device for unloading and stacking processed workpieces, so that one person can operate the machine .

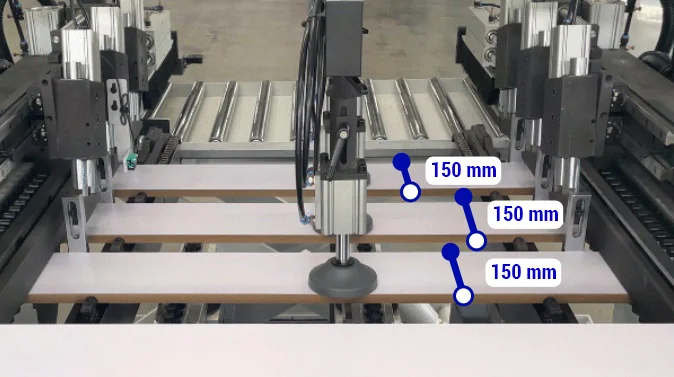

drilling three workpieces at the same time - The possibility of simultaneous drilling of three workpieces with a workpiece width of 50 to 150 mm significantly increases the productivity of the machine .

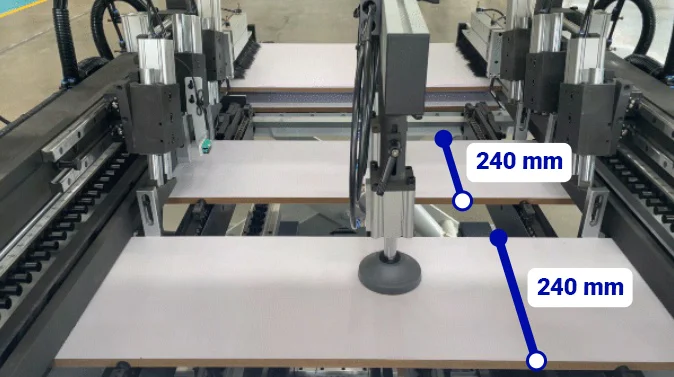

drilling two workpieces at the same time - Possibility of simultaneous drilling of two workpieces with workpiece width from 50 to 240 mm .

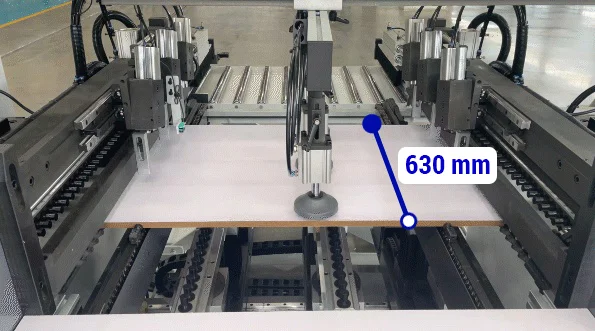

drilling a single workpiece - With a part width of 50 to 630 mm, the machine processes one workpiece at a time .

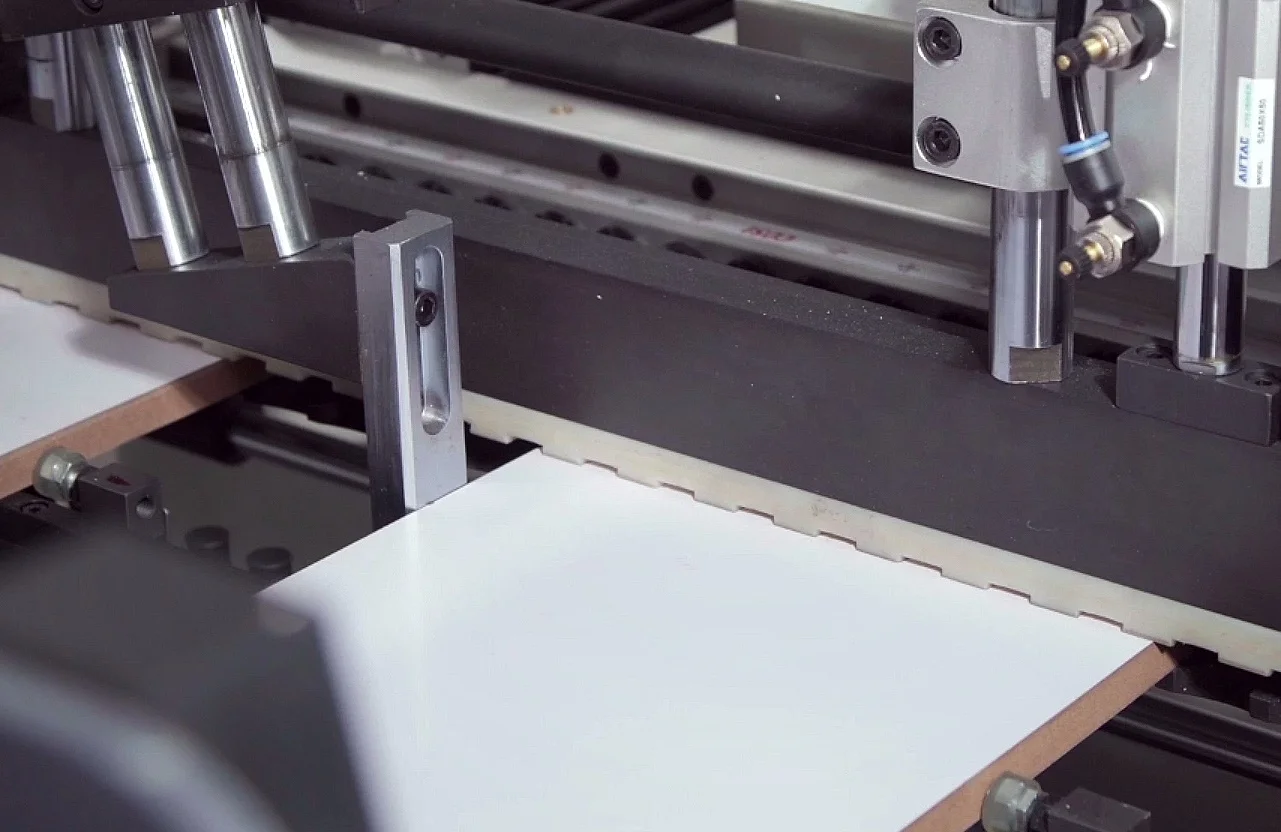

chain conveyor with pushers - The blanks are fed by a chain conveyor with rigidly fixed pushers, which eliminates the distortion of narrow blanks during feeding .

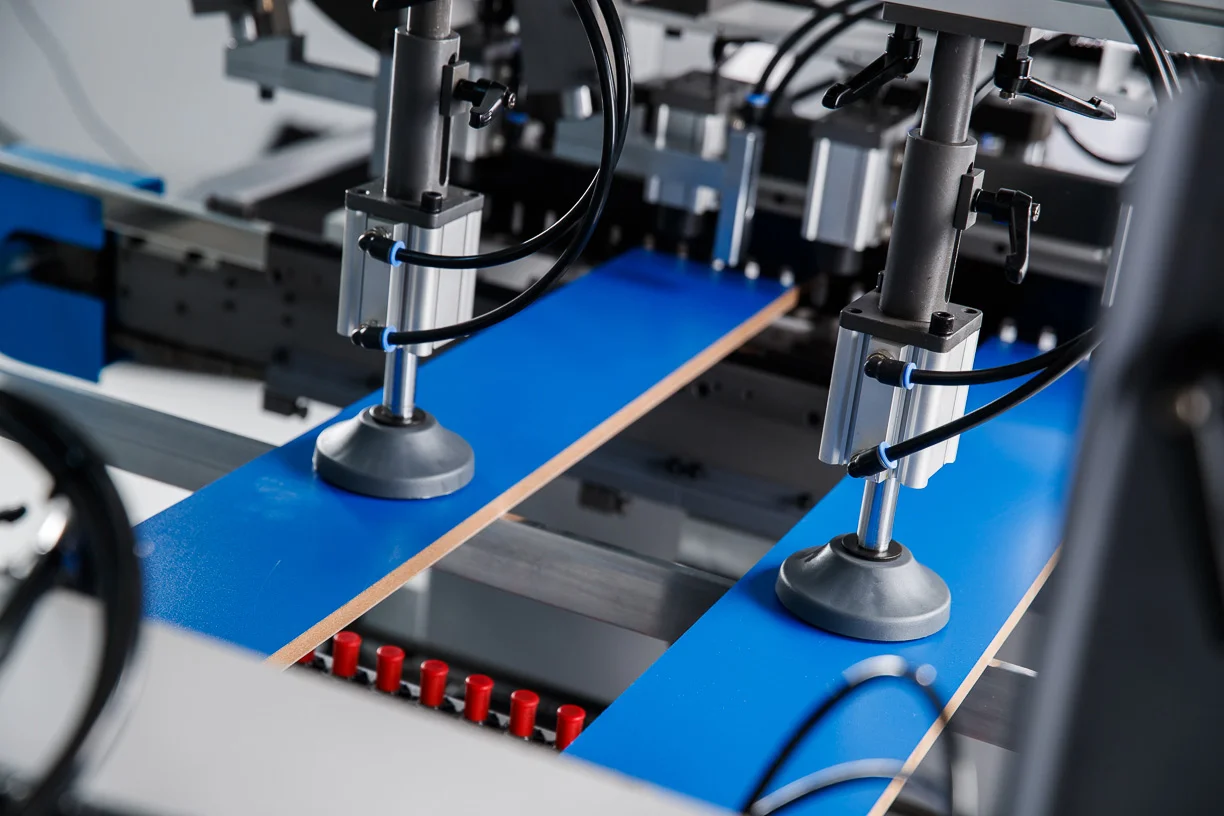

two central pneumatic cylinders - Two central pneumatic cylinders for reliable clamping on the center of the workpiece .
pressure beam - Two side beams along the entire length of the drilling on each side securely and precisely fix the workpieces in the working area .

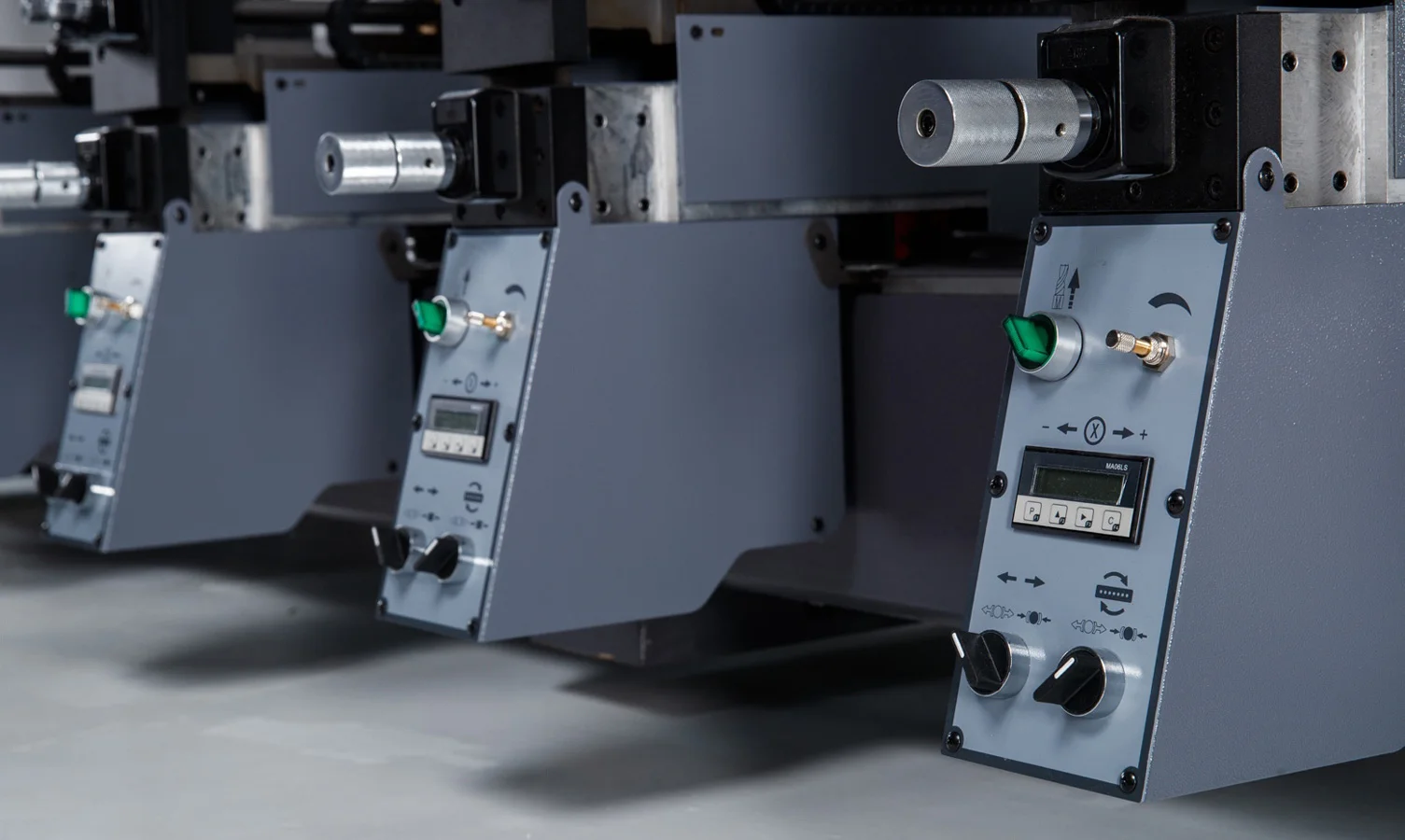

digital counters - Digital counters on the drill groups allow quick and precise changeover from one size to another .

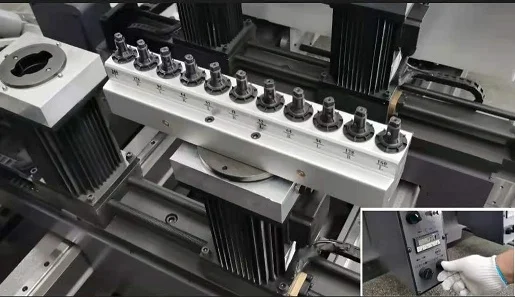

drilling head - Drilling groups with pneumatic fixation of the drilling head allow quick replacement and adjustment to 0° and 90° .
Technical Specifications
| Workpiece length, mm | 220-1265 |
| Maximum width (when drilling one workpiece), mm | 50-630 |
| Maximum width (when drilling three workpieces), mm | 50-150 |
| Maximum width (when drilling two workpieces), mm | 50-240 |
| Maximum workpiece thickness, mm | 12-45 |
| Min. distance between vertical drilling groups, mm | 150 |
| Maximum drilling depth of horizontal spindles, mm | 40 |
| Maximum drilling depth of vertical spindles, mm | 45 |
| Number of vertical spindles, pcs | 66 (11x2+11x2+11x2) |
| Number of horizontal spindles, pcs. | 44 (22x2) |
| Drilling spindle speed, rpm | 2800 |
| Pneumatic system pressure, MPa | 0.6-0.8 |
| Dimensions LxWxH, mm | 2640x3140x1690 |
| Total power, kW | 12,55 |
| Weight, kg | 2600 |
