Technical Specifications
| Workpiece width X, mm | 250-3320 |
| Workpiece width Y, mm | 100-935 |
| Maximum workpiece thickness, mm | 70 |
| Max. distance between extreme spindles horizontally, mm | 640 |
| Max. distance between extreme spindles vertically, mm | 896 |
| Min. distance between vertical drilling groups, mm | 128 |
| Maximum drilling depth of horizontal spindles, mm | 40 |
| Maximum drilling depth of vertical spindles, mm | 70 |
| Number of vertical spindles, pcs | 220; (11+11)x6+(11+11)x4 |
| Number of horizontal spindles, pcs. | 42 (21x2) |
| Drilling spindle speed, rpm | 2800 |
| Desktop height, mm | 950 |
| Pneumatic system pressure, MPa | 0.6-0.8 |
| Dimensions LxWxH, mm | 4670x3120x1974 |
| Total power, kW | 26,5 |
| Weight, kg | 4700 |
Automatic drilling machine KDT-6462
Purpose :
KDT-6462 Industrial Grade Automatic Drilling Machine is used for drilling the necessary mounting holes in cabinet furniture parts in furniture factories and workshops.
Distinctive features :
High rigidity; Powerful, reliable drives; Drilling of a detail from four parties ; Automatic feeding of blanks into the working area; Possibility to embed in the production line; Two options for unloading parts from the machine "back / forward"; Industrial display with "Touch screen" system; Impeccable quality and precision processing; Fixation of drilling groups is carried out with the help of pneumatics; Digital counters on the drill groups allow quick and accurate changeover from one size to another; Possibility of rotation of the drilling group by 90 degrees.
powerful welded frame - The machine bed is made of a profile with an enlarged section, which additionally gives rigidity to the structure and minimizes vibrations that occur during operation .
machine control panel - The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system .
digital counters - The machine is equipped with digital counters, which allows you to quickly change from one size to another. Pneumatic brakes securely fix the drilling traverses and guarantee stability and accuracy according to the additive chart .
swivel drilling head - The KDT-6352 machine has the following equipment:2 horizontal end traverses with 21 spindles.6 lower vertical traverses, double design with independent engines (11+11)x6. They have the ability to rotate 90 degrees .
automatic feed of workpieces - Automatic supply of parts to the working area, ensures maximum productivity of the machine in mass production .
through and return modes of operation - The machine can work in two modes:walk-through mode, two operators work.return mode, one operator works .
drilling traverse drive - Powerful drilling traverse drives guarantee fast and precise insertion of required mounting holes in workpieces .

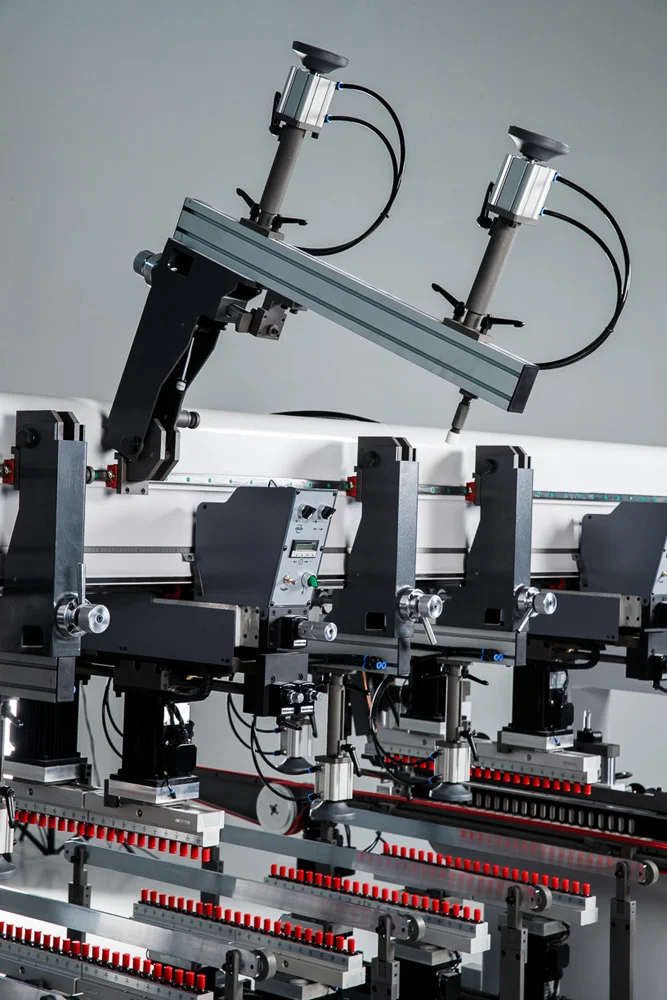

upper pneumatic cylinders - Pneumatic cylinders have the ability to move to adjust to the size of the workpiece, thereby reliably and accurately fix the workpiece in the working area .
Technical Specifications
| Workpiece width X, mm | 250-3320 |
| Workpiece width Y, mm | 100-935 |
| Maximum workpiece thickness, mm | 70 |
| Max. distance between extreme spindles horizontally, mm | 640 |
| Max. distance between extreme spindles vertically, mm | 896 |
| Min. distance between vertical drilling groups, mm | 128 |
| Maximum drilling depth of horizontal spindles, mm | 40 |
| Maximum drilling depth of vertical spindles, mm | 70 |
| Number of vertical spindles, pcs | 220; (11+11)x6+(11+11)x4 |
| Number of horizontal spindles, pcs. | 42 (21x2) |
| Drilling spindle speed, rpm | 2800 |
| Desktop height, mm | 950 |
| Pneumatic system pressure, MPa | 0.6-0.8 |
| Dimensions LxWxH, mm | 4670x3120x1974 |
| Total power, kW | 26,5 |
| Weight, kg | 4700 |
