Technical Specifications
| Feed speed, m/min | 1-10 |
| Curvature radius of the part, mm | 20 |
| Table size, mm | 900x900 |
| Edge thickness, mm | 0.3-30 |
| Workpiece thickness, mm | 10-60 |
| Power supply, V | 380 |
| Total power, kW | 2.45 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x955 |
| Weight, kg | 280 |
Universal edge banding machine KDT-305
Purpose :
The universal edge banding machine KDT-305 is designed for veneering straight and curved edges of furniture boards and blanks with natural strip and synthetic roll material.
Distinctive features :
Two modes of operation, processing straight/curved parts with automatic edge cutting and from the pedal.

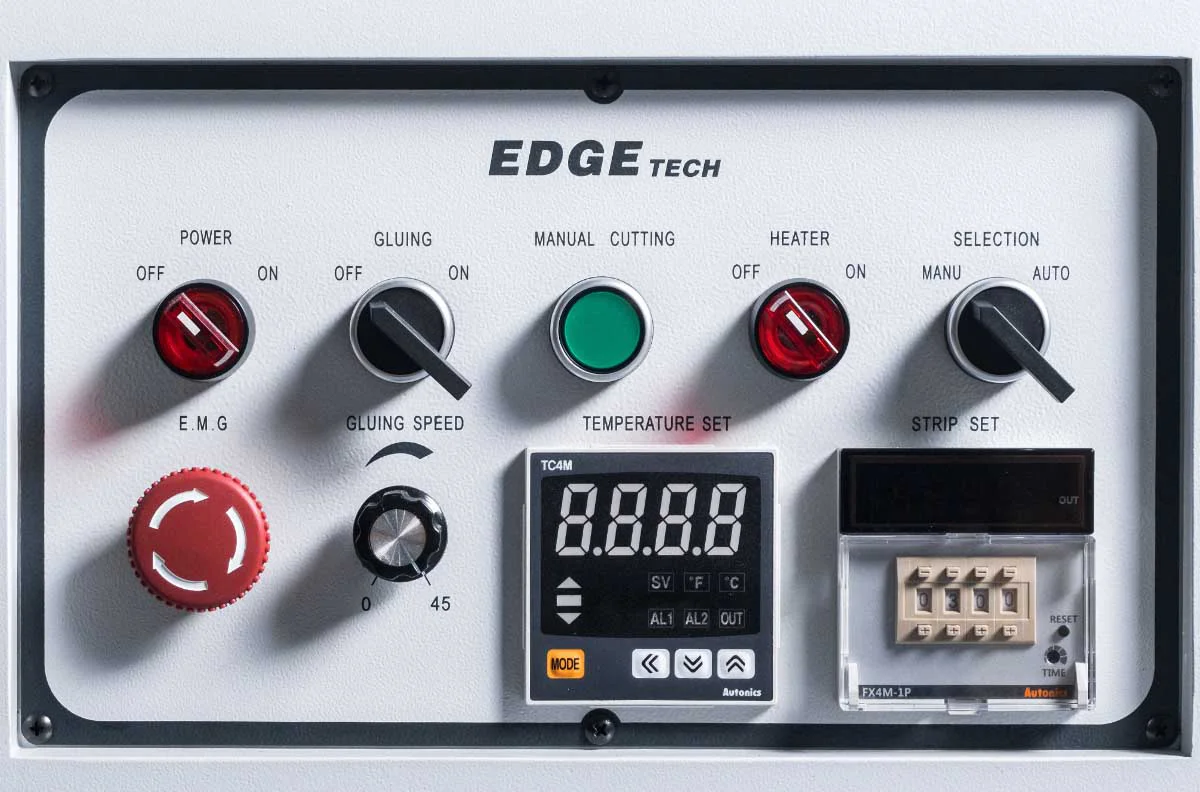

edging machine control panel - The machine control panel is convenient and intuitive, all machine controls are concentrated in one place .

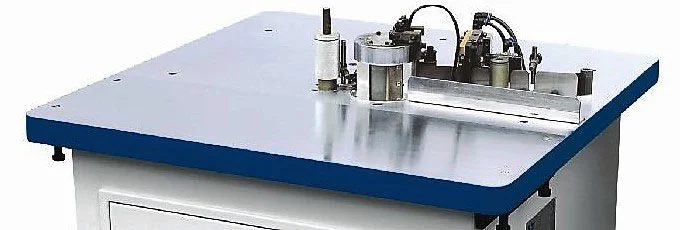

oversized table - The larger worktable allows for easy edging of larger workpieces .

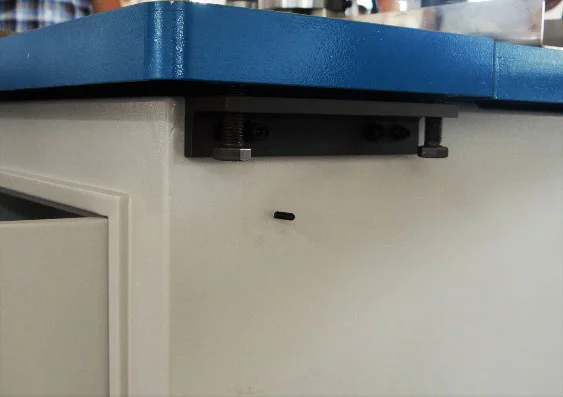

table height adjustment - The infeed table is height-adjustable, allowing it to be adjusted to accommodate edge overhangs .

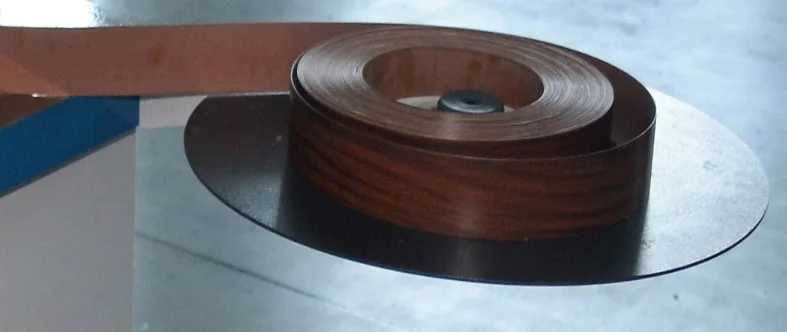

edge feed - Edge material supply store .
robust construction - The powerful and reliable design of the drive of the glue applicator and feed roller guarantees the stable operation of the machine for a long service life .
lower glue bath - The lower location of the glue bath eliminates the appearance of excess glue on the desktop .

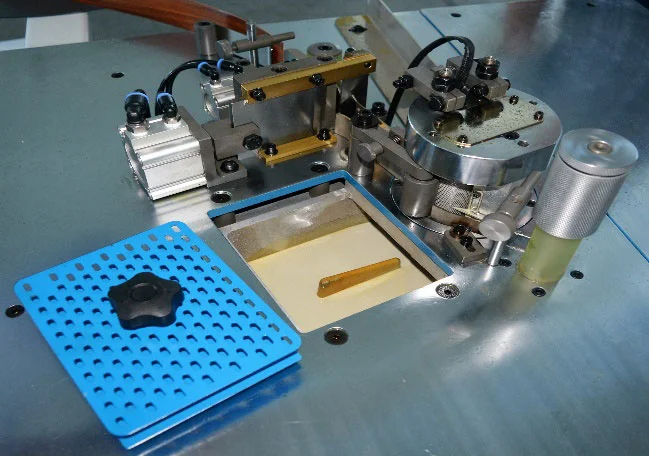

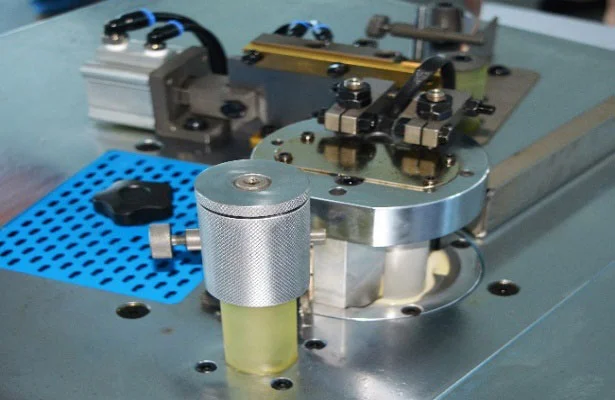

drive roller - A contact drive roller with adjustable edge position in height allows you to get a high-quality connection between the edge and the workpiece .

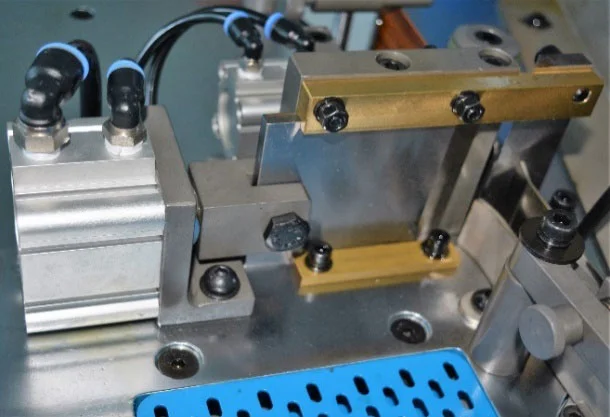

powerful guillotine - A powerful guillotine allows you to successfully cut the edge to the maximum width .

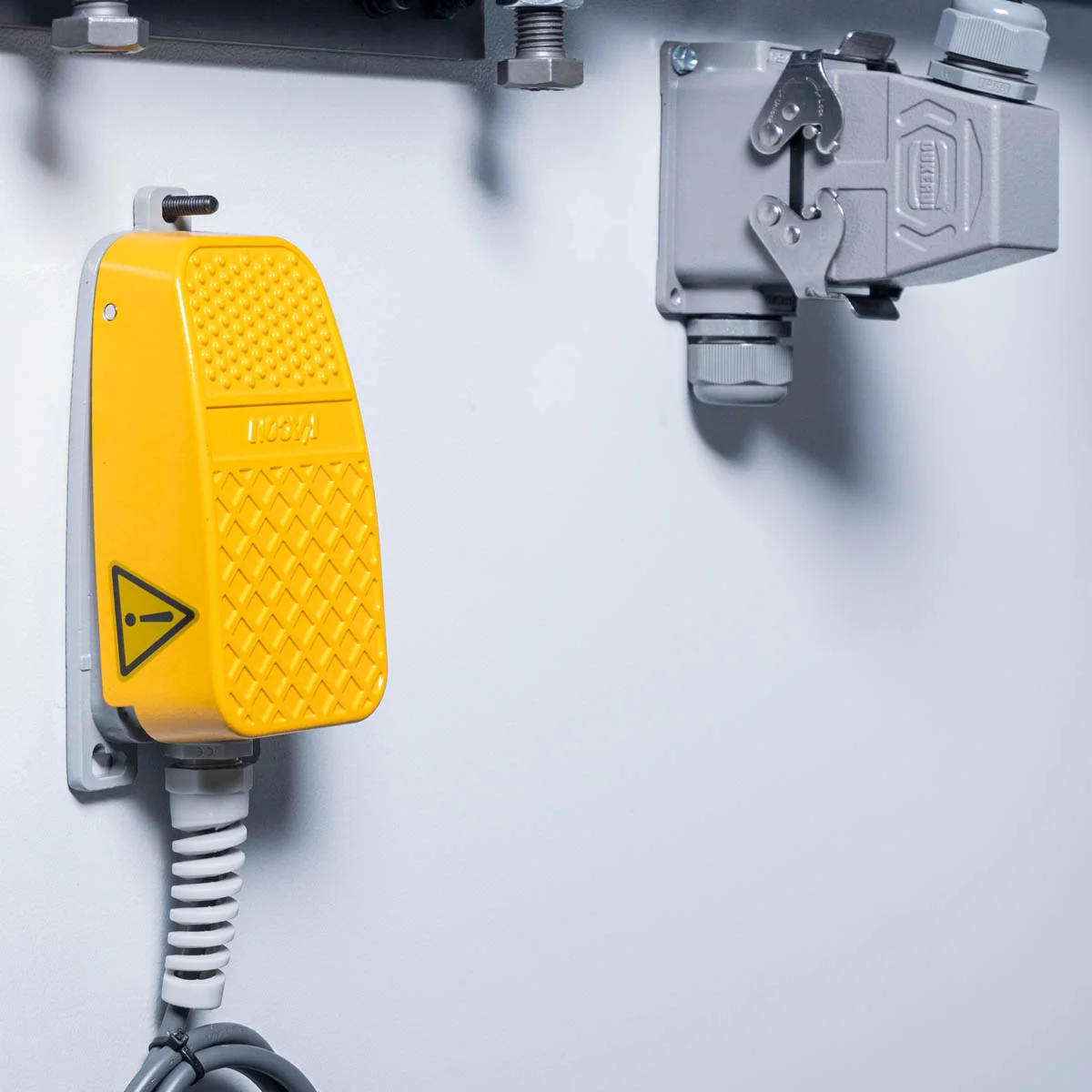

trimming pedal - Pedal for trimming the edge in manual mode .

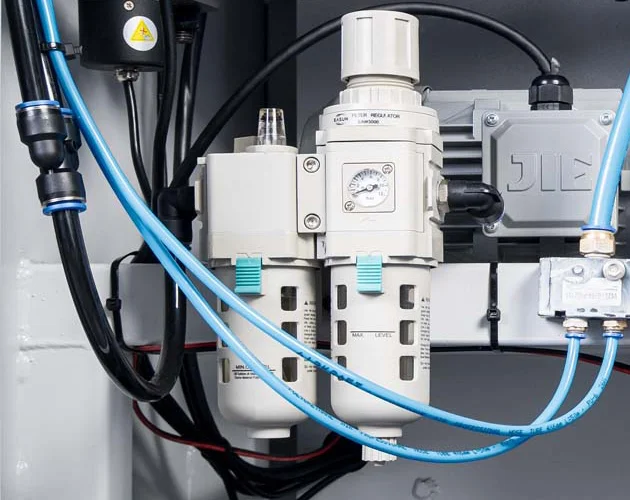

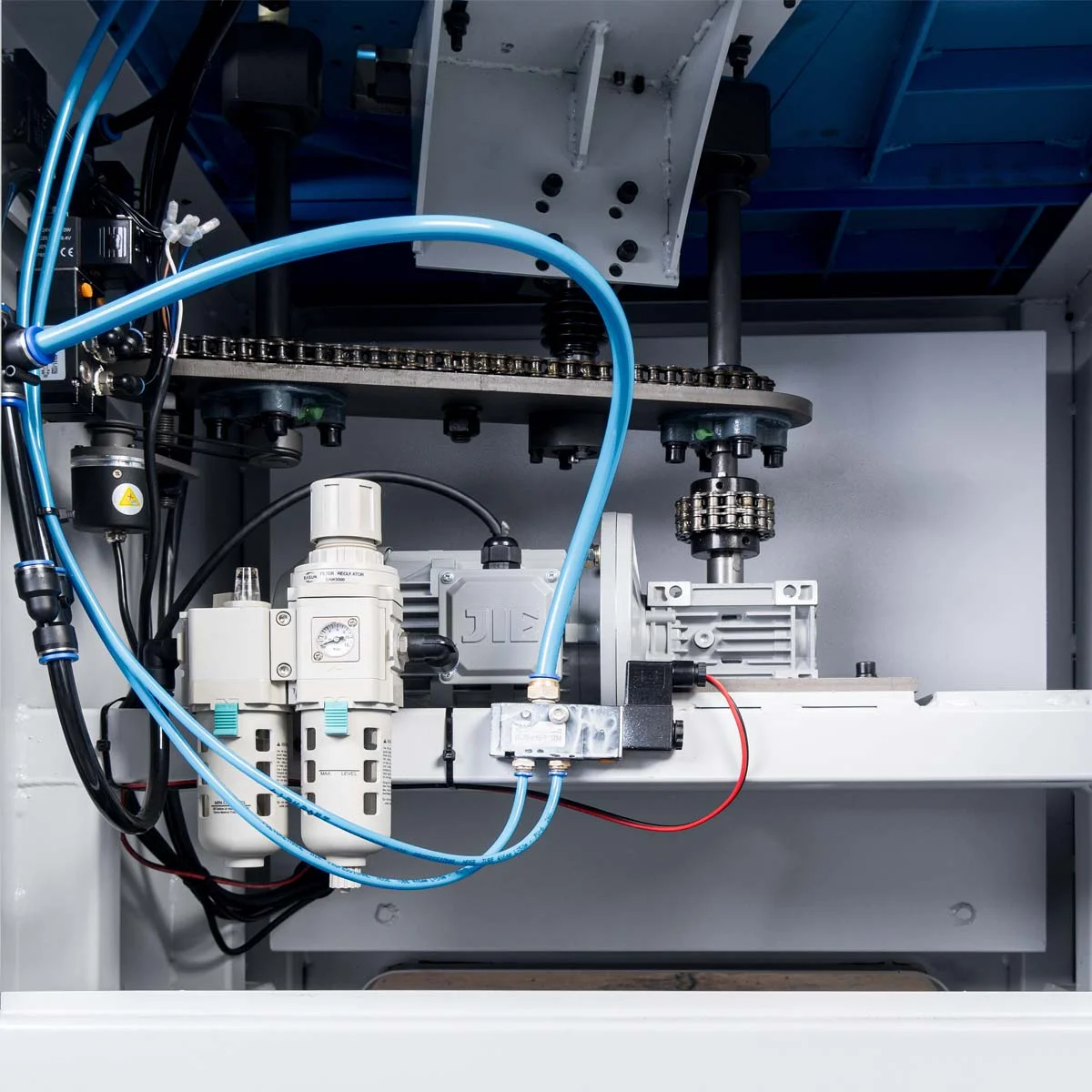

Air preparation unit - An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine .

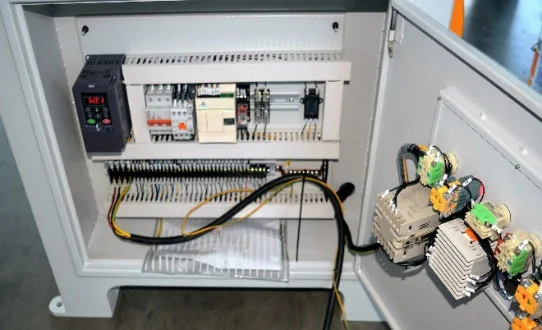

electric cabinet - Electrical components are made according to CE standards using the best components .
Technical Specifications
| Feed speed, m/min | 1-10 |
| Curvature radius of the part, mm | 20 |
| Table size, mm | 900x900 |
| Edge thickness, mm | 0.3-30 |
| Workpiece thickness, mm | 10-60 |
| Power supply, V | 380 |
| Total power, kW | 2.45 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x955 |
| Weight, kg | 280 |
