Technical Specifications
| Feed speed, m/min | 1-10 |
| Curvature radius of the part, mm | 20 |
| Table size, mm | 900x900 |
| Edge thickness, mm | 0.3-30 |
| Workpiece thickness, mm | 10-60 |
| Power supply, V | 380 |
| Total power, kW | 2.45 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x1192 |
| Weight, kg | 280 |
Universal edge banding machine KDT-305M for PUR/EVA adhesive
Purpose :
Universal edge banding machine KDT-305M with a quick change system for PUR/EVA glue baths is designed for gluing straight and curved edges of furniture boards and blanks with natural strip and synthetic roll material. The glue pot is interchangeable with the top pans of KDT edgebanders and is also compatible with the glue pot cleaning and storage system .
Distinctive features :

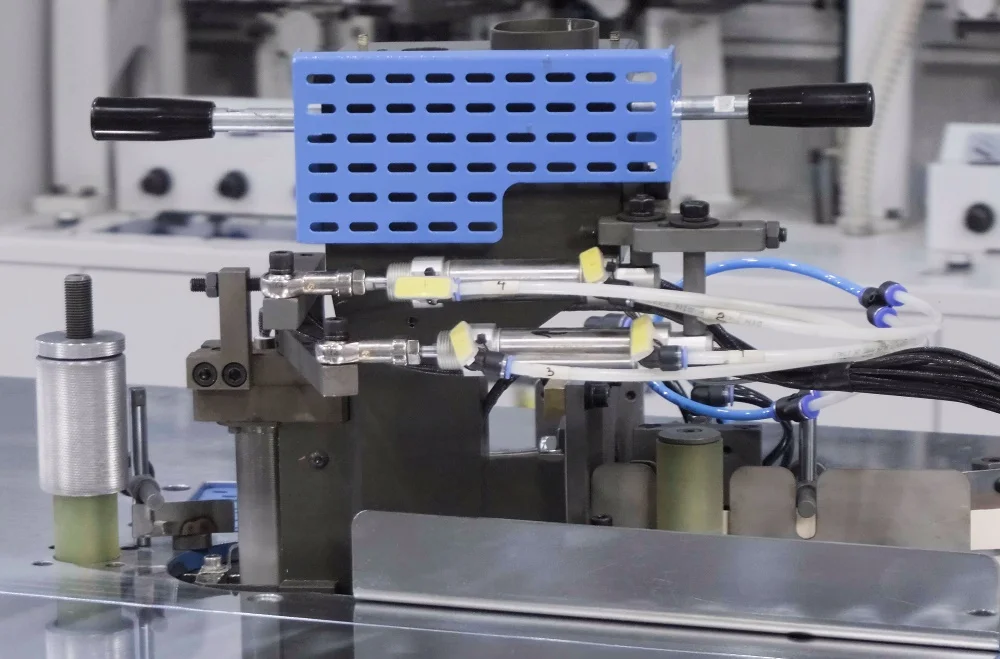

Removable top glue bath for working with PUR/EVA glue .
upper removable glue pot - The interchangeable top glue bathallows you to work withPUR/EVA glueand change the color of the glue. The bath is interchangeable withthe top baths of KDT edgebanders .
edging machine control panel - The control panel of the machine is convenient and intuitive, all machine controls are concentrated in one place .
oversized table - The larger worktable allows for easy edging of larger workpieces .
table height adjustment - The infeed table is height-adjustable, allowing it to be adjusted to the edge overhangs .
edge feed - Edge material supply store .
robust construction - The powerful and reliable design of the drive of the glue applicator and feed roller guarantees the stable operation of the machine for a long service life .
drive roller - A contact drive roller with adjustable edge position in height allows you to get a high-quality connection between the edge and the workpiece .
powerful guillotine - A powerful guillotine allows you to successfully cut the edge to the maximum width .
trimming pedal - Pedal for trimming the edge in manual mode .
Air preparation unit - An air preparation unit with a moisture separator and an oiler for automatic lubrication of the entire pneumatic system of the machine .
electric cabinet - Electrical components are made according to CE standards using the best components .
Technical Specifications
| Feed speed, m/min | 1-10 |
| Curvature radius of the part, mm | 20 |
| Table size, mm | 900x900 |
| Edge thickness, mm | 0.3-30 |
| Workpiece thickness, mm | 10-60 |
| Power supply, V | 380 |
| Total power, kW | 2.45 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 1760x1275x1192 |
| Weight, kg | 280 |
