Technical Specifications
| Feed speed, m/min | 12-20 |
| Machine units | 1. Joint joint. 2. Clamping unit. 3. Facing unit. 4. The first milling unit for removing overhangs. 5. The second milling unit for removing overhangs. 6. Scraping unit with radius knives. 7. Scraping unit with flat knives. 8. Grooving knot from 2 sides. 9. Polishing unit. |
| Minimum part size, mm | 285x285 |
| Edge thickness, mm | 0.4-3 |
| Workpiece thickness, mm | 10-60 |
| Workpiece width, mm | ≥ 285 |
| Workpiece length, mm | ≥ 285 |
| Total power, kW | 51.74 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 7310x4150x1848 |
| Weight, kg | 7000 |
Double Sided Edge Banding Machine KE-2368JHSK
Purpose :
Double-sided automatic edge banding machine KE-2368JHSK is designed for simultaneous gluing of straight edges of furniture boards and blanks with synthetic roll material on both sides. It is applied at the furniture enterprises which are letting out serial furniture. Machine components Joint knot. Clamping knot. Ending knot. The first milling unit for removing overhangs. The second milling unit for removing overhangs. Scraping unit with radius knives. Scraping unit with flat knives Grooving knot on 2 sides. polishing unit.
Distinctive features :
Feed speed 12-20 m/min; Shop for edging material; Programming of technological interruptions of glue bath heating; Individual frequency converter for each working node; Lighting in the protective cabin; For safety, the machine is equipped with an electronic cab door locking system; The lifting/lowering mechanism of the clamping traverse is equipped with an electric drive, which ensures quick and accurate installation to the required thickness of the part; The base ruler with a digital counter guarantees a quick and accurate setting of the required removal on the workpiece during milling at the milling unit; Pneumatic shutter on the glue roller, prevents it from getting dirty; Adjustment of front and rear overhangs from the control panel.
machine bed - The bed of the edge banding machine has the form of a rigid box with the necessary stiffening ribs, which guarantees the exact location of all nodes during the entire period of operation .
Remote Control - The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system .
technological breaks - Possibility of programming technological interruptions of glue bath heating .
rod dispenser - The workpiece feed dispenser rod controls the minimum distance between workpieces, preventing damage to machine components during operation .

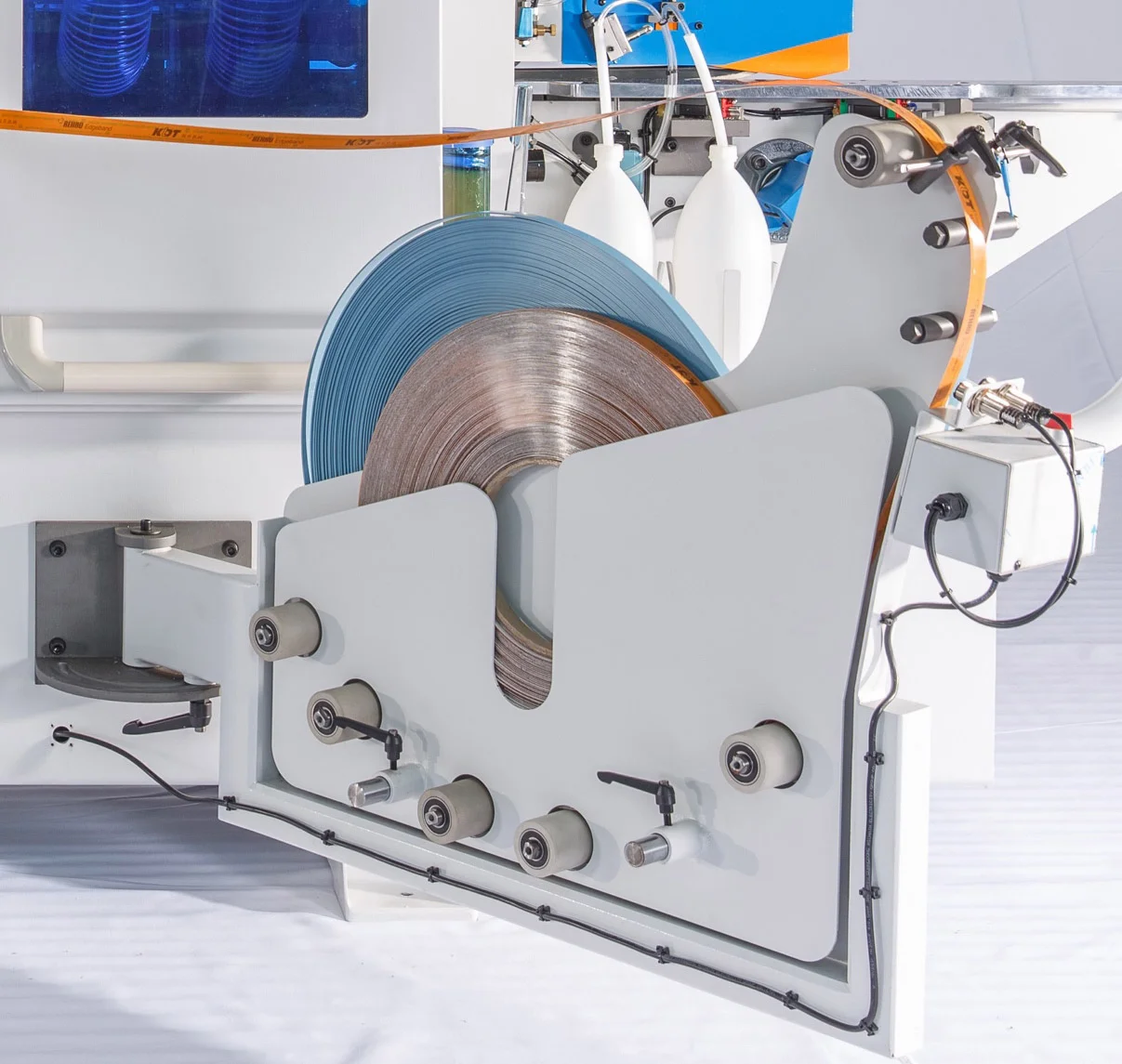

edge feed magazine - The two-roll edge feed magazine simplifies and speeds up the process of changing edges and switching to a different thickness, width, color .

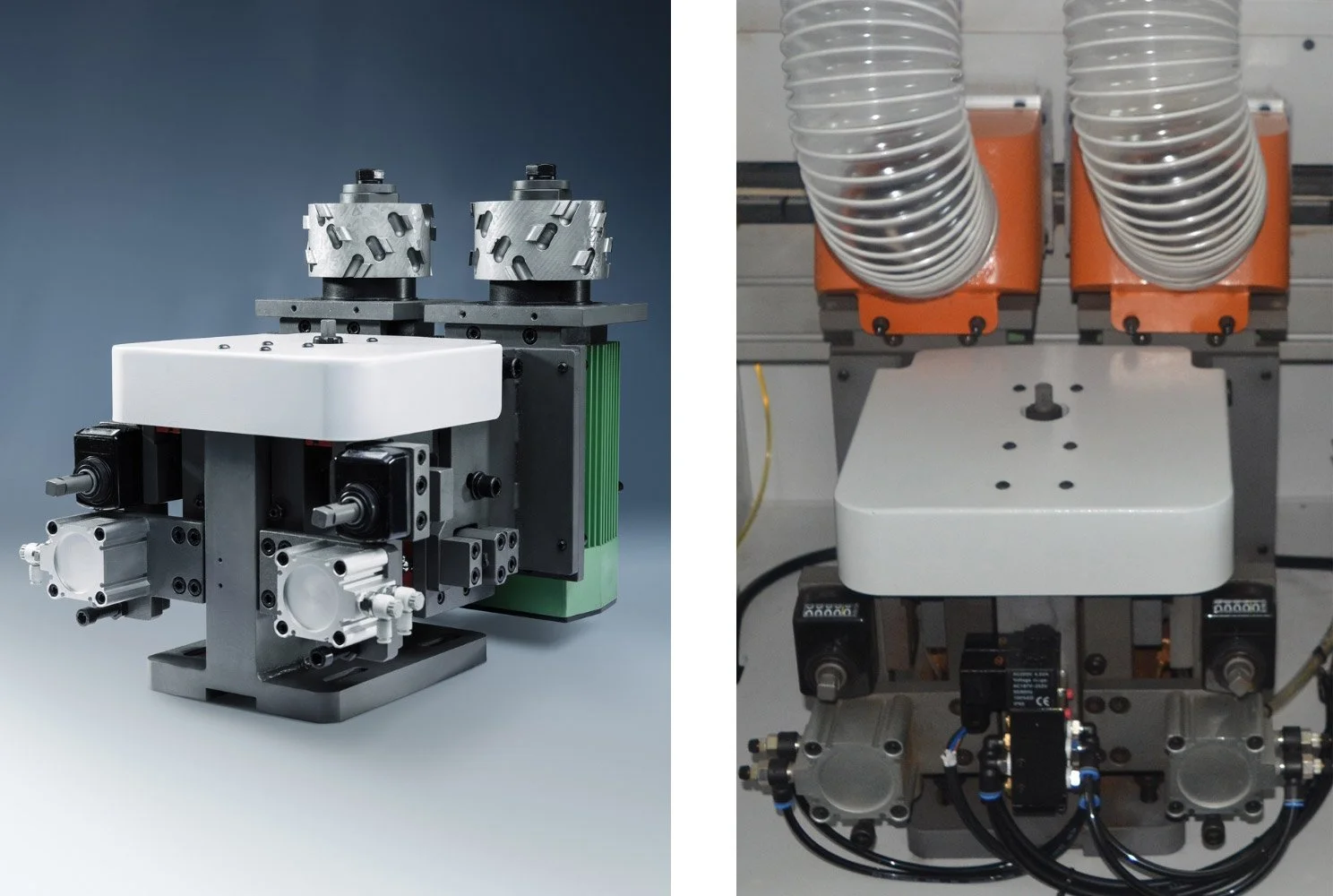

joiner unit - The jointing unit is equipped with two high-frequency motors, which ensures high-quality processing of the end face of the material before gluing the edge. Pre-milling copes with the “step” from the scoring saw, chips .

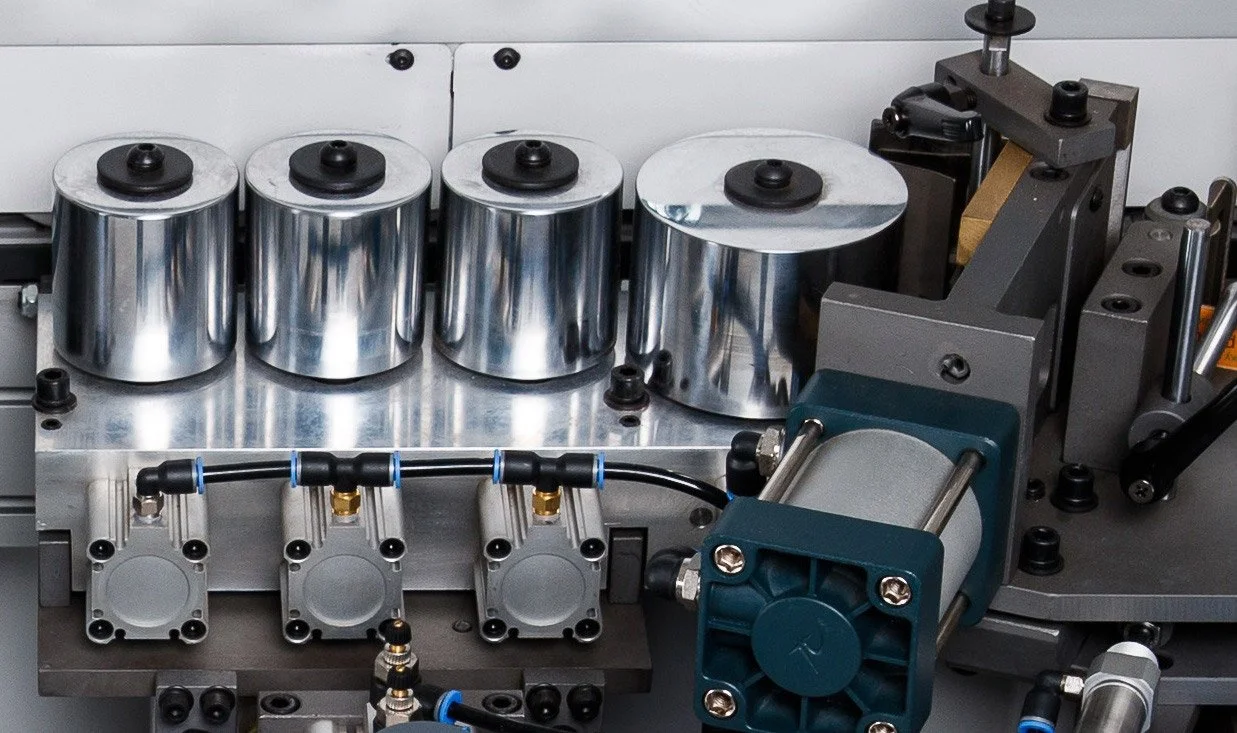

Clamping unit - The pressure unit consists of 4 rollers, which are driven by pneumatics, which guarantees an even distribution of forces on the edge during gluing .
facing unit - The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides. The unit is equipped with an automatic lubrication system for the guides .

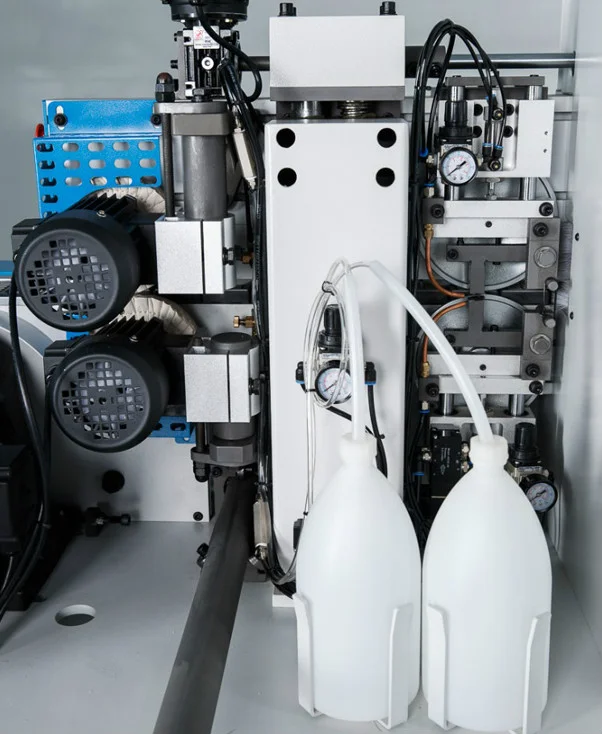

milling unit - The milling unit consists of two high-frequency electric motors equipped with radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm .
radius cycle - Radial scraping with two carbide radius knives, which, after milling a 2.0 mm thick edge, remove a thin layer from the milled part of the edge, as a result we get a smooth machined surface .
flat cycle - The direct scraping unit is equipped with two hard-alloy straight knives (glue scraper), which carry out edge processing at the joints with the part .
grooving knot - The grooving milling unit is equipped with a carbide-tipped grooving saw for milling the groove under the back wall .
polishing unit - The polishing unit polishes the processed part of the edge. For safety, the unit is equipped with additional protective covers .
Technical Specifications
| Feed speed, m/min | 12-20 |
| Machine units | 1. Joint joint. 2. Clamping unit. 3. Facing unit. 4. The first milling unit for removing overhangs. 5. The second milling unit for removing overhangs. 6. Scraping unit with radius knives. 7. Scraping unit with flat knives. 8. Grooving knot from 2 sides. 9. Polishing unit. |
| Minimum part size, mm | 285x285 |
| Edge thickness, mm | 0.4-3 |
| Workpiece thickness, mm | 10-60 |
| Workpiece width, mm | ≥ 285 |
| Workpiece length, mm | ≥ 285 |
| Total power, kW | 51.74 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 7310x4150x1848 |
| Weight, kg | 7000 |
