Technical Specifications
| Power supply, V | 380 |
| Power, kWt | 1,7 |
| Dimensions (LxWxH), mm | 830x620x862 |
| Weight, kg | 164 |
Multifunctional glue station for cleaning and storing glue units KDT 88S
Purpose :
The multifunctional glue station KDT 88S is necessary for servicing and cleaning, preheating and vacuum storage of adhesive units. Used in conjunction with KDT edge banding machines. The glue pot is not included in the equipment set! It is a mobile system on wheels and includes: control panel; sealed storage chamber for adhesive units KDT 88S; special motorized mount for glue units, similar to that installed on the KDT machine; cabinet with vacuum pump, glue application roller drive and electrical components. Glue station functions: Heating function. Useful if you have multiple glue pots and are working with different colors and types of glue. The station maintains the operating temperature of the glue and the operating speed of the glue tank. This allows you to quickly change the type or color of the adhesive without the need to reheat the adhesive, which has a positive impact on the quality of the adhesive seam due to the reduced effect of heating and cooling on the adhesive. Cleaning the glue. Used to clean glue tanks from glue using special cleaners and glue neutralizers. Using a special pressure plate, the shaft is cleaned of glue residues efficiently and effectively. Vacuum storage. Using a vacuum in the storage chamber extends the life cycle of PUR adhesive and prevents problems with machine parts.
Distinctive features :
Prevention of polymerization: for storing adhesive aggregates filled with PUR glue during long breaks in work.

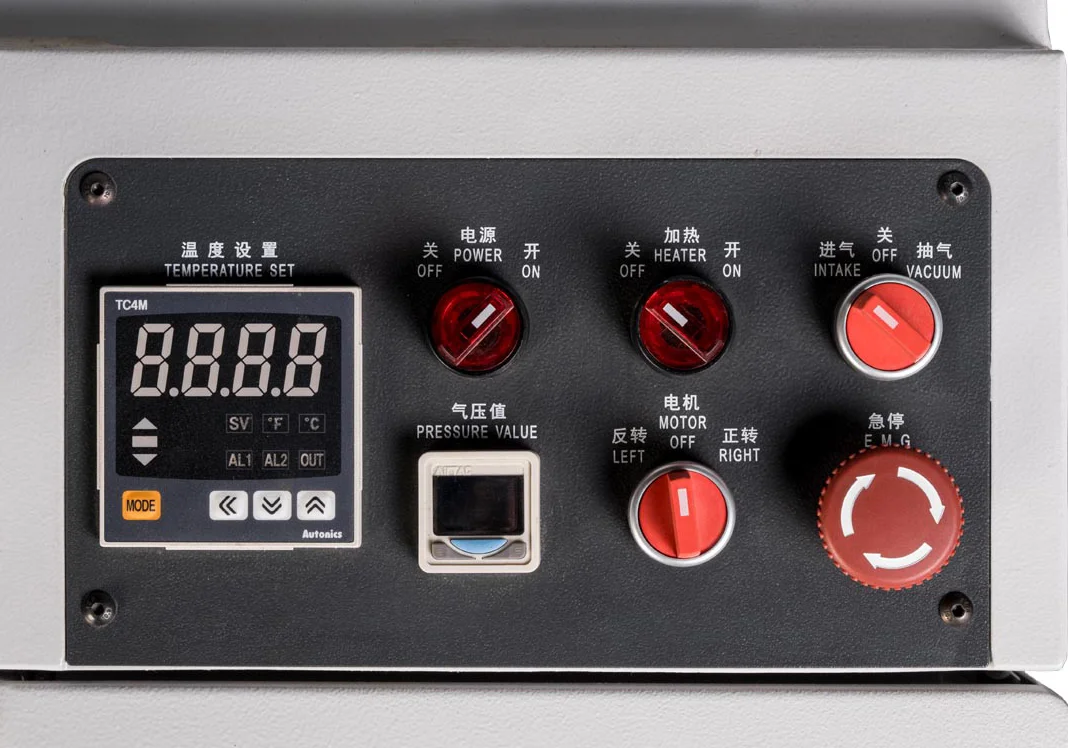

control Panel - The system is controlled using the control panel located on the front.Functionality of the control panel:Turn on/off the system.Emergency stop button.Temperature controller (℃).Indicator displaying real-time temperature during heating (℃) .

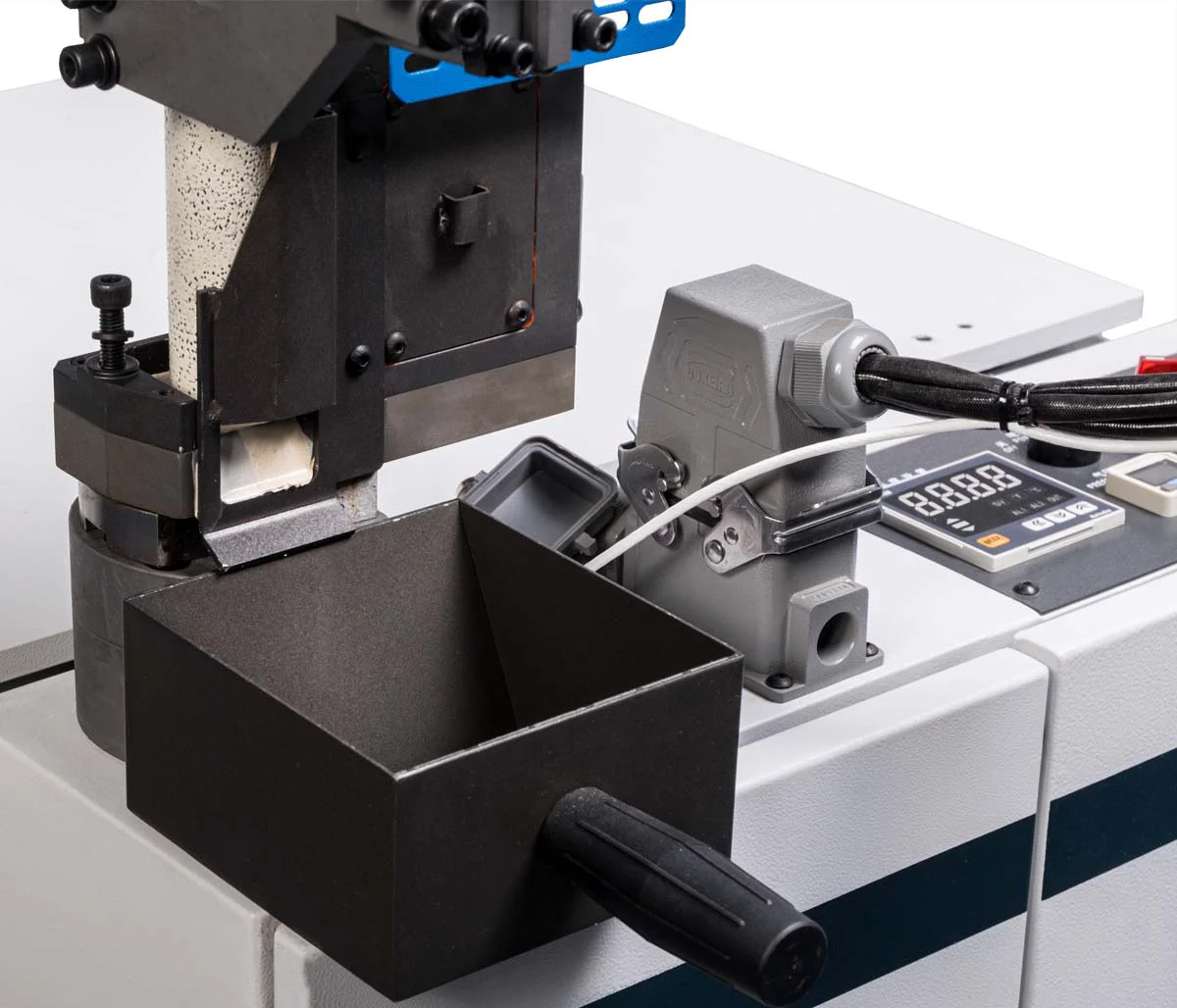

Fastening adhesive units - The mount is conveniently located on the top of the station for maintenance (cleaning) and preheating of the glue unit.Nearby is an electrical connector identical to the one installed in the KTD machine .

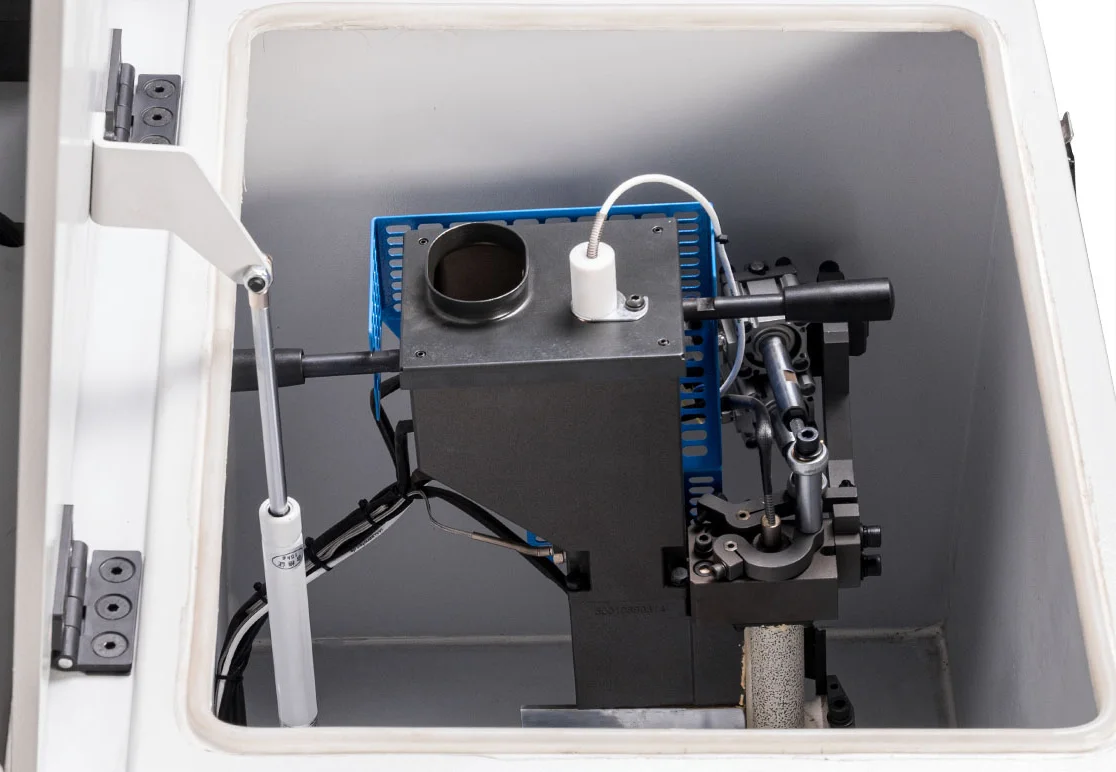

Sealed storage room - A vacuum is created in the chamber using a vacuum pump built into the station. When it reaches the set value, the vacuum pump will stop .

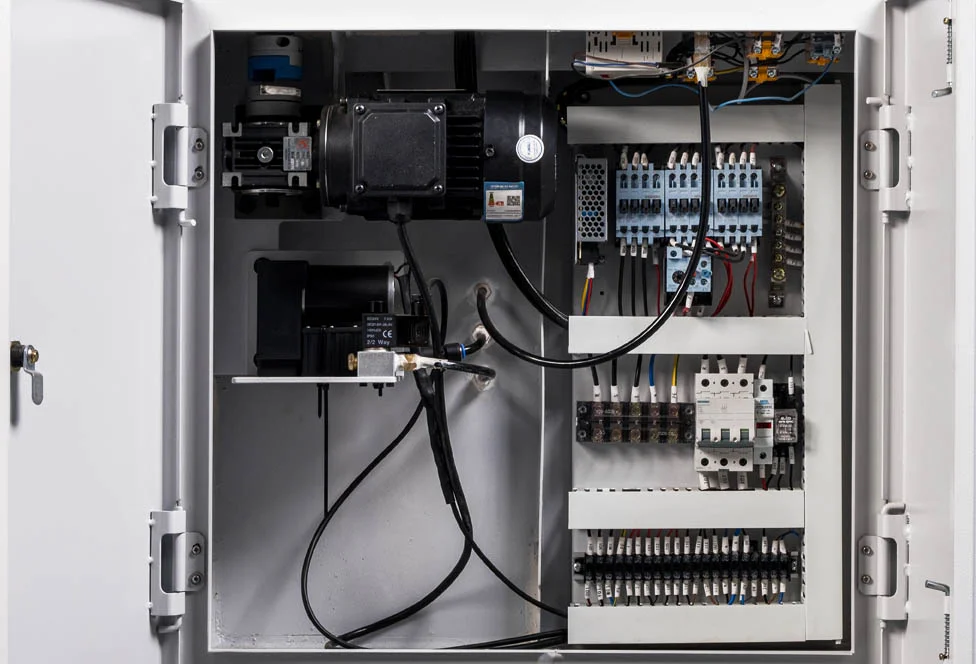

electrical cabinet - Cabinet with easy access to the glue roller drive, vacuum pump and electrical components. Access to the cabinet from the front of the station .
Technical Specifications
| Power supply, V | 380 |
| Power, kWt | 1,7 |
| Dimensions (LxWxH), mm | 830x620x862 |
| Weight, kg | 164 |
