Technical Specifications
| Feed speed, m/min | 14 |
| Machine units | 1. Knot of preliminary milling and formation of a bevel. 2. Clamping unit. 3. Facing unit. 4. The first milling unit for removing overhangs. 5. The second milling unit for removing overhangs. 6. Scraping unit with radius knives. 7. Scraping unit with straight knives. 8. Polishing unit. |
| Minimum part size, mm | 150x135 |
| Edge thickness, mm | 0.45-1.5 |
| Workpiece thickness, mm | 9-25 |
| Workpiece width, mm | ≥ 135 |
| Workpiece length, mm | ≥ 150 |
| Total power, kW | 21,65 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 5750x830x1670 |
| Weight, kg | 2400 |
Automatic edge banding machine KE-395J
Purpose :
The KE-395J automatic edge banding machine is designed for simultaneous banding of straight edges of furniture boards and blanks with synthetic roll material. The machine allows you to get a product with two options for gluing the edge at 45 °. Example of a partial 45° bevel for 16mm and 18mm panels. Example of a partial 45° bevel of a 25 mm thick panel. Example of a partial 45° bevel finished panel . Machine components Knot of preliminary milling and formation of a bevel. Clamping knot. Ending knot. The first milling unit for removing overhangs. The second milling unit for removing overhangs. Scraping unit with radius knives. Scraping unit with straight blades. polishing unit.
Distinctive features :
Feed speed 14 m/min; Control panel "Touch screen"; Built-in waypoint control for non-contact control of processing units; Possibility of programming technological breaks; Individual frequency converter for each working node; Lighting in the protective cabin; Limit switches on the doors in the protective cabin; Pneumatic shutter on the glue roller, prevents it from getting dirty; Adjustment of the front and rear overhangs of the edge from the control panel; Execution according to CE standards.
machine bed - The bed of the edge banding machine has the form of a rigid box with the necessary stiffening ribs, which guarantees the exact location of all nodes during the entire period of operation .
Remote Control - The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system .
technological breaks - Possibility of programming technological interruptions of glue bath heating .

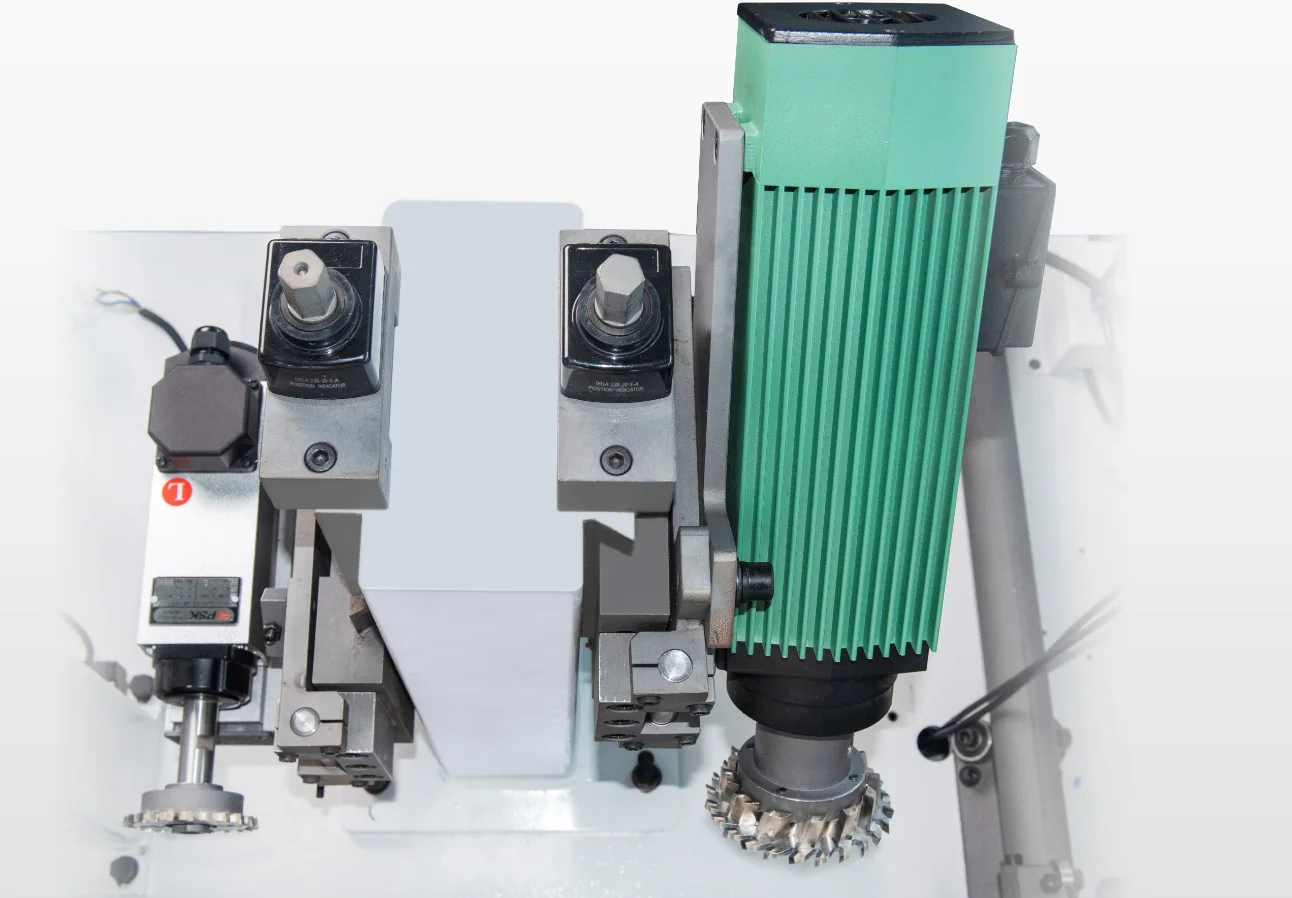

face pre - milling unit - Unit for pre-milling the end of the part before gluing the edge onto the formed surface. It is equipped with two motors that carry out the processing of a straight and inclined section .

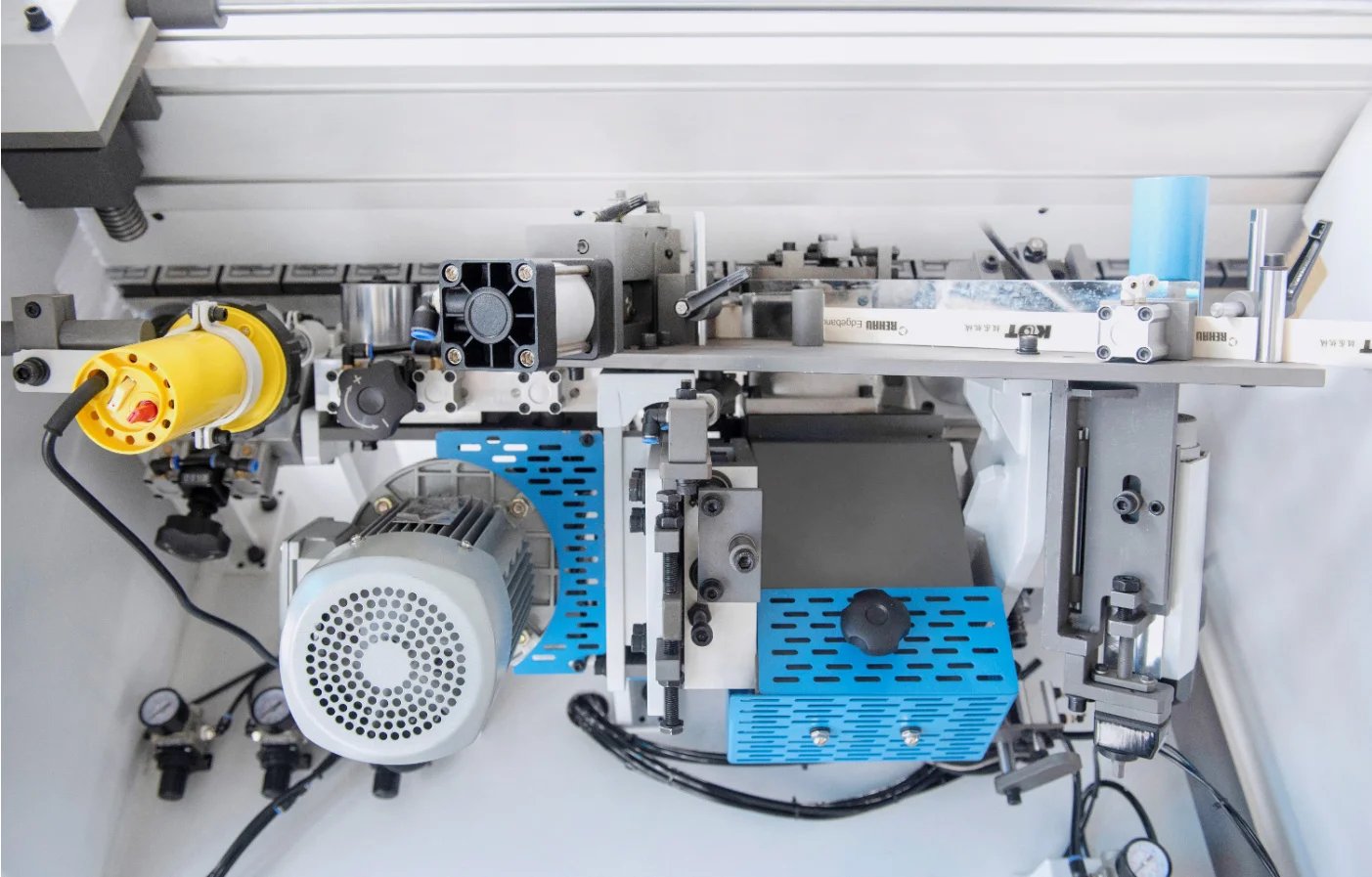

Clamping unit - The glue bath is equipped with a glue dosing mechanism. The inclination of the glue bath is 45°. The unit for pre-cutting the edging material cuts off the edge coming from the roll with the help of a guillotine knife .
facing unit - The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides. The unit is equipped with an automatic lubrication system for the guides .
milling unit - The milling unit consists of two high-frequency electric motors equipped with radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm .
radius cycle - Radial scraping with two carbide radius knives, which, after milling a 2.0 mm thick edge, remove a thin layer from the milled part of the edge, as a result we get a smooth machined surface .
flat cycle - The direct scraping unit is equipped with two hard-alloy straight knives (adhesive scraper), which carry out edge processing at the joints with the part .
polishing unit - The polishing unit polishes the processed part of the edge. For safety, the unit is equipped with additional protective covers .

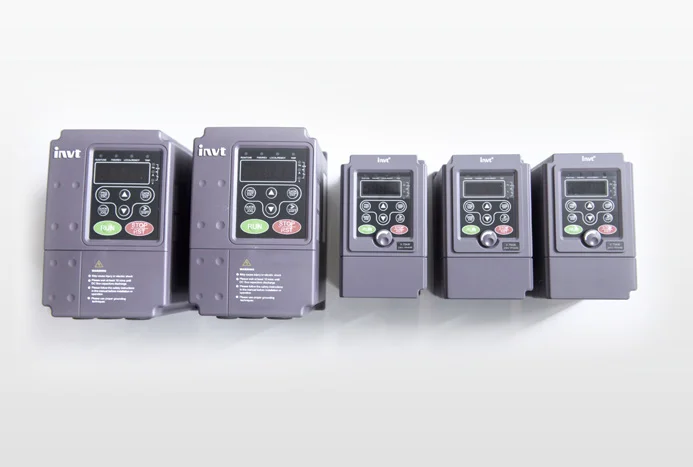

frequency converters - The machine is equipped with a frequency converter for more stable operation and energy saving .
clamping traverse - The mechanism for lifting/lowering the clamping traverse is equipped with an electric drive, which ensures fast and accurate installation to the required thickness of the part .
automatic lubrication of the end assembly - The centralized lubrication unit automatically lubricates the guides of the trimming unit .
electrical components according to CE standard - The electrical components are made in accordance with CE standards .
Noise isolation - The doors of the machine cabin are sheathed with a layer of sound insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment .
Technical Specifications
| Feed speed, m/min | 14 |
| Machine units | 1. Knot of preliminary milling and formation of a bevel. 2. Clamping unit. 3. Facing unit. 4. The first milling unit for removing overhangs. 5. The second milling unit for removing overhangs. 6. Scraping unit with radius knives. 7. Scraping unit with straight knives. 8. Polishing unit. |
| Minimum part size, mm | 150x135 |
| Edge thickness, mm | 0.45-1.5 |
| Workpiece thickness, mm | 9-25 |
| Workpiece width, mm | ≥ 135 |
| Workpiece length, mm | ≥ 150 |
| Total power, kW | 21,65 |
| Working pressure, MPa | 0.6 |
| Dimensions LxWxH, mm | 5750x830x1670 |
| Weight, kg | 2400 |
