Automatic edge banding machine KE-668JSGA (45) (PUR/EVA glue)

Remote Control - The machine is controlled using a special remote control equipped with an industrial display with a “Touch screen” system .

technological breaks - Possibility of programming technological interruptions of glue bath heating .

rod dispenser - The workpiece feed dispenser rod controls the minimum distance between workpieces, preventing damage to machine components during operation .

minimum width 45 mm - The minimum width of workpieces to be processed is 45 mm .

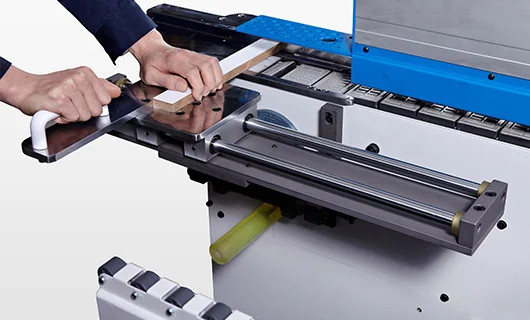

workpiece feeder - The machine is equipped with an auxiliary device for feeding narrow workpieces .

joiner unit - The jointing unit is equipped with two high-frequency motors, which ensures high-quality processing of the end face of the material before gluing the edge. Pre-milling copes with the “step” from the scoring saw, chips .

billet end heating - Preheating the end face of the workpiece for better adhesion .

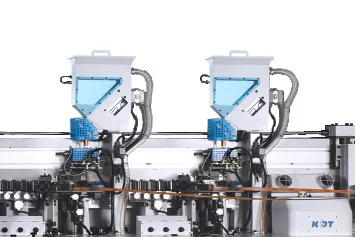

upper glue bath - The machine is equipped with2 upper glue tanks, which is necessary for working with different colors of glue andtwo pre-cutting units .

glue hopper - The machine is equipped withautomatic pneumatic loading of granulated glue. At the bottom of the machine bed there is a large12.5 kghopper from which, through the air flow, the granules are transported to the upper hopper with pre-melt .

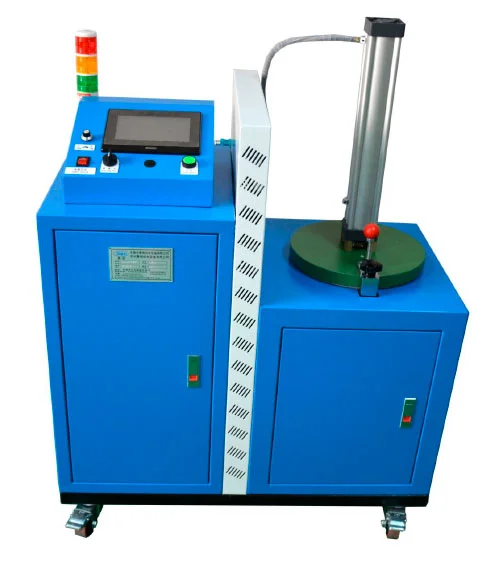

PUR glue station - Supply station PUR (PUR) glue (OPTION) .

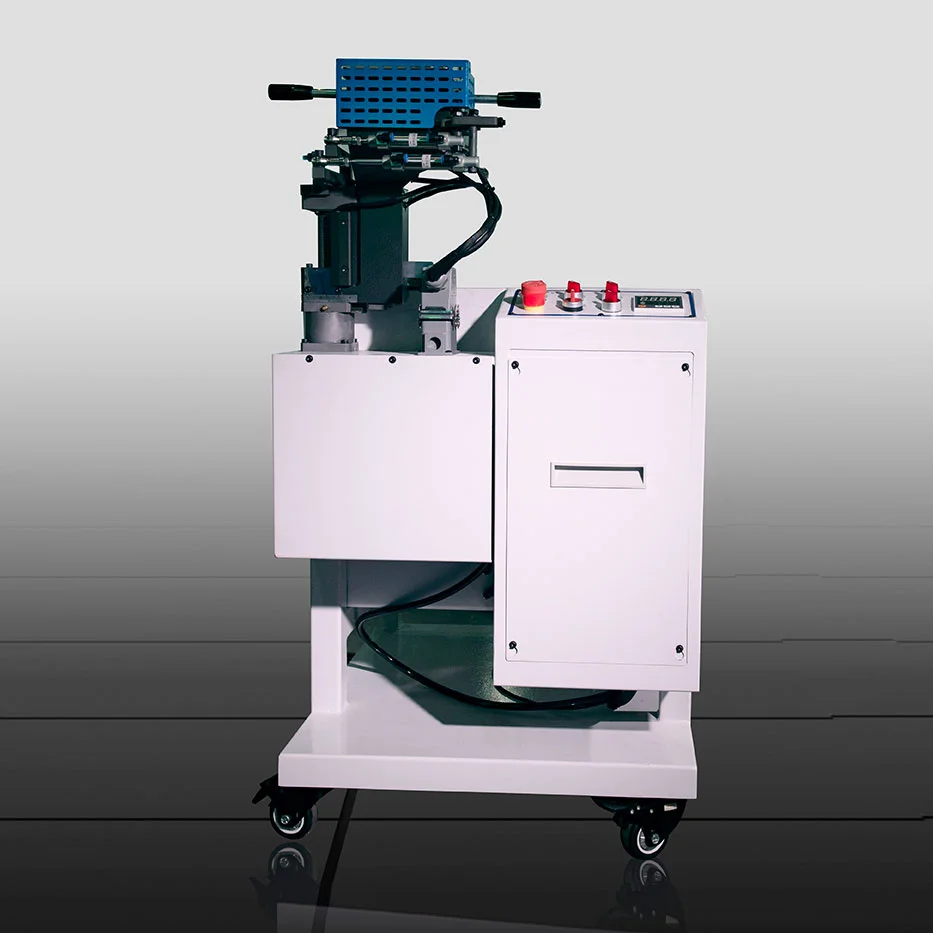

pur glue storage and cleaning station - Separate station for vacuum storage and cleaning of the glue unit .

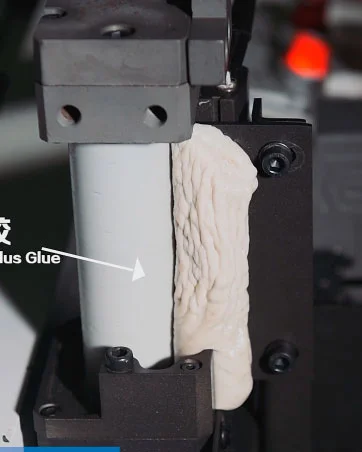

Cleaning the glue roller from PUR glue on an edge banding machine - System for cleaning the glue shaft from PUR glue .

Clamping unit - The pressing unit consists of 5 rollers, which are driven by pneumatics, which guarantees an even distribution of forces on the edge during gluing .

facing unit - The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides .

milling unit - The milling unit consists of two high-frequency electric motors equipped withdiamond radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm .

contouring unit - The contouring unit (rounds) is equipped with two high-speed motors and successfully runs at a speed of 23 m/min. Four schemes of work are possible .

radius cycle - The first and second scraping units are equipped with two carbide radius knives, which, after milling the edge, remove a thin layer from the milled part of the edge and remove the kinematic wave, as a result we get a smooth machined surface .

flat cycle - Radial scraping units are equipped with pneumatic reconfiguration mechanisms from the remote control to a different edge thickness and a mechanism for removing edge residues along the length for their more efficient removal .

flat cycle - The direct scraping unit is equipped with two hard-alloy straight knives (glue scraper), which carry out edge processing at the joints with the part .

polishing unit - The double polishing unit polishesthe processed part of the edge and serves to remove excess glue, as well as to give the product a final look. To give the finishing gloss to the edge, a unit for applying polishing liquid is installed .

encoder - The encoder on the mechanism for raising/lowering the clamping traverse allows you to automatically position the traverse to the thickness of the part set on the control panel .

automatic lubrication of the end assembly - The centralized lubrication unit automatically lubricates the guides of the trimming unit .

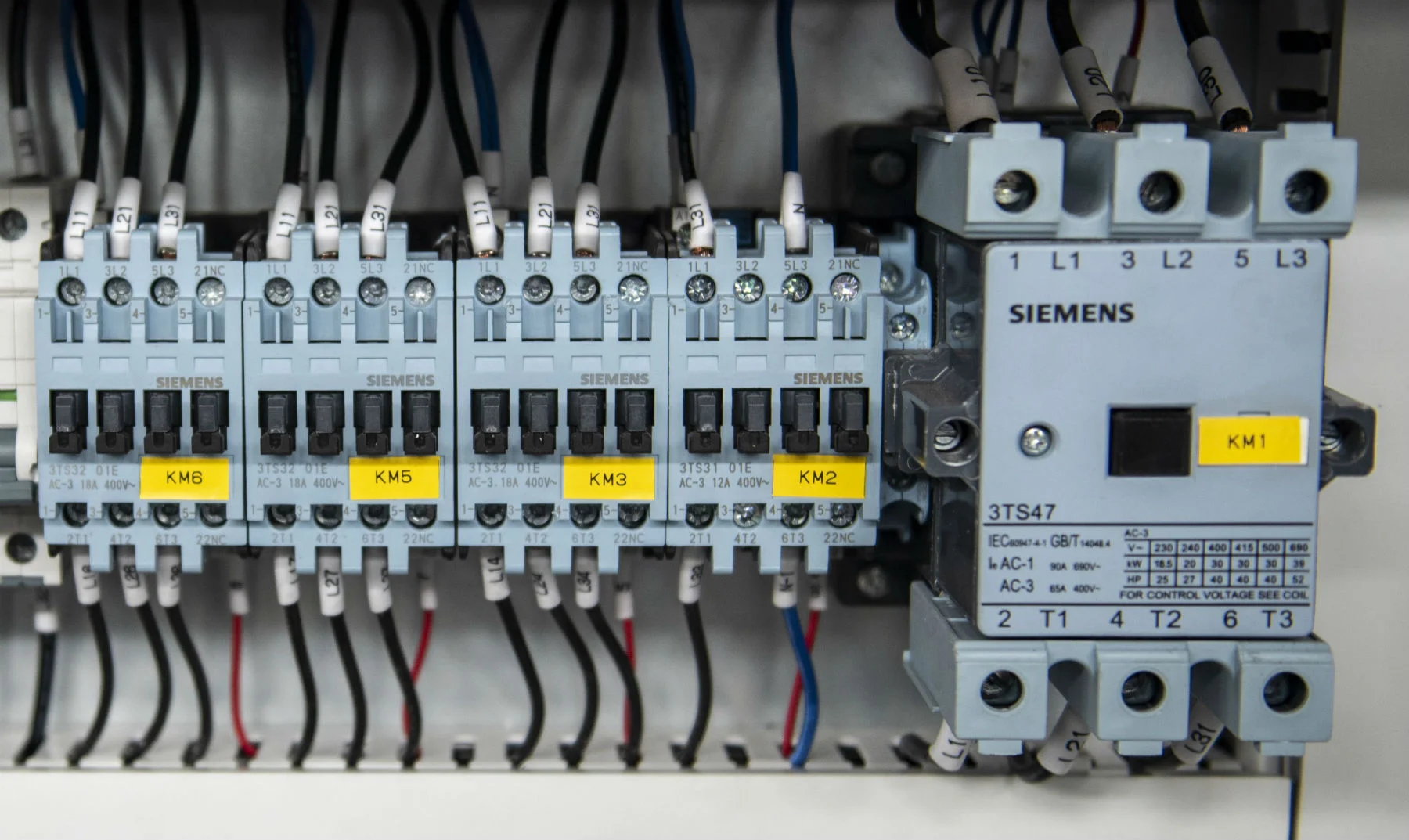

electrical components according to CE standard - The electrical components are made in accordance with CE standards .

Noise isolation - The doors of the machine cabin are sheathed with a layer of noise insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment .
