Automatic edge banding machine KE-496GC

pc control panel - The machine is controlled by an industrialPCbased on WINDOWS 10 with the “Touch screen” system. The on/off icons of units and assemblies on the display are intuitive and do not require special skills to operate the machine .

technological breaks - Possibility of programming technological interruptions of glue bath heating .

joiner unit - The jointing unit is equipped with two high-frequency motors, which ensures high-quality processing of the end face of the material before gluing the edge. Pre-milling copes with the “step” from the scoring saw, chips .

billet end heating - Preheating the end face of the workpiece for better adhesion .

Clamping unit - The pressure unit consists of 5 rollers, which are driven by pneumatics, which guarantees an even distribution of forces on the edge during gluing .

upper glue bath - The machine is equipped with an automatictop glue pot for PUR/EVA gluewith pre-melt glue, with a capacity of 5 liters. Glue is dosed and does not overheat during machine downtime .

glue hopper - The machine is equipped withautomatic pneumatic loading of granulated glue. At the bottom of the machine bed there is a large12.5 kghopper from which, through the air flow, the granules are transported to the upper hopper with pre-melt .

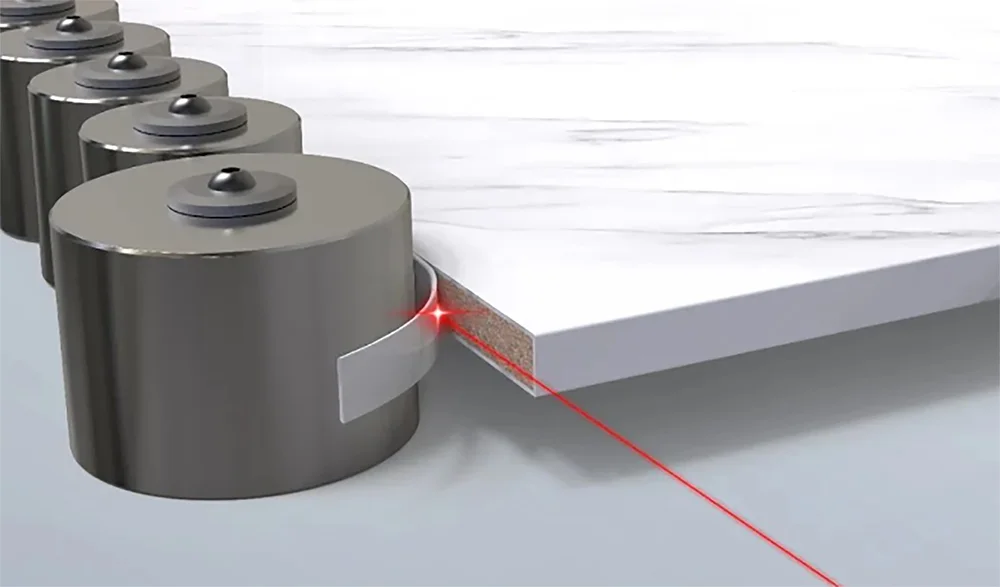

laser sticking - Laser technology for seamless edge banding .

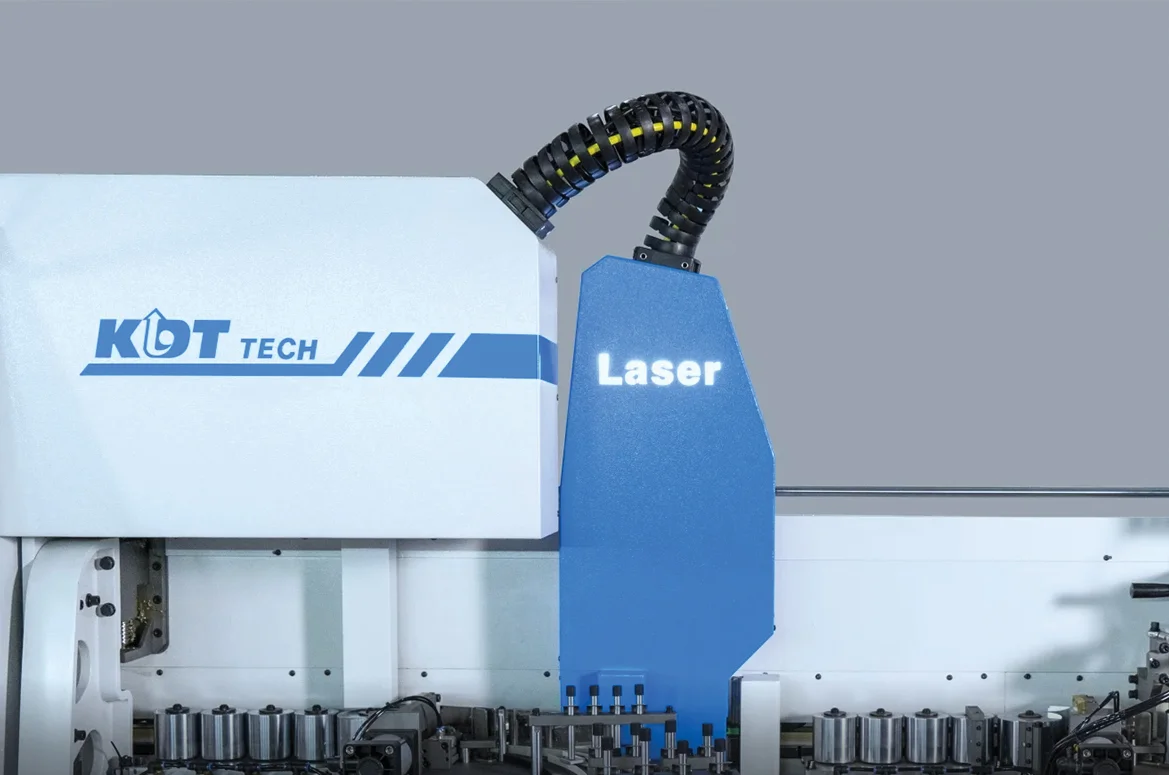

laser generator - The laser module consists of a laser generator, a laser head and a cooling station .

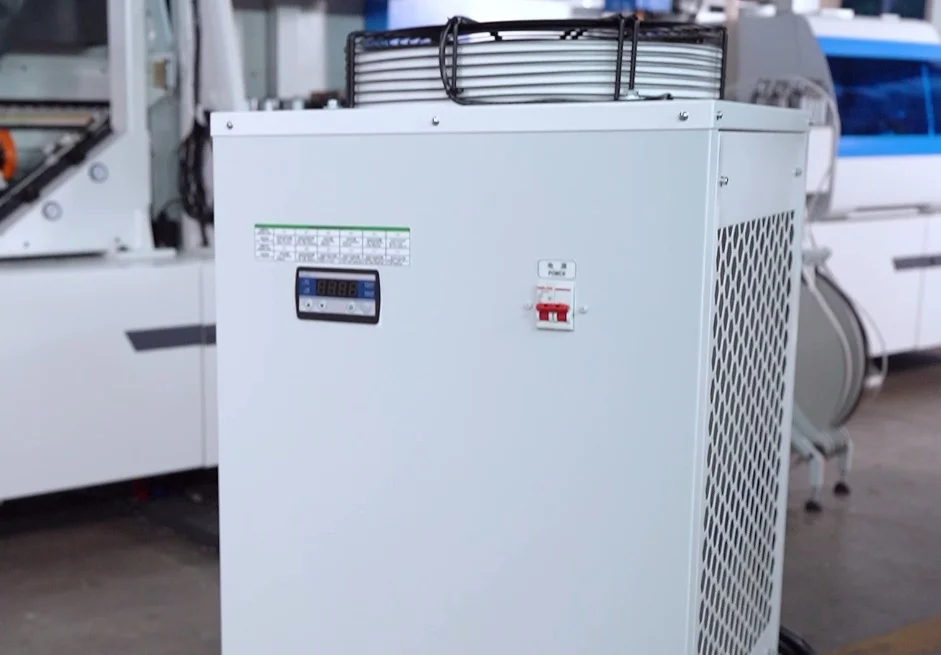

cooling station - The cooling station controls the temperature and ensures the long life and precision of the laser .

facing unit - The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides. The unit is equipped with an automatic lubrication system for the guides .

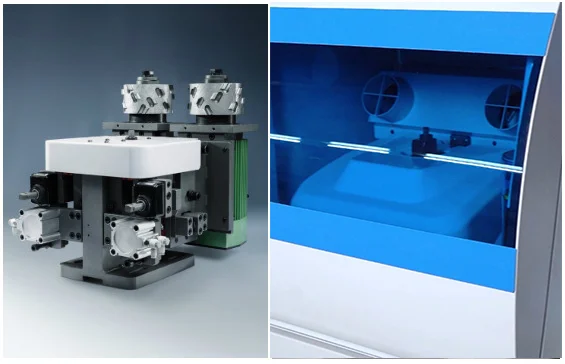

milling unit - The milling unit consists of two high-frequency electric motors equipped withdiamond radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm .

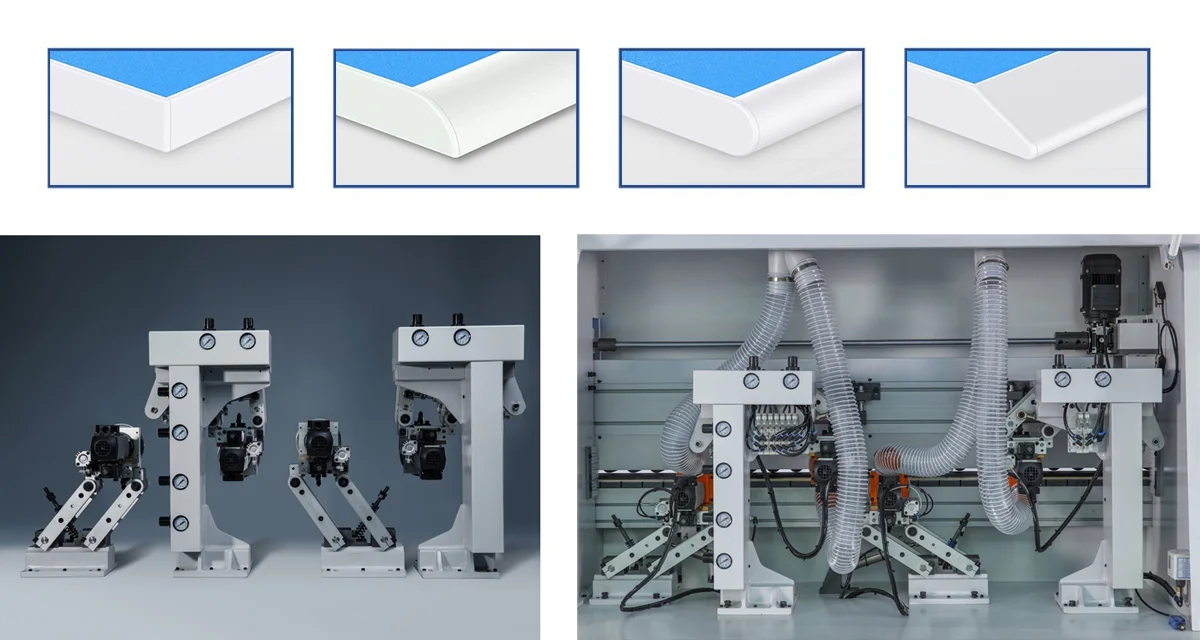

knot rounds - The rounds (profiling) unit is equipped with four high-speed motors and successfully runs at a speed of 26 m/min. The unit is equipped with diamond radius cutters. There are four schemes of node operation .

radius cycle - The first and second scraping units are equipped with two carbide radius knives, which, after milling the edge, remove a thin layer from the milled part of the edge and remove the kinematic wave, as a result we get a smooth machined surface .

flat cycle - Radius scraping units are equipped with mechanisms for pneumatic reconfiguration from the remote control to a different edge thickness and a mechanism for dividing edge residues along the length, for their more efficient removal .

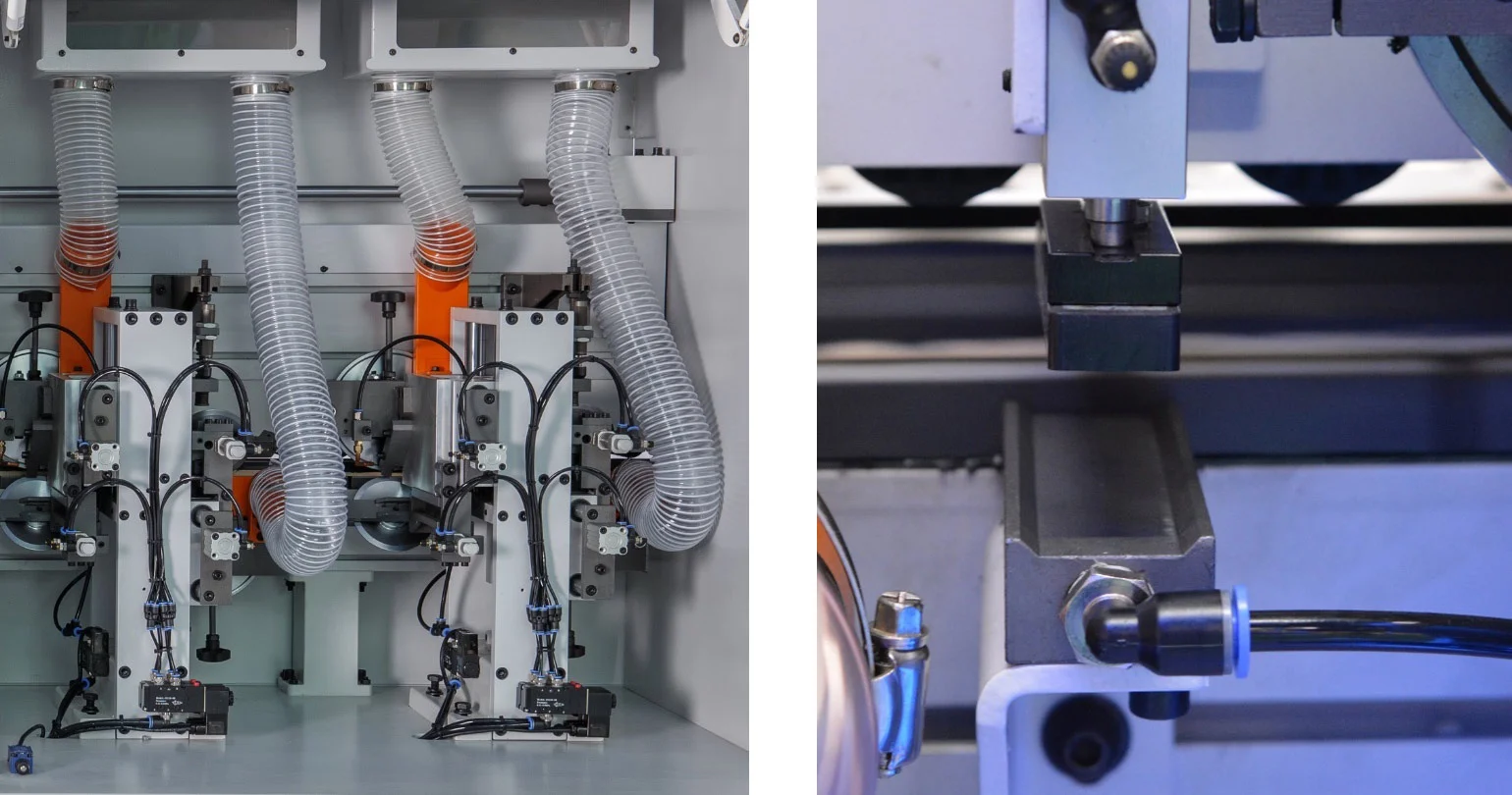

adhesive scraper - The direct scraping unit is equipped with two hard-alloy straight knives (glue scraper), which carry out edge processing at the joints with the part .

polishing unit - The double polishing unitpolishes the processed part of the edge, high quality is achieved through an oscillation system driven by pneumatic cylinders .

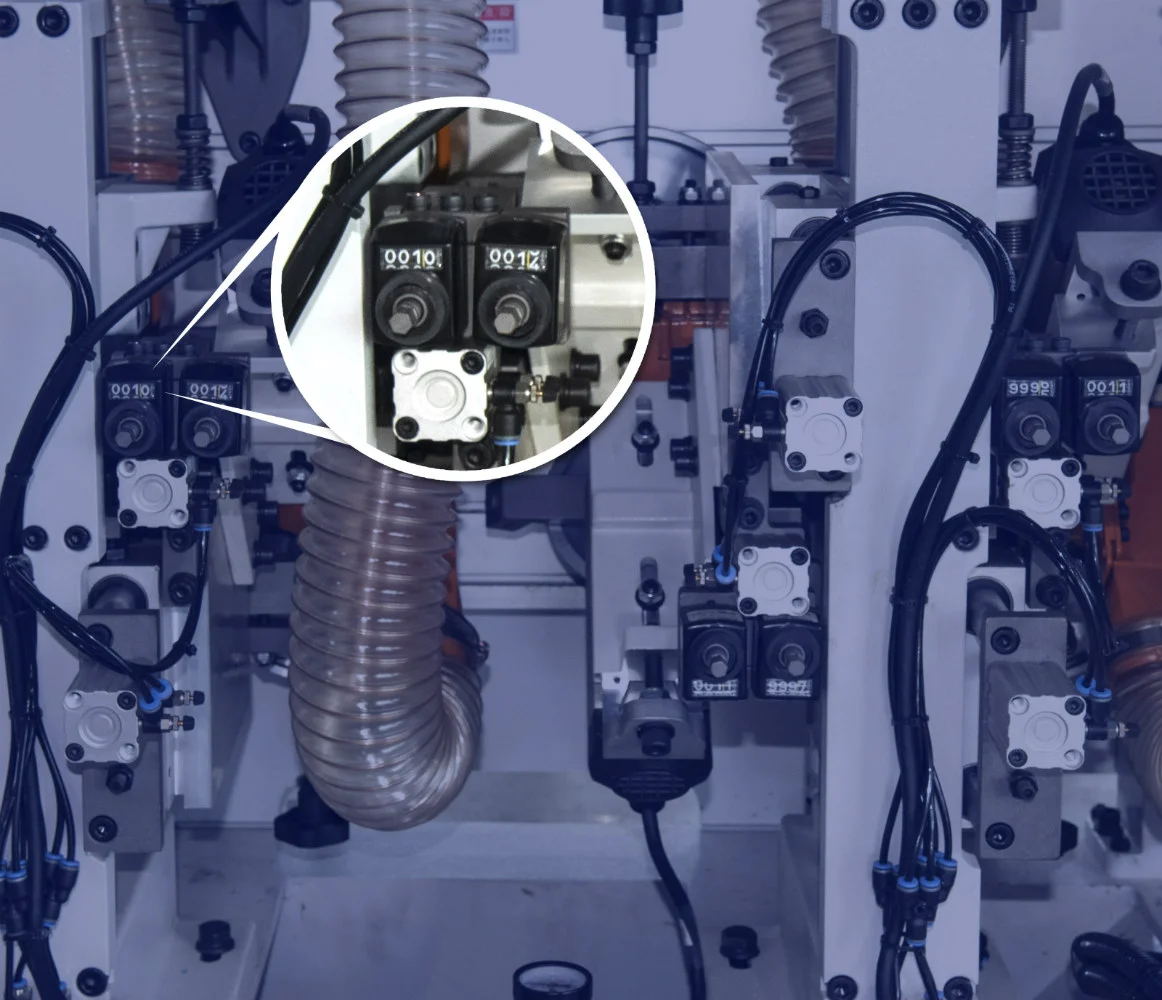

configuring nodes with counters - High-precision adjustment counter on machine nodes .

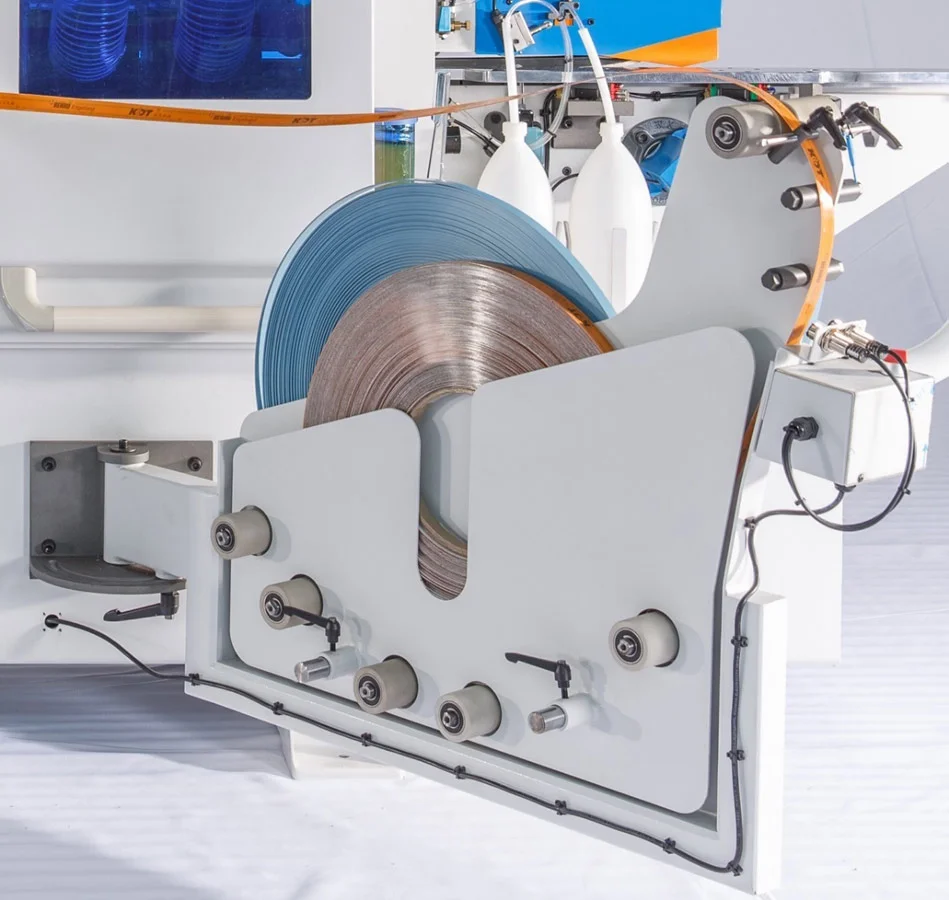

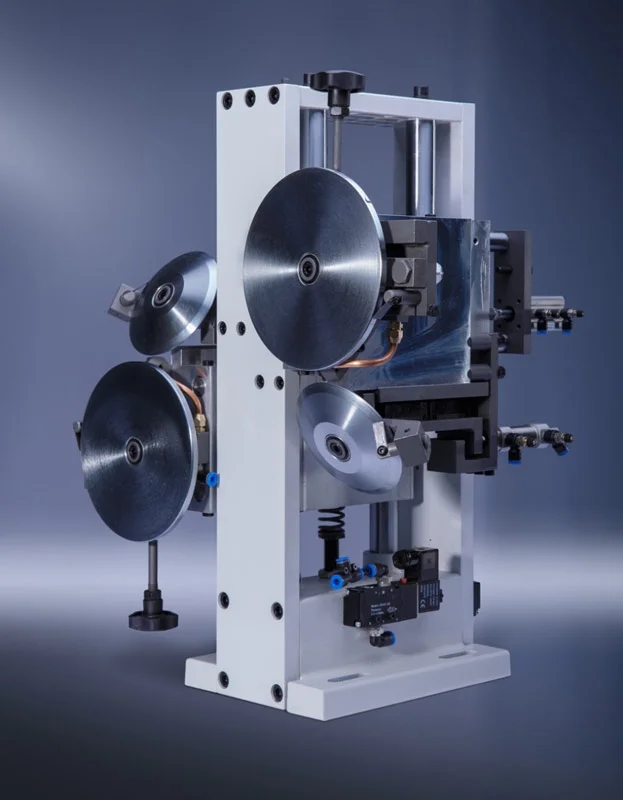

edge feed mechanism - 2 edge feed magazines simplify and speed up the process of changing edges and changing thickness, size and color .

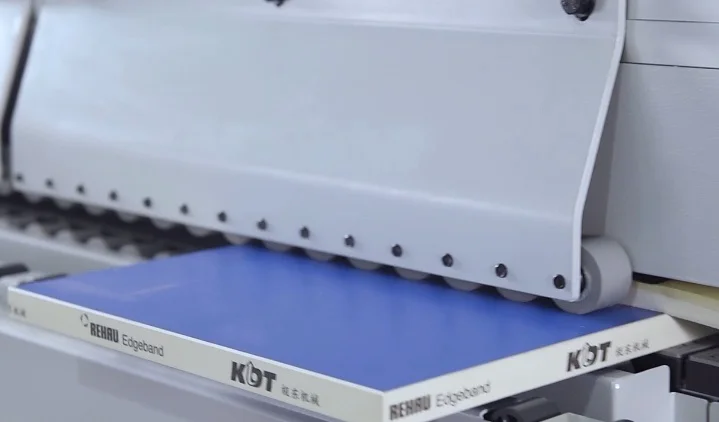

pressure tape - The pressure band instead of rollers guarantees precise and reliable positioning of the workpiece in all stages of edge processing at a speed of 26 m/min .

additional pinch rollers - Additional pressure rollers guarantee reliable fixation of the workpiece .

encoder - The encoder on the mechanism for raising/lowering the clamping traverse allows you to automatically position the traverse to the thickness of the part set on the control panel .

automatic lubrication of the end assembly - The centralized lubrication unit automatically lubricates the guides of the trimming unit .

electrical components according to CE standard - The electrical components are made in accordance with CE standards .

Noise isolation - The doors of the machine cabin are sheathed with a layer of noise insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment .
