Automatic edge banding machine KE-706BTC4

pc control panel - The machine is controlled by an industrial personal computer with a "Touch screen" system. The on/off icons of units and assemblies on the display are intuitive and do not require special skills to operate the machine .

technological breaks - Possibility of programming technological interruptions of glue pot heating .

rod dispenser - The workpiece feed dispenser rod controls the minimum distance between workpieces, preventing damage to machine components during operation .

Cleansing liquid - A unit for applying a separating liquid using 2 nozzles in front of the pre-milling unit (milling) .

joiner unit - The jointing unit is equipped with two high-frequency motors, which ensures high-quality processing of the end face of the material before gluing the edge. Pre-milling copes with the “step” from the scoring saw, chips .

billet end heating - Preheating the end face of the workpiece for better adhesion .

Edge feed - Independent control of the edge feeding unit .

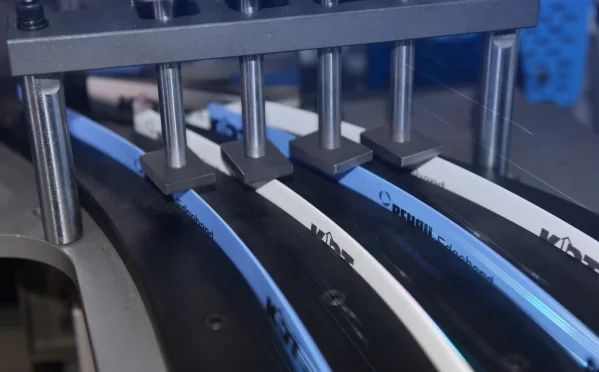

servo magazine for four edges - The machine is equipped with a servo magazine for four edges. Operation according to the machining program .

Clamping unit - The pressure unit consists of 4 rollers, which are driven by pneumatics, which guarantees an even distribution of forces on the edge during gluing .

upper glue pot - The machine is equipped with anupper glue pot with a pre-melt of glue, with a capacity of 5 liters. Glue is dosed and does not overheat during machine downtime. The viewing window allows you to control the presence of glue .

glue hopper - The machine is equipped withautomatic pneumatic loading of granulated glue. At the bottom of the machine bed there is a large12.5 kghopper from which, through the air flow, the granules are transported to the upper hopper with pre-melt .

facing unit - The end trimming unit is equipped with two high-frequency electric motors, and the movement of the saw units is carried out along special linear guides .

milling unit - The servo-driven milling unitconsists of two high-frequency electric motors equipped withdiamond radius cutters, which allow processing edge material with a thickness of 0.4 - 3.0 mm .

knot rounds - The rounds (profiling) unit is equipped with two motors and successfully operatesat a speed of 24 m/min. The unit is equipped with diamond radius cutters. There are four schemes of node operation .

radius cycle - The scraping unit on servo drivesis equipped with two hard-alloy radius knives, which, after milling the edge, remove a thin layer from the milled part of the edge and remove the kinematic wave, as a result we get a smooth machined surface .

adhesive scraper - The direct scraping unit is equipped with two hard-alloy straight knives (glue scraper), which carry out edge processing at the joints with the part .

polishing unit - The polishing unit polishesthe processed part of the edge. To give the finishing gloss to the edge, a unit for applying polishing liquid is installed .

Clamping traverse - The encoder on the mechanism for raising/lowering the clamping traverse allows you to automatically position the traverse to the thickness of the part set on the control panel .

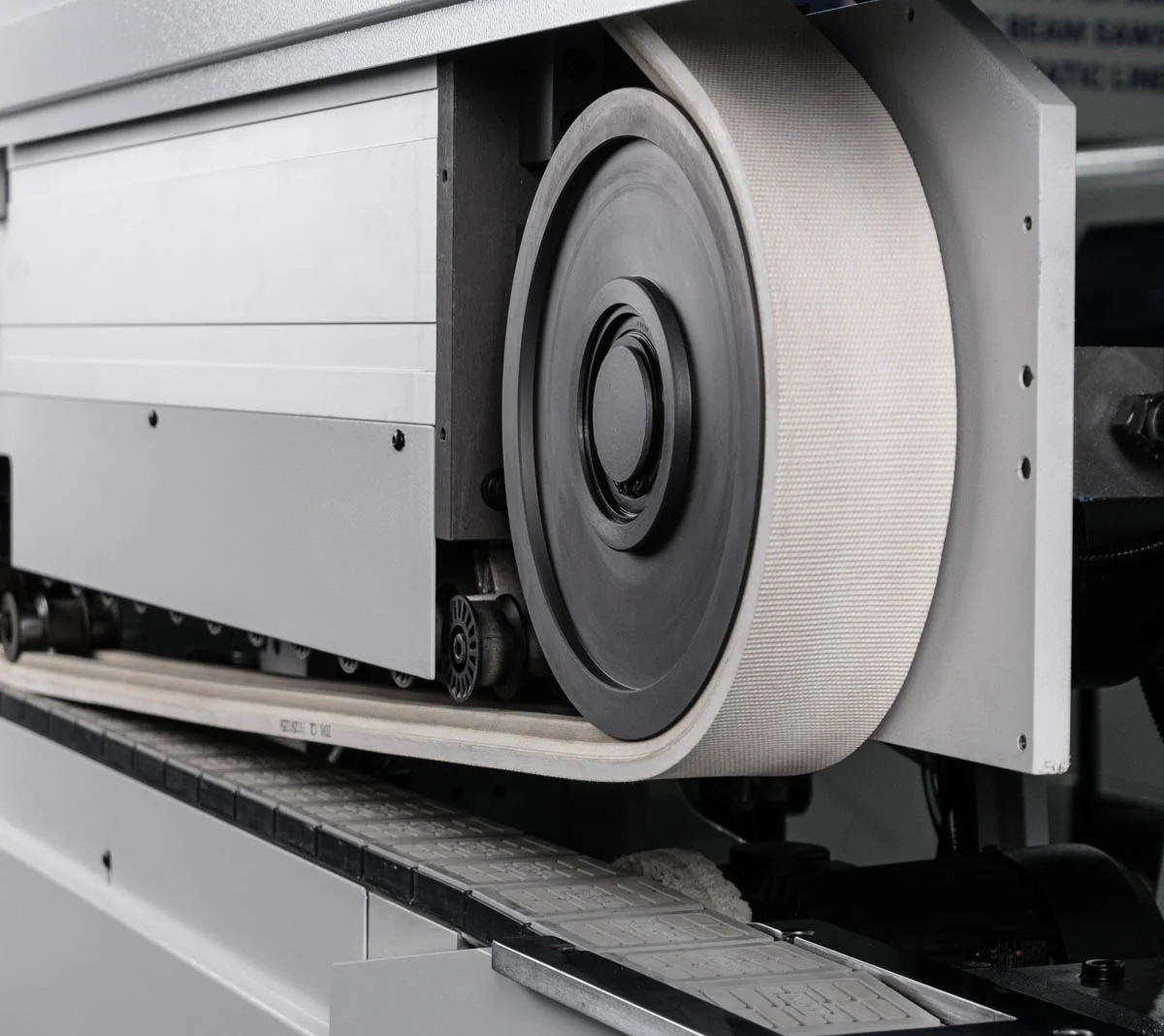

Upper belt conveyor - Upper belt conveyor for a secure hold and to prevent contamination and damage to delicate parts .

automatic lubrication of the end assembly - The centralized lubrication unit automatically lubricates the guides of the trimming unit .

Conveyor lubrication - Automatic lubrication of the conveyor is carried out by an electric pump .

electrical components according to CE standard - The electrical components are made in accordance with CE standards .

Operator Protection - The doors of the machine cabin are equipped with special sensors, which allows you to achieve safe work with the equipment .

Noise isolation - The doors of the machine cabin are sheathed with a layer of noise insulation made from foamed polyurethane foam, which allows you to achieve comfortable work with the equipment .
