Technical Specifications
| Maximum cutting length, mm | 4300 |
| Maximum cutting width, mm | 2100 |
| Minimum grip dimensions when sawing, mm | 34x45 |
| Maximum cutting thickness, mm | 120 |
| Saw carriage travel speed, m/min | 120 |
| Saw carriage idle speed, m/min | 180 |
| Pusher speed, m/min | 95 |
| Main saw diameter, mm | 450/75 |
| Scoring saw diameter, mm | 200/50 |
| Main saw drive power, kW | 2x30 |
| Scoring saw drive power, kW | 2x2.2 |
| Programmable pusher drive power, kW | 4x2 |
| Saw carriage drive power, kW | 2x2 |
| Gripper amount | 6 + Twin Pusher + 2 movable group grippers + 2 |
| Installed power, kW | 83 |
| Pneumatic system working pressure, MPa | 0.6 |
| Overall dimensions LxWxH, mm | 15375x11542x2030 |
| Weight, kg | 13000 |
CNC panel saw/beam saw KS-4522HLS
Purpose :
Angular CNC panel saw/beam saw KS-4522HLS with rear loading and a double pusher (the size of the cut package is 4300x2100 mm) is designed for cutting a package of board materials (chipboard, MDF, fiberboard, etc.), both lined and not lined. The machine is used in large-scale and mass production for the production of cabinet furniture, furniture panels, molded products. Rear loading simplifies material logistics in production and makes the work of machine operators easier. Processing scheme Dimensions
Distinctive features :
Working with optimizer programs that make it possible to program the cutting order, print labels and import files with cutting maps; Automatic rear loading onto the machine allows you to load a package with a maximum size of 4300x2100 mm; Independent pusher for cutting panels with different lengths improve cutting efficiency at different sizes; Moving the two left grips parallel to the cutting line; Magnetic positioning to measure the lift of the workpiece from the back load, the minimum thickness of the workpiece is 8mm; Rotary table; Steel table in the cutting area; OPTIONAL – trim removal system; The maximum height of the cut package is 120 mm; The movement of the saw carriage occurs due to a spur rack and pinion with the help of a servomotor.

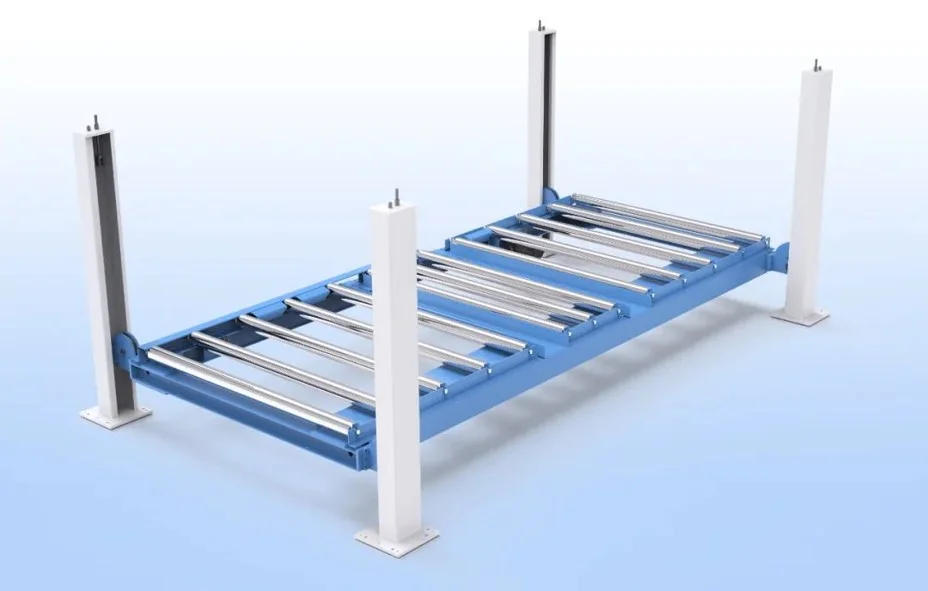

automatic rear loading - Hydraulic lift table: .

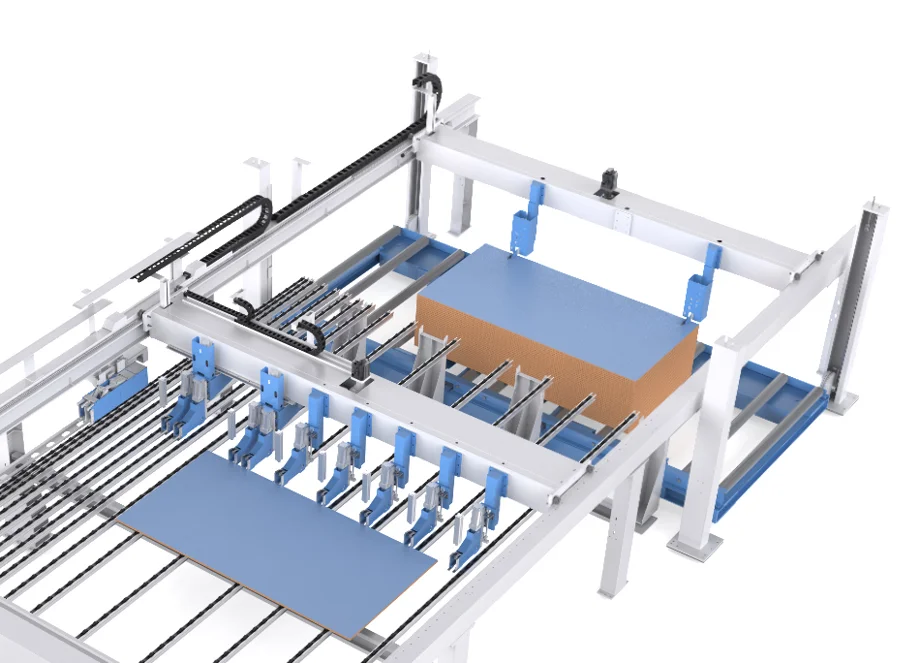

carriage for preparing slab material - Carriage for preparing slab material for subsequent cutting.Carries out pushing of the required amount of sheet material according to a given program .

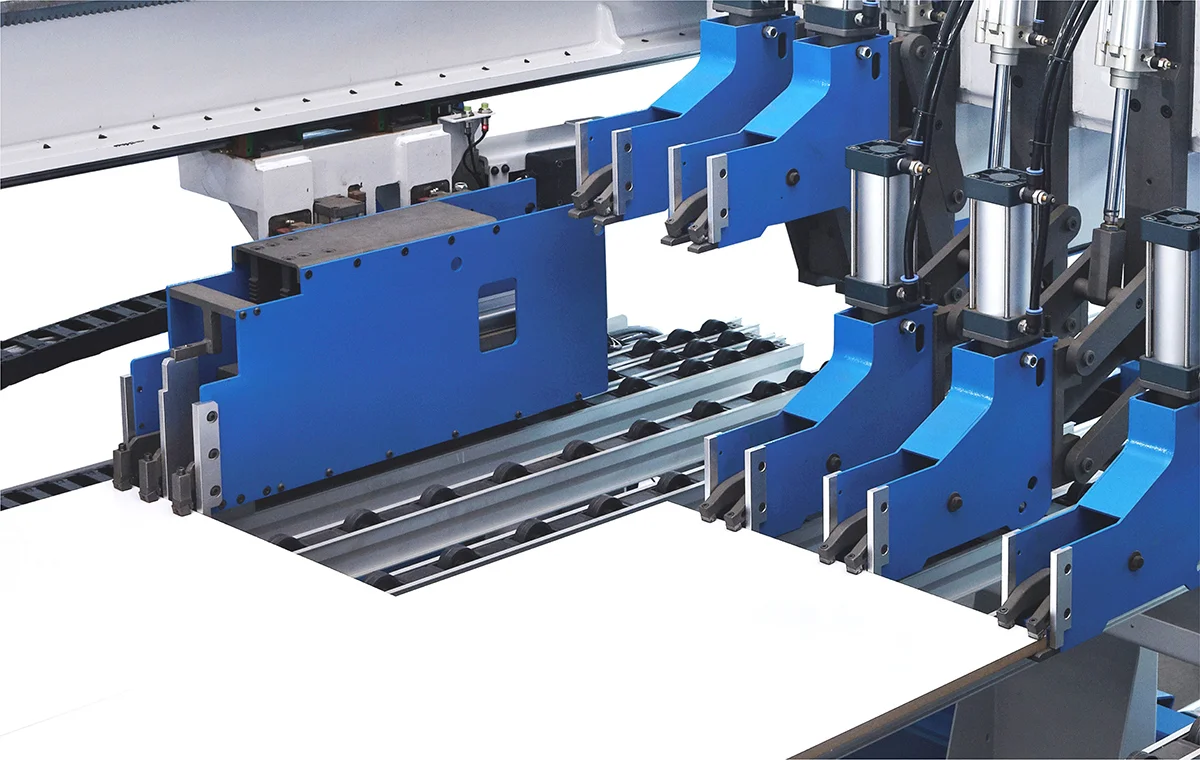

longitudinal cutting line - The software pusher in the longitudinal cutting areahasgrips with anti-friction linings - 6 pcs.with an increased area of contact with the material and damping elements at the end of the grippers .

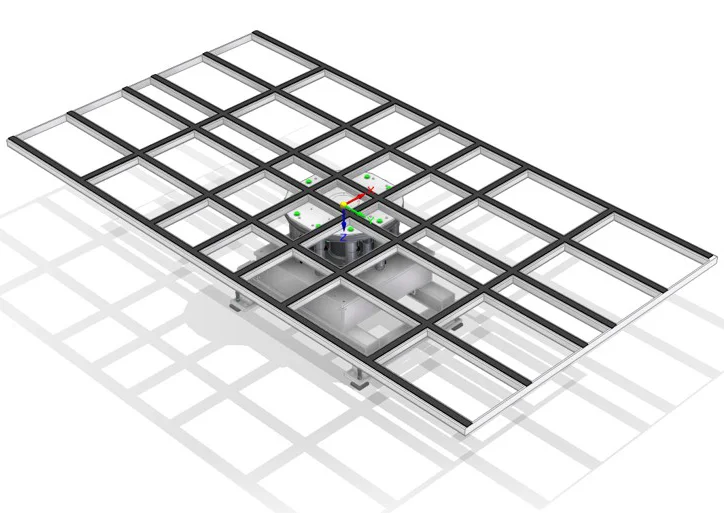

Rotary table - The rotary table is designed for turning slab materials.According to the specified optimization program, the machine determines the need to turn the material package. Max. material dimensions: 4300x2100 mm .

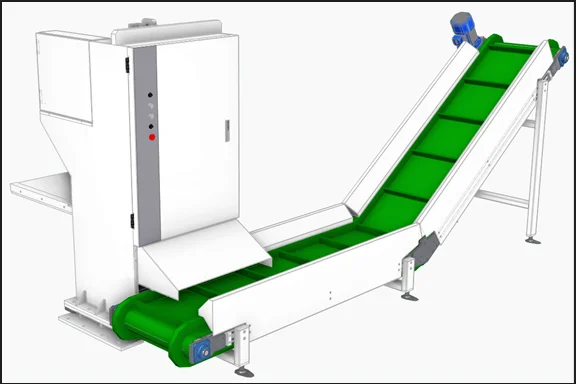

Trim removal system - OPTIONAL – Trim removal system.The scraps fall onto the conveyor and are then automatically removed from the board material processing area .

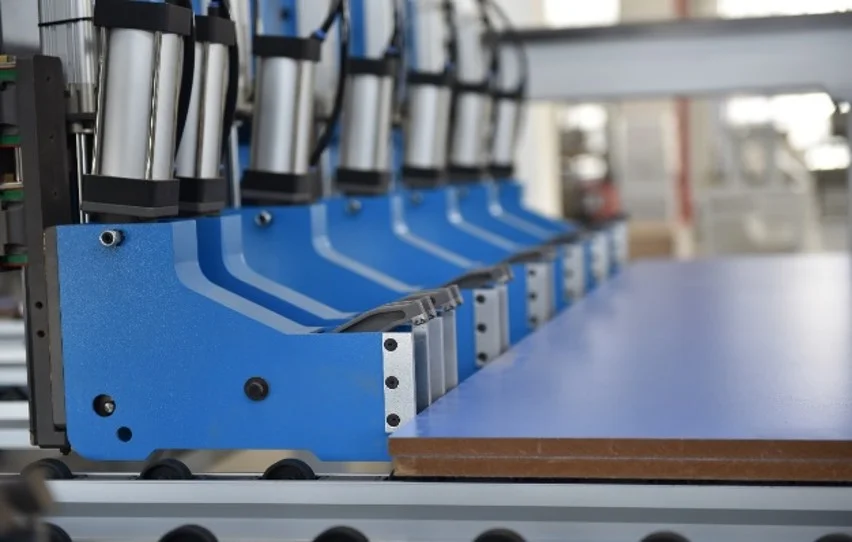

Programmable pusher - The main software pusher in the cross cutting areahasan independent pusher andtwo pairs of mobile (movable) and two fixed grips .
independent pusher - Independent pusher for cutting panels with different lengthsimproves cutting efficiency in different sizes .
cut two different blanks - The machine can simultaneously cut two workpieces of different sizes .
powerful machine bed - The machine bed was designed taking into account CAD programs, where the maximum permissible loads and requirements for the design of the machine were calculated and modeled .
machine control via PC - An industrial computer based on Windows 10 ensures reliable operation of the CNC system .
Optimizer programs - Ability to work with all popular programs for optimizing cutting cards and printing labels .

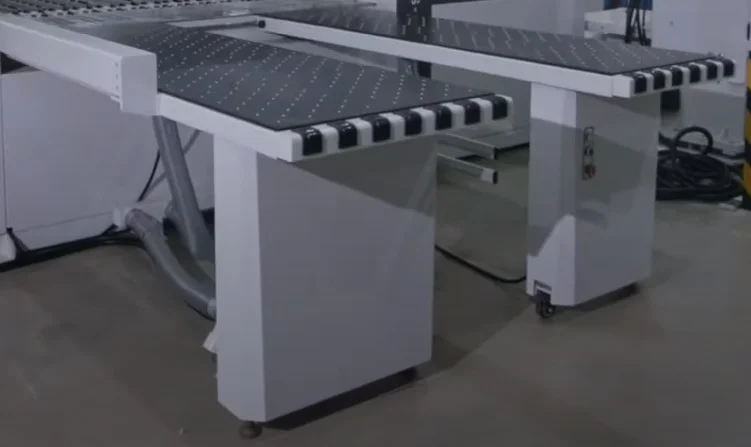

desktops - Two air-cushion work tables 2200x800 mm and2200x600 mm .
importance of machine control - Longitudinal lever for turning on/off the cutting cycle on the main table .

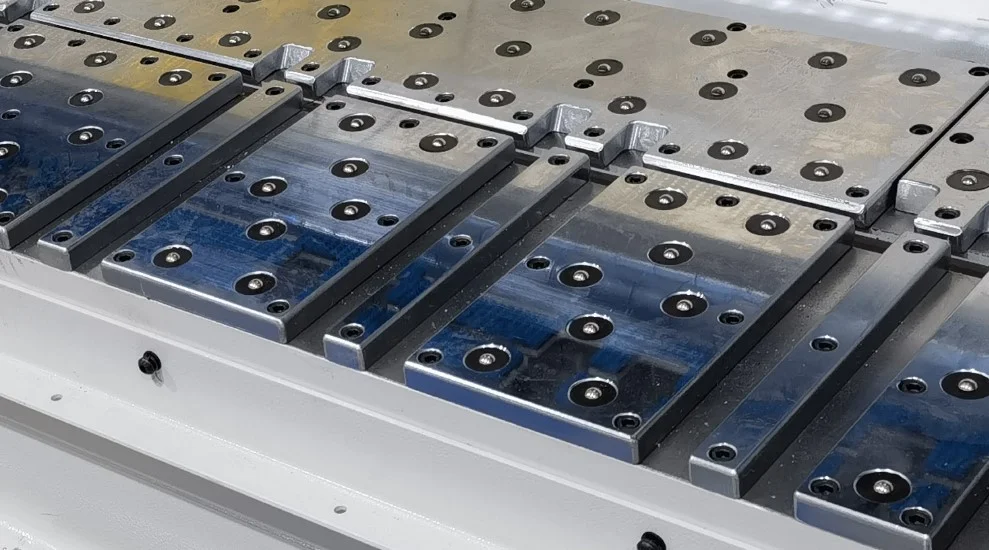

cutting zone - Steel tables with an air cushion are installed in the cutting area, which greatly facilitates the work with small parts and protects them from damage .

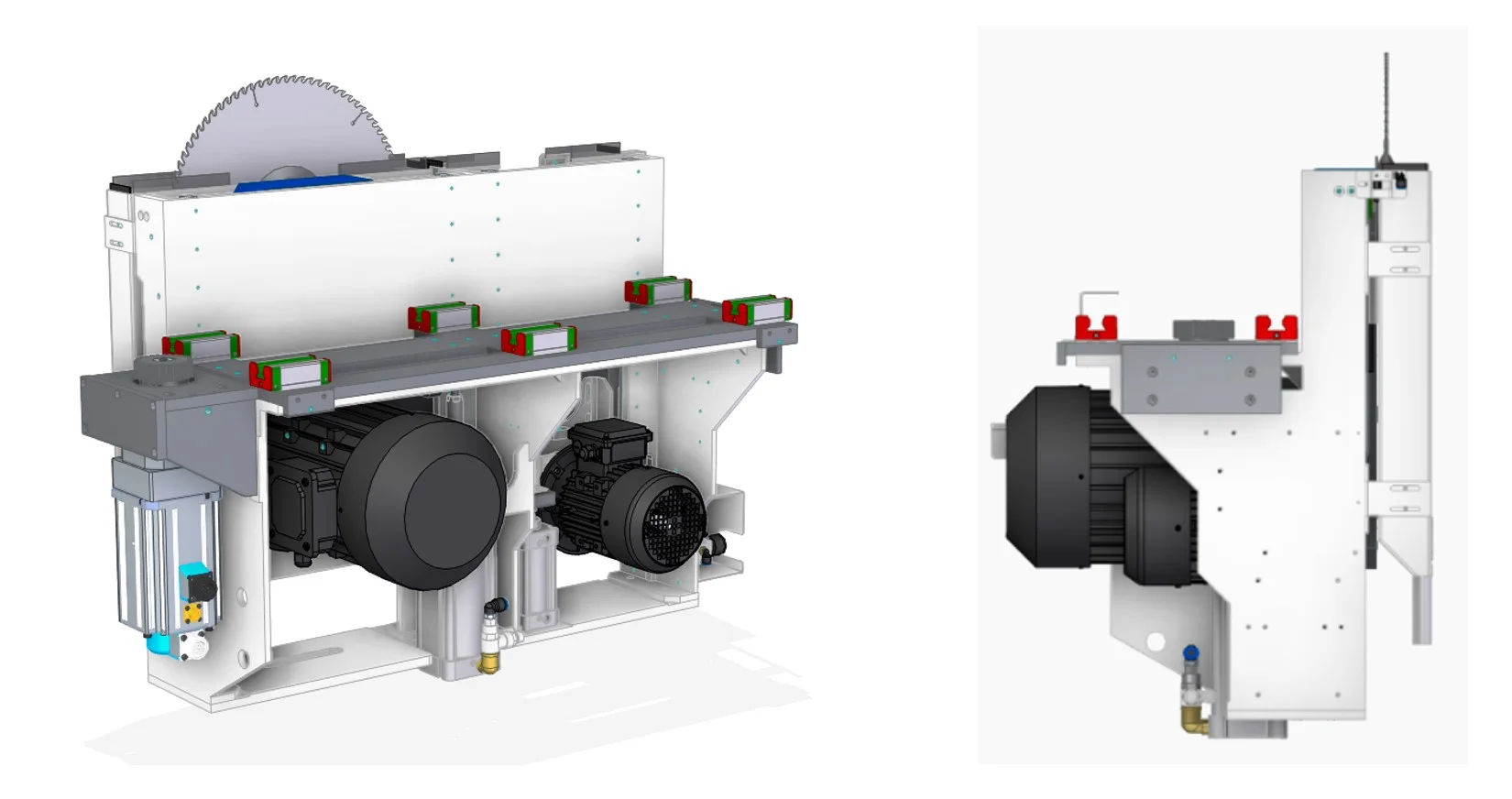

separate engines - The machine is equipped with two saw carriages - in the longitudinal and transverse cutting area. The main (30 kW) and scoring(2.2 kW)saws are installed on each of the two carriages .

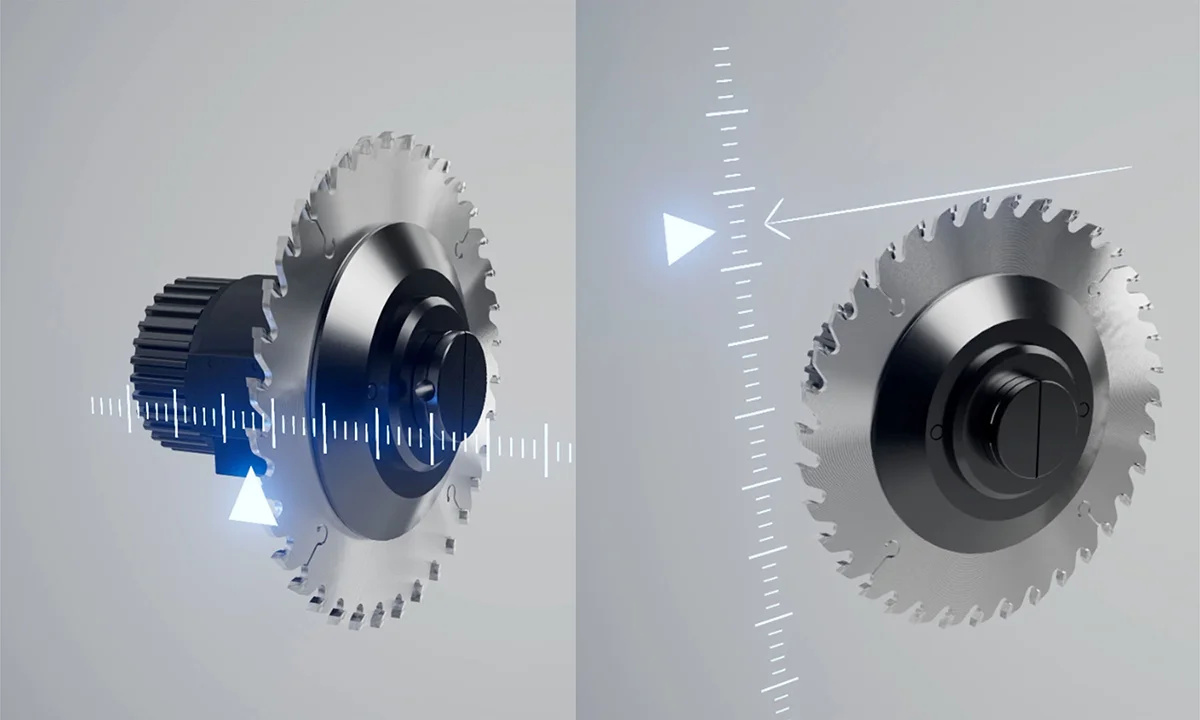

automatic scoring saw adjustment - Parametric adjustment of the movement of scoring saws without stopping the machine .
saw reach height - Automatic adjustment of the height of the main saw and the reach of the pressure beam according to the height of the package being cut .
pressure beam - The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the batch cutting. Equipped with an injury protection system .
moving the saw carriage - The movement of the saw carriage occurs due to a spur rack and pinion with the help of a servomotor. This ensures greater cutting accuracy up to +-0.1 mm .
side clamps for leveling the workpiece - Side stops accurately position narrow strips along the side ruler when cutting them into finished parts .
flexible cable channel - The flexible and durable cable channel ensures stable and fast movement of the pusher with pneumatic grippers .
electrical components - Electrical components comply with CE standards .
minimum workpiece size - The minimum workpiece size is 34*45 mm .
Technical Specifications
| Maximum cutting length, mm | 4300 |
| Maximum cutting width, mm | 2100 |
| Minimum grip dimensions when sawing, mm | 34x45 |
| Maximum cutting thickness, mm | 120 |
| Saw carriage travel speed, m/min | 120 |
| Saw carriage idle speed, m/min | 180 |
| Pusher speed, m/min | 95 |
| Main saw diameter, mm | 450/75 |
| Scoring saw diameter, mm | 200/50 |
| Main saw drive power, kW | 2x30 |
| Scoring saw drive power, kW | 2x2.2 |
| Programmable pusher drive power, kW | 4x2 |
| Saw carriage drive power, kW | 2x2 |
| Gripper amount | 6 + Twin Pusher + 2 movable group grippers + 2 |
| Installed power, kW | 83 |
| Pneumatic system working pressure, MPa | 0.6 |
| Overall dimensions LxWxH, mm | 15375x11542x2030 |
| Weight, kg | 13000 |
