CNC panel saw/beam saw KS-542HL

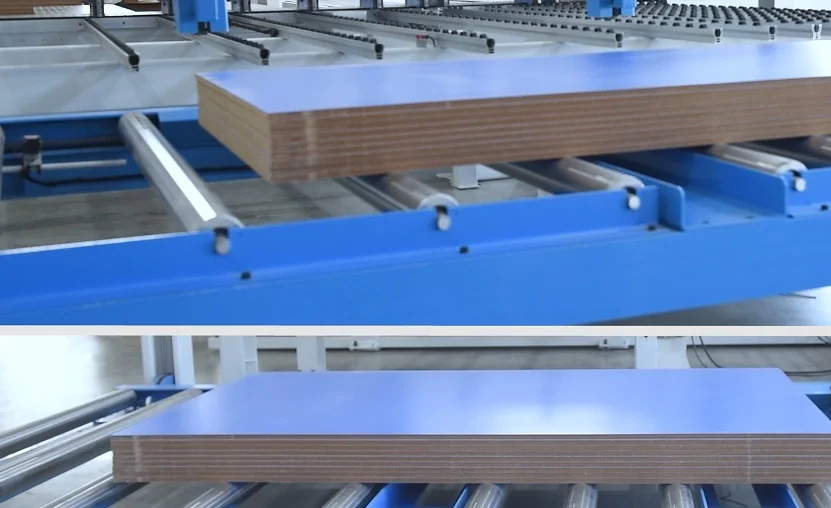

hydraulic table - The hydraulic lifting table with a load capacity of up to 4000 kg is able to load a stack of workpieces upto 500 mm in normal installation and 1200 mm in pit installation .

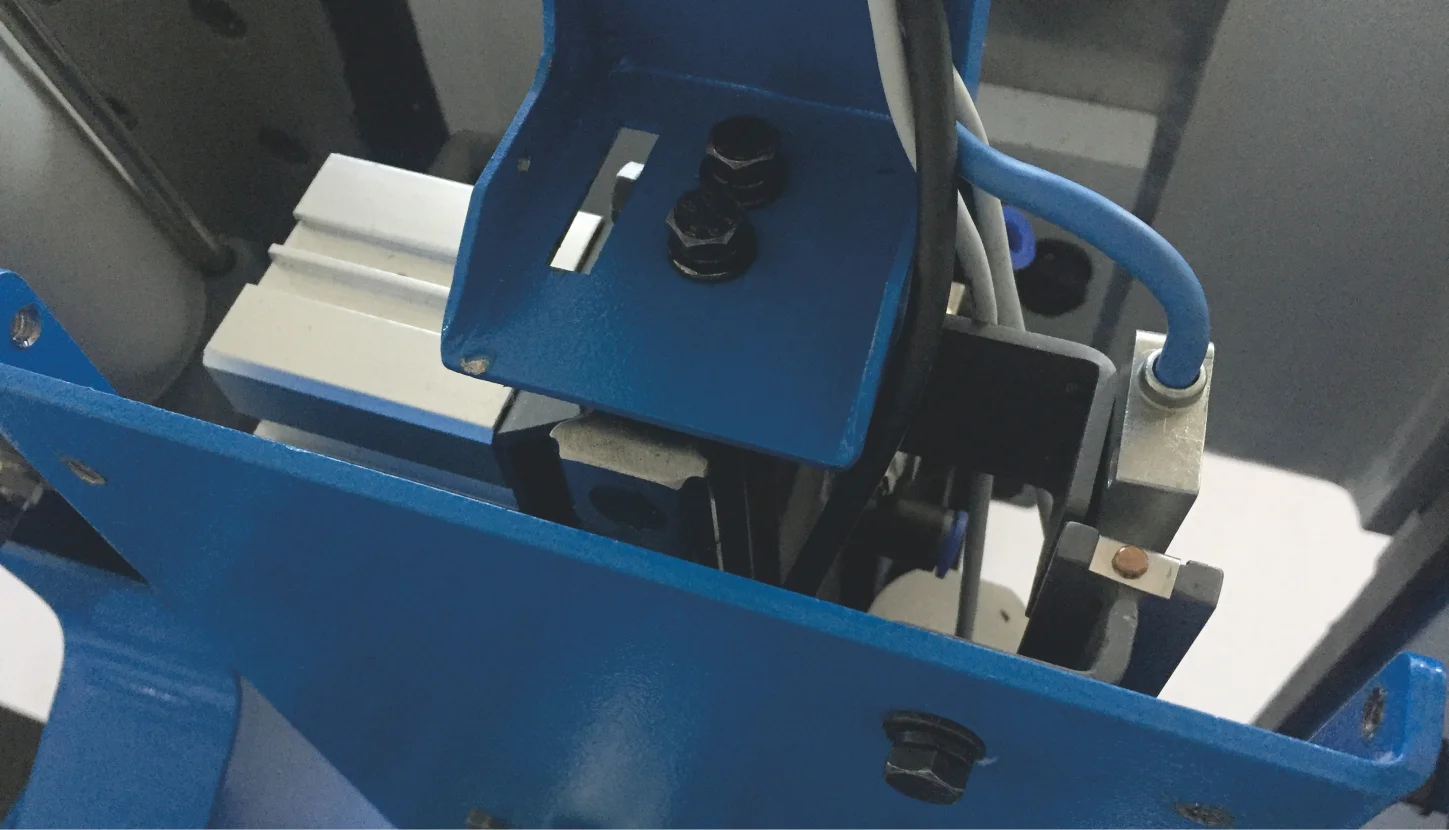

workpiece magnetic positioning - Magnetic positioning to measure workpiece lift from back load, minimum workpiece thickness is 8mm .

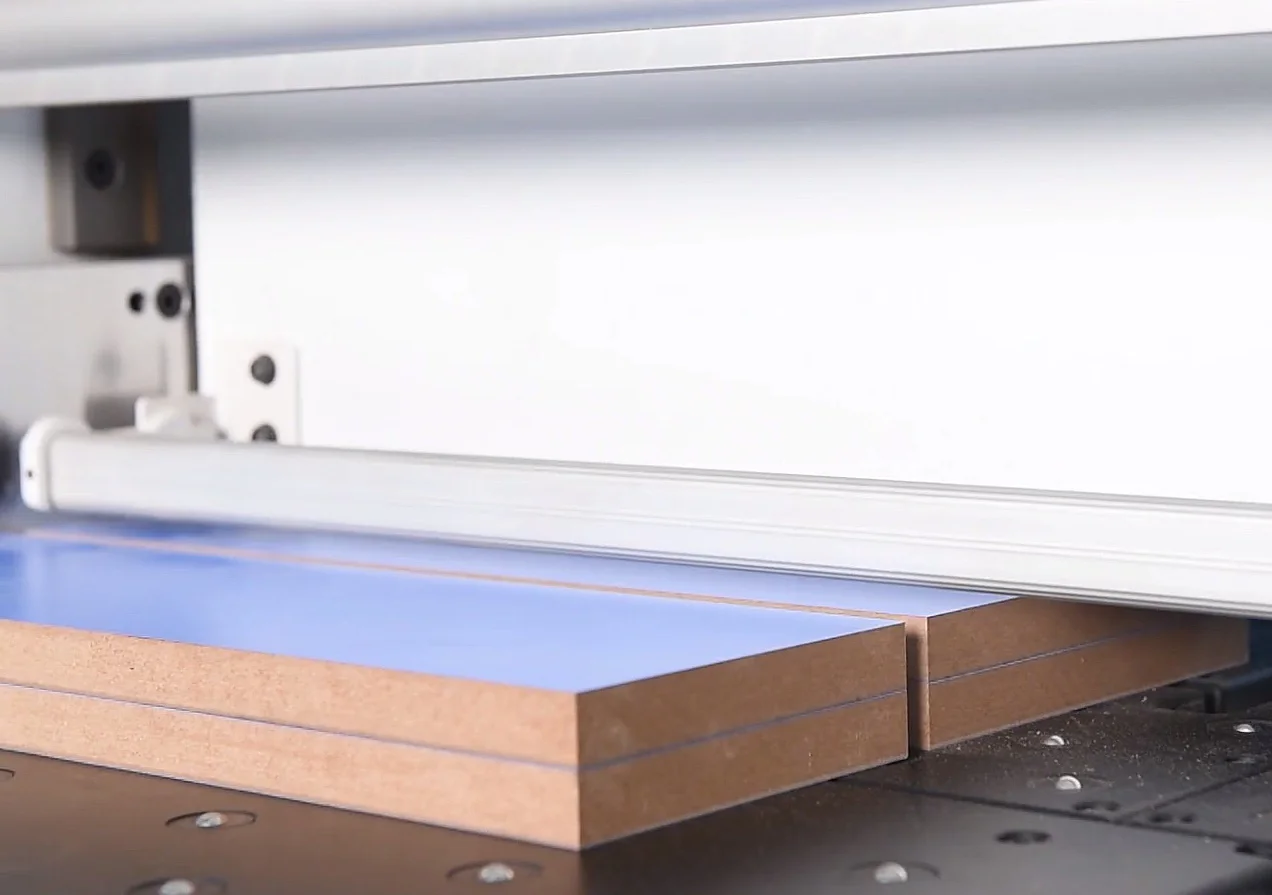

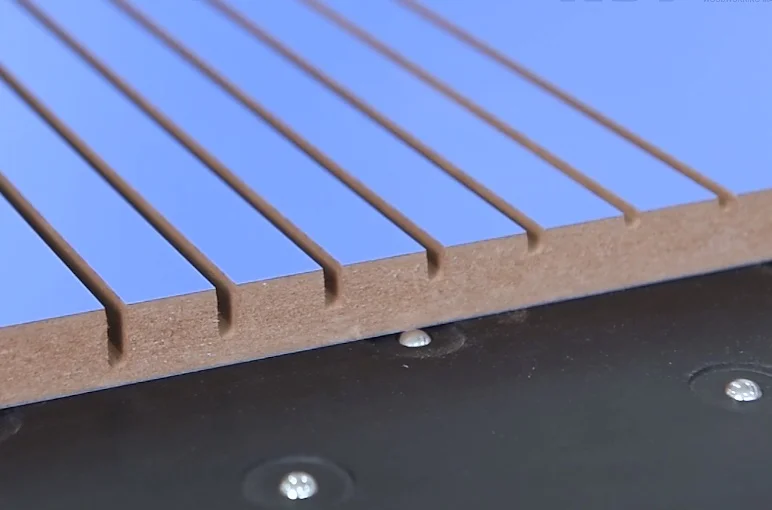

grooving function - Groove function. The lifting of the main saw is carried out by a servo drive, due to which a high accuracy of the cutting height is achieved .

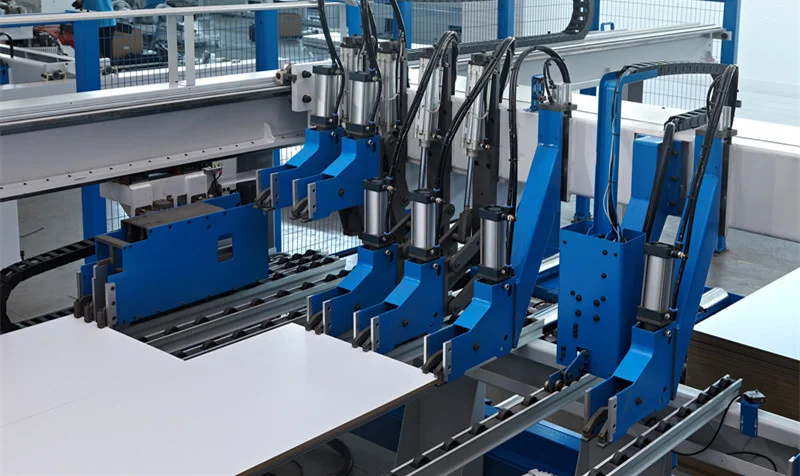

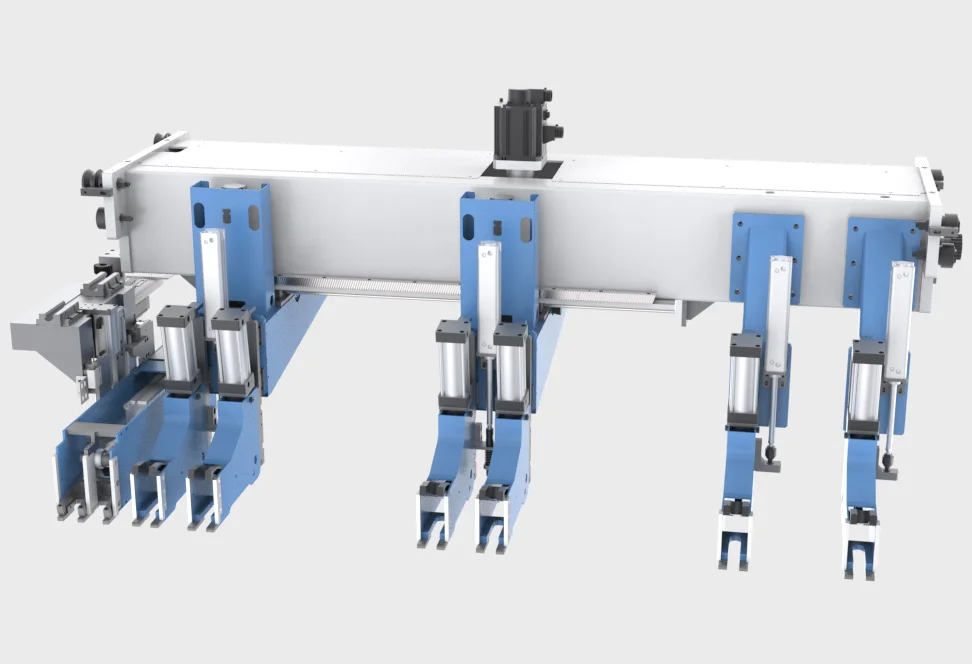

2 independent pushers - 2 independent pushers for cutting panels with different lengths,improve cutting efficiency at different sizes .

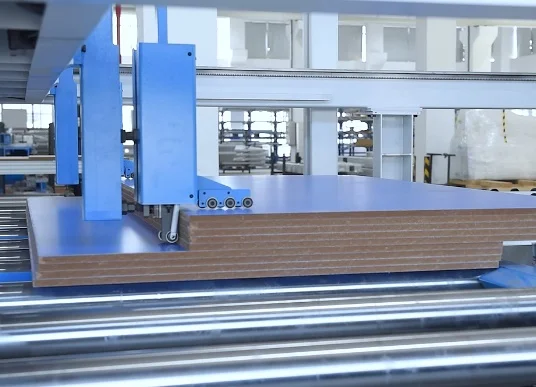

sheet feeding - The next sheet is fed before the cutting of the current one is completed .

cutting two different blanks - The machine can carry out simultaneous cutting of two blanks of different sizes .

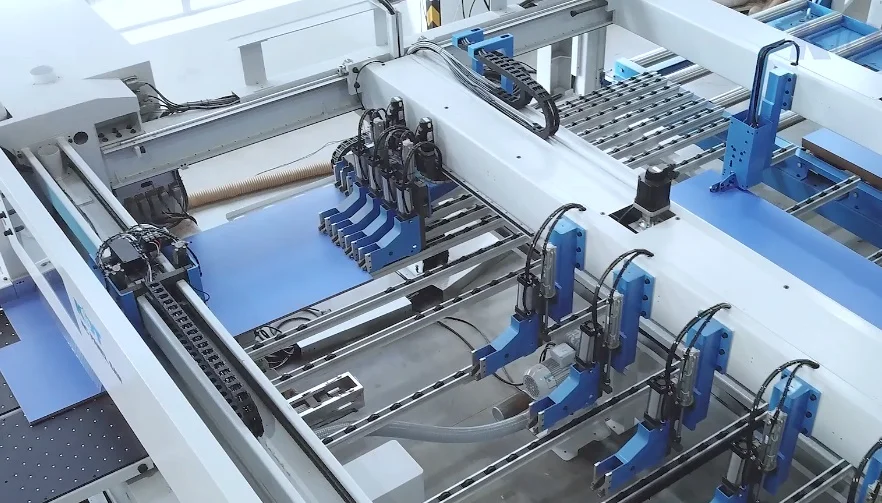

programmable pusher - Moves the two left grips parallel to the cutting line to prevent damage to the edges of parts and securely hold parts of different widths .

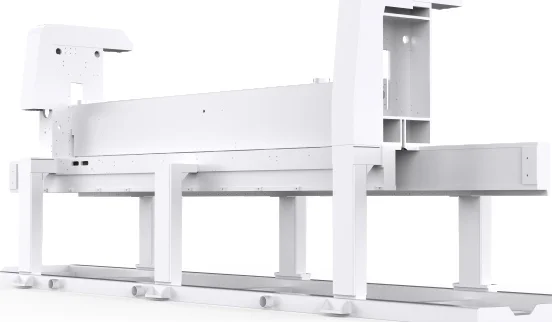

powerful machine bed - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .

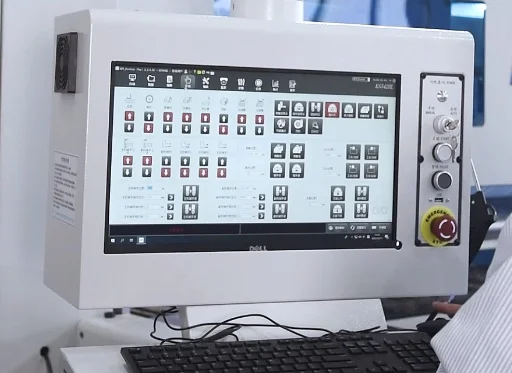

PC machine control - An industrial computer based on Windows 10 ensures reliable operation of the CNC system .

work visualization - Visualization of the order of cutting and a schematic map of the cut .

cutting optimizer - Ability to work with all popular programs for optimizing cutting charts and printing labels .

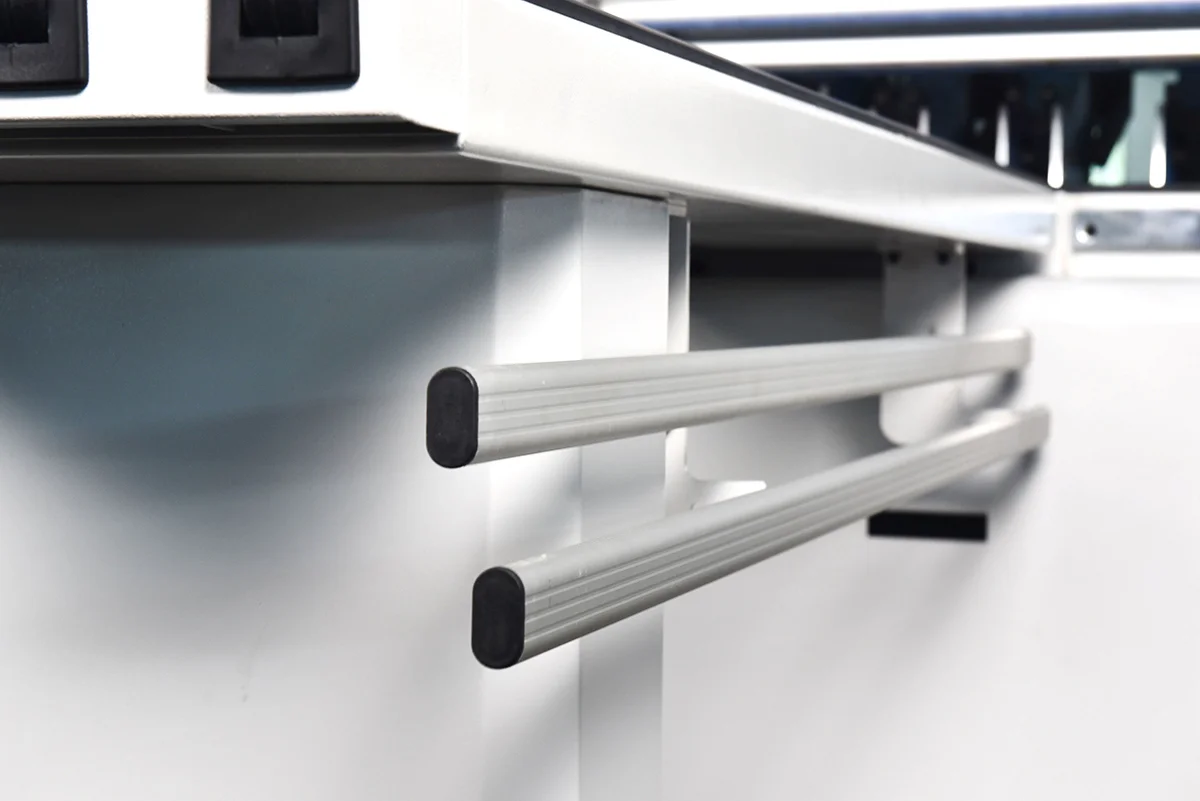

Longitudinal lever - Longitudinal lever for switching on/off the cutting cycle .

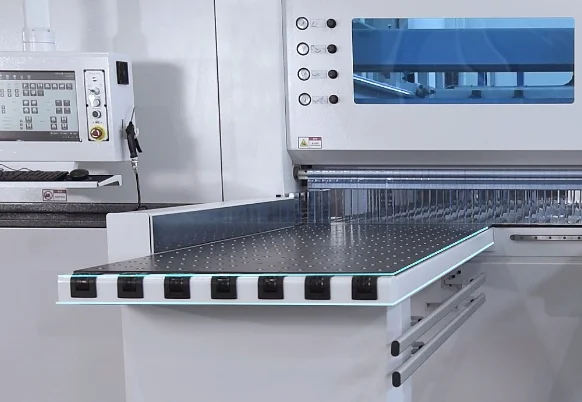

large main desktop - The main working table is increased to 2200*800 mm .

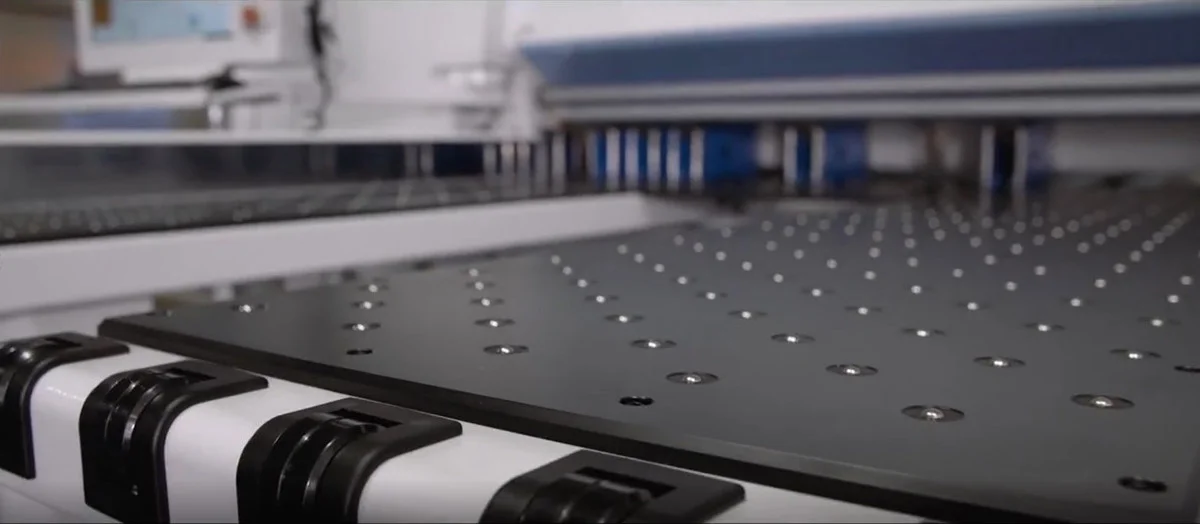

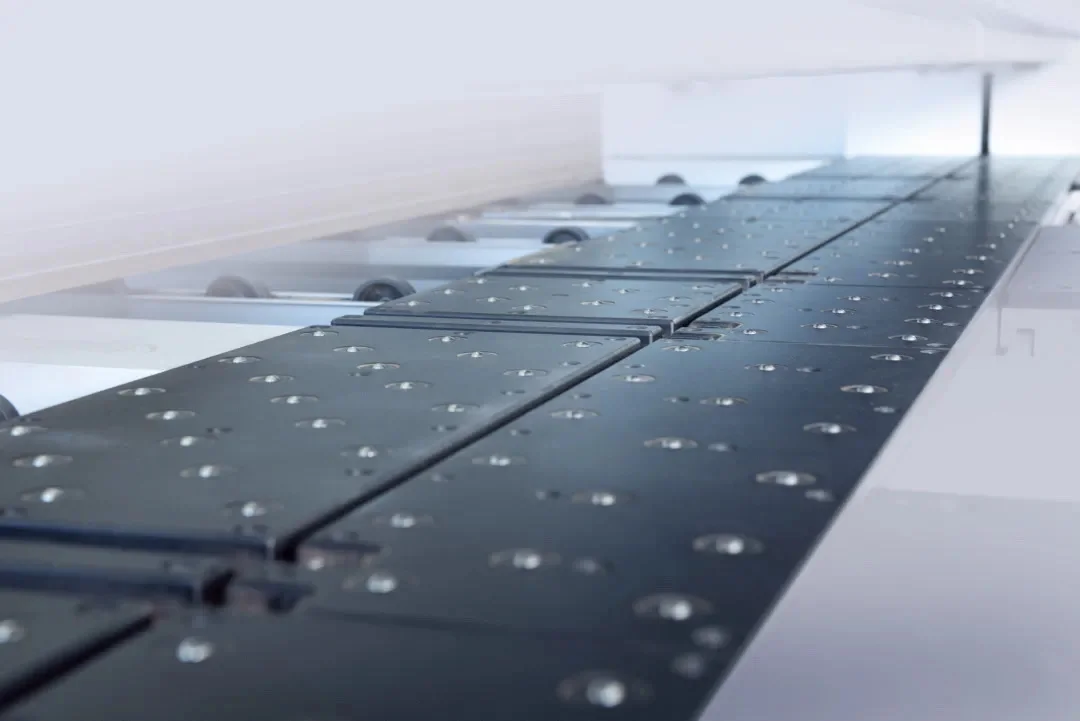

work tables with air cushion for workpiece feeding - Four air-cushioned worktables allow the operator to effortlessly position the stack of materials and remove finished parts from the machine .

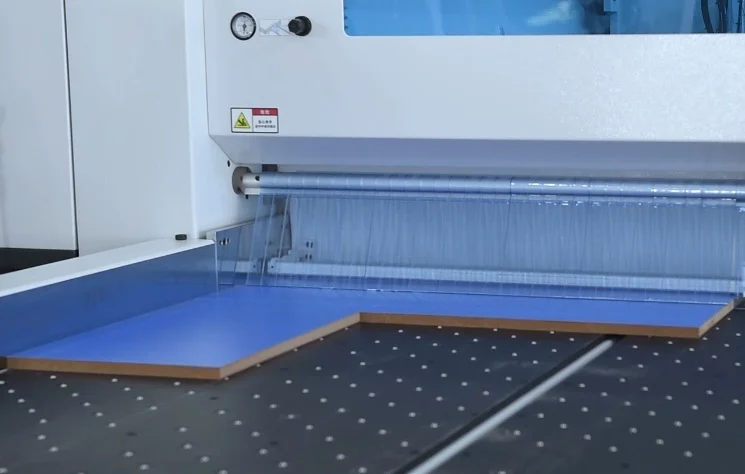

cut zone - Air cushion tables are installed in the cutting area, which greatly facilitates the work with small parts and protects them from damage .

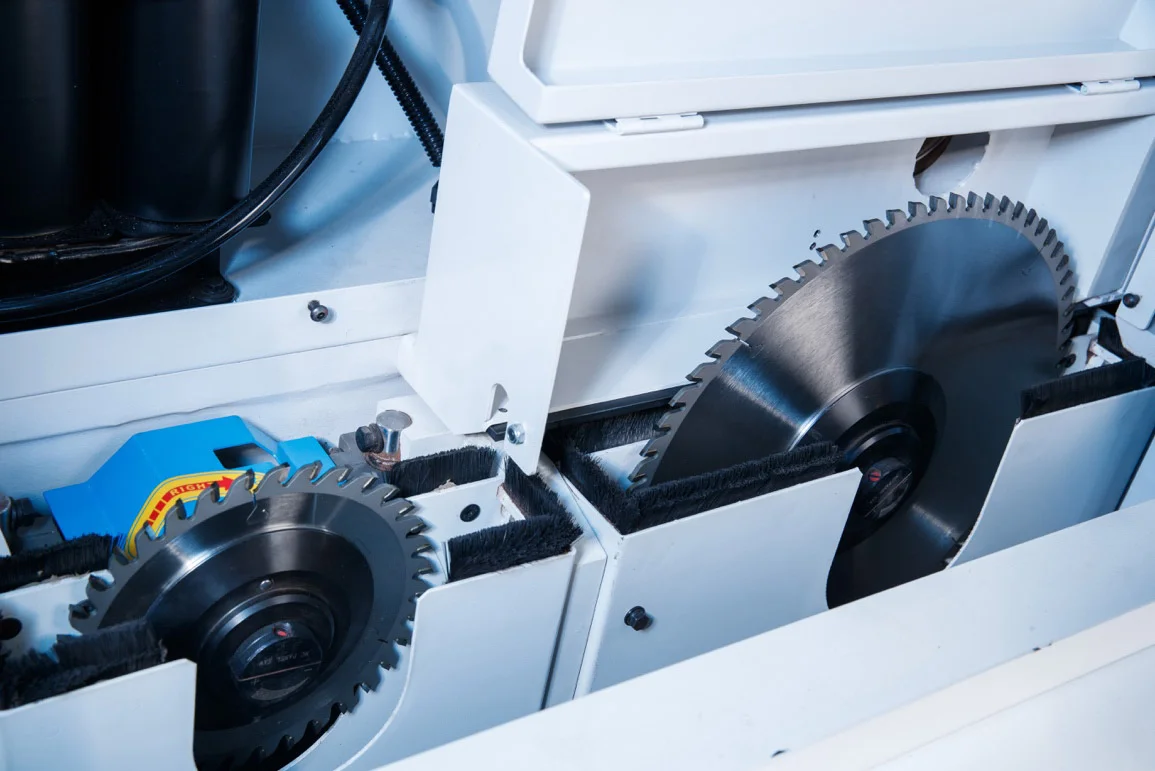

individual engines - Separate motors for main and scoring saw. Quick and easy blade change (patented by KDT) .

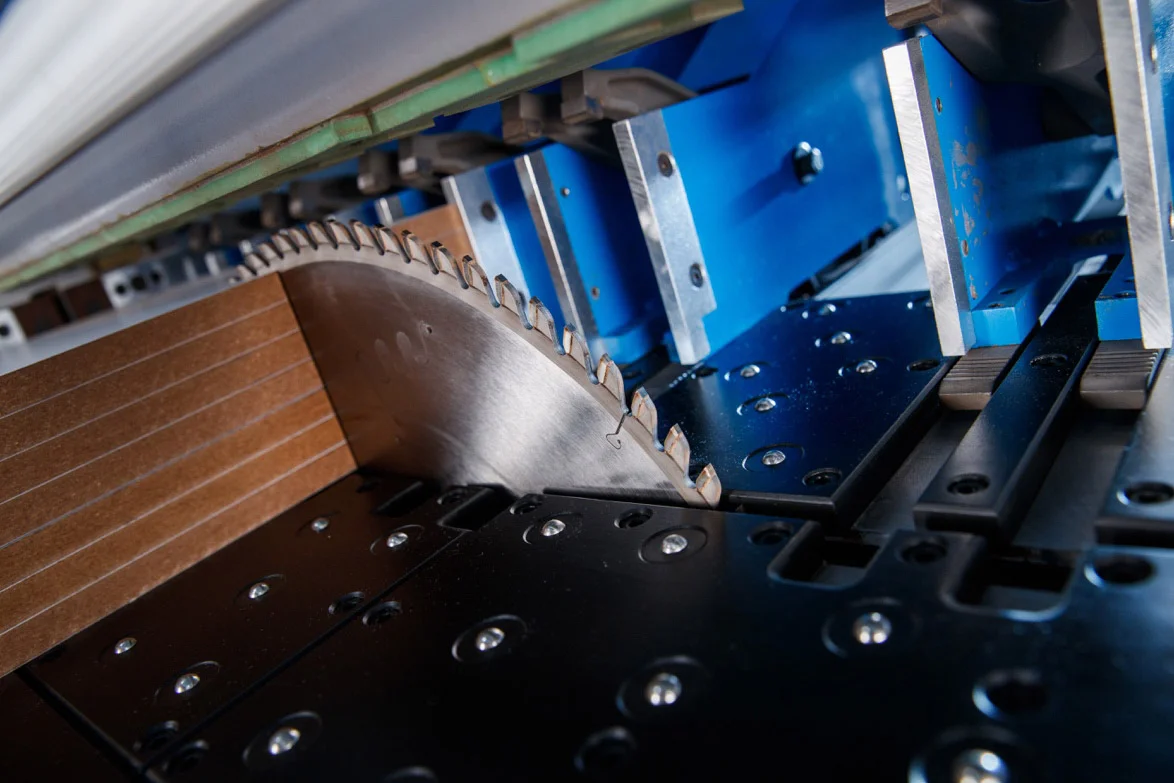

saw blade height - Automatic adjustment of the height of the main saw and the departure of the pressure beam according to the height of the package being cut .

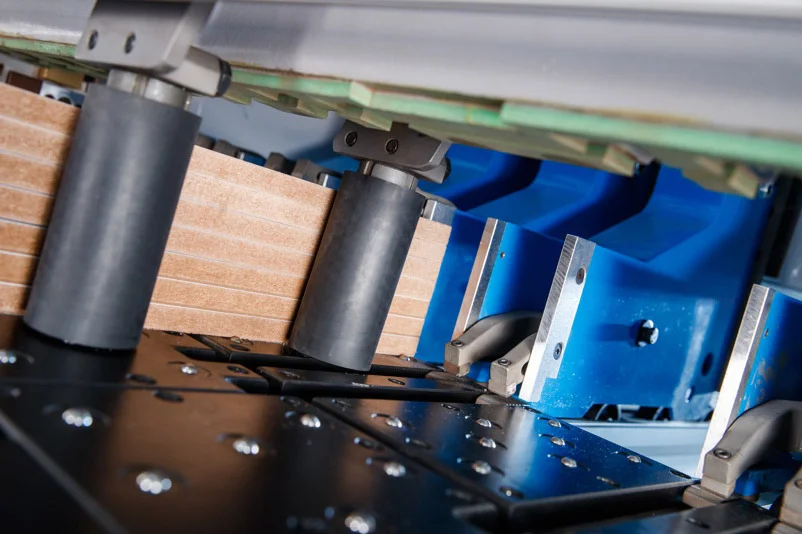

pressure beam - The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the stack cutting. Equipped with an injury protection system .

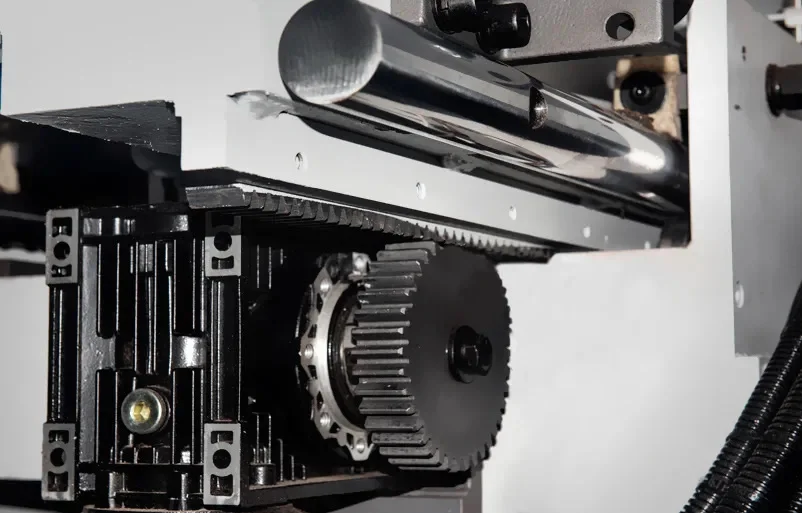

saw carriage movement - The movement of the saw carriage occurs due to a spur rack and gear using a servomotor. This ensures greater cutting accuracy up to +-0.1 mm .

saw carriage speed - The maximum idle speed of the saw carriage isup to 200 m/min .

side clamps for workpiece alignment - Side stops precisely position narrow strips along the side ruler when cutting them into finished parts .

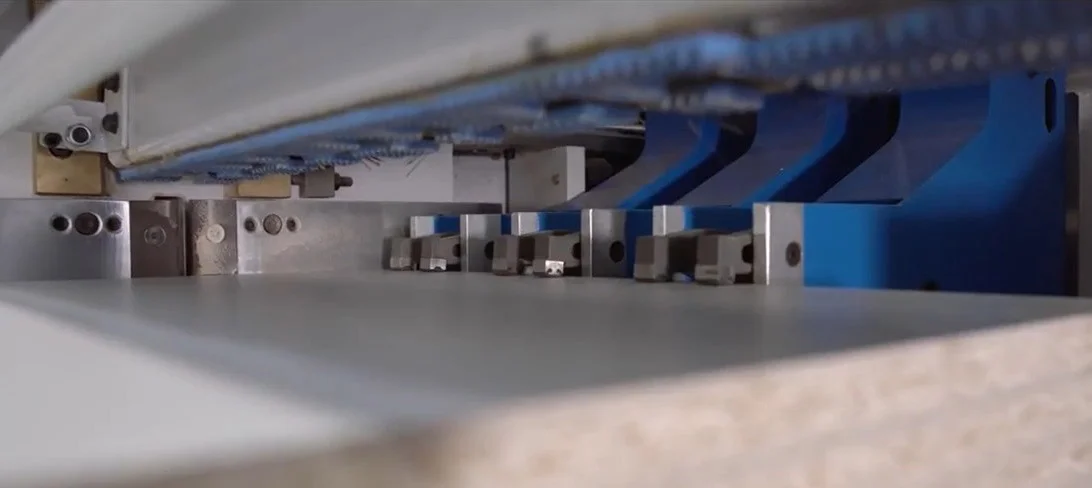

special grip design - The special design of the grippers does not damage the material during its fixation and movement .

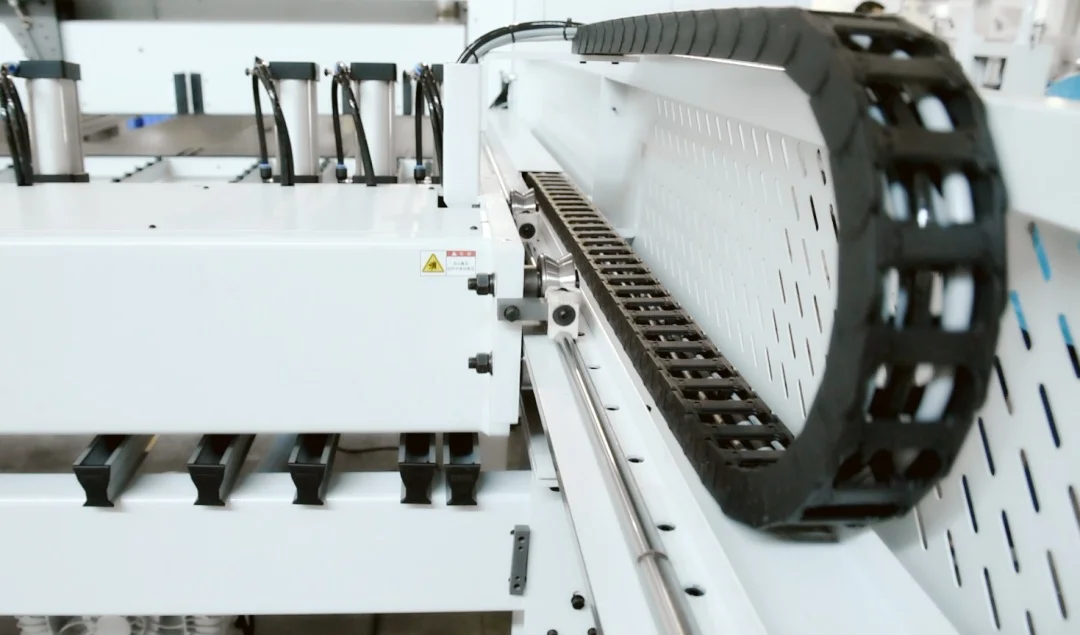

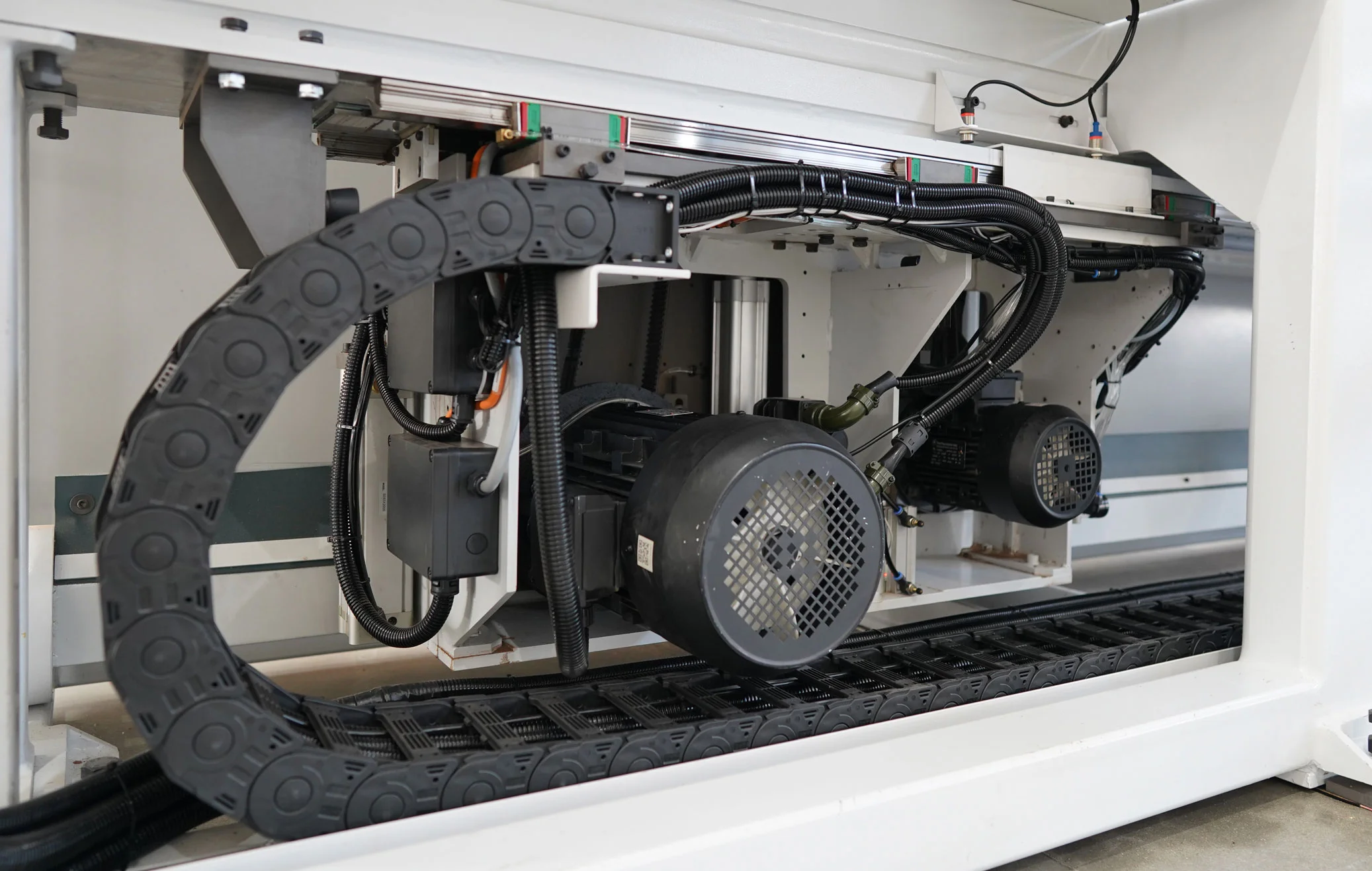

flexible cable channel - Flexible and durable cable channel provides stable and fast movement of the pusher with pneumatic grips .

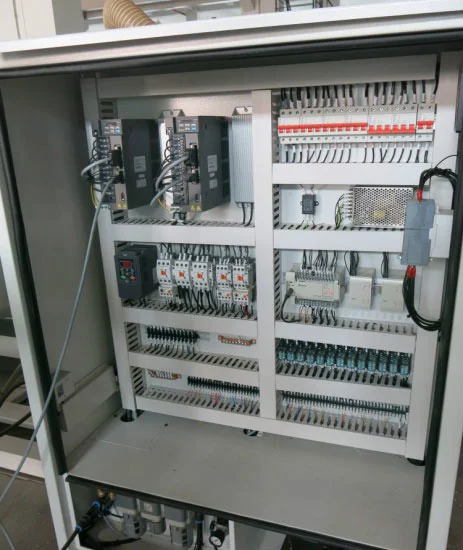

electrical components - Electrical components comply with CE standards .

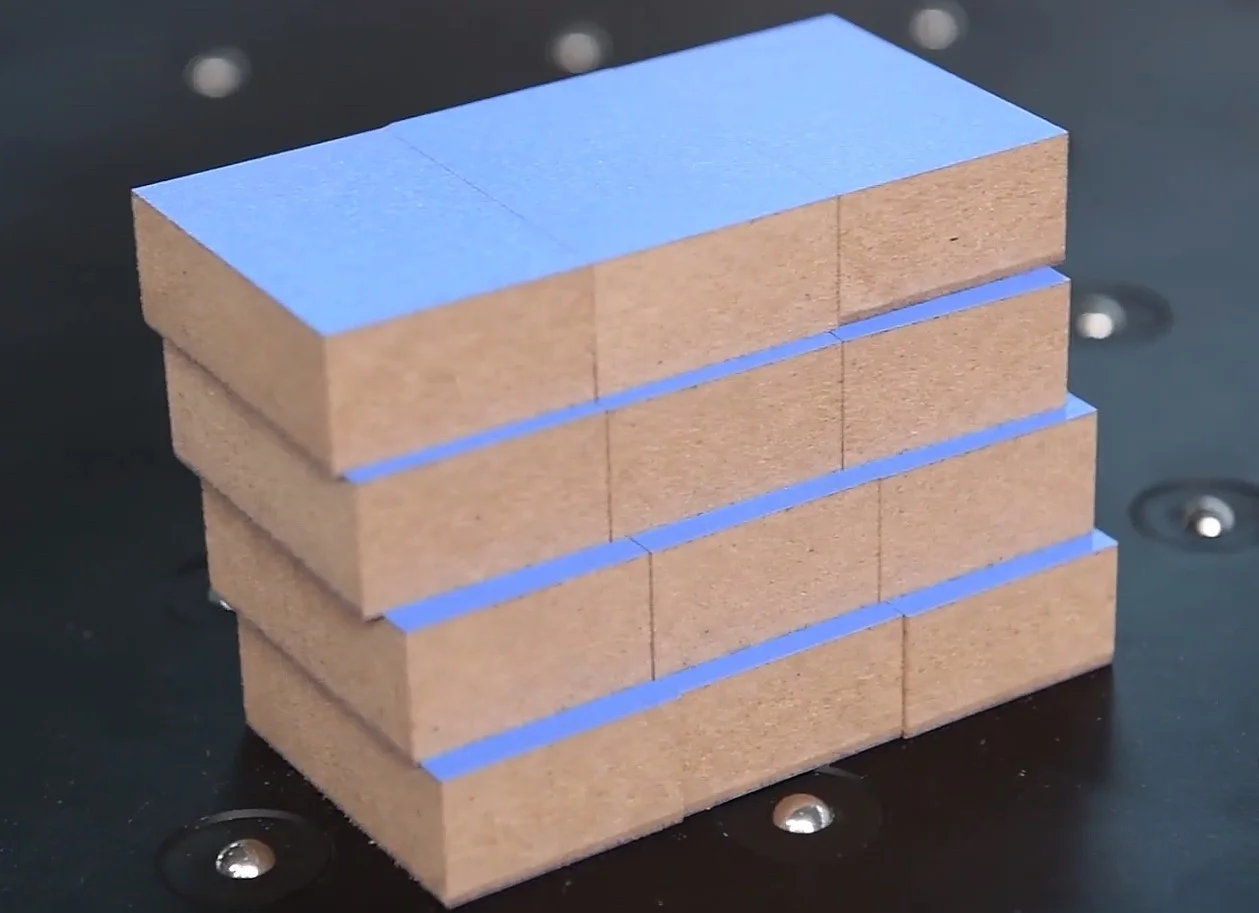

minimum workpiece size - The minimum workpiece size is 34x45 mm .
