CNC panel saw/beam saw KS-828C

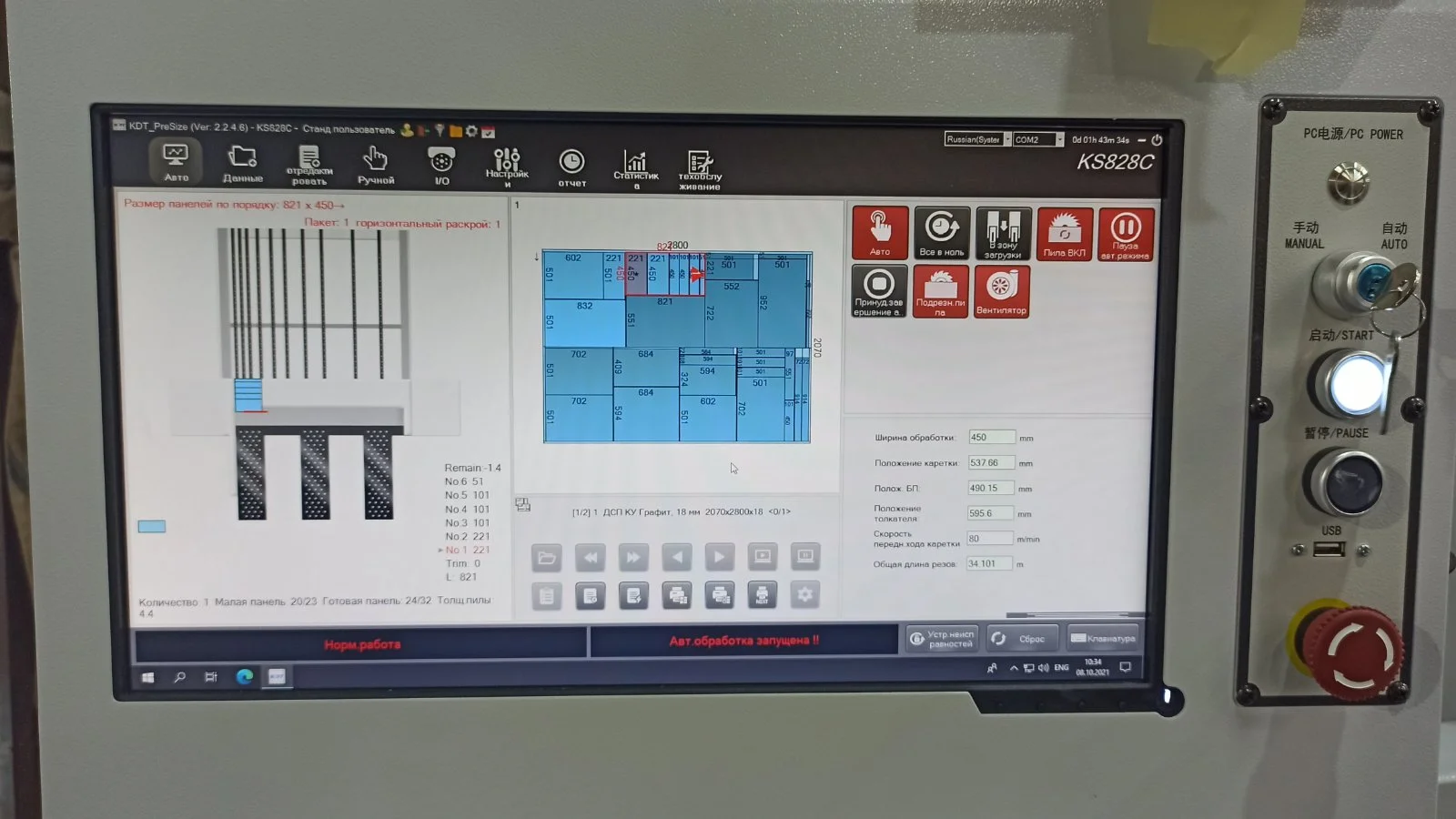

PC machine control - An industrial computer based on Windows 10 ensures reliable operation of the CNC system .

cutting optimizer - Ability to work with all popular programs for optimizing cutting charts and printing labels .

Longitudinal lever - Longitudinal lever for switching on/off the cutting cycle .

air cushion work tables - The working tables are equipped with an air cushion system to facilitate the positioning of workpieces .

cut zone - Air cushion tables are installed in the cutting area, which greatly facilitates the work with small parts and protects them from damage .

individual engines - Separate motors for main and scoring saw .

saw blade height - Automatic adjustment of the height of the main saw and the departure of the pressure beam according to the height of the package being cut .

pressure beam - The force of the clamping beam is controlled by the system and corresponds to the thickness or height of the stack cutting. Equipped with an injury protection system .

saw carriage movement - The movement of the saw carriage occurs due to a spur rack and gear using a servomotor. This ensures greater cutting accuracy up to +-0.1 mm .

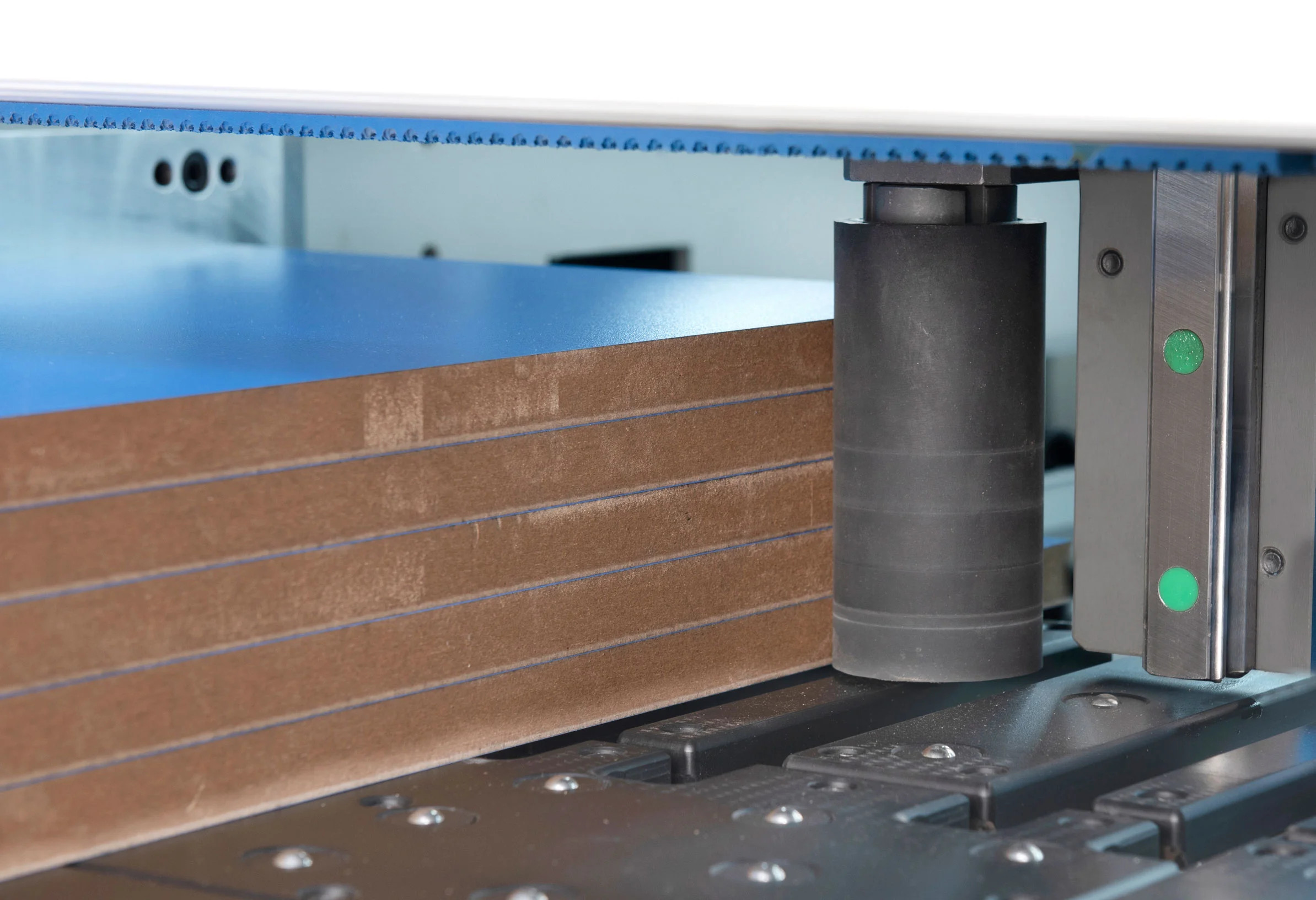

lateral straightener in the cutting area - The side aligner accurately positions narrow strips along the side ruler when cutting them into finished parts .

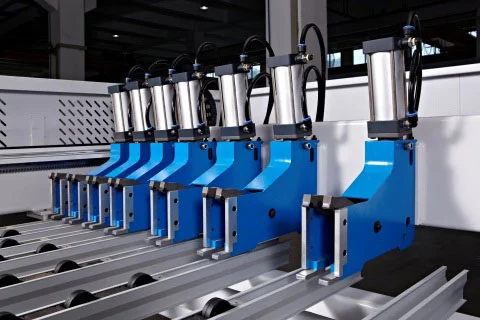

programmable pusher - The programmable pusher is equipped with seven two-finger pneumatic grippers, which guarantees a secure fixation of the workpiece package .

special grip design - The special design of the grippers does not damage the material during its fixation and movement .

flexible cable channel - Flexible and durable cable channel provides stable and fast movement of the pusher with pneumatic grips .

electrical components - Electrical components comply with CE standards .

minimum workpiece size - The minimum workpiece size is 34*45 mm .
