Technical Specifications
| Maximum dimensions of the material to be cut, mm | 3120x3200 |
| Main saw diameter, mm | 300 (350 optional)/30 |
| Frequency of rotation of the main saw, rpm | 4000/5000 |
| Main saw drive power, kW | 5.5 |
| Scoring saw diameter, mm | 120/22 |
| Scoring saw speed, rpm | 8600 |
| Saw blade tilt | 0-45° |
| Scoring saw drive power, kW | 1.1 |
| Maximum cutting height – 90°, mm | 80 (100 optional) |
| The maximum distance of the longitudinal stop from the saw blade | 1250 |
| Dimensions of the movable carriage, mm | 3200x430 |
| Diameter of a branch pipe for aspiration, mm | 85/100 |
| Weight, kg | 1000 |
| Dimensions LxWxH, mm | 3350x3450x1510 |
Sliding table panel saw KS-132K
Purpose :
Sliding table panel saw KS-132K with a servo drive is designed for fine cutting of sheet material (LDSTP, MDF, plywood, glued solid wood panels, plastics, etc.) into blanks according to specified dimensions. It is recommended for enterprises producing furniture and joinery, it is allowed to use it in multi-shift operation.
Distinctive features :
Rip fence with servomotor for setting the size; A digital counter is installed on the transverse stop; Roller carriage - guarantees the highest quality of cutting, no backlash when the carriage moves, smoothness and ease of movement for the entire life of the machine; The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them; Powerful saw carriage, made of aluminum multi-cellular profile with a working part width of 430 mm; Own electric motors for the scoring and main saw 1.
powerful machine bed - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .

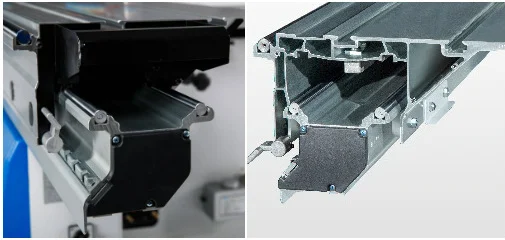

robust roller carriage - Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine .
saw unit with separate motors - The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them .
HIWIN bearings and guides - Linear bearings and guides from the Taiwanese company HIWIN .

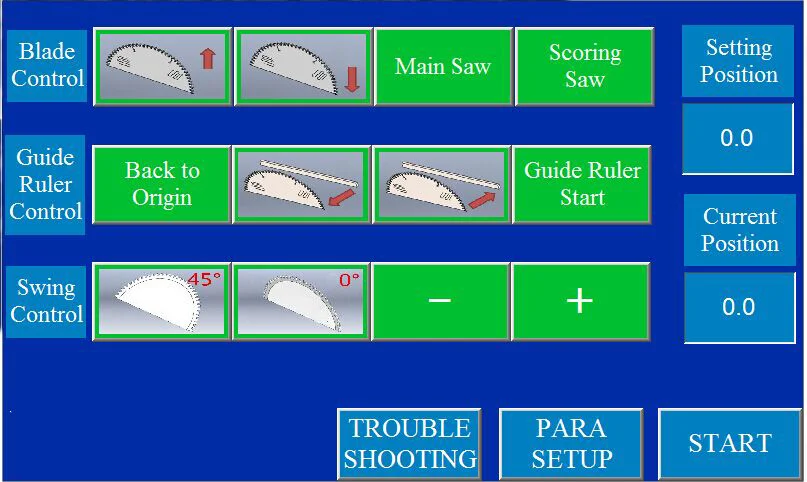

machine control panel - The touch screen control system (TouchScreen) provides the maximum convenience of work on the machine .

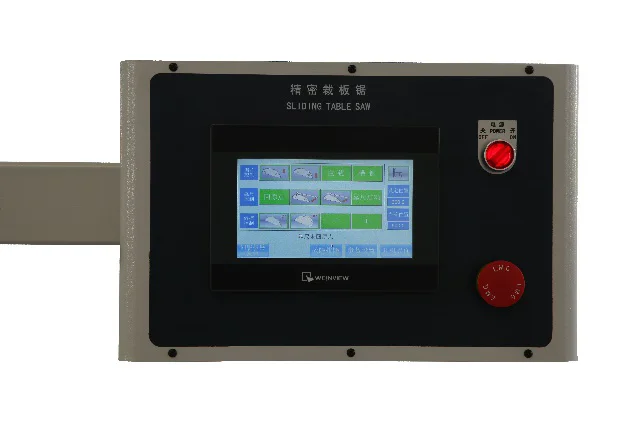

touch control panel - The control of the parallel fence (setting the cutting width) is also carried out from the remote control .

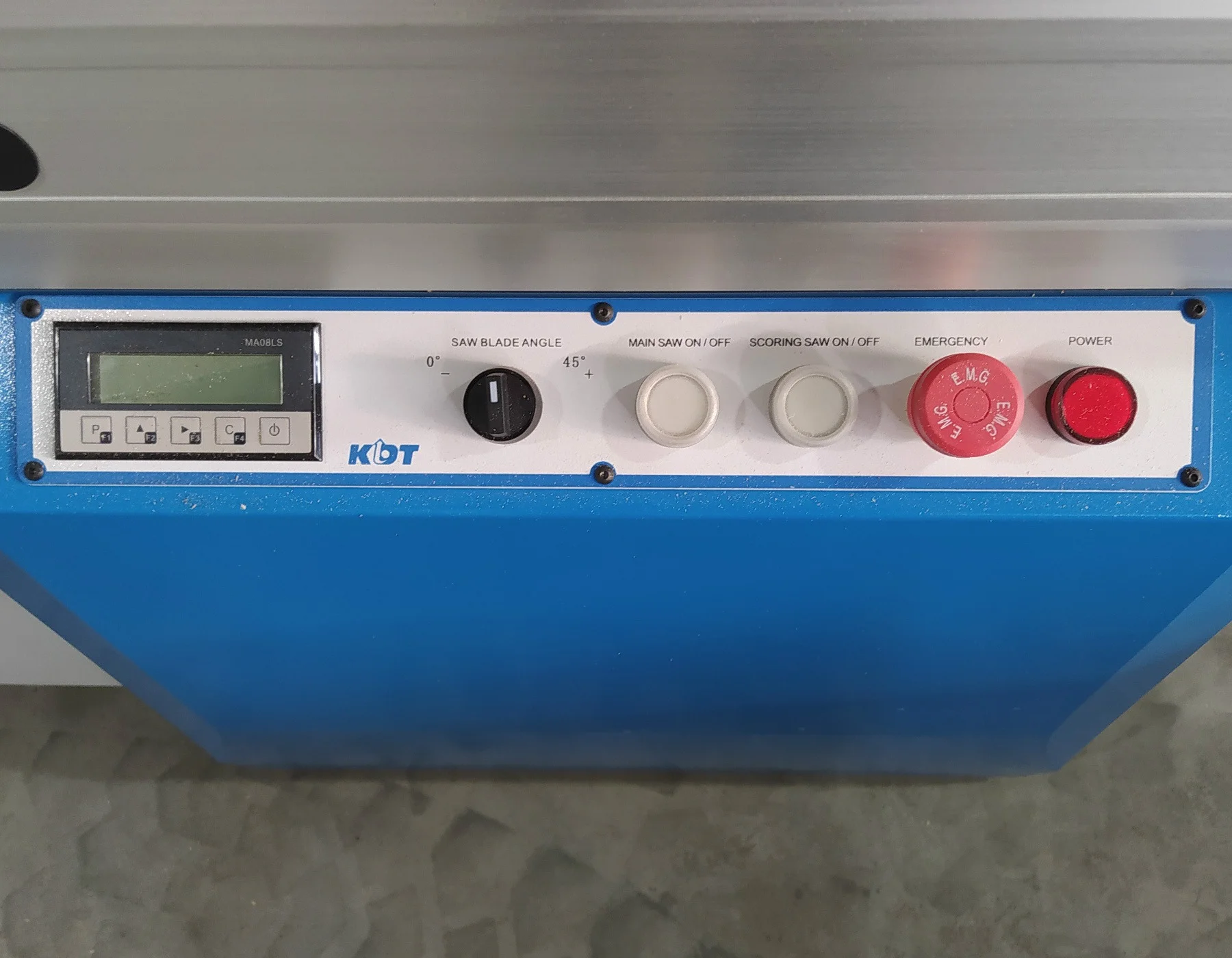

additional control panel - An additional control panel on the frame allows you to quickly turn on and off the motors of the main and scoring saws, as well as adjust the angle of inclination (displayed on the electronic display) .
undercut adjustment - Horizontal adjustment knob for the scoring saw .
comfortable handle setting the saw - The convenient handle of adjustment of a scoring saw on height, allows to carry out fast adjustment of knot .
full size tables - Full-format additional tables allow you to open sheets of various sizes .

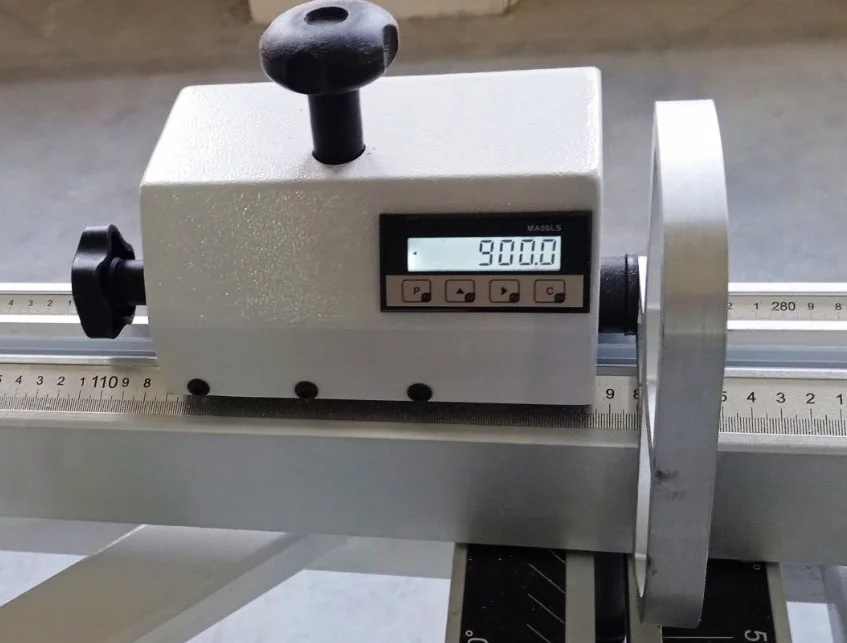

electronic ruler with rip fence - The transverse stop (ruler) is equipped with two folding stops-flags, one of which has an electronic digital display for quick and precise adjustment to the required size .
cross angle for sawing at an angle of 45 degrees - If required, the crosscut fence can be rotated from 0 – 45° for miter cuts .

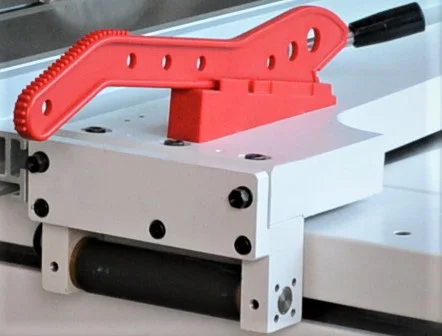

longitudinal stop with pusher - The longitudinal stop allows you to quickly and accurately set the desired value. Pusher for safe work with narrow workpieces .

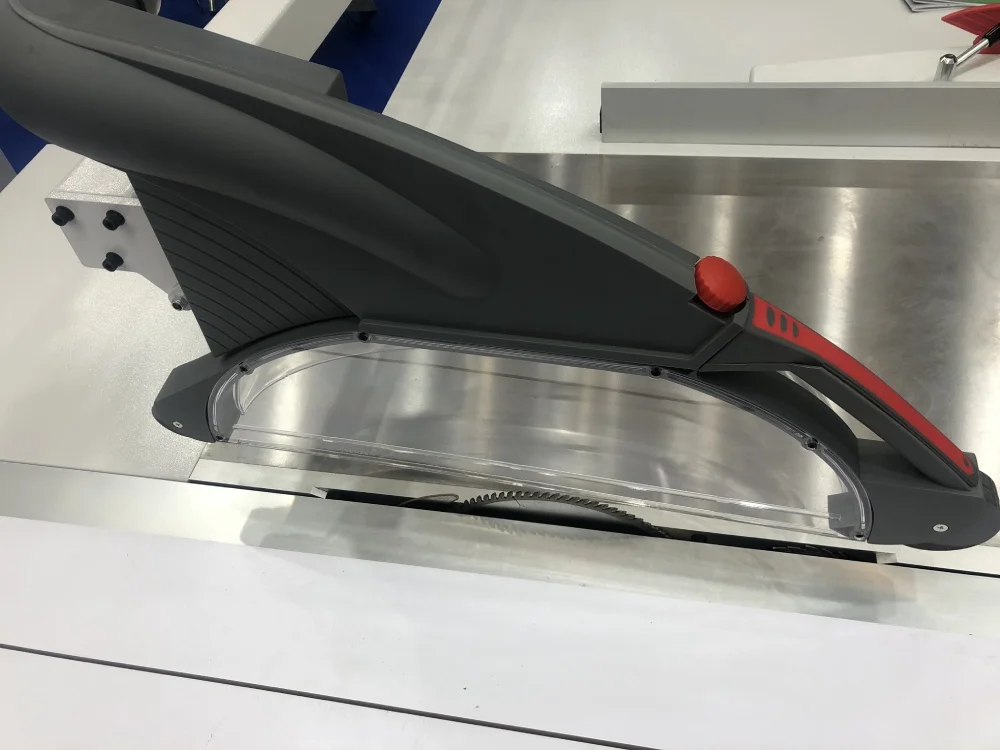

longitudinal stop with pusher - The transparent CE guard provides visual control of the cut, as well as excellent removal of sawdust from the cutting area .
suction pipe - The main sawdust outlet is located in the engine compartment .

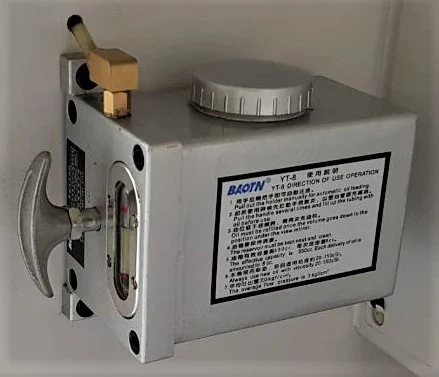

central lubrication - The centralized lubrication system lubricates all units and assemblies that require maintenance .
Leitz saws included - The machine is completed with the Leitz cutting tool .
tool included - Tool kit for machine maintenance .
Technical Specifications
| Maximum dimensions of the material to be cut, mm | 3120x3200 |
| Main saw diameter, mm | 300 (350 optional)/30 |
| Frequency of rotation of the main saw, rpm | 4000/5000 |
| Main saw drive power, kW | 5.5 |
| Scoring saw diameter, mm | 120/22 |
| Scoring saw speed, rpm | 8600 |
| Saw blade tilt | 0-45° |
| Scoring saw drive power, kW | 1.1 |
| Maximum cutting height – 90°, mm | 80 (100 optional) |
| The maximum distance of the longitudinal stop from the saw blade | 1250 |
| Dimensions of the movable carriage, mm | 3200x430 |
| Diameter of a branch pipe for aspiration, mm | 85/100 |
| Weight, kg | 1000 |
| Dimensions LxWxH, mm | 3350x3450x1510 |
