Technical Specifications
| Maximum dimensions of the material to be cut, mm | 3120x3200 |
| Main saw diameter, mm | 300 (350 optional)/30 |
| Frequency of rotation of the main saw, rpm | 4000/5000 |
| Main saw drive power, kW | 5.5 |
| Scoring saw diameter, mm | 120/22 |
| Scoring saw speed, rpm | 8600 |
| Saw blade tilt | 0-45° |
| Scoring saw drive power, kW | 1.1 |
| Maximum cutting height – 90°, mm | 80 (100 option) |
| The maximum distance of the longitudinal stop from the saw blade | 1250 |
| Dimensions of the movable carriage, mm | 3200x430 |
| Diameter of a branch pipe for aspiration, mm | 60/100 |
| Weight, kg | 900 |
| Dimensions LxWxH, mm | 3350x3450x1510 |
Sliding table panel saw KS-132
Purpose :
Sliding table panel saw KS-132 with an inclination of the saw unit is designed for fine cutting of sheet material (LDSTP, MDF, plywood, glued solid wood panels, plastics, etc.) into blanks according to specified dimensions. It is recommended for enterprises producing furniture and joinery, it is allowed to use it in multi-shift operation.
Distinctive features :
Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine.
powerful machine bed - The machine bed was developed taking into account CAD programs, where the maximum allowable loads and requirements for the machine design were calculated and simulated .
robust roller carriage - Roller carriage - guarantees the highest quality of cutting, no backlash when moving the carriage, smoothness and ease of movement for the entire life of the machine .
saw unit with separate motors - The large metal consumption of the saw unit significantly increases the durability of the units, since there is practically no vibration on them .
HIWIN bearings and guides - Linear bearings and guides from the Taiwanese company HIWIN .
automatic raising and lowering of the main saw - Machine control panel with electric lifting and lowering of the main saw. Provides quick saw unit settings .
saw blade tilt - The angle of inclination of the saw unit 0-45° is set using a digital display, which ensures high positioning accuracy .
undercut adjustment - Horizontal adjustment knob for the scoring saw .
comfortable handle setting the saw - A convenient handle for adjusting the scoring saw in height allows for quick adjustment of the assembly .
full size tables - Full-format additional tables allow you to open sheets of various sizes .

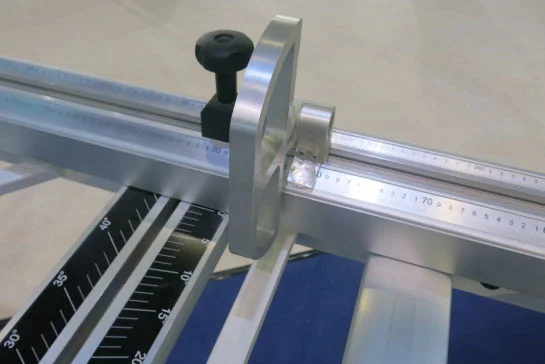

ruler with parallel stop - The transverse stop (ruler) is equipped with folding stops with optical lenses for quick and precise adjustment to the required size .

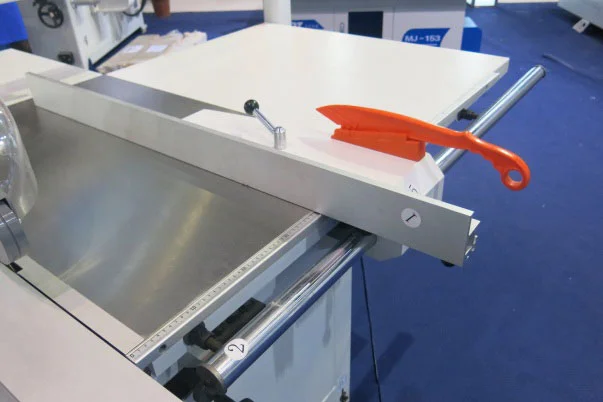

longitudinal stop with pusher - The longitudinal stop allows you to quickly and accurately set the desired value. Pusher for safe work with narrow workpieces .
suction pipe - The main sawdust outlet is located in the engine compartment .
central lubrication - The centralized lubrication system lubricates all units and assemblies that require maintenance .
Leitz saws included - The machine is completed with the Leitz cutting tool .
tool included - Tool kit for machine maintenance .
Technical Specifications
| Maximum dimensions of the material to be cut, mm | 3120x3200 |
| Main saw diameter, mm | 300 (350 optional)/30 |
| Frequency of rotation of the main saw, rpm | 4000/5000 |
| Main saw drive power, kW | 5.5 |
| Scoring saw diameter, mm | 120/22 |
| Scoring saw speed, rpm | 8600 |
| Saw blade tilt | 0-45° |
| Scoring saw drive power, kW | 1.1 |
| Maximum cutting height – 90°, mm | 80 (100 option) |
| The maximum distance of the longitudinal stop from the saw blade | 1250 |
| Dimensions of the movable carriage, mm | 3200x430 |
| Diameter of a branch pipe for aspiration, mm | 60/100 |
| Weight, kg | 900 |
| Dimensions LxWxH, mm | 3350x3450x1510 |
